COOKTOP PARTS
1
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black) (Pure White) (Stainless)
2−11 Litho in U.S.A. (JMJ) (eeb) Part No. W10283311 Rev. B
30" FREE STANDING
ELECTRIC OVEN
SELF CLEAN
COOKTOP PARTS
2W10283311
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10118260
Installation
Instructiions
W10190622
Use & Care Guide
W10220962
Tech Sheet
9763467 Easy Set Guide
9757680 Anti−Tip
Instructions
Safe Cooking Tips
9762761 English
W10065852
French
2 9762768 Clip, Retainer (3)
3 9761784 Frame, Cooktop
Side
4 Cooktop
W10110276
Black/Stainless
W10110274
White
6 Trim, Cooktop
Right
W10110687
Black
W10110685
White
W10140550
Stainless
Left
W10110682
Black
W10110680
White
W10140549
Stainless
7
W10076030
Gasket (2)
8 8523739 Light, Indicator
9 9759944 Thermostat
10 9756821 Support, Wiring
11 9757825 Rail, Element
Center (1)
12 Element, Surface
8523696 RF
W10203294
LR
4453909 LF, RR
13 9761423 Frame, Cooktop
Front
14 3196537 Screw
15 341196 Thermostat
16 3179559 Screw
17 9758799 Bracket, Indicator
Lamp
18 Backsplash
W10109750
Black
W10109740
White
W10156267
Stainless
19 9759094 Spring, Locator
20 9761783 Frame, Cooktop
Rear
21 9763517 Rail, Element (3)
22 246119 Screw
23 9761724 Cover, Cooktop
Rear
24 Gasket, Backsplash
9763483BL
Black/Stainless
9763483GY
White/Biscuit
25 Glass, Backsplash
9761749BL
Black/Stainless
9761749WH
White
26
W10153092
Panel, Backsplash
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black) (Pure White) (Stainless)
OVEN PARTS
3
W10283311
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black) (Pure White) (Stainless)
OVEN PARTS
4W10283311
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Trim, Side
Right
W10109540
Black
W10109570
White
W10140548
Stainless
Left
W10109490
Black
W10109520
White
W10140547
Stainless
2 3400832 Screw
3 Hinge Receiver
4455606 Right
4455605 Left
4
W10105790
Bumper, Door (2)
5 3196537 Screw
6 3179559 Screw
7 8303099 Top Chassis
8 4449809 Screw
9 4452158 Tube, Vent
10
W10067870
Lens, Light (2)
11
W10009930
Oven Light,
Assembly (2)
12 4452166 Bulb, Light (2)
13 4449154 Screw
14
W10115831
Frame, Front
15
W10074200
Gasket, Door
16 9757829 Bracket,
Transformer
17 4452152 Bracket, Mounting
18 9757685 Guide, Side Panel
19 4451478 Support, Insulation
20 Body, Side
9760723PB
Black/Stainless
9760723PW
White
21 9757461 Bracket,Side Panel
22
W10195934
Latch, Motorized
23 9759242 Thermostat
24 9757811 Brace, Side Panel
25 4455641 Side, Chassis
26 9759761 Back, Chassis
27 Liner, Oven
(Not Serviceable)
28 9759890 Clip, Side Panel
29
W10131825
Sensor
31 3196176 Screw
33 9759713 Base, Chassis
34 4448933 Retainer, Gasket
35 4448444 Grommet,
Mounting Rail
36 Vent, Bottom Upper
Assembly
W10116899
Black
W10116897
White
W10160347
Stainless
37 Vent, Bottom Lower
W10153486
Black
W10153488
White
W10154789
Stainless
38 4449743 Screw
41
W10111628
Transformer,
Control
43 3400080 Screw
44
W10165135
Box, Terminal
45 9757405 Cover, Termianl
Box
46 9759721 Insulator,
Termianl Box
47 9761958 Block, Terminal
48
W10181438
Appliance,
Manager
49
W10083460
Slide, GOC
50 9756454 Bracket, Appliance
Manager
51 9759884 Insulation
52 9759722 Insulation, Body
Side
53 9760481 Washer
54 9758583 Cover, Back
55 9759885 Pad,
Insulation(2)
56 9759945 Standoff, Rear
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
9756817 Insulation, Wrap
9756470 Insulation, Back
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black) (Pure White) (Stainless)
DOOR PARTS
5
W10283311
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black) (Pure White) (Stainless)
DOOR PARTS
6W10283311
Illus. Part
No. No. DESCRIPTION
1 9759413 Panel, Door
2 9757706 Glass, Inner
3 4451722 Insulation, Door
4 4457132 Retainer, Glass
5 Hinge, Oven Door
9760579 Right
9760580 Left
6 9759225 Glass, Inner
7 4457114 Shield, Heat
Bottom
8 9759229 Bracket, Glass
Side
9 4457104 Shield, Heat Top
10 9759225 Glass, Inner Door
11 9759230 Bracket, Central
12 Bracket, Handle
9763497 Right
9763496 Left
13 Badge
8304603BL
Black
8304603WH
White
8304603SS
Stainless
14 Assembly, Door
Kit
W10131888
Black
W10131889
White
W10155557
Stainless
15 Handle, Door
8303774BL
Black
8303774WH
White
8303774SS
Stainless
16 3196184 Screw
19 4448520 Bumper, Door
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black) (Pure White) (Stainless)

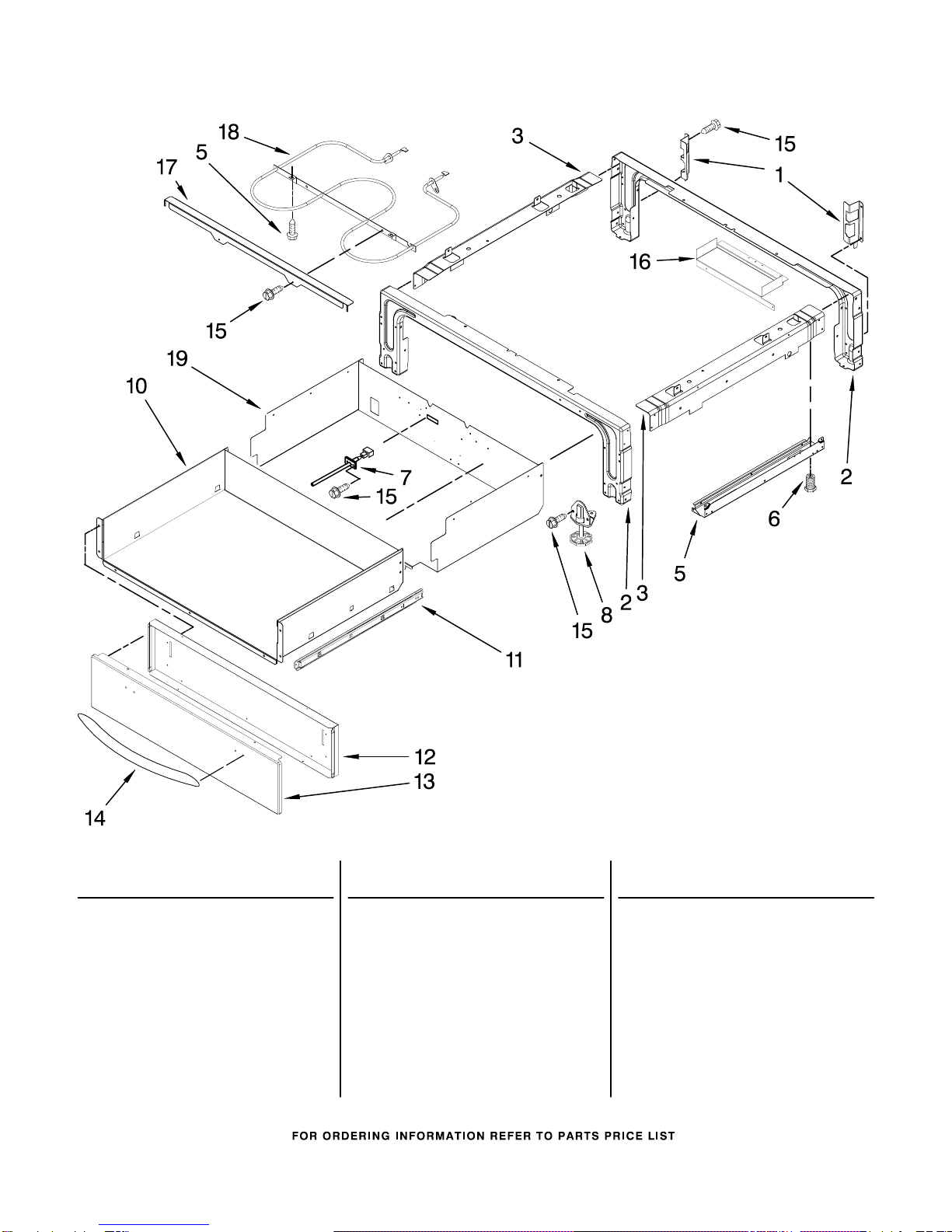

DRAWER PARTS
7
W10283311
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Support, Drawer
Rail
9757687 Right
9757686 Left
2
9763501BL
Support, Front
& Rear
3 Brace, Drawer
4453720 Right
4453721 Left
5 Side, Base
9759953 Right
9759954 Left
6
W10058460
Foot
7 8274149 Thermistor
8 3196037 Foot Assembly
10
W10164164
Drawer
11 Drawer Slide
W10155633
Right
W10155632
Left
12
W10144431
Panel, Drawer
13 Front, Drawer
W10203760
Black
W10203762
White
W10203763
Stainless
14 Handle, Drawer
9761573BL
Black
9761573WH
White
9761573SS
Stainless
15 3196537 Screw
16
W10153100
Cover, Terminal
17 9758676 Support, Element
18 9760775 Element, Warming
Drawer
19 9763518 Enclosure, Warming
Drawer
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black) (Pure White) (Stainless)
CONTROL PANEL PARTS
8W10283311
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Control Panel
9761551BL
Black
9761551WH
White
W10156268
Stainless
2 Switch, Infinite
9763761 RF
9763762 LR,LF,RR
3
W10181439
Control, Electric
4
W10105370
Shield, Console
Vent
5 3196068 Lens, Indictor (2)
6 3179559 Screw
7 9761745 Bracket,
Thermostat (2)
8
W10116195
Gasket, Vent
Shield
9 Knob
RF
W10193259
Black
W10193257
White
W10156261
Stainless
LR,LF,RR
W10193255
Black
W10193253
White
W10156260
Stainless
10 3196537 Screw
11 9780271 Screw
12
W10109430
Gasket, Console
13 9761566 Membrane, Switch
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black) (Pure White) (Stainless)
INTERNAL OVEN PARTS
9
W10283311
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 9760774 Element, Broil
2 4449154 Screw
6
W10179152
Rack, Oven
7 9760768 Element, Bake
8 9755542 Probe, Meat
9 9760769 Element,
Convection
10 9756690 Cover, Fan
11 4455037 Tray, Hidden Bake
12 4450039 Cover, Bake Tray
13
W10116228
Motor, Convection
14
W10116349
Nut
15
W10116351
Blade, Fan
16 9755543 Jack, Meat Probe
17 9755547 Lock Washer
18 9755546 Hex Nut
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black) (Pure White) (Stainless)
TOP VENTING PARTS
10 W10283311
Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent Top
3 9759320 Blower
4 4451758 Block, Foam
5 4455177 Elbow, Vent Bottom
6
W10143041
Bracket, Terminal
Box
7 4449809 Screw (2)
10 4449040 Screw
11 4455352 Bracket, Blower
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black) (Pure White) (Stainless)
