KitchenAid KEMC378KSS - ARCHITECT Series 27'' Microwave Combination Double Wall... Manuel utilisateur

OVEN PARTS

For Models:KEMC378KBL04, KEMC378KWH04, KEMC378KBT04, KEMC378KSS04

(Black) (White) (Biscuit) (Stainless Steel)

11−06 Litho In U.S.A. (dmm) Part No. 8186460

27" BUILT−IN ELECTRIC

DOUBLE OVEN

THERMAL CONVECTION LOWER

MICROWAVE CONVECTION UPPER

OVEN PARTS

For Models:KEMC378KBL04, KEMC378KWH04, KEMC378KBT04, KEMC378KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186460

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8300653 Installation

Instructions

8304066 Use & Care Guide

(Oven)

8304067 Use & Care Guide

(Microwave)

4450786 Cooking Guide

(Lable)

8303852 Tech Sheet (Oven)

4449264 Easy Set Guide

(Oven)

4451052 Guide, Easy Use

(Microwave)

3191638 Safer Cooking Tips

9759133 Safer Cooking Tips

2 Trim, Side

4455430 RH Black

4455432 RH White

4455434 RH Biscuit

4452083 RH S.Steel

4455431 LH Black

4455433 LH White

4455435 LH Biscuit

4452084 S.Steel

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 4452490 Spacer, Foam

6 Screw

8281236 Black

4449041 White

7 4455864 Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light Assy

12 4452164 Bulb, Light

13 4452336 Insulation,

Bottom Vent

14 4455611 Frame, Front

15 4455381 Gasket, Door

16 9752759 Relay

17 3196176 Screw

18 4449040 Screw

19 4451477 Support, Insulation

20 4451605 Cap, Spacer

21 Rail, Side

4450583 Right Side

4450584 Left Side

22 4449154 Screw

23 4449743 Screw

24 4450038 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452233 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 4448444 Grommet

29 4455636 Sensor

30 4449845 Bracket, Support

32 4452152 Bracket, Mounting

(Bottom Vent)

33 9760676 Deflector, Vent

34 4451666 Vent, Center

35 3400832 Screw

37 9759243 Thermostat (TOD)

(Temp.) SPST

43 4455529 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 Trim, Bottom

4455442 Black

4455444 White

4455446 Biscuit

4455146 Stainless Steel

52 4451755 Chassis, Back

53 4452492 Insulation,

Convection Top

54 4452491 Insulation,

Convection Grill

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

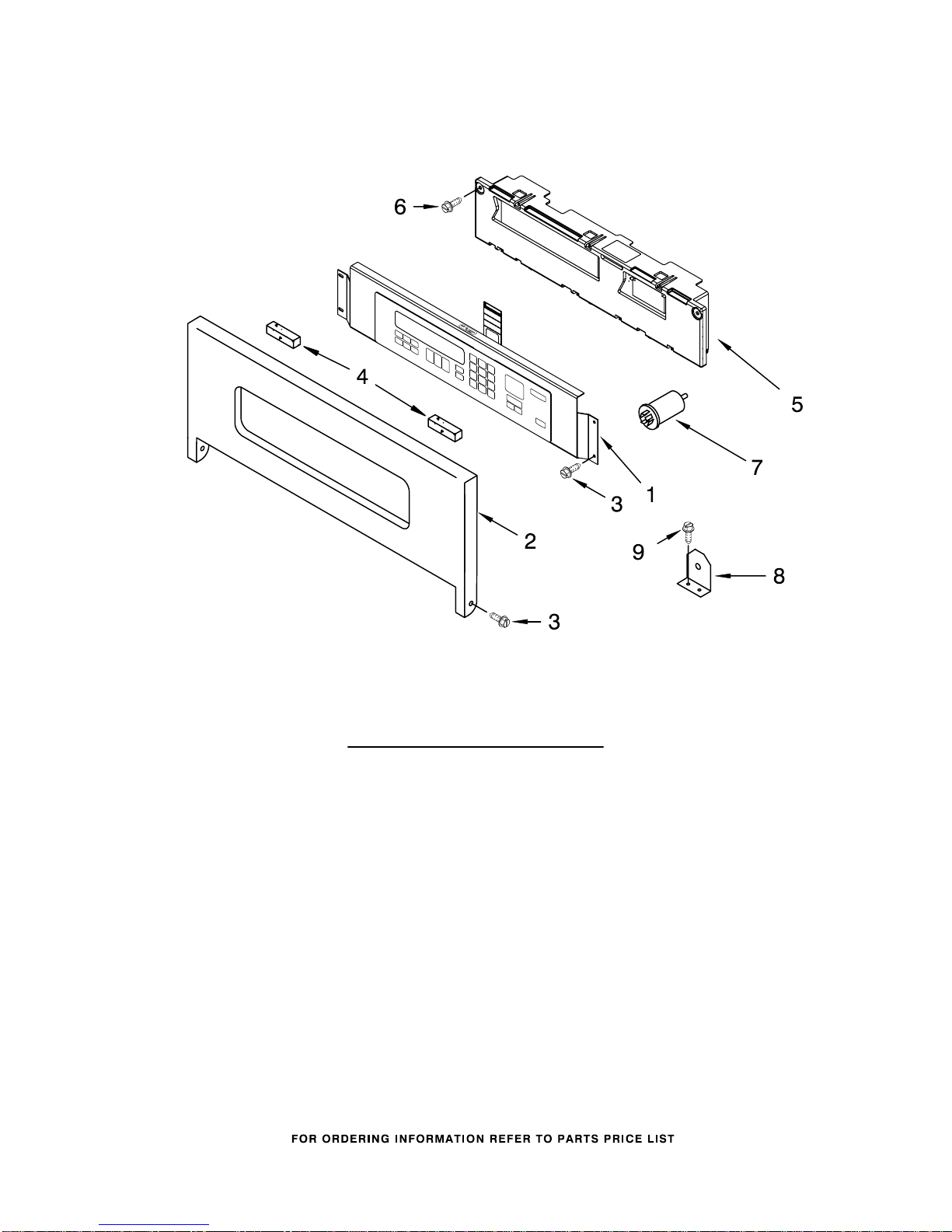

CONTROL PANEL PARTS

For Models:KEMC378KBL04, KEMC378KWH04, KEMC378KBT04, KEMC378KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186460

Illus. Part

No. No. DESCRIPTION

1 Switch, Membrane

8302669 Black

8302673 White

8302671 Biscuit

8302659 Stainless Steel

2 Panel, Control

4452602 Black

4452603 White

4452973 Biscuit

4451790 Stainless Steel

3 3400832 Screw

4 4452260 Spacer, Foam

5 8302346 Assy, Control

6 4449745 Screw

7 4451592 Filter

8 4451632 Bracket, Filter

9 4449809 Screw

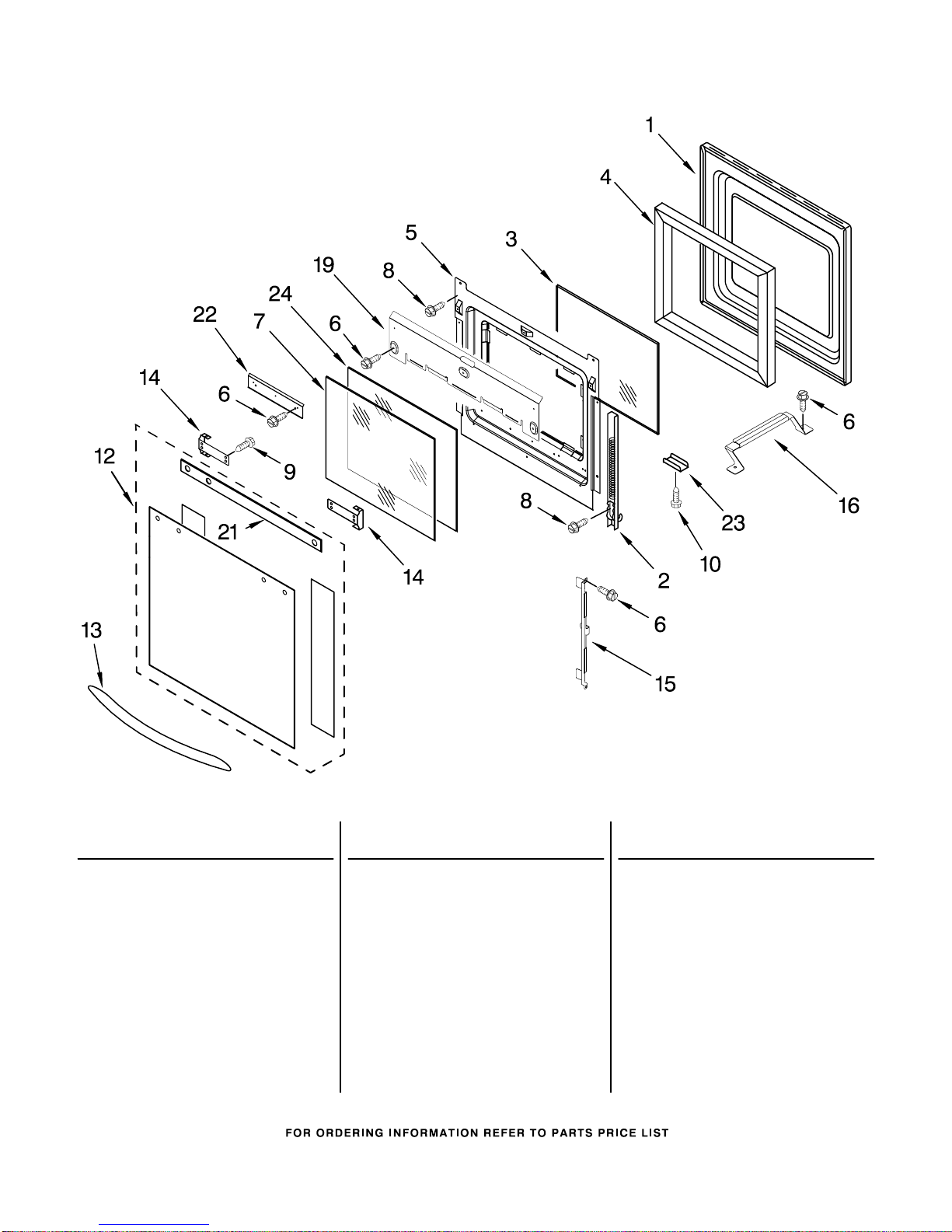

OVEN DOOR PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models:KEMC378KBL04, KEMC378KWH04, KEMC378KBT04, KEMC378KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186460

1 8303699 Door Liner

2 Hinge, Door

9760571 R.Side

9760572 L.Side

9760575 R.Side(S.Stl Mdl)

9760576 L.Side(S.Stl Mdl)

3 4449253 Glass, Inner

4 4451721 Insulation, Door

5 4457131 Retainer, Glass

6 4449809 Screw

7 9759224 Glass, Inner

8 4449743 Screw

9 3196184 Screw

10 3400832 Screw

12 Door Glass, Assy

4455393 Black

4455392 White

4455394 Biscuit

4452315 Stainless Steel

13 Door Handle

4452500 Black

4452501 White

4452870 Biscuit

4455850 Stainless Steel

14 Bracket, Handle

4455803 Right Hand

4455804 Left Hand

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

19 4457102 Shield, Heat

4449809 Screw

21 4452325 Seal, Door Top

22 4457113 Shield, Heat (Btm)

23 Retainer, Glass−Clip

4450863 Black

4450864 White

4452119 Biscuit

4451432 S.Steel

24 9759227 Glass, Inner

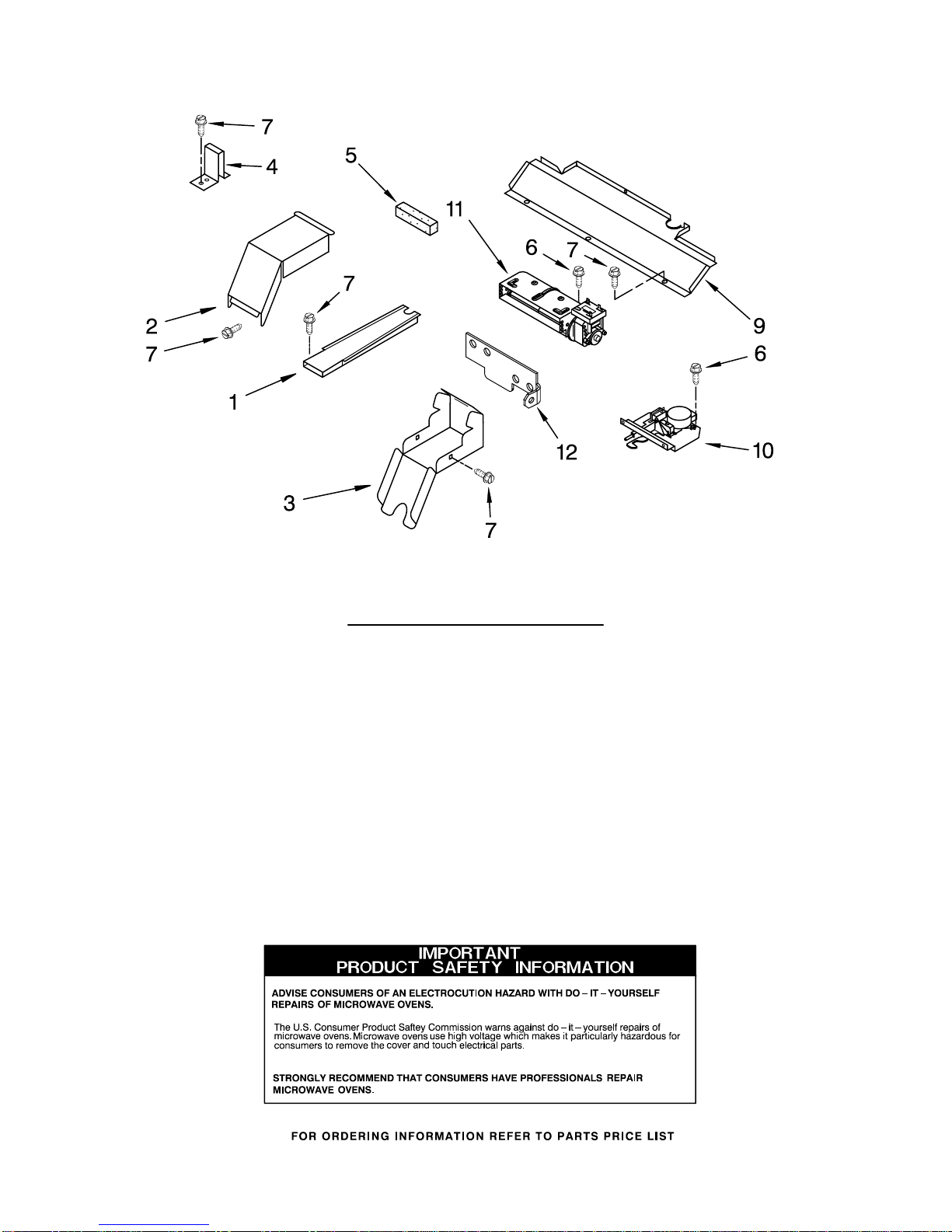

LATCH PARTS

For Models:KEMC378KBL04, KEMC378KWH04, KEMC378KBT04, KEMC378KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186460

Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent−Top

3 4455177 Elbow, Vent−Bottom

4 8300791 Bracket, Combo

Chassis

5 4451758 Seal, Foam

6 4449154 Screw (2)

7 4449809 Screw

9 4450407 Baffle, Rear

10 9760888 Latch, Motorized

11 6610168 Blower

12 4455191 Plate, Service

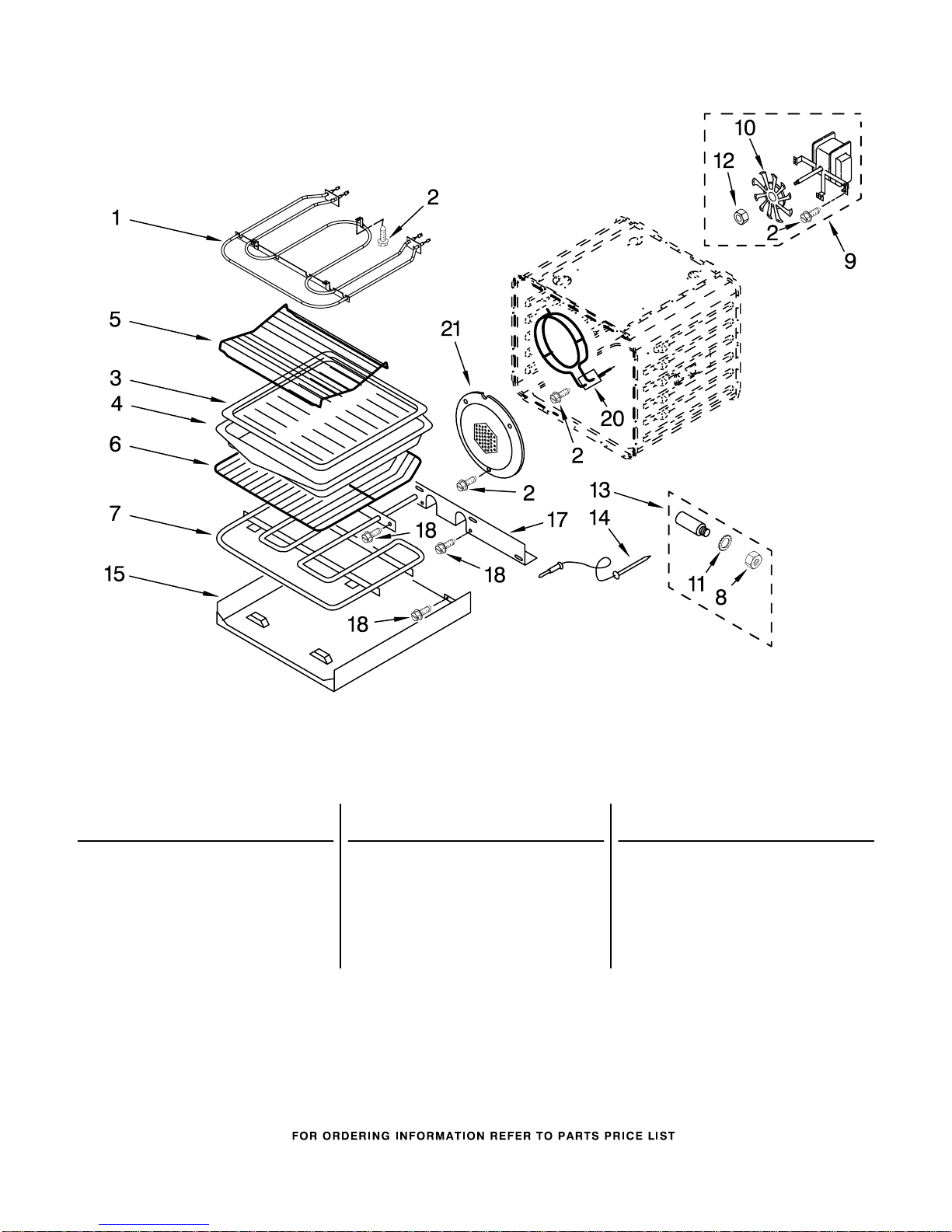

INTERNAL OVEN PARTS

For Models:KEMC378KBL04, KEMC378KWH04, KEMC378KBT04, KEMC378KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186460

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4456104 Element, Broil

2 4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

5 3181534 Rack, Roasting

6 4448715 Rack, Oven

7 4452155 Element, Bake

8 4448881 Nut, Hex

9 4451583 Convection Motor

10 4452226 Blade, Fan

11 4448882 Washer, Lock

12 4452227 Nut

13 4451355 Jack, Meat Probe

14 4448948 Probe, Meat

15 4455036 Tray, Bake

17 4450039 Cover, Bake Tray

18 4449809 Screw

20 4452157 Element,

Convection

21 4448418 Cover, Fan

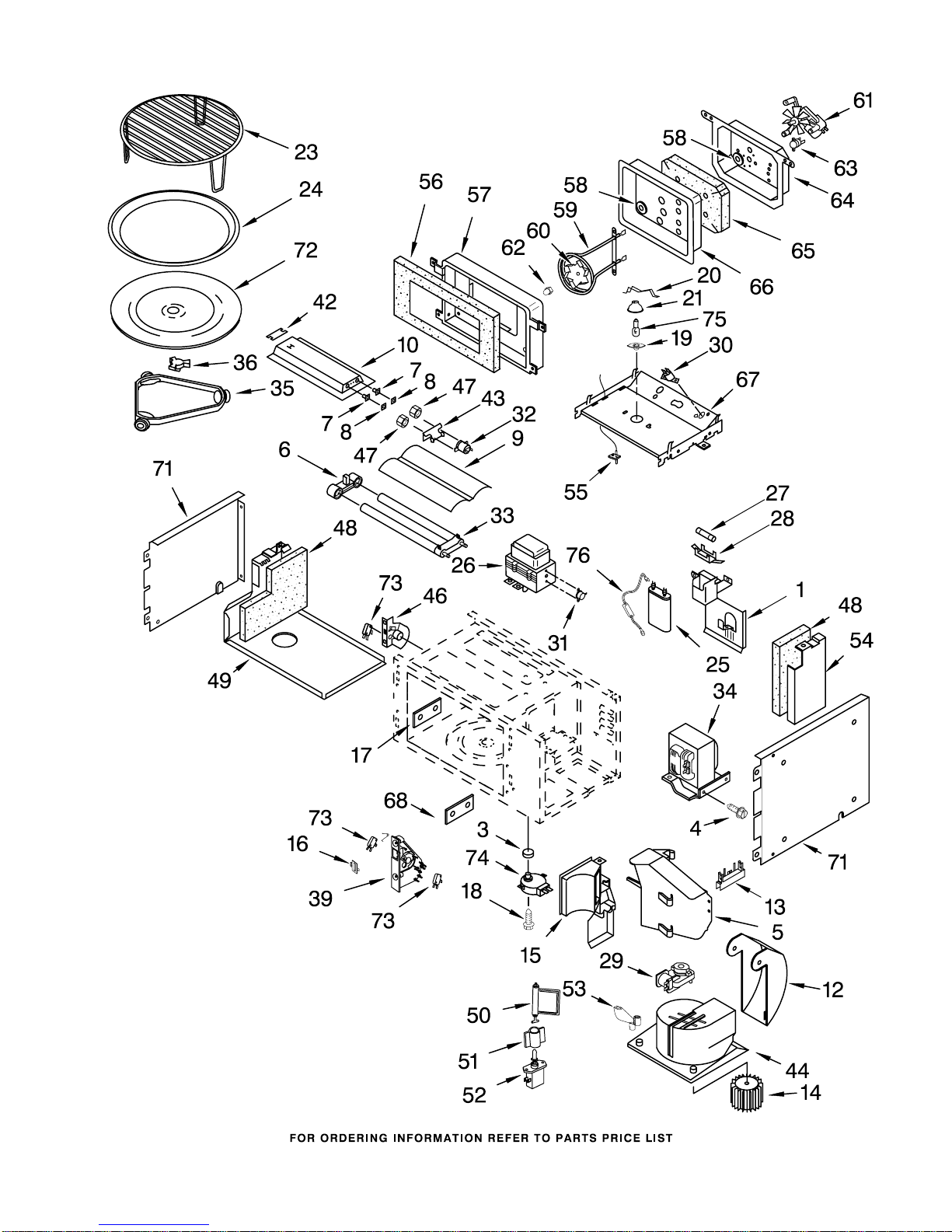

CABINET AND STIRRER PARTS

For Models:KEMC378KBL04, KEMC378KWH04, KEMC378KBT04, KEMC378KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186460

CABINET AND STIRRER PARTS

For Models:KEMC378KBL04, KEMC378KWH04, KEMC378KBT04, KEMC378KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186460

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4375437 Bracket, Capacitor

3 4375252 Rubber Ring

4 4375038 Screw

5 4375314 Air Duct, Magnetron

6 4375253 Support, Tube

7 4375421 Plug, Ceramic

8 4375255 Bushing

9 4375256 Reflector

10 4375257 Chamber, Reflector

12 4375450 Duct, Inlet

13 4375316 Insulation, Switch

14 4375322 Fan Wheel

15 4375317 Duct, Air

16 4375415 Block, Slide

17 4375248 Cover Plate, Upper

18 4375251 Screw

19 4375318 Lens, Lamp

20 4375319 Spring

21 4375320 Reflector

23 4452220 Rack

24 4393536 Crisp Plate

25 4375436 Capacitor

26 4375424 Magnetron

27 4375321 Fuse

28 4375231 Block, Fuse

29 4375278 Motor, Blower

30 4375279 Thermostat

31 4375423 Thermostat

32 4375281 Thermostat

33 4375408 Q Tube Assembly

34 4375438 Transformer

35 4375406 Ring Turntable

36 4375407 Shaft, Turntable

39 Bracket, Hinge

4375412 Left

4375413 Right

42 4375331 Plate, Grill

43 4375332 Bracket

44 4375441 Cap, Fan

46 Switch Holder

4375412 Left

4375413 Right

47 4375258 Nut

48 Insulation

4375409 Left Side

4375410 Right Side

49 4375411 Plate, Side−

Bottom

50 4375425 Valve

51 4375428 Screw to Valve

52 4375427 Thermoactuator

53 4375426 Air Bleed

54 4375439 Shield, Heat

Right

55 4375422 Sensor, Temp.

56 4375420 Insulation

57 4375419 Duct, Heater

58 4375416 Washer

59 4375417 Element, Heater

60 4375418 Fan

61 4375429 Motor, Fan

62 Left−Threaded Nut

Serviced With

Motor Item 61

63 4375430 Thermostat

64 4375431 Shield, Heat

65 4375432 Insulation

66 4375433 Chamber, Heat

67 4375437 Isolation Plate

68 4375338 Cover Plate

71 Side Plate

4375341 Left

4375342 Right

72 4455915 Turntable

73 4375346 Switch

74 4375347 Motor, Turntable

75 4375348 Lamp

76 4375349 Rectifier

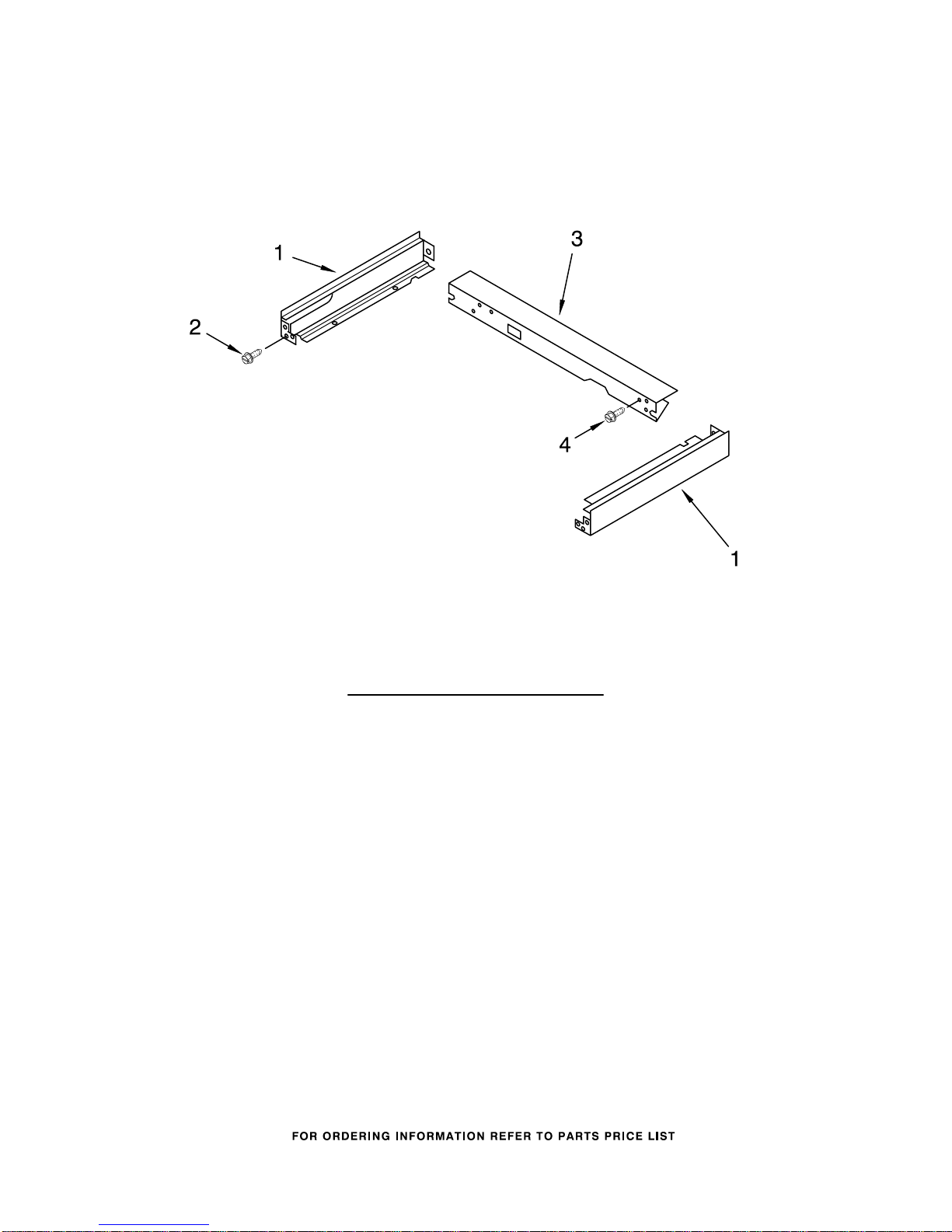

MICROWAVE COMPARTMENT PARTS

For Models:KEMC378KBL04, KEMC378KWH04, KEMC378KBT04, KEMC378KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186460

Illus. Part

No. No. DESCRIPTION

1 Support Rails

4452551 Right Side

4452552 Left Side

2 4449809 Screw

3 4452547 Rear Channel

4 4449809 Screw

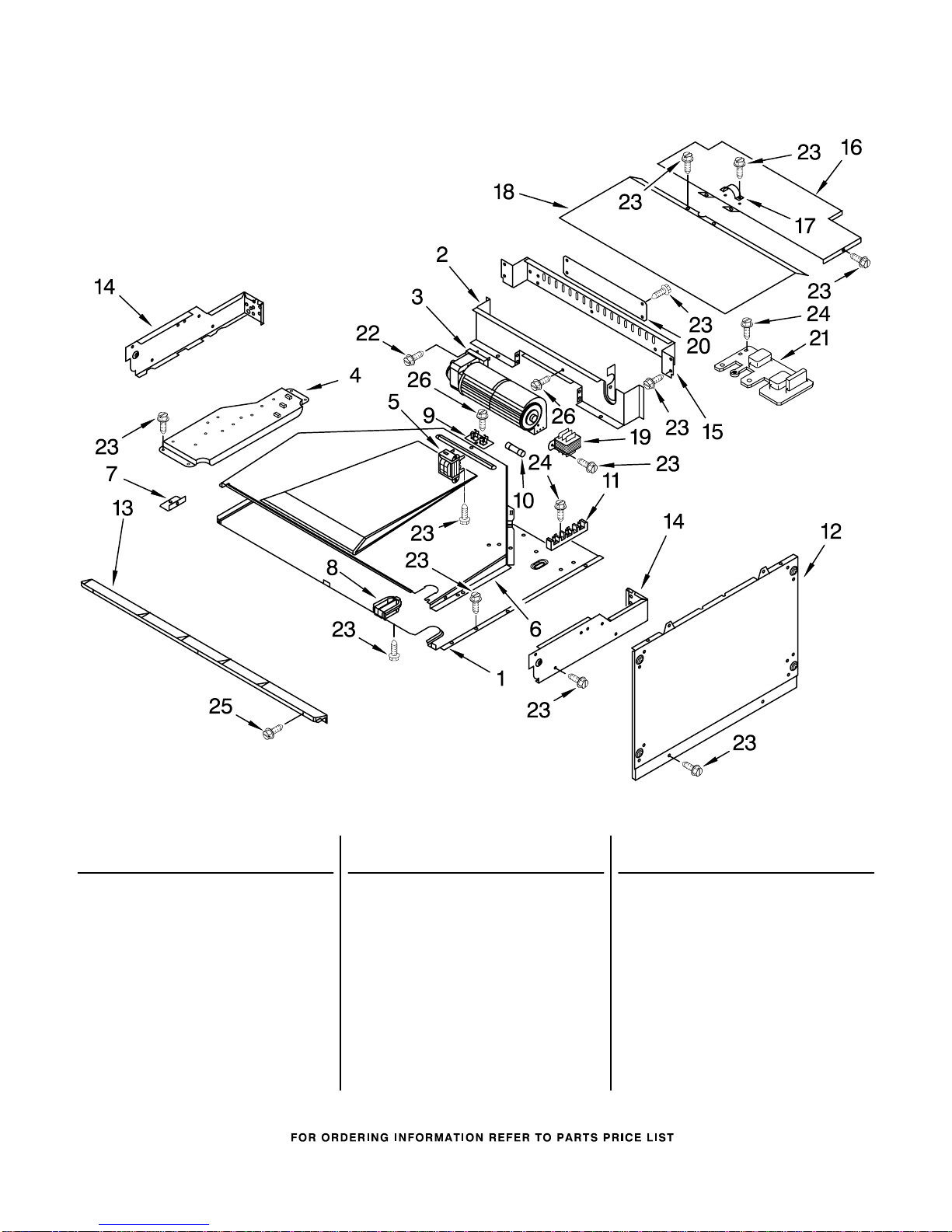

TOP VENTING PARTS

For Models:KEMC378KBL04, KEMC378KWH04, KEMC378KBT04, KEMC378KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186460

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4450377 Cover, Top

2 4448935 Baffle, Blower

3 4450920 Blower

4 4451789 Plate, Mounting

Transformer

5 4452104 Transformer,

(Lights)

6 8303844 Exhaust Duct

7 4450027 Bracket, Duct

8 4449964 Grommet

112432 Nut

9 4454949 Holder, Fuse

10 4454976 Fuse

11 4449868 Block, Terminal

12 4452559 Side, Combo

13 4456144 Vent, Control

Panel

14 Side, Control Top

4451597 Right

4451598 Left

15 4452244 Back, Control

16 4450550 Cover, Top Rear

17 4448664 Clamp

18 4452366 Cover, Top Front

19 4455038 Transformer,

Control Panel

20 4452247 Plate, Cover

4449809 Screw (4)

21 4451934 Suppressor

22 313806 Screw (2)

23 4449809 Screw

24 3400080 Screw

25 4450038 Screw

26 4449154 Screw
