ELECTRIC BUILT-IN

SINGLE & DOUBLE OVENS

MODELS (singles):

KEt31140/141/170/171

KEBS145/146/176/177

SCO-1243/2433/1273/2733

MODELS (doubles):

KEB1240/241/270/271

KEBS245/246/276/277

SCO-2243124431227312743

INSTALLATION

INSTRUCTIONS

INSTALLER: FINAL CHECK LIST

IMPORTANT:

LEAVE THESE INSTRUCTIONS FOR USE BY LOCAL ELECTRICAL INSPECTOR

PLACEMENT OF UNIT

@ 1. Properly positioned-level, aligned and square with cabinet opening.

u 2. Anchored securely to cabinet.

n 3. Installation debns removed.

ELECTRICAL

n 1. Oven properly grounded.

0 2. Separate 1201240 volt or 12Oi208 volt, 60 Hr. single phase branch circuit of proper ampacity,

and protected by a time-delay fuse or circuit breaker of proper size.

c 3. All connections made in accordance with National Electrical Code, ANSliNFPA 70.latest

edition and local codes and ordinances.

OPERATIONAL

3 1.0 ven racks installed and slide freely In all posrtlons.

il 2. Knobs securely in place and rotate freely wlthout rubbing edges of control panel glass

holes.

J 3. All lights function properly.

-~1

J 4. Clock timer buzzer operates.

r-7

.-J 5. Doors properly adjusted, open and close smoothly

’ 6. Selector switch functions in all modes

, 7 Unless Instructed to leave for owner. remove all tags, iabels and Internal packing

materials.

8 Oven has been wiped clean to remove flnqermarks and other smudges

THANK YOU INSTALLER:

1 Complete lr~stallatlo:l Check

LISA

2. Leave all literature for customer

3 Notify dealer that ihstallatlon

completed.

FDR DETAILED INSTRUCTIONS, FOLLOW METHODS DESCRIBED IN THIS FOLDER.

IMPORTANT: Read Before Installing to Save Time, Work,

assure proper performance, and owner’s warranty protection.

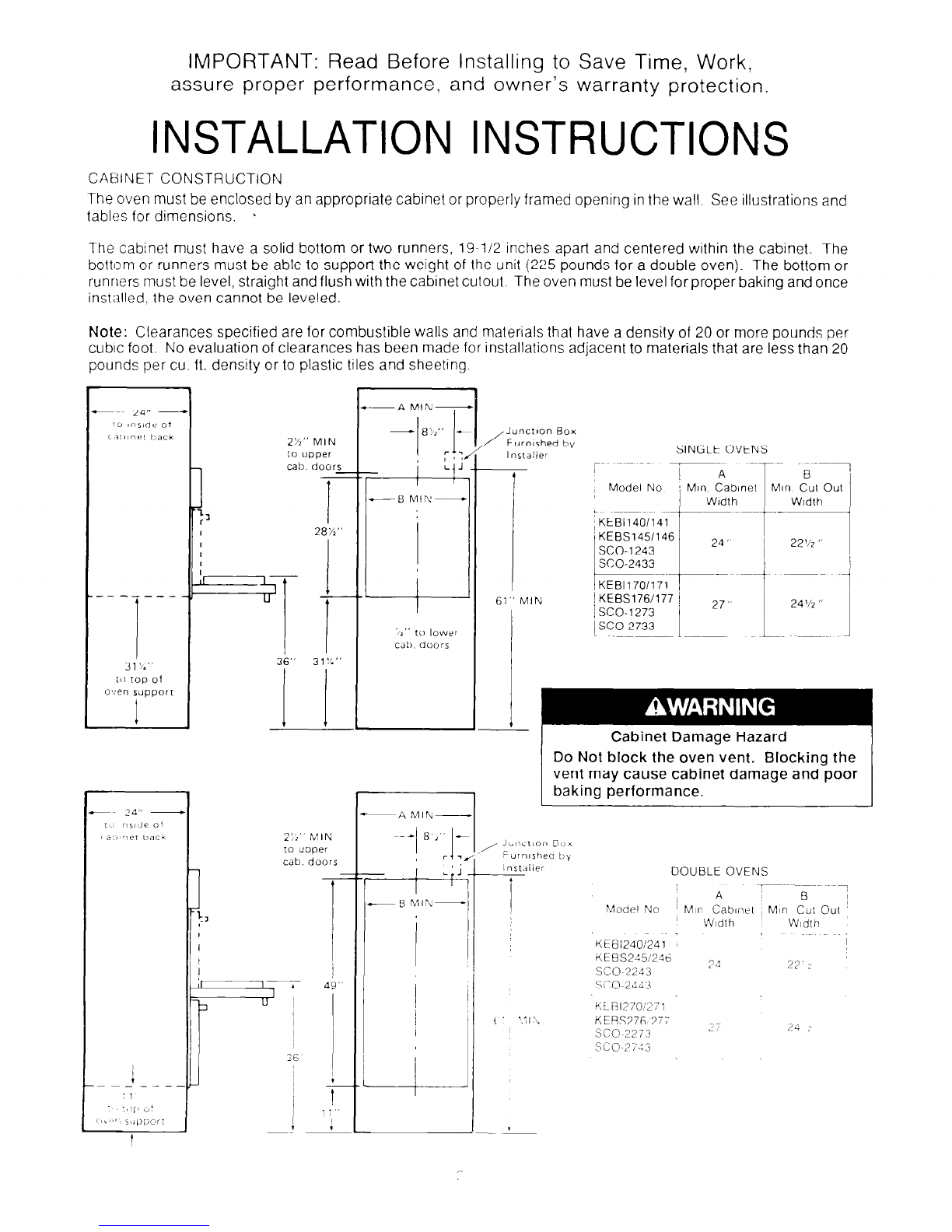

INSTALLATION INSTRUCTIONS

CABINET CONSTRUCTION

The oven must be enclosed by an appropriate cabinet or properly framed opening in the wall. See illustrations and

tables for dimensions. b

The cabinet must have a solid bottom or two runners, 19-112 inches apart and centered within the cabinet. The

bottom or runners must be able to support the weight of the unit (225 pounds for a double oven). The bottom or

runners must be level, straight and flush with the cabinet cutout. The oven must be level forproper baking and once

installed. the oven cannot be leveled.

Note: Clearances specified are for combustible walls and materials that have a density of 20 or more pounds per

cubic foot. No evaluation of clearances has been made for installations adjacent to materials that are less than 20

pounds per cu. ft. density or to plastic tiles and sheeting.

-- ---_- L

2%” MIN

1” upper

28%”

-A hIIN-

/ Junction Box

Furnished by

lns1aller

61” MIN

SINGLE OVENS

Model No

Cabinet Damage Hazard

Do Not

block the oven vent. Blocking the

vent may cause cabinet damage and poor

baking performance.

KEBS245!246

SC0 2243 23 22.2

ELECTRICAL REQUIREMENTS

Electrical Shock Hazard

- Electrical ground is required on this appliance.

Improper connection of the equipment-grounding conductor line can result in

electrical shock.

. Check with a qualified electrician if you are in doubt as to whether the appliance is

properly grounded. Do Not modify the power supply cord plug. If it will not fit the

outlet, have a proper outlet installed by a qualified electrician.

- Do Not use an extension cord with this appliance. Such use may result in a fire,

electrical shock or other personal injury.

. Do Not have a fuse in the neutral or ground circuit. A fuse in the neutral or ground

circuit could result in an electrical shock.

This appliance must be connected to a grounded, metallic permanent wiring system;

or a grounding conductor should be connected to the grounding terminal or lead on

the appliance. Failure to do so could result in an electrical shock.

I I

It is the customer’s responsibility tocontact a qualified electrical installer to assure that electrical installation is

adequate and in conformance with National Electrical Code, ANSliNFPA 70.latest edition and local codes and

ordinances.

A 1201240.volt or 1201208 volt, 60 Hz, AC only, fused electrical supply is required. A time-delay fuse or circuit breaker

is recommended. It is recommended that a separate circuit serving only this appliance be provided. It is the personal

responsibility of the customer to have a properly grounded, 3-prong wall receptacle installed by a qualified

electrician.

The following amperage circuits must be provided.

When installed in a mobile home, the installation must conform to the Manufactured Home Construction and Safety

Standards, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title

24. HUD, Part 280)

Model No

KEBS177

KEBI140/141/170/171

TABLE 1

[ -%axlmum Wattage (KW) Fuse or Breaker

240/208 Volt

3.713 0 Size Required

KEBS145/146/176

SCO-1243/1273

SCO-243312733

KEBl240/270

SCO-224312273

3 813 0 I 30 Amps

6 O/5 0

KEBS277

KEBl241/271

KEBS24512461276

X0-2443/2743

7 315 8 40 Amps

7 516 0 _~--~~.~~

UNPACKING THE UNIT

Personal Injury Floor Damage

More than one person is required to lift or move

the oven because of its weight and size.

Failure to follow these instructions may result in

Keep shipping base under oven. Failure to do so

could cause damage to floor covering.

personal injury.

The oven should be left on the carton base untrl it IS ready to put

Into the cabinet It is also recommended that the pads over the door(s)

be left in place. These precautions will reduce the possrbrllty of

damage to the front of the unit and the bottom of the front frame.

Remove all cords, tape and wire used to hold various parts

POSI-

tion during shipment. Remove oven racks from the inside of the oven

and put to one side while oven IS being installed In cabinet Take

broiler pan and grid from packing on top of the oven and keep with

literature packet in a localion where they will be retalned by the

owner.

To Remove Oven Racks

Slide rack forward unl~l bar on back of rack

touches first slop

Lilt front of rack unl~l rear porllon of rack slides

oul between front Iwo slops

ELECTRICAL CONNECTION

Electrical Shock Hazard

Disconnect power supply before making any electrical connections.

Failure to do so may result in electrical shock.

Connect the conduit from the oven to the junctron box and properly connect to the power supply leads. (Bare to

ground, black to L2, red to Ll, white to neutral or according to local code.)

GROUNDING -THE OVEN MUST BE GROUNDED

Do not work on the oven wiring until the oven has beer; positively grounded

The oven frame is grounded through the bare grounding Lvlre Connect the whrte neutral to the service neutral

wire at the junction box

INSTALLING THE UNIT IN CABINET

Potential Personal Injury

- Use both hands to remove oven doors.

- Grasp only the sides of the oven door.

Not

use

any portion of the front frame

or trim for

lifting.

Failure to properly grasp oven door could result in damage to product or personal injury.

The doors should be remoded

to decrease the weight of the oven and provide a better hand-hold on the oven

wrile lifting It into the cabinet.

A To Remove Doors (See Fig. 1)

Use caution! Oven door IS heavy

1 Open door completely.

2. Depress finger tab In oven door hinge area. Push tab toward oven.

Loft tab away from door liner and slide toward top of oven door.

3 Repeat step ? for other side of door.

Close door until approximately 5 inches from fully closed posltion.

5. Slide door off the hinge

arm assemblies.

6 Repeat steps 1 through 5 for other door on double ovens.

BE SURE THAT PHENOLIC SPACERS AT EACH SIDE OF OVEN

ARE IN PLACE TO PROVIDE PROPER AIR FLOW

BETWEEN CABINET AND OVEN.

B When oven has been placed

into cabinet; install exterior trim, if used,

or the bottom trim strip. Where the exterior trim is to be installed on the

oven, omit step C and proceed with the instructions supplied with the trim.

C The bottom trim strip is placed on lower edge of front frame. This is done

by loosening the three screws at the bottom of the front frame. Slide the

trim strip under the screw heads until the strip meets the lower corners

of the front frame (See Fig. 2). Tighten screws to hold to front frame.

Personal Injury Hazard

Securely fasten wall oven to cabinets using the screws provided

(4 screws for a double oven or 2 screws for a single oven).

Failure to do so could cause oven to move or tip during use and

result in personal injury.

D Secure oven to cabinet with a8 screws provided. Do not overtighten

screws. Edge of front frame should be parallel to cabinet or front edge

of exterior trim. Disregard any excess screws that are left after all screw

holes in front frame have been used.

E Install unwrapped oven racks in oven.

F Reinstall the doors (See Fig. 1).

1 Slide door hinge arms until firmly seated.

2 Lower door to full open position.

3 Push finger tabs to back. Depress the tabs and slide forward.

4 Close and reopen door slowly to make sure it has been replaced

properly.

5 Repeat steps 1 through 4 for other door on double oven.

DOOR ADJUSTMENT CHECK

A-

NEWSPAPER STRIPS

TOP OF DOOR

NEWSPAPER STRIPS

SIDE OF DOOR

PROPER DOOR

NEWSPAPER STRIPSJ

BOTTOM OF DOOR

ADJUST UP OR DOWN2

TO ALIGN DOOR

Speclficatlons Subject to C?ange WIthout Notlce

Place 2 ” x 18 ” slrlps of newspaper In loca-

tlons Indicated by lllustratlon Allow one end

of the paper to extend 1130 the oven cavity.

Pull gently at each piece of paper. If door IS

properly adjusted, each piece of paper WIII

offer firm resistance when pulled. When door

IS out of adjustment, slide unit out far enough

lo expose hinges on each side Loosen

screws and move bottom of door to a proper

fit. After completing adjustment tlghlen all

screws In hinges

Part No 3177123 Rev B

@I969 tiltchenAid. Inc.

Prepared

by KItchenAId. St. Joseph, Mchigan 49085 Printed in U.S.A
