PARTS LIST

c2004 KITCHENAID

KSM90, KSM103, AND KSM110

INTERNATIONAL PART NUMBERS ITALICIZED

MIXER

VARIATIONS

SOLID STATE

4−04 Litho in U.S.A. (bd) Part No. 8204542 Rev. A

COLOR VARIATION PARTS

For Models:KSM90, KSM103, & KSM110

8204542

COLOR VARIATION PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models:KSM90, KSM103, & KSM110

8204542

1 Motor Housing

240291−1 White

9704752 Satin Copper

240291−7 Cobalt Blue

9706270 Nickel

9706461 Nickel

9704004 Metallic Chrome

9704025 Metallic Chrome

240291−22

Imperial Gray

(Crinkle)

240291−13

Onyx Black

240291−10

Empire Green

240291−16

Almond Creme

4176227 Royal Crimson

240291−21

Empire Red

240291−20

Majestic Yellow

9706473 Pink

4176337 Chrome

9704004 Black Chrome

9704004 KSM103 & KSM110

9705243 Caviar

2 Trim Band

United States

9702645 Black on Silver

9702633 Chrome & KSM110

Models

9704530 White

9702635 White (KSM90PSWH)

9701264 White on White

9701468 Almond Creme

International &

Taiwan

9704643 Black on Silver

9704641 White

Swiss

9704655 Black on Silver

9704653 White

Japan

9705180 Black on Silver

9705182 White

Australia

9704498 Black on Silver

3 Planetary

240286−1 White

9704755 Stain Copper

240286−10

Cobalt Blue

9706271 Nickel

9704006 Metallic Chrome

9706670 Metallic Chrome

240286−24

Imperial Gray

(Crinkle)

240286−16

Onyx Black

240286−13

Empire Green

240286−18

Almond Creme

4176226 Royal Crimson

240286−23

Empire Red

240286−22

Majestic Yellow

9706475 Pink

4176338 Chrome

9704006 Black Chrome

9704006 KSM103 & KSM110

9705244 Caviar

4 End Cover

240253−1 White

9704757 Satin Copper

240253−8 Cobalt Blue

9706268 Nickel

4176449 Metallic Chrome

9704029 Metallic Chrome

240253−23

Imperial Gray

(Crinkle)

240253−14

Onyx Black

240253−11

Empire Green

240253−16

Almond Creme

4176224 Royal Crimson

240253−22

Empire Red

240253−21

Majestic Yellow

9706469 Pink

4176339 Chrome

4176449 Black Chrome

4176449 KSM103 And KSM110

9705241 Caviar

5 Lower Gearcase

240350−4 White

9701393 White

(United Kingdom)

240350−20 White on White

(Japan)

9704749 Satin Copper

240350−31

Cobalt Blue

9701420 Cobalt Blue

9706269 Nickel

9706459 Nickel

9704002 Metallic Chrome

9707219 Metallic Chrome

240350−86

Imperial Gray

(Crinkle)

240350−56

Onyx Black

240350−46

Empire Green

9701422 Empire Green

(International)

240350−74 Empire Green

(Japan)

240350−62

Almond Creme

4176221 Royal Crimson

240350−84

Empire Red

240350−91 Empire Red

240350−82

Majestic Yellow

240350−93 Majestic Yellow

9706471 Pink

9707364 Pink

9701398 Chrome

9704002 Black Chrome

9704002 KSM103 And KSM110

9705242 Caviar

6 Pedestal

240151−1 White

3184273 White

9704747 Satin Copper

240151−8 Cobalt Blue

9701768 Cobalt Blue

9706264 Nickel

9706457 Nickel

9704000 Metallic Chrome

9707189 Metallic Chrome

240151−21

Imperial Gray

(Crinkle)

9703247 Imperial Gray

240151−13

Onyx Black

3184275 Onyx Black

240151−11

Empire Green

(Domestic & Japan)

9701769 Empire Green

240151−15

Almond Creme

9703248 Almond Creme

4176229 Royal Crimson

240151−20

Empire Red

9703245 Empire Red

240151−19

Majestic Yellow

9703246 Majestic Yellow

9706467 Pink

9707362 Pink

4176335 Chrome

9701767 Chrome

9704000 Black Chrome

9704000 KSM103 & KSM110

9705237 Caviar

Availability of All

Colors Subject to Change.

Any Color Not Listed is

No Longer Available.

If Additional Colors Are

Added, This Page Will Be

Updated.

CASE, GEARING AND PLANETARY UNIT

For Models:KSM90, KSM103, & KSM110

8204542

CASE, GEARING AND PLANETARY UNIT

For Models:KSM90, KSM103, & KSM110

8204542

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Gearcase Motor

Housing

(Includes Illus 2)

2 4159709 Ring, Attachment

Hub

3 Cap, Attachment

Hub

242765−2 Chrome

242765−4 White

4 Thumb Screw

4162142 Black

240374−2 White (Storm Gray)

240374−3 Buff

5Band, Trim

10 4159479 Lock Washer,

#10 Light

11 3180161 Washer, Fiber

Black, Gray

12 4162897 Worm Gear (23T)

14 240308 Worm Gear Bracket

And Bearing

15 3400022 Screw And L.W.

Assy.

#10−24 X 7/16"

Phil. Fil. Hd.

(3)

17 240210−2 Shaft & Pinion

(10T)

18 9705444 Pin, Grooved

19 240026 Shaft, Vertical

Center

20 9705130 Gear, Attachment

Hub Bevel (23T)

21 9703905 Bevel Pinion

(19T) & Center

Gear (62T)

22 240018−1 Pin (Vertical

Center Shaft)

23 3180163 Washer, Fiber

Black, Gray

24 4176022 Screw

(International)

25 9705443 Pin, Grooved

26 4162324 Gasket,

Transmission

Case

27 Lower Gear Case

28 9701864 Spring Flat

(International)

29 3180163 Washer, Fiber

Black, Gray

30 9701866 Headlock Assembly

(International)

31 9703904 Gear, Internal

32 103994 Screw, Special

(5)

33 Planetary

40 4176067 Agitator Shaft

(Includes Illus.

60)

3184052 Agitator Shaft

(Includes Cup)

(International)

41 240018−1 Pin (Agitator

Shaft Pinion

42 240285 Ring, Planetary

Drip

240285−2 Polished

45 3180160 Washer, Shim

(.015" Thk.)

(.031" Thk.)

47 9703903 Pinion, Gear

(18T) (Agitator

Shaft)

50 4160413 Screw, Adjusting

51 4159264 Set Screw, 1/4"−

28 X 3/8" Hdls.,

Cup Pt.

52 3400025 Machine Screw,

10−24 X 1

Fil. Head

53 67500−55 "O" Ring

54 4159430 Screw, Self

Tapping

6−32 X 1/4"

Phil. Pan Hd.

Type F

55 Cover, End

56 4162914 Screw, 6−32 X 3/8

Phil. Oval Hd.

58 240309−2 Worm Gear Bracket

And Gear (10 T &

23 T) (Incls.

Illus 11 thru 14

17 & 18)

59 4160474 Center Shaft

& "O" Ring

(Incls. Illus.

19,22,25,26, &

53)

60 9703438 Ring

61 9702311 Lead, Filter to

Control Board

62 3400900 Lockwasher

63 9706789 Filter, RFI

9705132 Taiwan

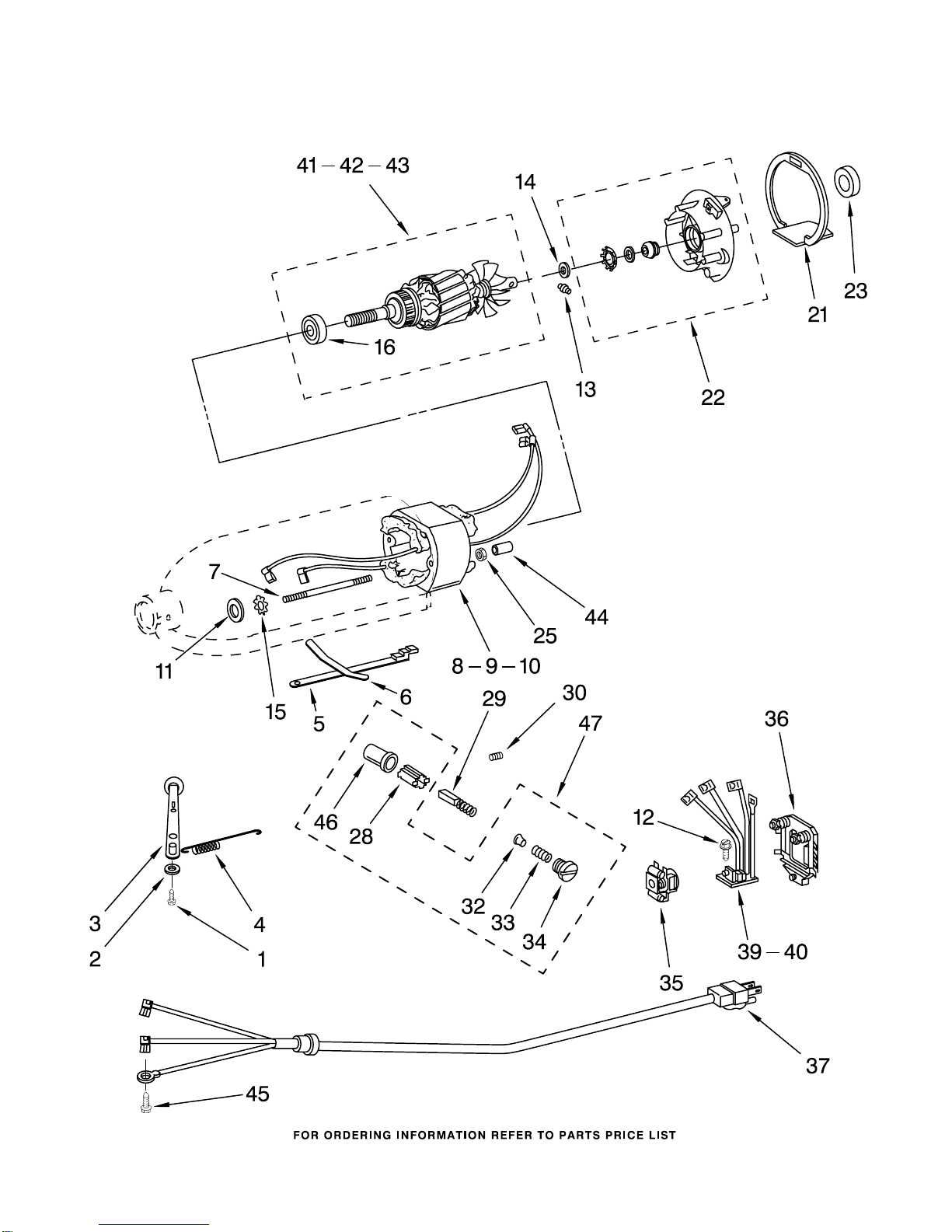

MOTOR AND CONTROL PARTS

For Models:KSM90, KSM103, & KSM110

8204542

MOTOR AND CONTROL PARTS

For Models:KSM90, KSM103, & KSM110

8204542

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 110679 Screw, Pivot

2 116241 Washer, Spring

3 Switch Lever

And Stud

3184193 Black

3184194 Storm Grey

3184195 Buff

4 3183680 Spring, Control

Plate

3183690 International

5 3184176 Speed Link & Cam

6 4162035 Spring, Flat

7 240769 Screw, Stator

8 9702695 Field Assembly

(Must Use With Item

# 41) 120 Volts

99701670 Field Assembly

(International)

(Must Use With

Illus. 42)

(230 Volts)

10 4176217 Field Assembly

(Japan)

(Must use with

Item 13)

(100 Volts)

11 9704324 Washer, Bearing

12 3400402 Screw, Self Tapping

4−40 X 5/16"

Phil. Pan Hd.

Type TT

13 16998 Stud, Governor

Drive

14 3180162 Washer, Spacing

15 3400900 Washer

16 9708320 Ball Bearing

21 240775−1 Seal, End

3184356 International

22 3180526 Bracket, Bearing

Asm.

23 3180238 Washer, Felt

25 8533905 Nut, Machine

Hex (10−24)

28 240680 Insert, Brush

Holder

29 9706416 Brush, Carbon

30 9707926 Set Screw,

10−24 X 1/4"

Hdls. Cup Pt

32 116286 Cap, Spring

Seat

33 116287 Spring, Cap

34 Cap, Brush Holder

3184212 Black

3184211 White

3184213 Almond Creme

35 17830 Governor Assembly

36 240904−2 Control Plate

Assembly

37 Cord & Plug

White

9701025 United States

9702318 International

9704389 Swiss

9702314 United Kingdom

9702368 Australia

Black

9701026 United States

9702319 International

9704390 Swiss

9702315 United Kingdom

9706755 Taiwan

9704812 Japan

39 9706595 Phase Control

Board

(120 Volt)

40 9706596 Phase Control

Board (230 Volt)

41 9708315 Armature &

Bearing (120 V.)

Domestic & Taiwan)

(Must use with

Illus. 8)

42 9708316 Armature &

Bearing

(230 Volt)

(Must use with

Item 9)

43 9708314 Armature &

Bearing (Japan)

(Must Use with

Item 10)

(100 Volts)

44 4162634 Sleeve, Motor

Stud

45 3184609 Screw, Ground

Tapping (10−24

X 1/4") Phil.

46 3179908 Housing, Brush

Holder

47 4162546 Brush Holder

(Incls. Illus.

28, 32, 33, 34,

& 46)

OPTIONAL PARTS

OPTIONAL ATTACHMENTS,

ACCESSORIES AND SERVICE ITEMS

4164839 Speed Disc

(Service Tool)

4160588 Grease, Planetary

4164778 Mixer Attachment

Pak (Includes Food

Grinder (FG−A),

Food Strainer

(FVSP), And

Vegetable Slicer,

(RVS−A)

(FPP−A)

4164749 Food Grinder

(FG−A)

4164751 Grain Mill

(GM−A)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker

Plates)

(SN/FG−A)

4164775 Fruit/Vegetable

Strainer Parts (Use

With FG−A Model

Only) (FVSP)

4164750 Rotor Slicer/Shredder

(With 4 Standard

Cones) Fine Shredder,

Coarse Shredder,

Thick Slicer, And

Thin Slicer (RVS−A)

3177975 Pouring Shield

(KPS2CL)

4164824 Pasta Maker Plates

(SNP−A)

4164774 Fruit/Vegetable

Strainer And Food

Grinder (FVS/FG−A)

3180617 Cover, Decorative

(Cotton Polyester)

4162838 Food Tray (FT)

4164748 Juicer (JE)

4164747 Can Opener (CO)

4164803 Sausage Stuffer

Kit (SSA)

3177924 Bowl Cover, Plastic

Non−Sealing

4163337 Bowl, Stainless

With Handle

3180262 Bowl, 3 Qt.

(KSM103 & KSM110)

4162160 Bowl, Satin

Stainless

BASE AND PEDESTAL UNIT

For Models:KSM90, KSM103, & KSM110

8204542

Illus. Part

No. No. DESCRIPTION

1 3400020 Screw

10−24 X 1/2"

Phil. Flat Hd.

Type F

2 4163032 Screw Cap Kit

3 Lever, Latch

4176024 Black

3184178 Black

242928−2 White (Storm Gray)

4 24450 Link, Latch

5 115792 Foot, Base

6Pedestal

7 16910 Pin, Hinge

8 103993 Screw, Latch

Bearing

9 24452−2 Latch, Link &

Lever (Incls.

Illus. 3, 4,

10 & 11)

3184200 International

10 4162206 Latch

11 4159598 Washer

12 110679 Screw, Pivot

13 116241 Washer, Spring

14 4176018 Cover, Bowl

15 9707669 Beater, Flat

16 4163336 Bowl And Base

(4 1/2 Qt.)

17 9707671 Dough Hook

18 9704329 Wire Whip

19 Pouring Shield

9706633 Professional Mod.

4176452 International

20 Head Lock

(International)

3184262 White

3184264 Black

LITERATURE PARTS

Guide, Use And

Care

LIT9707917

United States

LIT9705170 (International)

LIT9705125 Japan

LIT8204542

Repair Parts List

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels KitchenAid Mixer

KitchenAid

KitchenAid K45A Manuel utilisateur

KitchenAid

KitchenAid KSM180LELB Manuel utilisateur

KitchenAid

KitchenAid KSM180RP Series Manuel utilisateur

KitchenAid

KitchenAid KP26M1XBR5 Manuel utilisateur

KitchenAid

KitchenAid Pro 600 KEC50C Series Manuel utilisateur

KitchenAid

KitchenAid KHM53ER Manuel utilisateur

KitchenAid

KitchenAid KV25 Manuel utilisateur

KitchenAid

KitchenAid KV25G0XWW - Professional 5 Plus Series Stand... Manuel utilisateur

KitchenAid

KitchenAid KSM450BK0 Manuel utilisateur

KitchenAid

KitchenAid 5KSM180LE Manuel utilisateur

KitchenAid

KitchenAid K4SS Mode d'emploi

KitchenAid

KitchenAid 5KSM3311 Manuel utilisateur

KitchenAid

KitchenAid 5KSM150PS Manuel utilisateur

KitchenAid

KitchenAid 9708308B Manuel utilisateur

KitchenAid

KitchenAid 5KSMC895Z Manuel utilisateur

KitchenAid

KitchenAid 5KSM150PS Manuel utilisateur

KitchenAid

KitchenAid KB26G1XAC5 Guide rapide

KitchenAid

KitchenAid CommerCial mixer Manuel utilisateur

KitchenAid

KitchenAid TILT-HEAD STAND MIXER Manuel utilisateur

KitchenAid

KitchenAid W10399721A Manuel utilisateur

KitchenAid

KitchenAid 5KSM3310X Manuel utilisateur

KitchenAid

KitchenAid 5KSM1CBT Manuel utilisateur

KitchenAid

KitchenAid K5SSWH - Heavy Duty Series Stand Mixer Guide rapide

KitchenAid

KitchenAid K4SSWH - 4.5-qt. Bowl-Lift Stand Mixer Guide rapide

Manuels Mixer populaires d'autres marques

Bosch

Bosch GRW 9 Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman WM45E Mode d’emploi

Jay-Lor

Jay-Lor 5050 Manuel utilisateur

Sunbeam

Sunbeam FPSBSM210X Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman MC94S Mode d’emploi

Thinky

Thinky ARE-250 Manuel utilisateur

Midas

Midas XL4 Manuel utilisateur

bianco

bianco PURO 4 Manuel utilisateur

Paso

Paso DAG9200 Manuel utilisateur

Sima

Sima SFX-9A Manuel utilisateur

better chef

better chef IM-815WC Instructions d'installation

ALLEN & HEATH

ALLEN & HEATH GR1 Manuel utilisateur

Lacor

Lacor 69083 Fiche technique

M-Audio

M-Audio Midiman SAM Manuel utilisateur

Buffalo

Buffalo CP921 Manuel utilisateur

Pentair

Pentair HYPRO Cleanload 3376-0870 Instructions de fonctionnement

Cuisinart

Cuisinart SM50WHE Manuel utilisateur

Hobart

Hobart HCM-300 Manuel utilisateur
