KitchenAid KGCP487JSS08 Manuel utilisateur

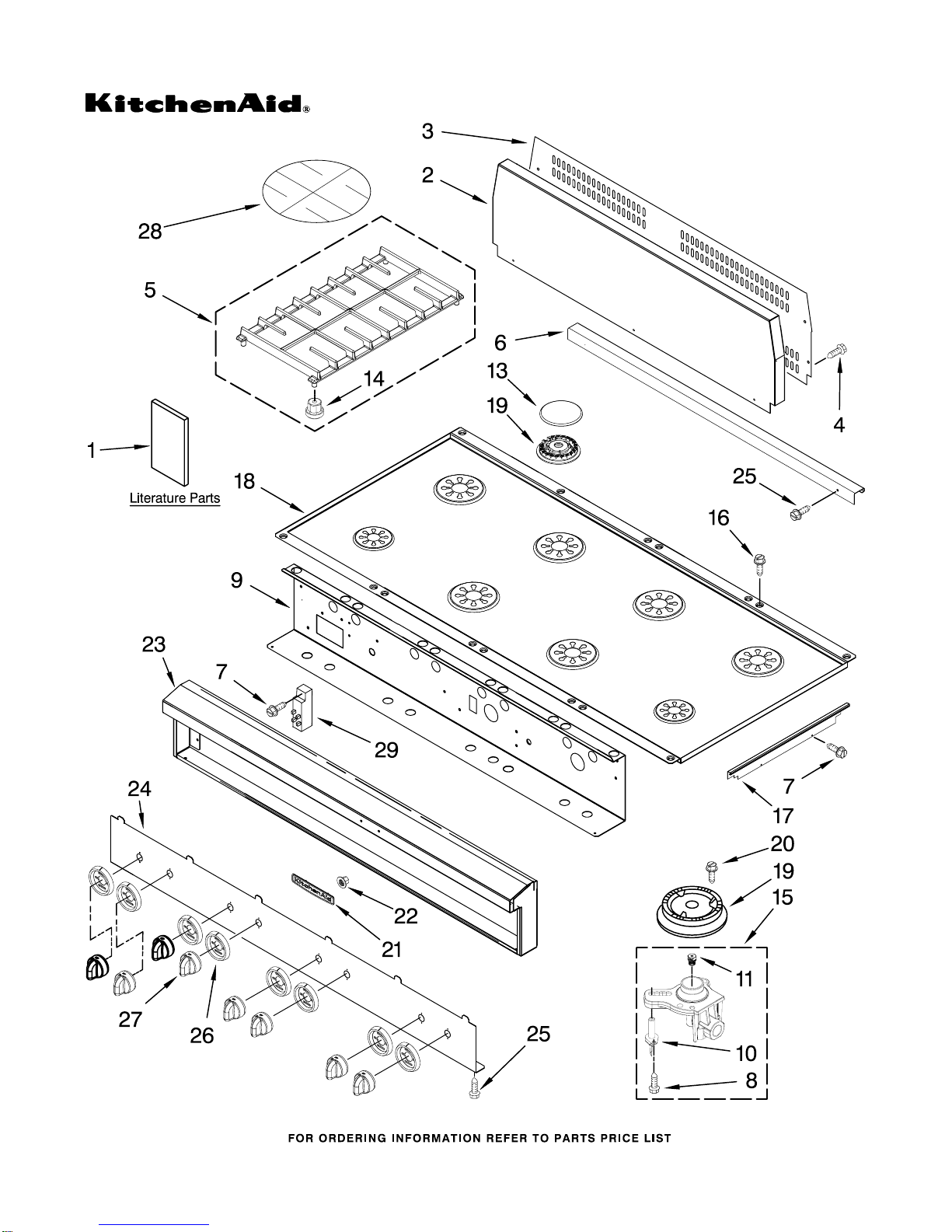

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP487JSS08

(Stainless)

09−08 Litho in U.S.A. (amd) (eeb) Part No.W10207231 Rev. A

48" Stainless

Professional Cooktop

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP487JSS08

(Stainless)

W10207231

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10086200

Use & Care Guide

9759405 Installation

Instructions

9759442 Instructions,

LP Conversion

W10157555

Backsplash

3 8285058 Support,Backsplash

4 3196537 Screw

W10106670

Grate, Burner

W10157521

Trim, Island

7 3177991 Screw

8 8273062 Screw,

Spark Electrode

9 8285486 Support, Control

Panel

10 9782116 Electrode

11 Orifice

3192525 14K

8286473 6K

13 Cap, Burner

4455243 Turbo, 14K

8284669 Auxi, 6K

14 8286695 Bumper, Grate

15 Orifice Holder

Includes Orifice

W10155786

Turbo, 14K

W10128449

Auxi, 6K

16 4449040 Screw

17 Trim, Side

W10157586

Right

W10157587

Left

18 9760873 Cooktop

19 Burner Head

4455849 Turbo, 14K

4455979 Auxi, 6K

20 3368921 Screw

21 2005292 Nameplate

22 2004333 Palnut

W10157551

Control Frame

W10199056

Panel, Control

25 3196176 Screw

26 4455192 Bezel, Knob

W10078400

Knob, Burner

28 4455109 Plate, Simmer

W10110488

Module, Spark

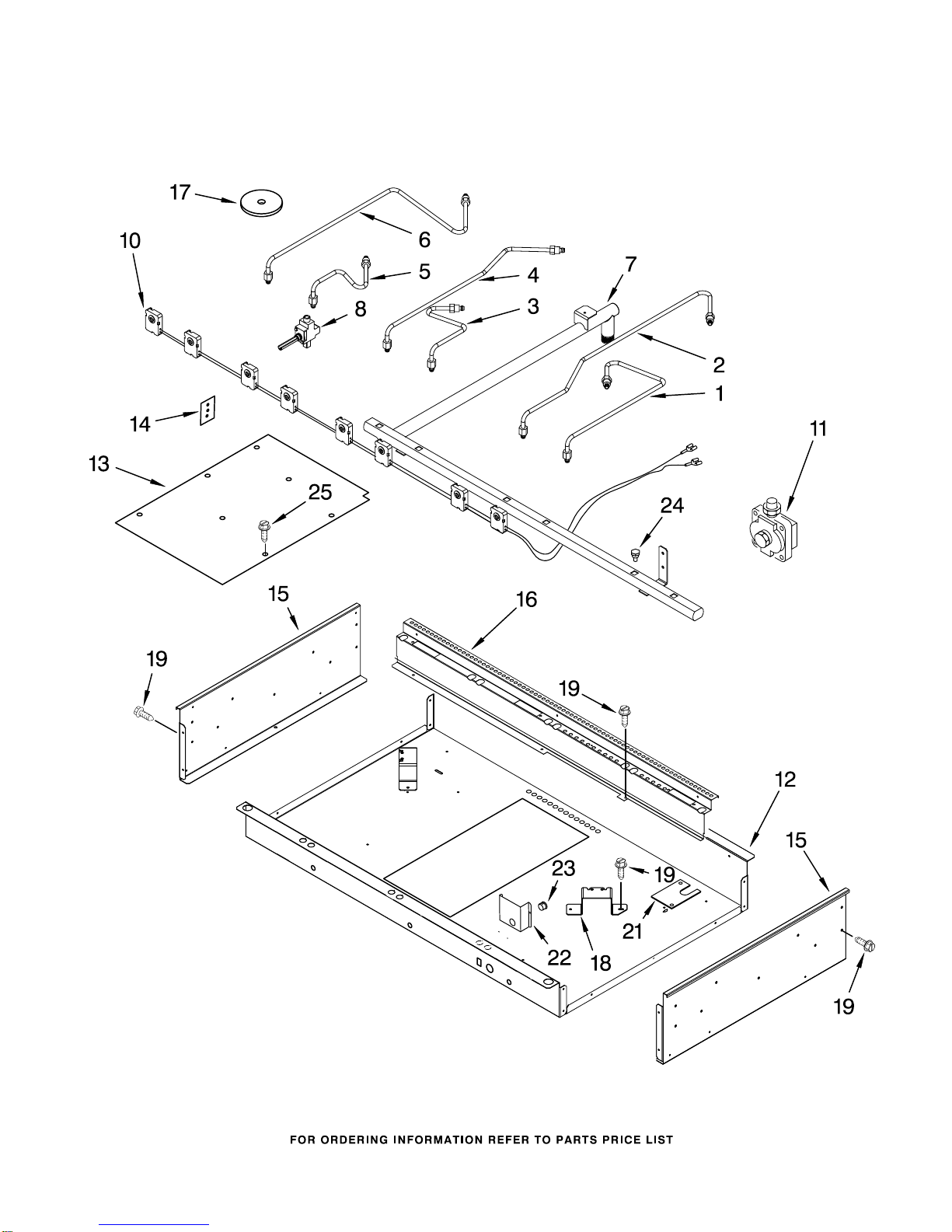

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP487JSS08

(Stainless)

W10207231

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP487JSS08

(Stainless)

W10207231

Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

Burner − CR

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284737 Manifold

8 Valve, Burner

4456818 Large

4456816 Small

10 4456906 Burner Switch &

Harness Assembly

11 9759091 Regulator,Pressure

12 4457095 Burner Box

13 8284964 Plate, Burner

Holder

14 3192439 Seal, Switch

15 Side, Burner Box

8285487 Right

8285488 Left

16 9759137 Support, Rear

17 3191387 Seal, Switch

18 3192811 Bracket, Burner

19 3177991 Screw

21 8285361 Cover, Manifold

Slot

22 8284680 Cover, Shelf

23 8284722 Bushing, Cover

Shelf

24 8284796 Plug, Manifold

(close)

25 3400843 Screw

OPTIONAL PARTS

For Model: KGCP487JSS08

(Stainless)

W10207231

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

9763116 Power Cord

1129449 Bushing

8285025 Harness, Wire

Jumper

Harness, Wire

Ignitor

4456628 42"

4456627 28"

535183 Tie, Cable

Miscellaneous

8284782 L.P. Orifice Spud

Pack
