KitchenAid KGCP467JSS07 Manuel utilisateur

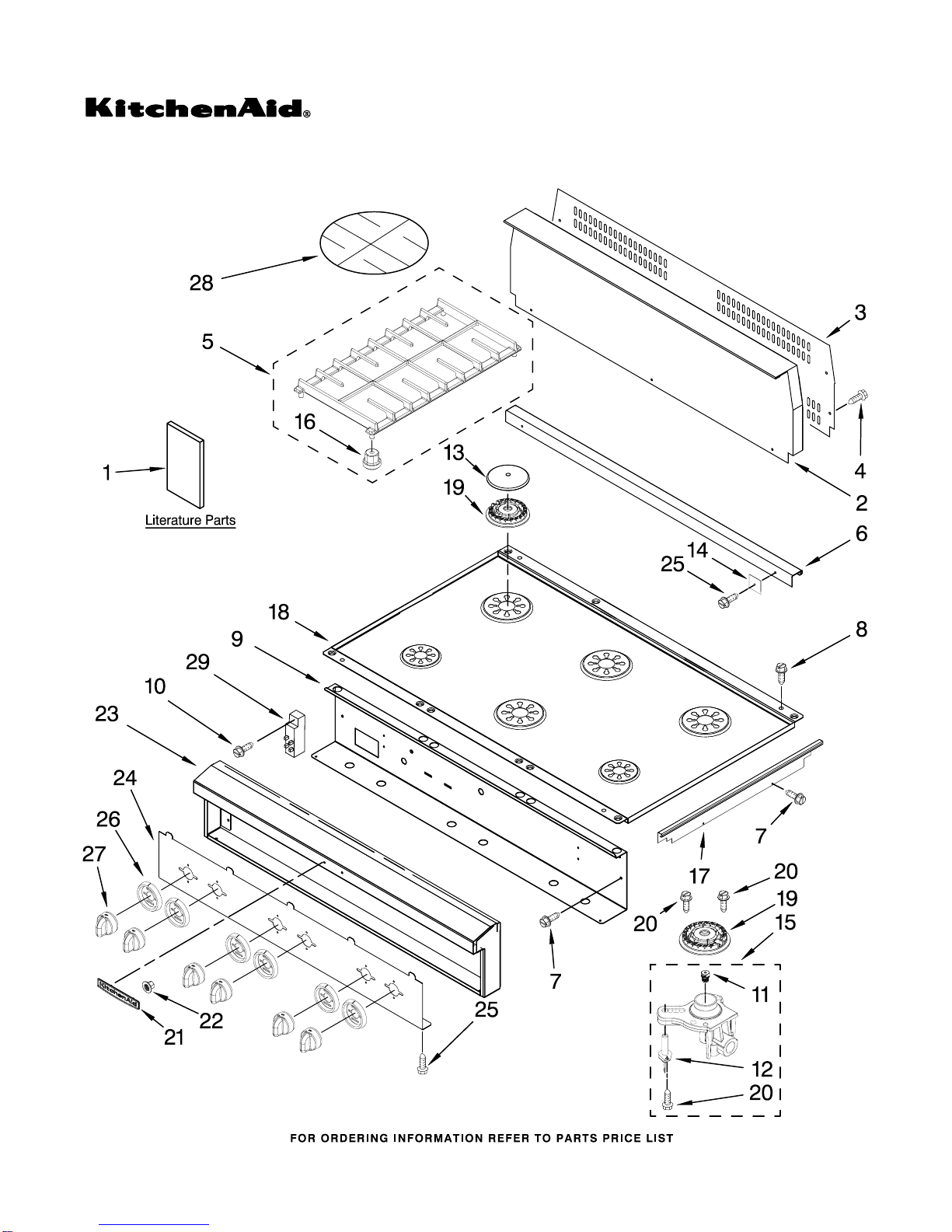

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP467JSS07

(Stainless)

05−08 Litho in U.S.A. (amd) (psw) Part No.W10206140 Rev. A

36" Professional

Cooktop

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP467JSS07

(Stainless)

W10206140

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8285477 Wiring Diagram

W10162189

Use & Care Guide

9759405 Installation

Instructions

9759442 Instructions,

LP Conversion

W10157567

Backsplash

3 8284712 Support,Backsplash

4 3196537 Screw

W10106670

Grate, Burner

W10157520

Trim, Island

7 3177991 Screw

8 4449743 Screw

9 8285478 Support, Control

Panel

10 3400843 Screw

11 Orifice

3192525 Turbi (14k)

8286473 Auxi (6K)

12 9782116 Electrode

13 Cap, Burner

4455243 Turbi (14K)

8284669 Auxi (6K)

14 4455370 Washer, Square

15 Holder, Orifice

W10155786

Turbi (14K)

W10128449

Auxi (6K)

16 8286695 Rubber Foot

17 Trim, Side

W10157584

Right

W10157585

Left

18 9760699 Cooktop, Black

19 Burner Head

4455849 Turbi (14K)

4455979 Auxi (6K)

20 8273062 Screw

21 2005292 Nameplate

22 2004333 Palnut

W10157522

Control Frame

W10157524

Panel, Control

25 3196176 Screw

W10018520

Bezel, Knob

W10078400

Knob, Burner

28 4455109 Plate, Simmer

W10110489

Module, Spark

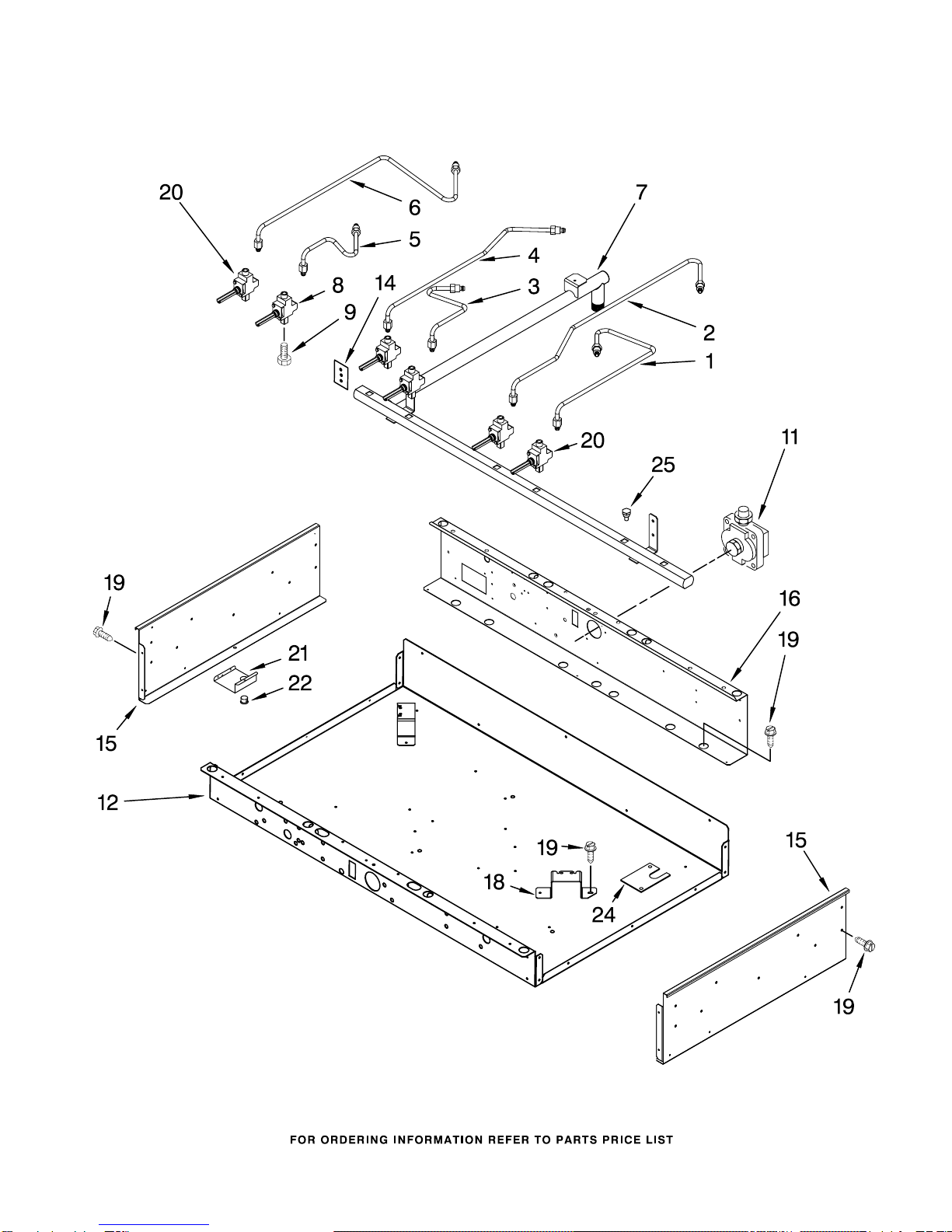

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP467JSS07

(Stainless)

W10206140

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP467JSS07

(Stainless)

W10206140

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

Burner − CR

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284749 Manifold

8 4456818 Valve, Burner

(Turbo)

9 8523704 Bolt, Valve

11 9759091 Regulator,Pressure

12 4457094 Burner Box

14 3192439 Seal, Switch

15 Side, Burner Box

8285607 Right

8285606 Left

16 9759136 Support, Rear

18 3192811 Bracket, Burner

19 3177991 Screw

20 4456816 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

24 8285361 Cover, Panel

25 8284796 Plug, Manifold

OPTIONAL PARTS

For Model: KGCP467JSS07

(Stainless)

W10206140

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

9763116 Power Cord

1129449 Bushing

4456910 Harness, Switch

4456628 Harness, Wire

Ignitor (42")

4456627 Harness, Wire

Ignitor (28")

Miscellaneous

8285591 L.P. Orifice Spud

Pack
