CORDLESS HAND BLENDER INSTRUCTIONS

Table of ConTenTs

HAND BLENDER SAFETY

Important safeguards.......................................................................................... 6

Electrical requirements ..................................................................................... 7

Electrical equipment waste disposal................................................................... 7

Disposing of KitchenAid Lithium-Ion (Li-Ion) battery......................................... 7

PARTS AND FEATURES

Parts and accessories.......................................................................................... 8

Attachment guide ............................................................................................. 10

OPERATING THE HAND BLENDER

Before rst use: charging the battery ............................................................... 11

Assembling the Hand Blender .......................................................................... 12

Using the LED display panel............................................................................. 13

Using the blending arm..................................................................................... 14

Using the whisk attachment ............................................................................. 15

Using the chopper attachment......................................................................... 16

Chopper processing guide................................................................................ 17

TIPS FOR GREAT RESULTS

Techniques for better blending and crushing.................................................... 18

Operating tips................................................................................................... 18

CARE AND CLEANING

Cleaning the Hand Blender .............................................................................. 20

SERVICE AND WARRANTY

KitchenAid Hand Blender warranty ................................................................. 21

Customer service ............................................................................................. 21

W10529667A_01_EN.indd 5 12/28/12 12:51 PM

HAND BLENDER SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

1. Read all instructions.

2. To protect against risk of electrical shock, do not put motor body of Hand Blender,

battery, charger, charger’s cord or plug in water or other liquid.

3. This appliance is not intended for use by persons (including children) with reduced

physical sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by

a person responsible for their safety.

4. Children should be supervised to ensure that they do not play with the appliance.

5. Avoid contact with moving parts.

6. Do not operate any appliance or charger with a damaged cord, or plug, or after the

appliance or charger malfunctions, or is dropped, or damaged in any manner. Return

appliance or charger to the nearest Authorized Service Facility for examination, repair,

or electrical or mechanical adjustment.

7. The use of attachments not recommended or sold by KitchenAid may cause re,

electric shock, or injury.

8. Do not let power cord on charger hang over edge of table or counter. Excess cord

may be wrapped on the underside of the charger.

9. Do not let power cord on charger contact hot surfaces, including the stove.

10. When mixing liquids, especially hot liquids, use a tall container, or make small quantities

at a time to reduce spillage.

11. Keep hands and utensils out of the container while blending to prevent the possiblity

of severe injury to persons, or damage to the unit. A scraper may be used, but must

be used only when the unit is not running.

SAVE THESE INSTRUCTIONS

W10529667A_01_EN.indd 6 12/28/12 12:51 PM

English

HAND BLENDER SAFETY

Electrical requirements

Disposing of KitchenAid Lithium-Ion (Li-Ion) battery

Always dispose of your battery according to

local regulations. Contact a recycling agency

in your area for recycling locations.

Even discharged batteries contain some

energy. Before disposing, use electrical

tape to cover the terminals to prevent

the battery from shorting, which could

cause a re or explosion.

This appliance is marked according to the

European directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed

of correctly, you will help avoid potential

negative consequences for the environment

and human health, which could otherwise

be caused by inappropriate waste handling

of this product.

The symbol on the product, or on the

documents acompanying the product,

indicates that this appliance may not be

treated as household waste. Instead it shall

be handed over to the applicable collection

point for the recycling of electrical and

electronic equipment.

Disposal must be carried out in accordance

with local environmental regulations

for waste disposal.

For more detailed information about

treatment, recovery, and recycling of this

product, please contact your local city ofce,

your household waste disposal service, or

the shop where you purchased the product.

Electrical equipment waste disposal

12. Blades are sharp. Handle carefully.

13. Be certain chopper adapter is securely locked in place before operating appliance.

14. Always remove the battery from the Hand Blender if it is left unattended and before

assembling, disassembling or cleaning.

15. This product is designed for household use only.

SAVE THESE INSTRUCTIONS

Battery Voltage: 12 V Lithium-Ion (Li-ion) / 1.5 Ah / 16 Wh

Battery Model No.: 5KCL12IBOB

Charger

Input : 18 V / 660 mA

Output : 12 V / 550 mA

Charger Model No.: 5KCL12CSOB

Charger Adapter

Input : 220-240 V / 50/60 Hz / 18 W

Output : 18 V / 660 mA

Charger Adapter Model No.: W10533411

W10529667B_01_EN.indd 7 1/11/13 9:11 AM

PARTS AND FEATURES

Parts and accessories

20 cm (8") Stainless

steel blending arm*

Front of

motor body

Battery location

Unlock button

Speed control

buttons

Pulse button

Back of motor body

Battery release

lever /

Hanging loop

Grip

Battery

Charger base

LED charge

indicator/ Lid

release

LED display

speed selection

indicator

LED display

battery life

indicator

* Shown with

S-Blade attached

W10529667A_01_EN.indd 8 12/28/12 12:51 PM

English

PARTS AND FEATURES

Parts and accessories

Chopper attachment

Blending pitcher

Star blade

Frother/Beater

1 Cup

1/2 Cup

1 1/2 Cup

2 Cup

2 1/2 Cup

3 Cup

4 Cup

3 1/2 Cup

BELL BLADESGUARDS

33 cm (13")

Blending arm

Storage case

Whisk attachment

Bell guard

Pan guard

S-Blade

W10529667A_01_EN.indd 9 12/28/12 12:51 PM

PARTS AND FEATURES

Attachment guide

Attachment Best used to

S-Blade Blend, Crush, Puree

Soups, Cooked vegetables, Sauces, Baby food,

Smoothies, Milk shakes, Frosting, Crushed ice

Star Blade Shred, Mince

Cooked meats, Beef gravy, Minces

Frother/Beater Froth, Mix

Milk (for Latte, Cappuccino...), Cake batter,

Pancake batter, Mufn batter

Whisk Whip, Emulsify, Aerate

Egg whites, Whipped cream, Mayonnaise,

Vinaigrette, Mousse, Hollandaise sauce,

Pudding

Chopper Chop

Vegetables, Parmesan cheese, Peanuts,

Salsa, Hard boiled eggs, Bread crumbs,

Herbs, Cooked meats, Beef gravy, Minces

OPERATING THE HAND BLENDER

W10529667A_01_EN.indd 10 12/28/12 12:51 PM

English

PARTS AND FEATURES

OPERATING THE HAND BLENDER

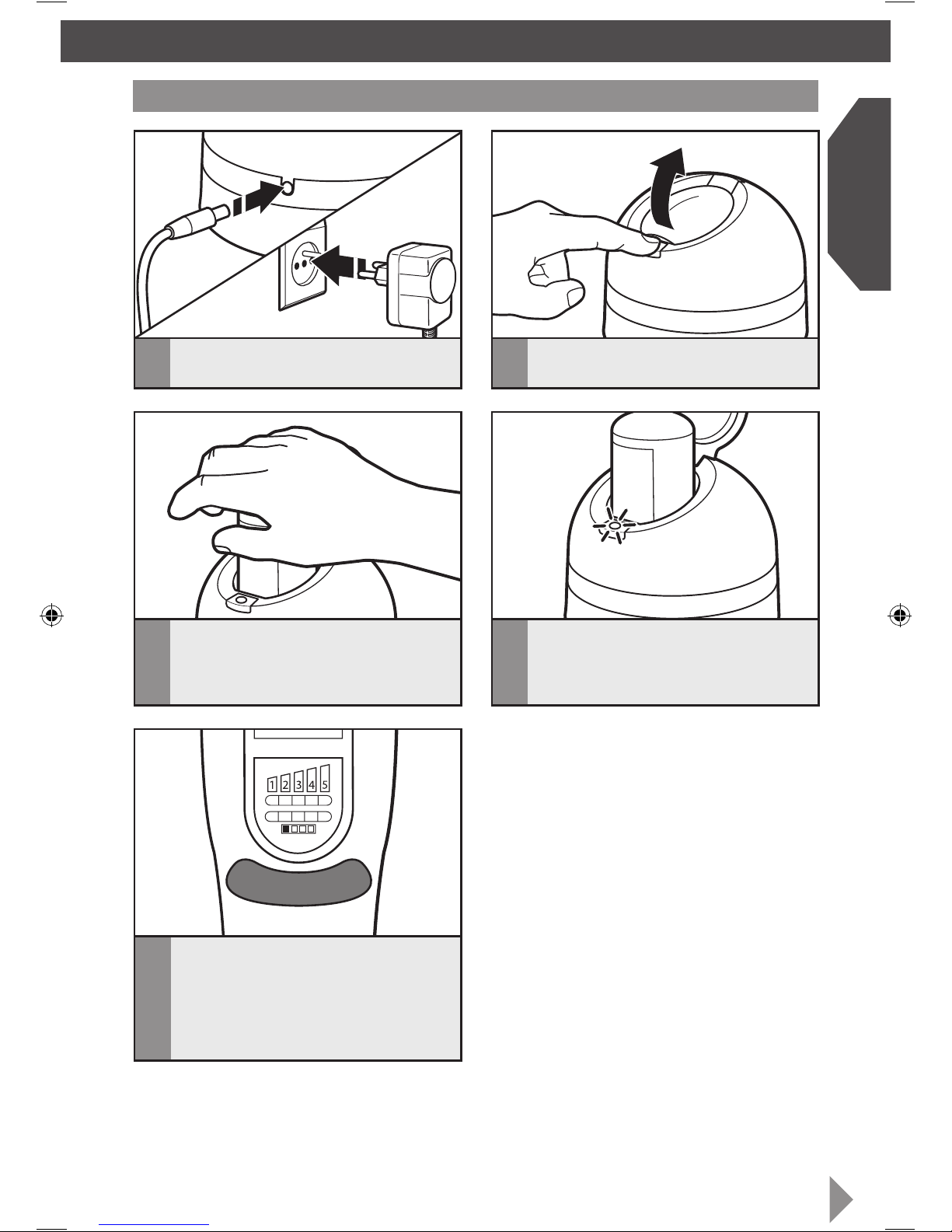

Before rst use: charging the battery

1Plug in the charger.

3Slide the battery into the charger,

aligning the flat side of the battery to the

flat side of the port, and push down to

click into place.

4The LED indicator will begin to flash

slowly and continuously as it charges.

When the battery is fully charged, the

LED will display a continuous light.

NOTE: If the charger quickly flashes three

times after inserting the battery, there is

a battery error. Check that the battery is

placed properly in the charger. If the light

continues to flash rapidly, the battery may be

extremely cold, hot, wet or damaged. Allow

the battery to cool down, warm up or dry

out, then reinsert. If the problem persists,

see the “Service and Warranty” section.

5Charge the battery after each use, when

the battery indicator lights show less

than 25% battery life remaining (only

one light displays on the LED battery

life indicator), or when the battery is

completely drained.

2Push the lid release button to open

the lid.

NOTE: Batteries do not develop a

“memory” when charged after only a partial

discharge. It is not necessary to run down

the battery before placing it on the charger.

W10529667A_01_EN.indd 11 12/28/12 12:51 PM

OPERATING THE HAND BLENDER

Before First Use

Before using the Hand Blender for the

first time, wipe the motor body, the whisk

adapter, and chopper adapter with a clean,

damp cloth to remove any dirt or dust.

Mild dish soap may be used. Do not use

abrasive cleansers. Dry thoroughly with a

soft cloth. Wash all accessories, see “Care

and Cleaning” section for more information.

Assembling the Hand Blender

4If using a pan guard, place it on a flat

surface and position with mounting clips

between the ports of the blade.

3Insert blending arm into motor body

and twist until it clicks to lock in place.

Port

Mounting

grips

2Remove the bell guard from the blade.

Use the pan guard to

avoid damage to cookware

while using Hand Blender.

Bell guard Pan guard

1Insert blending arm into bell blade (see

“Attachment guide”). Twist to lock until

it clicks.

Use the bell guard to

avoid damage to blade

when Hand Blender is

not in use.

NOTE: Do not put whisk adapter or chopper adapter in dishwasher.

W10529667A_01_EN.indd 12 12/28/12 12:51 PM

English

OPERATING THE HAND BLENDER

5Snap pan guard into place with an even,

downward motion.

IMPORTANT: The unlock button must be pressed before the Hand Blender will operate.

6Slide the charged battery into the top

of the Hand Blender motor body. Make

sure it latches securely.

Pulse button

Speed control

buttons

Speed selection

indicator

Battery life

indicator

Unlock

button

LED display

Using the LED display panel

1When operating the controls on the

Hand Blender, always make sure the

LED display is facing toward you. Grip

the handle with your thumb on the

back of the unit, and your fingers on the

controls in front, as shown.

2The bottom bar on the LED display

panel is the battery life indicator. Hold

the Hand Blender so that you can see

the LED display light up when you

press the UNLOCK button with your

index finger.

3The top bar on the LED display panel is

the speed selection indicator. To adjust

speeds, operate the arrow buttons

with your index finger, while viewing

the speed indicator on the LED display.

When the LED faces you, the right

button will increase the speed and the

left button will decrease the speed.

4After selecting desired speed, press

the PULSE button to begin blending.

See “Using the blending arm” section

for more information.

NOTE: The Hand Blender will automatically

power down after 60 seconds of not

operating or being manually unlocked.

W10529667A_01_EN.indd 13 12/28/12 12:51 PM

Table des matières

Autres manuels KitchenAid Mixer

KitchenAid

KitchenAid KSB580CR0 Manuel utilisateur

KitchenAid

KitchenAid KSB7068 Manuel utilisateur

KitchenAid

KitchenAid KSB580 Guide rapide

KitchenAid

KitchenAid 3 Speed Classic Blender Manuel utilisateur

KitchenAid

KitchenAid K400 Manuel utilisateur

KitchenAid

KitchenAid KSB1585 Manuel utilisateur

KitchenAid

KitchenAid Pro Line KSB8270 Manuel utilisateur

KitchenAid

KitchenAid Artisan Power Plus 5KSB8270 Manuel utilisateur

KitchenAid

KitchenAid KCB348PGR - Pro Line Manuel utilisateur

KitchenAid

KitchenAid 5KHBBV53 Manuel utilisateur

KitchenAid

KitchenAid 5KHBL1321 Manuel utilisateur

KitchenAid

KitchenAid 5KSB5553 Manuel utilisateur

KitchenAid

KitchenAid 5KHB3581ECA Manuel utilisateur

KitchenAid

KitchenAid KSB5000 Manuel utilisateur

KitchenAid

KitchenAid KHB1235 Series Manuel utilisateur

KitchenAid

KitchenAid 5KHB2571EOB Manuel utilisateur

KitchenAid

KitchenAid 5KSBR200 Manuel utilisateur

KitchenAid

KitchenAid KHBRV00 Manuel utilisateur

KitchenAid

KitchenAid KHB100OB - 8" Immersion Blender Manuel utilisateur

KitchenAid

KitchenAid KHBC412 Manuel utilisateur

KitchenAid

KitchenAid KHBC412 Manuel utilisateur

KitchenAid

KitchenAid KSB560AQ - Martha Stewart - Collection... Manuel utilisateur

KitchenAid

KitchenAid 5KHB100 Manuel utilisateur

KitchenAid

KitchenAid KHBV53 Manuel utilisateur

Manuels Mixer populaires d'autres marques

ROTOR

ROTOR 1125.201 Manuel utilisateur

Braun

Braun Multiquick 5 Vario series Manuel utilisateur

ARENDO

ARENDO MIRA 305424 Manuel utilisateur

CHEF-BUILT

CHEF-BUILT CCB-3500 Manuel utilisateur

Viconte

Viconte VC-4406 Manuel utilisateur

Oster

Oster BLSTAB-CB0 Manuel utilisateur

HOFFEN

HOFFEN MC-3005 Manuel utilisateur

Black & Decker

Black & Decker BLC18750DM Manuel utilisateur

Sunbeam

Sunbeam 4182 Manuel utilisateur

Bialetti

Bialetti FMX35 Manuel utilisateur

Black & Decker

Black & Decker BL8000 Manuel utilisateur

Duronic

Duronic BL530 Manuel utilisateur

Exquisit

Exquisit MS 3002 wes Manuel utilisateur

Lumme

Lumme LU-KP1891A Manuel utilisateur

Binatone

Binatone HB-735 Manuel utilisateur

Moulinex

Moulinex LM936E10 Manuel utilisateur

Oster

Oster VERSA Manuel d'installation et d'exploitation

Ninja

Ninja NN210Q Manuel utilisateur
