Congratulations, and welcome to the fabulous world of EX35/40/45/50 ownership, where serious work is made

fun again!

This versatile tractor is a culmination of the entire tractor and diesel knowledge gained by the Daedong Indus-

trial Co.,LTD over the years since 1947 and has been designed with the finest materials and under rigid quality

control standards set forth by the KIOTI Engineering Department.

Knowledge of tractor operation is essential for many years of dependable service and reliability. To help new

owner's familiarize themselves with the KIOTI EX35/40/45/50, it is the policy of KIOTI tractor to provide an

owner's manual which includes helpful information about tractor safety, operation and maintenance. If the infor-

mation you seek is not found in this manual, your KIOTI tractor dealer will be happy to help you.

Please feel free to contact DAEDONG IND. CO.,LTD with your questions/concerns.

FOREWORD

This manual includes information titled as WARNING, CAUTION, IMPORTANT

and NOTE. These titles indicate the following:

SAFETY AND VEHICLE DAMAGE WARNING

NOTE

This indicates that interesting or helpful information is being

provided.

CAUTION

!This indicates that a condition may result in damage to your

vehicle or its equipment if the caution is not heeded. Follow the

advice provided with the caution.

WARNING

This indicates that a condition may result in harm, serious injury

or death to you or other persons if the warning is not heeded.

Follow the advice provided with the warning.

Thismarkindicatesemphasisonnotablecharacteristicsofwork-

ing procedures, and information about technology for easier

operation.

IMPORTANT

ABBREVIATION LIST

ABBREVIATIONS

4WD

API

ASAE

ASTM

fpm

Hi-Mid-Lo

HST

m/s

PTO

RH/LH

ROPS

m-1 (rpm)

S-1 (r/s)

SAE

SMV

DEFINITIONS

Four Wheel Drive

American Petroleum Institute

American Society of Agricultural Engineers, USA

American Society of Testing and Materials, USA

Feet Per Minute

High Speed-Middle Speed-Low Speed

Hydrostatic Transmission

Meters Per Second

Power Take Off

Right-hand and Left-hand sides are determined by facing in the direction of forward travel

Roll-Over Protective Structures

Revolutions Per Minute

Revolutions Per Second

Society of Automotive Engineers, USA

Slow Moving Vehicle

Various universal symbols have been used on the instruments and controls of your KIOTI tractor. Below is a list

of the universal symbols and their meanings.

UNIVERSAL SYMBOLS

Fuel-Level

Engine Coolant-Temperature

Parking Brake

Battery Charging Condition

Engine Oil-Pressure

Turn Signal

Power Take-Off Clutch Control-

ON Position

Power Take-Off Clutch Control-

OFF Position

Differential Lock

Position Control-Lowered Position

Hazard Warning Lights

Headlight-Low Beam

Headlight-High Beam

Four-Wheel Drive-ON

Fast

Slow

Creep

High Range

Middle Range

Low Range

Coolant

Preheat

QT lamp

H:High speed travel light

M:Middle speed travel light

L:Low speed travel light

Neutral Position

Single brake light

SAFETY PRECAUTIONS .............................................

SERVICING OF TRACTOR .........................................

SPECIFICATIONS.........................................................

DESCRIPTION OF OPERATING SYSTEM ..............

OPERATION...................................................................

THREE-POINT HITCH & DRAWBAR........................

HYDRAULIC UNIT ........................................................

TIRES, TREAD AND BALLAST .................................

MAINTENANCE .............................................................

PERIODIC SERVICE ....................................................

STORAGE.......................................................................

TROUBLESHOOTING ..................................................

OPTIONS ........................................................................

INDEX ..............................................................................

TABLE OF CONTENTS

SECTION

BEFORE OPERATING THE TRACTOR .................... 1-2

OPERATING THE TRACTOR .................................... 1-5

DRIVING THE TRACTOR ........................................... 1-8

PARKING THE TRACTOR ......................................... 1-9

OPERATING THE PTO ............................................. 1-10

USING 3-POINT HITCH............................................. 1-10

SERVICING THE TRACTOR .................................... 1-11

TRACTOR SAFETY LABELS................................... 1-14

SAFETY PRECAUTIONS

EX35/40/45/50

-2

A careful operator is the best operator.

Most accidents can be avoided by ob-

serving certain precautions.To help pre-

vent accidents, use these safety

precautions, and pay attention to the

job at hand. If you can prevent an

accident, your time will have been well

spent.

BEFORE OPERATING THE

TRACTOR

5. Keep safety decals clean of dirt and

debris.

6. Watch where you are going at all

times so that you are able to avoid

obstacles that can cause injury or

damage to your tractor.

7. When starting the tractor make sure

your path is clear of people to avoid

accidents caused by sudden

movements.

8. Before making reverse movements

with your tractor, you should always

check to see that the path is clear.

1. It is recommended that you read and

understand this entire manual before

operation of your new tractor. Fail-

ure to do so could result in accidents

or injury.

2. Only persons who are properly

trained should be allowed to operate

the tractor.

3. Read and follow all warning labels

and decals affixed to the tractor.

4. Replace any missing or damaged

decals as soon as it is practical. A

list of decals is shown on page1-

14~16.

T46O101A T46O102A

-3

SAFETY PRECAUTIONS

16. All persons using the tractor should

have knowledge of its proper op-

eration and should read this manual

carefully.

17. Never get off the tractor without set-

ting the parking brake, lowering the

implement to the ground and shut-

ting of the tractor.

18. No alterations should be made to

your KIOTI tractor.

12. Never start the engine while stand-

ing on the ground.

13. Only the operator should ride on the

tractor unless a passenger seat is

installed. Keep bystanders away

from the tractor while in operation.

14. When getting on and off the tractor,

handholds and step plates should

always be used. This will help to

prevent accidental slips trips and

falls.

15. Be sure to scrape off mud or soil

from your shoes before mounting

the tractor.

T46O103A T46O104A T46O105A

9. Never operate this tractor or any

other agricultural equipment while

under the influence of alcohol,

drugs or while fatigued.

10. While working in cooperation with

other tractors always communicate

your intentions.

11. Do not start your tractor by short-

ing across the starter.

EX35/40/45/50

-4

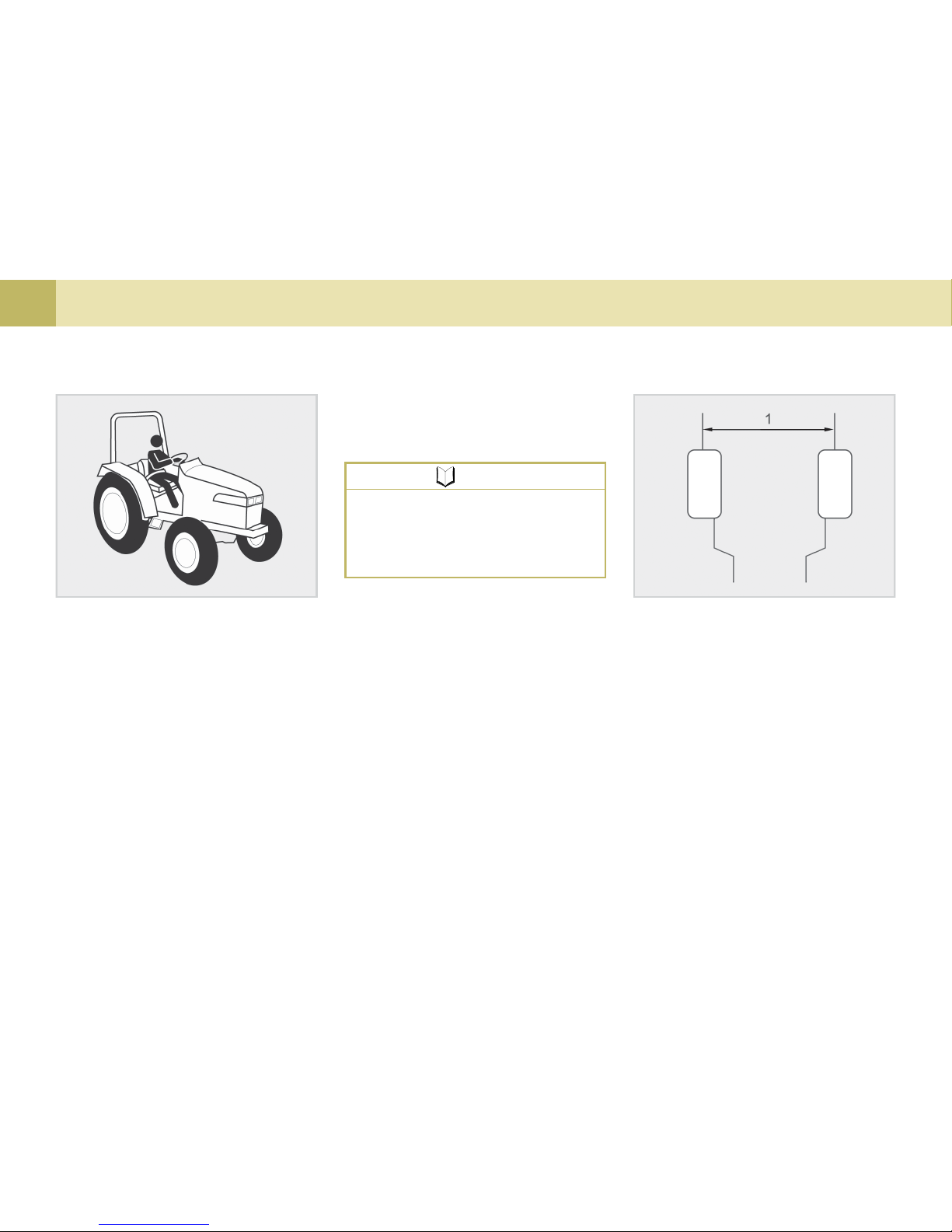

21. Extra caution should be taken when

driving tractors with narrow tread

widths. For added stability you

should adjust your rear wheel tread

width, see page 8-4.

19. Before starting your tractor you

should depress the clutch and

make sure that all shift levers are

in the neutral position and parking

brake is applied.

20. For your safety ROPS with a seat

belt is recommended for all

applications.

(1) Tread

T46O106A T46O107A

A ROPS should never be modified by

welding, grinding or cutting, as this

can weaken the ROPS structure. If any

components of the ROPS unit is

damaged, it must be replaced.

If the ROPS unit is removed or loos-

ened for any reason, the parts should

be fitted back to their original positions

and all bolts should be properly

torqued.

Always use seat belt when the

tractor is equipped with a ROPS.

Never use the seat belt when trac-

tor is not equipped with a ROPS.

NOTE

-5

SAFETY PRECAUTIONS

1. Avoid accidental contact with gear

shift levers while the engine is

running. Unexpected tractor move-

ments can result in bodily injury.

2. Do not park your tractor on a steep

incline, and remember to shut off the

engine and PTO before dismount-

ing the tractor.

OPERATING THE TRACTOR

T46O109A

T46O108A T46O110A

3. Do not operate your tractor in an en-

closed building without the proper

ventilation. Exhaust fumes contain

carbon monoxide and may cause

series injury or death.
