AL-KO Heritage RS 14/82 Manuel utilisateur
RS 14/82
HERITAGE TRACTOR
Code148E
INSTRUCTION BOOK
MANUAL PART NO: 111-0441 (B)
464061
(English Version)
Code From serial No.
148E 290000101
Issue 17/12/08

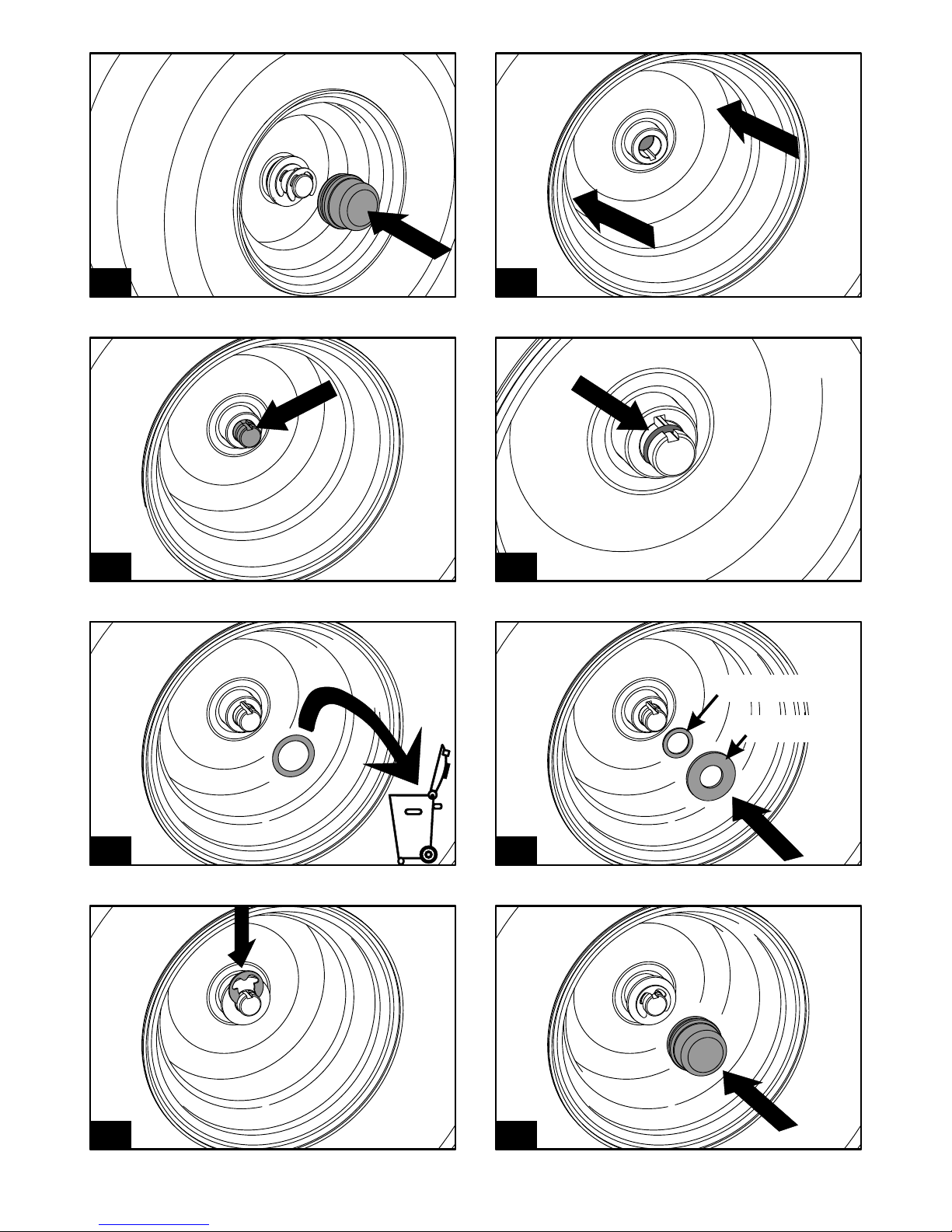

1
6
3
5
7
2
2
8
4
Ø19 x Ø26
Ø20 x Ø42
15
14
3
910
11
16
13
12
4
21
23
19
22
20
18
24
1
2
f: 20 Nm
17
90°
d: Ø10,5 x Ø30 x 5
e: Ø10,5 x Ø19
f: M10x70
a
a
b
c
d
e
f
g
5
26
28
31
25
27
29
32
30
6
2
13
33
I
II
O
11
2
0½¾ ¼
1
36
38
35
34
37
2
39
ON
OFF
1
1
2
40
7

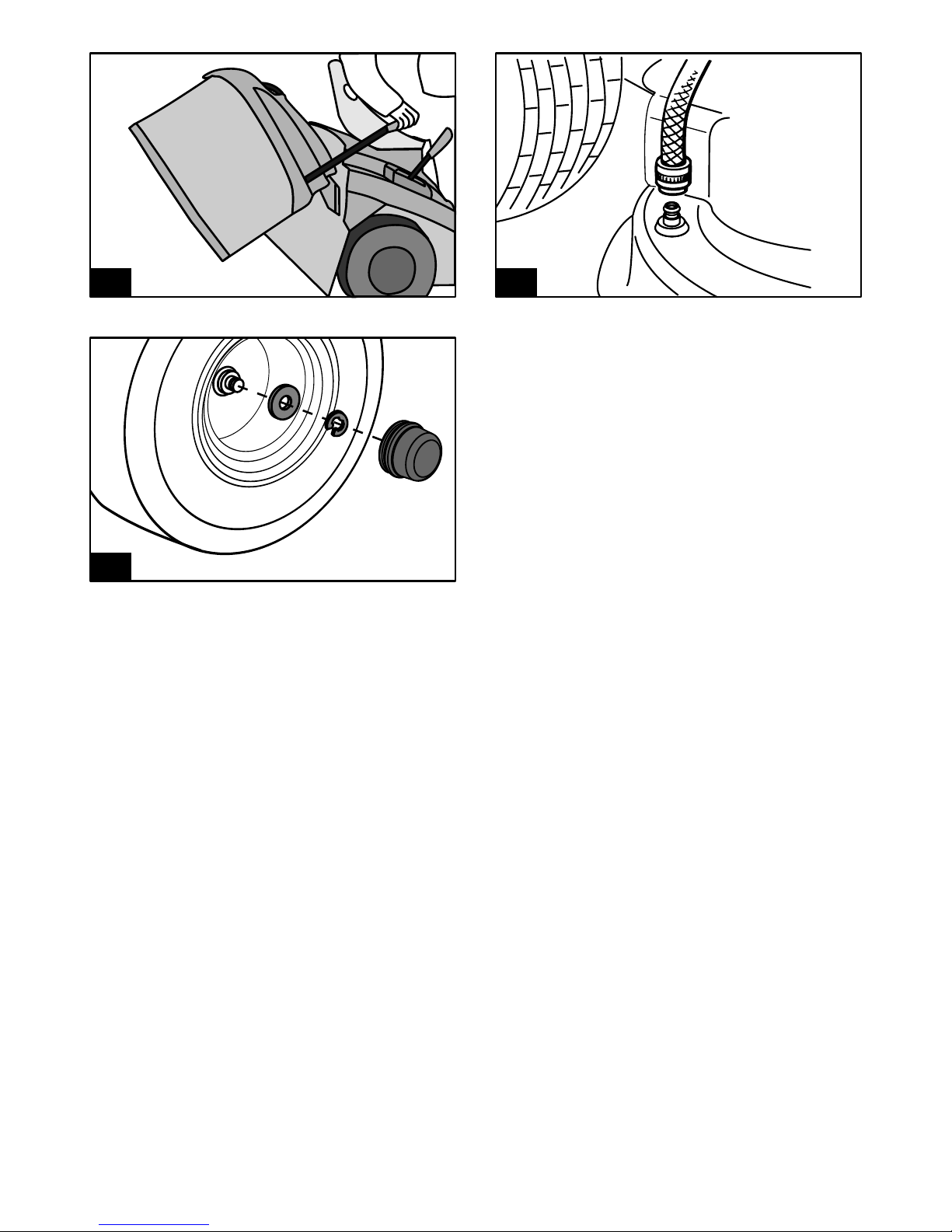

41 42
43
GB

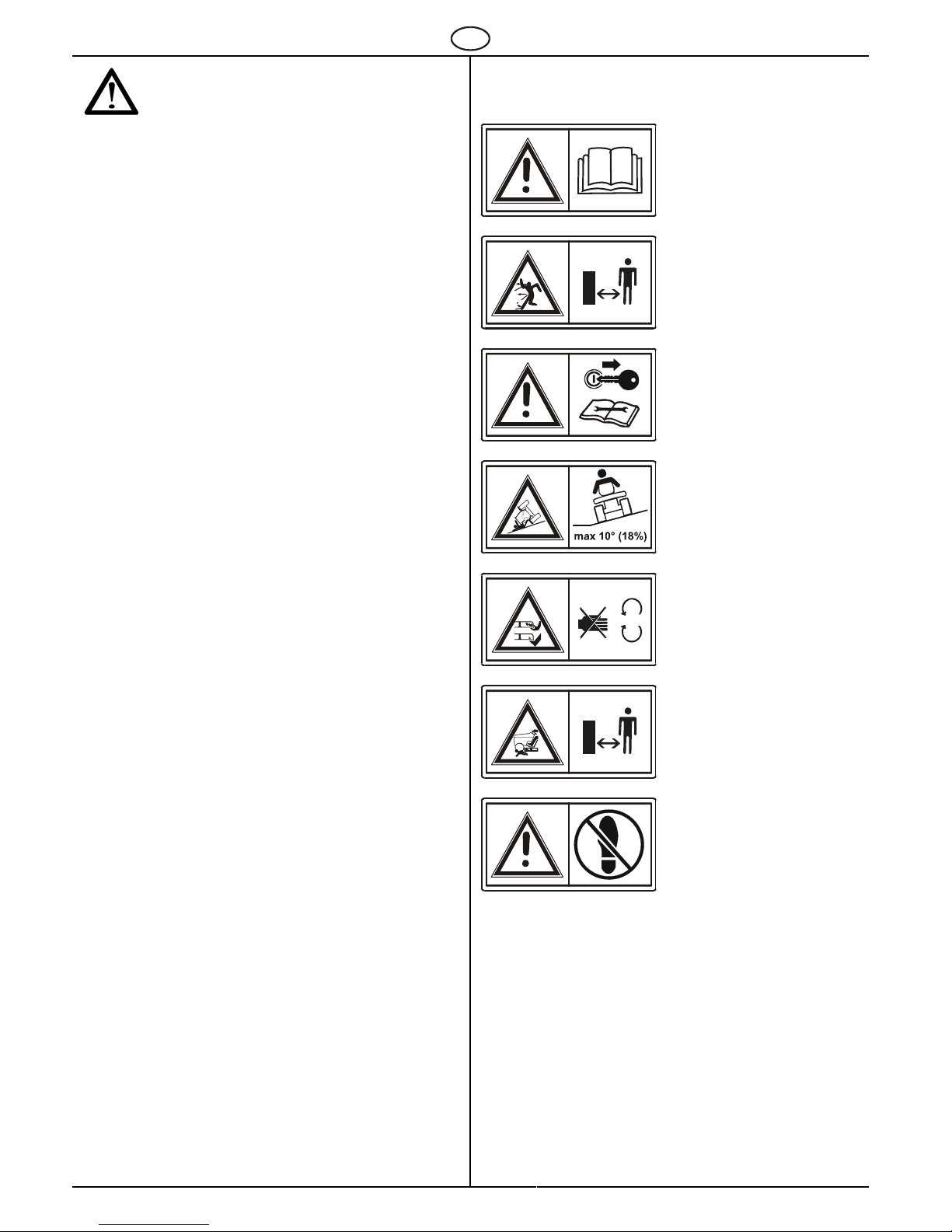

MEANING OF SYMBOLS INDICATED ON THE
MOWER
Read operating instructions before
start of operation.
Keep other people out of the danger
zone.
Pull the ignition plug out before
maintenance and repair work.
Do not use on slopes above 10°
(18%).
Attention, danger!
Keep hands and feet away from the
cutting gear.
While mowing, keep other people, in
particular children and animals,
away from the working area.
Danger: do not go here.
Before assembly and start of operation,
please read the operating instructions at all
costs and comply with them.
Dear Customer,
You have bought a totally tested quality product. However, should you
have any reason for complaints, please get in touch with your dealer,
stating the code and serial number (see nameplate).
LIST OF CONTENTS
Manufacturer
Introduction...............................................................................GB 8
Intended use.............................................................................GB 8
Meaning of symbols indicated on the mower.......................... GB 8
Safety precautions.................................................................. GB 9
Unpacking Lawntractor………………………………………….. GB 10

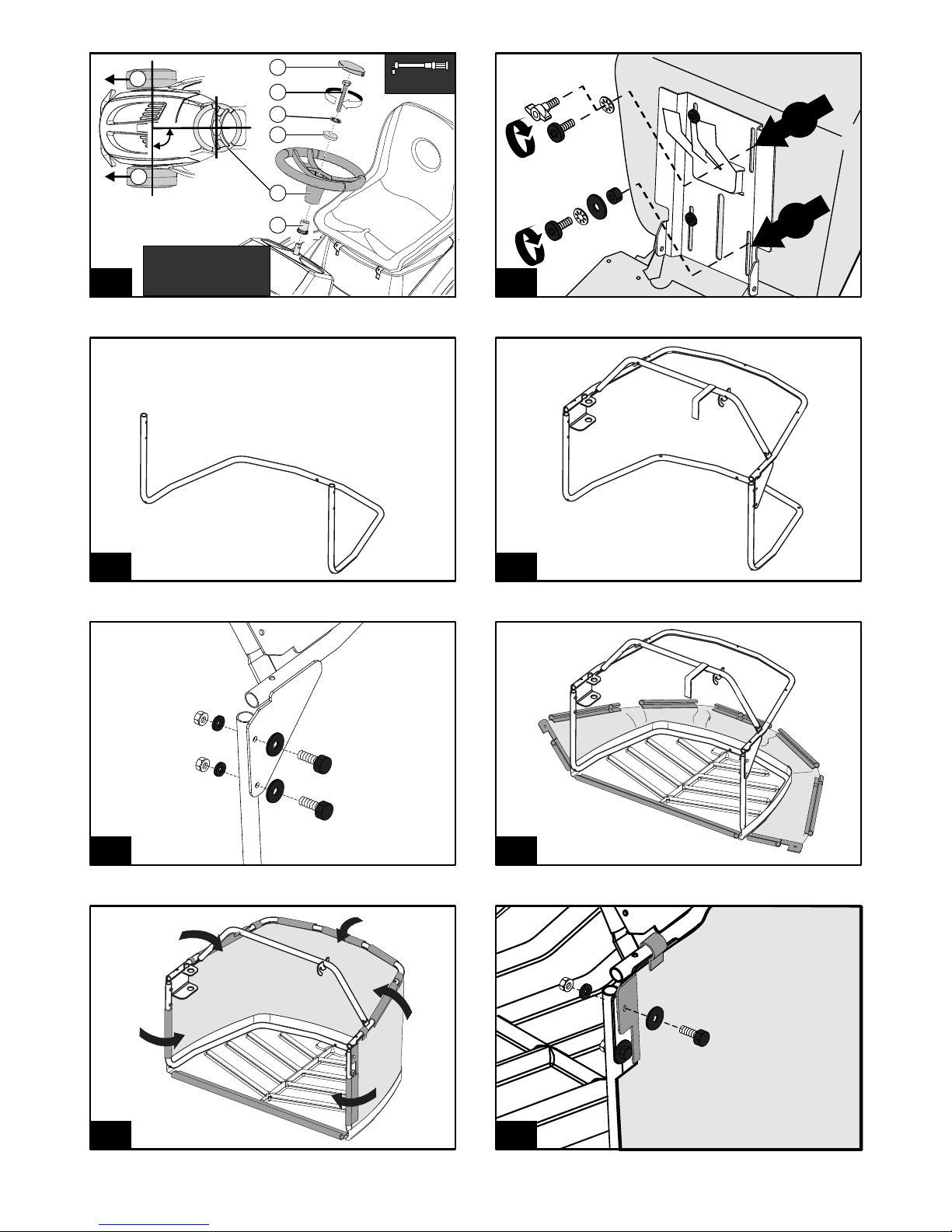

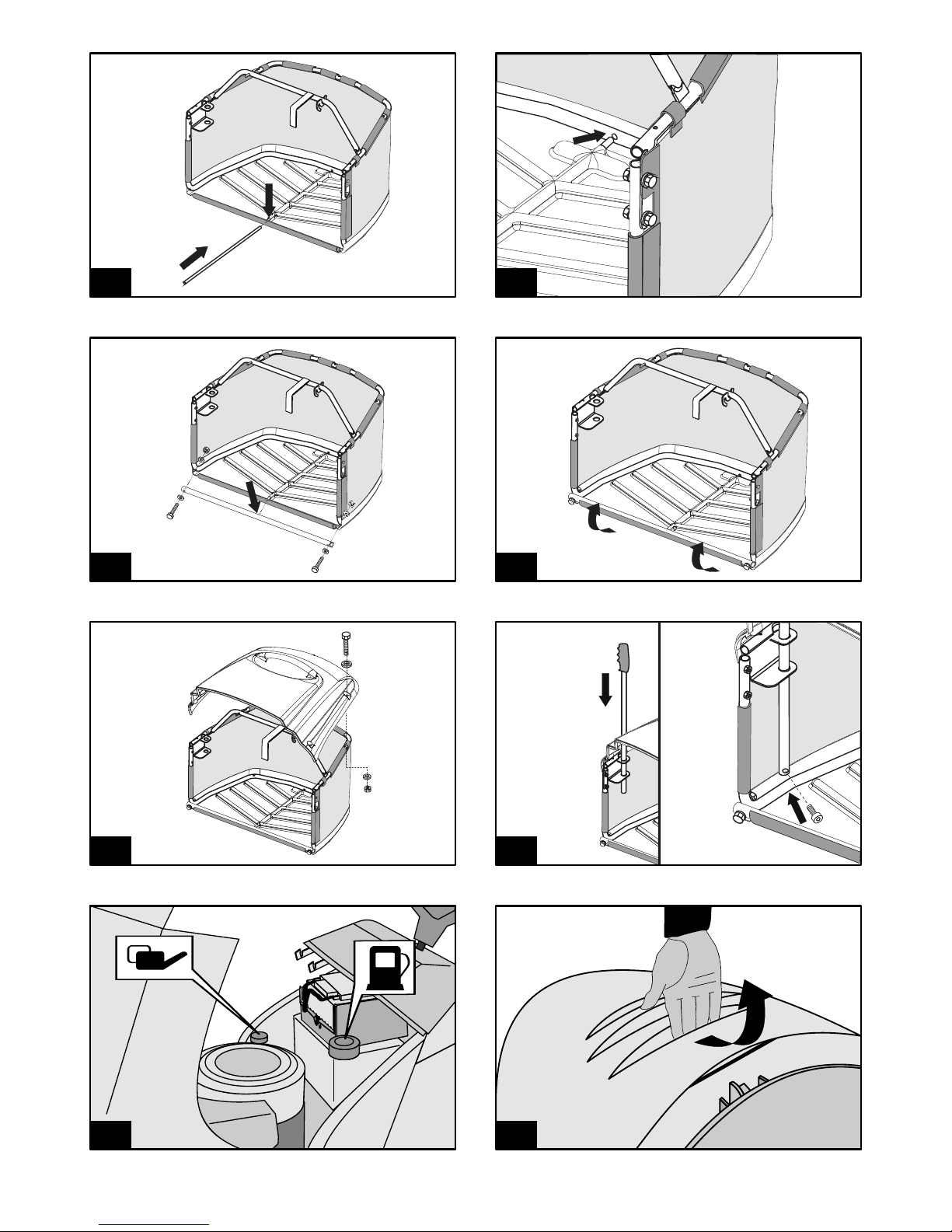

Assembly................................................................................ GB 11
First operation.......................................................................... GB 13

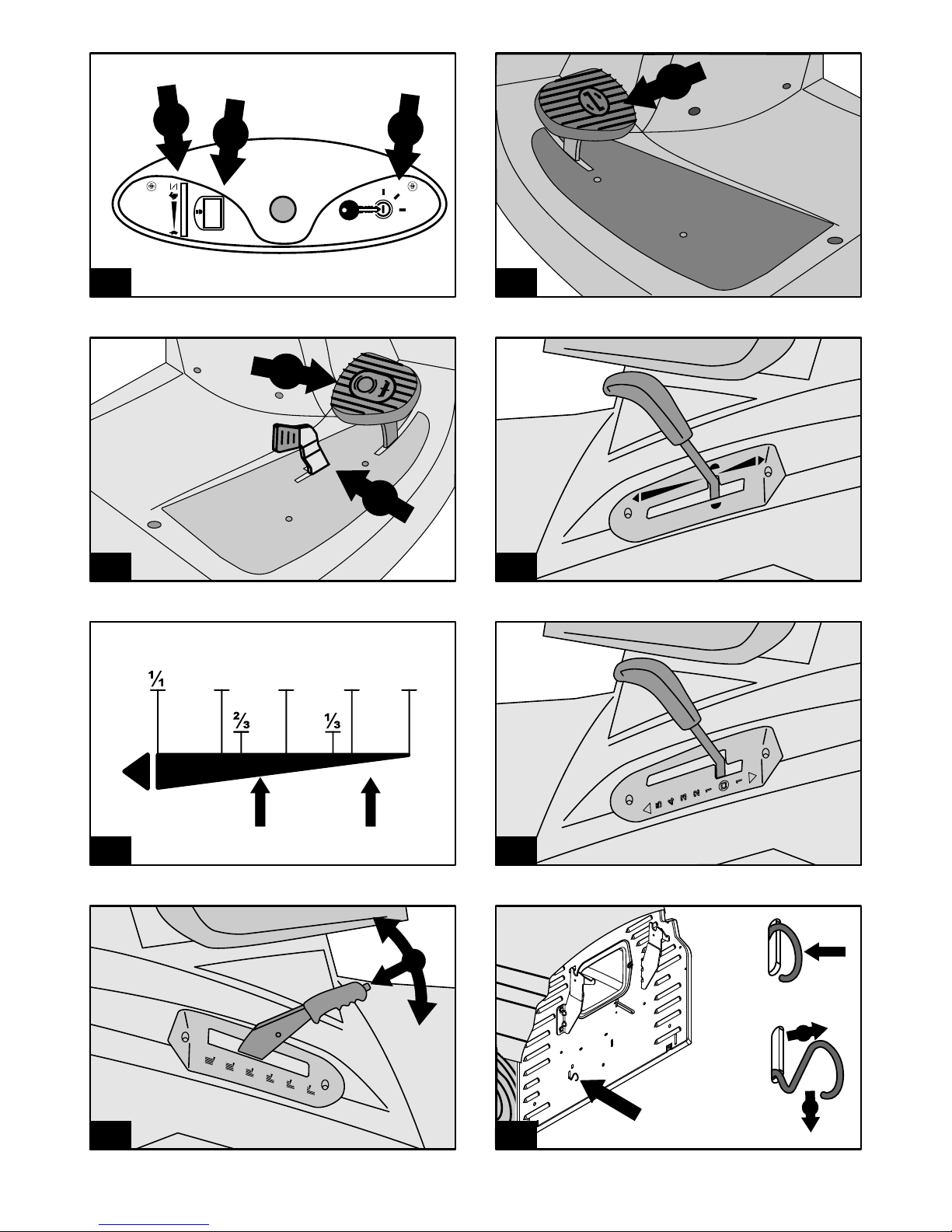

Operating elements.................................................................. GB 13
Start of operation..................................................................... GB 14
Care and maintenance............................................................ GB 16
Starter battery......................................................................... GB 18
Storage in winter...................................................................... GB 19
Trouble Shooting.................................................................... GB 20
Warranty................................................................……...……. GB 21
INTRODUCTION
Dear customer,
You have purchased a new machine. We want to thank you for the trust
that you put into our quality products and hope that you will have much
pleasure from working with your new machine.
Before putting the machine into operation for the first time, please
familiarise yourself with the contents of these operating instructions. If
the machine is operated by people without sufficient qualifications or not
according to the intended purpose, use of the machine may be
dangerous. Please pay attention to the accident prevention directives.
Please pay attention to the safety instructions contained in these
operating instructions and to the safety instructions on the machine.
Due to ongoing improvements of the product, the information contained
in this manual is subject to alterations without the manufacturer being
obliged to notify or to update, under the proviso that the essential
properties for safety and operation do not change. In cases of doubt,
please do not hesitate to contact your dealer.
INTENDED USE
This lawnmower is only intended for mowing in private gardens with a
maximum inclination of 10° (18%) - not for public parks, sports grounds
or in farming or forestry. Other kinds of use are only permitted with
original spare parts.
Any other use is regarded as being misuse and results in forfeiture of the
guarantee and rejection of any responsibility for damage to the user of
third parties on the part of the manufacturer.
Working hours for lawn tractors:
Please observe the local directives for the operation of lawnmowers.
GB 8
GB
SAFETY PRECAUTIONS
1. General remarks
1.1 Read the operating instructions carefully. Familiarise yourself with
the proper use of the machine.
1.2 People under 16 or people who have not read the operating
instructions are not allowed to use the machine.
1.3 Do not operate the machine when there are others, in particular
children or animals, in the area. The person using the machine is
responsible for third parties in the working area of the machine.
1.4 The person using the machine is responsible for accidents
involving other people or their property.
1.5 Please keep these operating instructions for later use.
1.6 The lawn tractor does not have approval according to the Highway
Code. You are therefore not allowed to drive on public ways and
roads with it.
1.7 Never mow on slopes with an inclination of more than 10° (18%).
1.8 No passengers may be transported on the machine.
2. Preparations
2.1 Always wear sturdy shoes and long trousers while mowing. Never
go barefoot or wear open sandals.
2.2 Completely check the area on which the machine is to be used and
remove any stones, sticks, wires, bones and other foreign objects.
Always watch out for foreign objects when mowing.
2.3 – Petrol is to be poured in before starting the engine.
WARNING! Petrol is highly flammable!
– Only keep petrol in the containers designed for this purpose.
– Only fill the machine in the open and do not smoke when filling
the machine.
– The tank may not be opened or petrol topped up while the engi
ne is running or when the machine is hot.
– If petrol has been spilt, do not start the engine. Instead, remove
the mower from the area contaminated with petrol. The spilt pe
trol must be sucked or wiped off the engine and the housing with
a cloth. No attempts at ignition may be made until the vapours
have disappeared.
– Use a funnel or a filling tube when pouring in petrol so that no
fuel can leak onto the engine or onto the lawn.
– For safety reasons, replace the tank lid and the petrol tank if they
are damaged.
2.4 The exhaust and the area around the exhaust can reach
temperatures of up to 80°.
ATTENTION: danger of burning!
Replace damaged silencers.
2.5 Before use, always make a visual check to see if the blade, the
fastening bolts or the entire cutting unit are worn or damaged. In
order to avoid an imbalance, worn or damaged blades must be
replaced with new ones.
2.6 Ensure that the movement of one blade can lead to rotations of the
other blades when mowing with more than one blade.
2.7 An examination by an expert is necessary if the machine stops
immediately, e.g. after impact with an obstacle (damage to the drive
shaft, bent blades etc.).
3. Instructions for use
3.1 The combustion engine may not be operated in enclosed rooms in
which dangerous fumes can collect - danger of poisoning!
3.2 Only mow your lawn in daylight or in good illumination. Please
observe any local directives about when you are allowed to use the
machine (see operating times for lawn tractors).
3.3 Before starting the machine, switch off the mowing appliance, put
the drive into neutral and operate the parking brake.
3.4 Please remember that there are no "safe slopes". Mowing slopes
with a lawn requires special attention. In order to protect yourself
against tipping over, you should:
– not stop or start suddenly if you are moving up or down the
slope,
– suppress the clutch slowly, leave the clutch depressed, in parti
cular when driving down the slope,
– keep the speed low on slopes and in tight bends,
– pay special attention to hills, recesses and other invisible
dangers,
– never mow transverse to the slope if it has an inclination of more
than 10°.
3.5 Always pay attention to road traffic when you are crossing roads or
working in the vicinity of roads.
3.6 When driving the tractor, pay attention to low-hanging obstacles
(branches, washing lines etc.) which can injure the driver.
3.7 Switch the mowing appliance off when driving off the lawn, lift it to
the highest cutting position.
3.8 Never operate lawn tractors with a damaged housing or defective
protective devices (e.g. grass box etc.).
3.9 Before leaving the driver's seat:
– switch the mowing appliance off and wait until the blades come
to a standstill,
– switch the engine off and remove the ignition key.
3.10 Disengage the drive, turn the engine off and pull out the spark plug
connector or the ignition key
– before eliminating blockages or obstructions in the discharge
channel
– before checking or cleaning the mower or doing any other work
on it
–if a foreign body is hit. Look for damage to the machine and
have the necessary repairs done before you start it again;
– if the mower starts to vibrate unusually severely, an
immediate check is necessary.
– whenever you leave the mower unattended or transport it
– before filling up with petrol
– before removing the grass box.
3.11 The basic setting of the engine in the factory is correct and must
not be altered.
3.12 Start and operate the starting switch carefully (see Chapter
"Starting the engine"). Make sure that your feet are at a safe
distance from the blade.
3.13 Do not tip the mower when starting or turning the engine on.
3.14 Do not start the engine if anyone is standing in front of the
discharge channel.
3.15 Keep your hands and feet out of the area of the rotating blade.
Keep other people away from the discharge channel when the
blade is rotating.
3.16 Never use a lawn tractor with a rear discharge without a grass box
or a vapour discharge.
GB 9
GB
4. Instructions for maintenance and storage
4.1 Make sure that the nuts, bolts and screws are tight.
4.2 Be careful when adjusting - danger of injuries. Do not trap your
fingers between the housing and the blade. Wear protective gloves.
4.3 Never store the lawn tractor with fuel in the tank inside a building in
which petrol fumes can possibly come into contact with naked
flames or with sparks
- danger of explosion!
4.4 Only empty the petrol tank in the open.
4.5 Allow the engine to cool down before you put the machine into an
enclosed area.
4.6 Avoid the risk of a fire by keeping the engine and the exhaust free
of grass, leaves and grease (oil).
4.7 Check regularly to make sure that the grass box is in a satisfactory
condition.
4.8 For safety's sake, worn or damaged parts must be replaced
immediately.
4.9 Replacement blades and additional appliances may only be
mounted on the lawn tractors intended for this purpose according to
the manufacturer's instructions. This is the only way to maintain the
safety and the performance of your lawn tractor.
4.10 Please ensure that the maintenance, checking and sharpening of
the blade is only done by an authorised dealer.
4.11 Only use original replacement blades.
We would point out that we are not liable according to the Product
Liability Act for damage caused by our machine as a result of
a) improper repairs not carried out by our authorised service
dealer,
b) or if ORIGINAL SPARE PARTS are not used as replacement
parts.

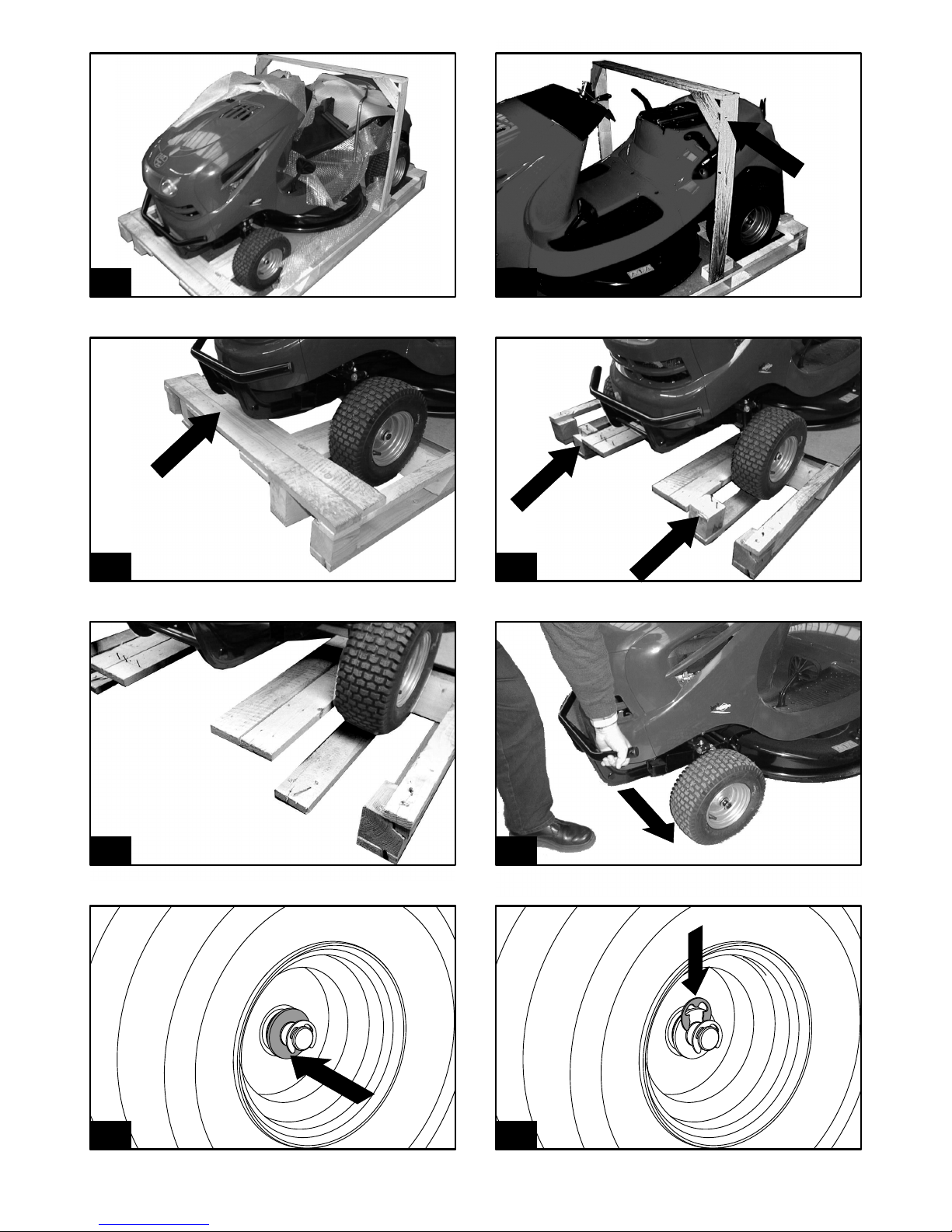

Unpacking Lawntractor
The lawntractor will be delivered on a solid wood pallet.
To remove the packing, place the pallet on a level surface.
Please follow the sequence for unpacking and for the respective
wheel locks.
The numbers to the left of the text, e.g. , refer to the
illustrations in the picture section of these operating instructions.
Open cardboard packing at top.
Remove staples and take off cardboard packing upward.
Remove enclosed parts and packing materials.
Remove wooden hoop.
Remove front laths.
Remove wooden blocks.
Remove all nails on the pallet.
Move mowing unit into highest position.
See operating instructions under:
>> Start-up - Adjusting cutting height <<
Lift tractor at rear and push off pallet.
Dispose of pallet and packing materials properly.
Secure the tractor from rolling away with the wheel locks!
Now you can begin mounting equipment.
GB 10
10
1
2
3
4
5
Table des matières
Autres manuels AL-KO Tracteur
