Kannad RC200 Mode d’emploi

DMA00514E

Ref: 0122145

Date of rev. OCT 03/2013

Revision 04

First issue: MAR 04/2003

Emergency Locator Transmitters

Orolia S.A.S - A Company of the Orolia Group

INSTALLATION MANUAL

USER MANUAL

P/N : S1820513-11 / S1820513-14

REMOTE CONTROL PANELS

RC200 / RC200 NVG

Nur für den Unterricht

INSTALLATION MANUAL / USER MANUAL

REMOTE CONTROL PANELS RC200 / RC200 NVG

PAGE: 11

OCT 03/2013

D. Acceptance test procedure

Perform an RCP test (Refer to D. RCP operational tests, page 15).

5. Working mode

A. Controls

The following elements are to be found on the RC200 remote control

panels:

1.a 3-position switch (ON, ARMED, RESET & TEST);

2.a red visual indicator.

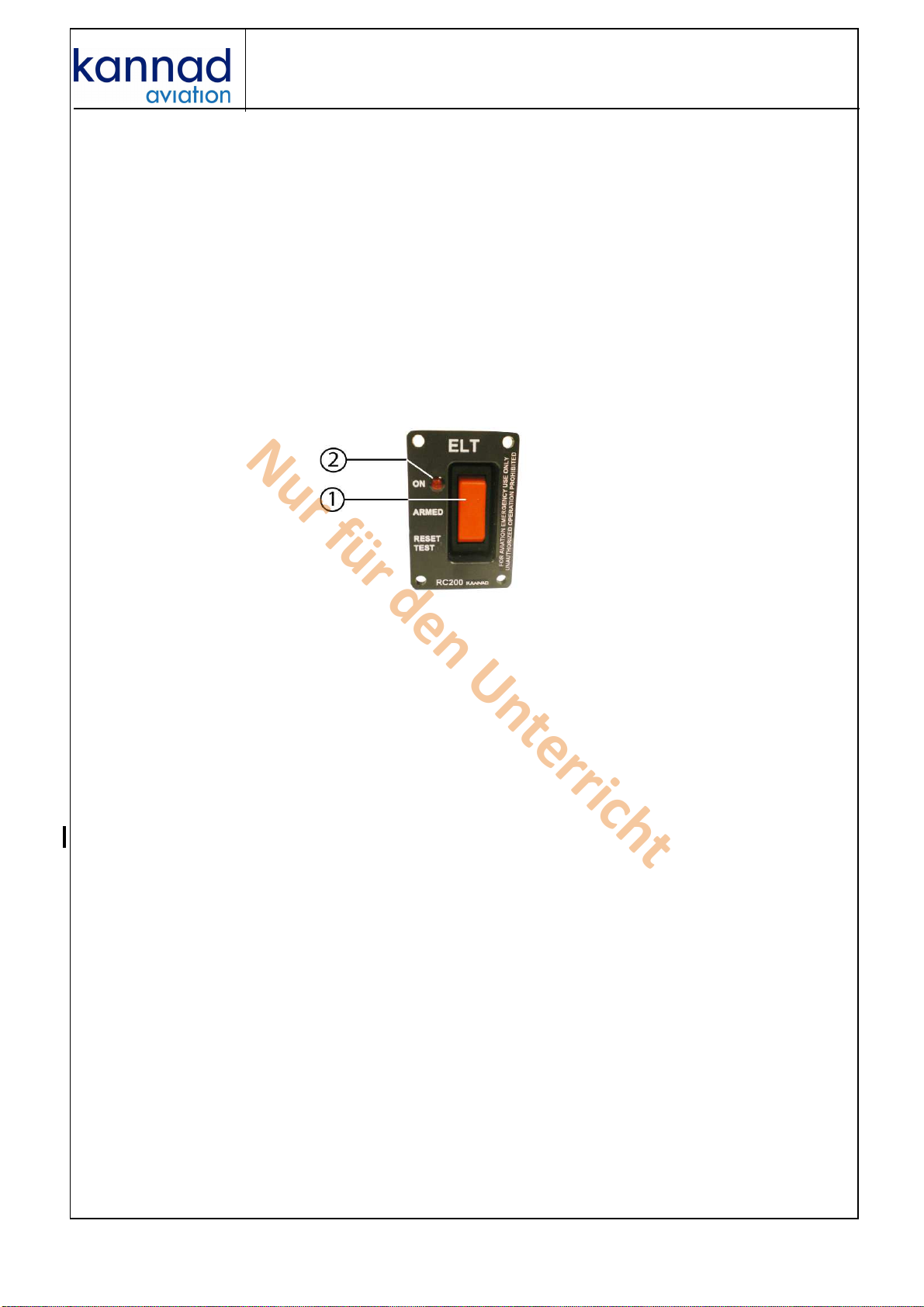

Figure 8: RCP controls

The visual indicator gives an indication on the working mode of the

beacon:

- After the self-test:

• one long flash indicates that the system is operational and that no

error were found;

• a series of short flash indicates the test has failed.

- In operation mode:

• periodic flashes during homer transmissions;

• long flash during 406 transmission.

B. Working mode information

The RC200 remote control panels enable remote control and remote

monitoring of the KANNAD ELTs provided that the ELT switch is in

armed position.

(1)Remote control

Remote control is done through a 3-position switch:

1.ON (transmission) enables manual activation of the ELT;

2.ARMED (stand by mode to enable automatic activation by the shock

sensor of ELT) is an idle position. Unless there is an emergency, the

switch must stay in this position.

Nur für den Unterricht

INSTALLATION MANUAL / USER MANUAL

REMOTE CONTROL PANELS RC200 / RC200 NVG

PAGE: 12

OCT 03/2013

3.RESET & TEST is used either to stop the ELT transmission if

activated or to perform a self-test.

Figure 9: 3-position switch

As required by regulations, the OFF mode is not available on the remote

control panel (RTCA DO 204 § 2.2.6.c, EUROCAE ED 62 § 2.5.1.1) but

directly on the ELT itself by switching it in OFF position.

Important notice: TEST/RESET (downwards) is a momentary

position.

Refer to operation manuals of the ELTs for precise information on these

modes.

(2) Monitoring

Monitoring is done through a visual indicator (Refer to Figure 8: RCP

controls, page 11) operating in the same way than those of the ELT:

Transmission:

• 1 short flash every 0.5 or 0.7 seconds during homer transmission;

• 1 long flash during ELT transmission on 406 MHz.

Self-test:

(Refer to C. RESET & TEST, page 13).

Refer to operation manuals of the ELTs for precise information on these

modes.

Nur für den Unterricht

INSTALLATION MANUAL / USER MANUAL

REMOTE CONTROL PANELS RC200 / RC200 NVG

PAGE: 13

OCT 03/2013

6. Operation Figure 10: Operating modes

A. Stand by mode

The stand by mode is the ARMED position (idle position). The switch is in

the middle position.

This mode is used to enable automatic activation by the shock sensor of

the ELT provided that the ELT switch is in armed position. Unless

there is an emergency, the switch must stay in this position.

B. ON mode

This mode is used to activate manually the ELT. When this mode is

selected, the ELT transmission is activated.

- Press the switch upwards.

A self test is first performed (Refer to C. RESET & TEST, page 13).

- After the self-test (max. duration 15 seconds), the ELT starts to transmit:

• The visual indicator is flashing in the same way than those of the ELT;

• The buzzer of the ELT (and outside buzzer if connected) is activated.

C. RESET & TEST

This mode is used either to perform a self-test or to stop the ELT

transmission if activated.

(1)Self test

IMPORTANT: Do not perform self-test without the antenna

connected.

Self-test must be performed regularly by a pilot or maintenance

personnel from the Remote Control Panel but should not be done

more often than specified in ELT user manual.

However, each self-test consumes energy from the battery. Should

self-tests be carried out more often than the maximum allowed, the

battery life-time of the ELT might be shorter than specified.

Nur für den Unterricht

INSTALLATION MANUAL / USER MANUAL

REMOTE CONTROL PANELS RC200 / RC200 NVG

PAGE: 14

OCT 03/2013

Press the switch downwards for at least 1 second then release it (the

switch comes back in ARMED position):

The visual indicator is flashing as follows:

• one short flash at the beginning of the self-test sequence

After a few seconds, the test result is displayed with the visual indicator

as follows:

• one long flash indicates the system is operational and that no error

conditions were found;

• a series of short flashes indicates the test has failed:

Refer to the ELT manual.

(2) RESET

This mode is used to stop the ELT when activated.

If the ELT is activated, the visual indicator of RCP is flashing in the same

way than the one of the ELT:

• Press the switch downwards for at least 1 second then release it (the

switch comes back in ARMED position):

• The visual indicator is OFF.

Important notice: On ELTs P/N S182X502-XX, if a RESET is

performed from RCP with the ELT manually activated (ON position

on the front panel of the ELT), the ELT transmission will stop for

max. 50 seconds then start again.

In this case, on the RCP:

• The led is off for max. 50 seconds then flash again.

Nur für den Unterricht

INSTALLATION MANUAL / USER MANUAL

REMOTE CONTROL PANELS RC200 / RC200 NVG

PAGE: 15

OCT 03/2013

D. RCP operational tests

CheckcorrectoperationofRCPvisualindicatorbyswitchingELTandRCP

as described in the following sequential procedure, Figure 11: RCP visual

indicator operation (with ELT switch in the «ARM» position).

Figure 11: RCP visual indicator operation

Nur für den Unterricht

DMA00514E

Ref.: 0122145

Distributed by

Manufactured by

Orolia S.A.S

Z.I. des Cinq Chemins CS10028

56520 GUIDEL - FRANCE

Tél. / Phone : +33 (0) 2 97 02 49 49

Fax : +33 (0) 2 97 65 00 20

Web: http://www.kannadaviation.com

A Company of the Orolia Group

Nur für den Unterricht
