150 meter HDMI® Extender

over HDBaseT™ w/POE, IR &

RS-232C

Version 1.1

Please look out for the latest update on the product page.

2 / 13

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully

before connecting, operating or adjusting this product. Please keep this

manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged

by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge

protection systems is highly recommended to protect and extend the life of

your equipment.

Table of Contents

1. Introduction ...........................................................................4

2. Features .................................................................................4

3. Package Contents ................................................................5

4. Specifications ........................................................................5

5. Operation Controls and Functions .......................................7

6. Connection Diagram ..........................................................11

7. Warranty Information…………………………………..............12

3 / 13

Caution

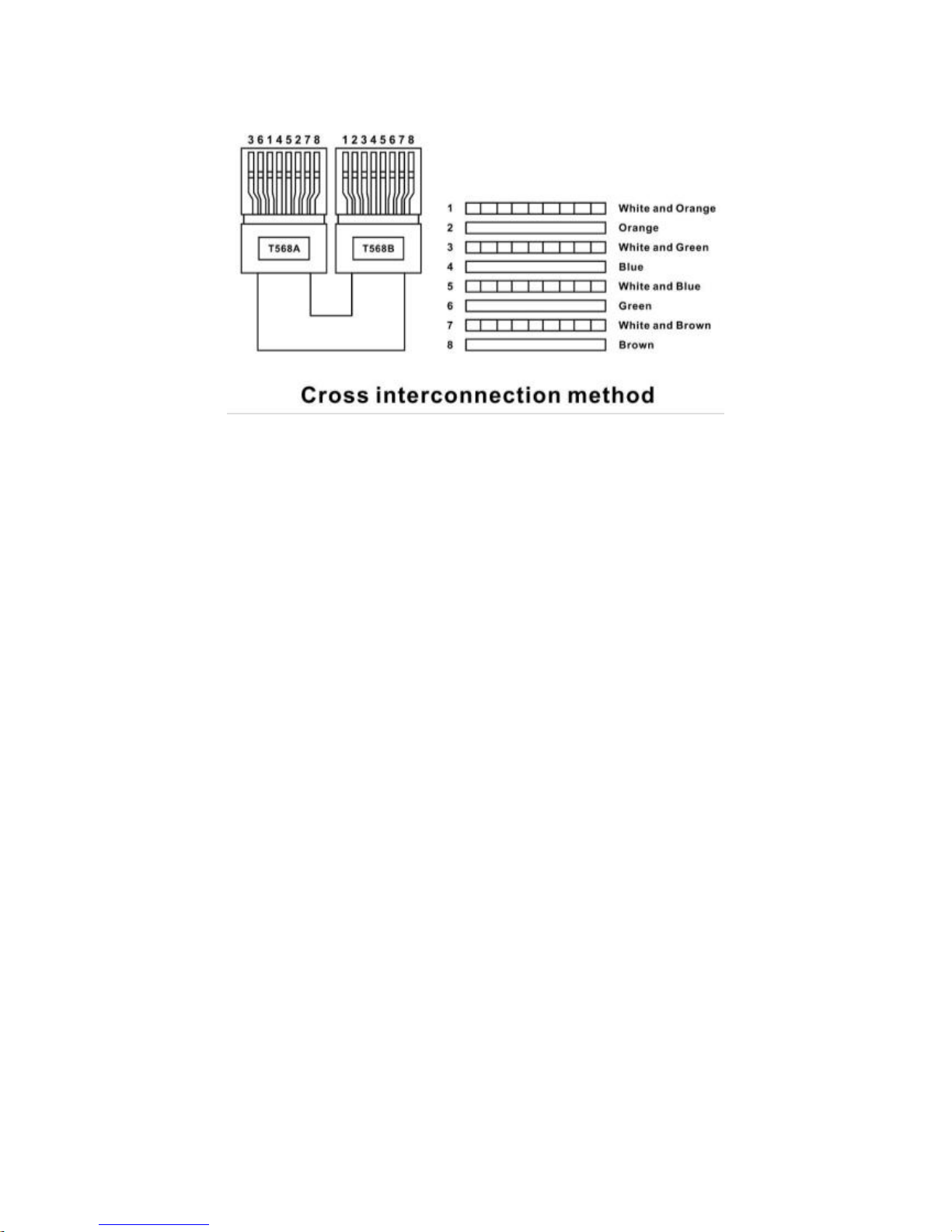

The extender needs to follow direct interconnection method CAT cable. We

recommend use a solid CAT6a shielded or better for the longer run.

The extender will go into protection mode automatically and no video out

when using cross interconnection method CAT cable.

4 / 13

1. Introduction

The KanexPro EXT-HDBT150M is a transmitter - receiver set that enables you

to route 1080P/60 HD signals up to 492 feet (150 meters) over single CAT6

cable using HDBaseT Technology. It supports the latest HDCP 2.2 with EDID

pass-through. The extender supports PoE (power over Ethernet) requiring you

to power from either the sender or receiver side. Locking power supplies gives

you the utmost flexibility and prevent power cable from being snatched.

2. Features

•Extend uncompressed HDMI over single CAT5e/6 cable up to 150m

5 / 13

•Powered over Ethernet (PoE) requiring only one power supply

•HDMI Loop -out for local HDMI output

•Supports high-resolutions up to 1080p/60@48bit

•HDCP compliant w/ EDID pass-through

•Bi-directional RS -232 protocol transmitted over CAT6

•Bi-directional IR control transmitter over CAT6

•Compact aluminum enclosure

•External power supply (100V-240V AC, 50/60Hz)

•Backed by KanexPro 3-Year Warranty

3. Package Contents

1 x HDMI Extender Transmitter

1 x HDMI Extender Receiver

1 x Wideband IR Emitter cable

1 x Wideband IR Receiver cable

1 x 24V/1A Power Adaptor

1 x User Manual

4. Specifications

Technical

HDMI Compliance

HDMI 1.4

HDCP Compliance

HDCP 1.4

Video Bandwidth

225MHz

Video Resolutions

up to1080P @60Hz YUV4:4:4、RGB4:4:4

6 / 13

Color Space

RGB, YUV4:4:4, YUV 4:2:2

Color Depth

8-bit

HDMI Audio Formats

(Pass-through)

LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby

True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X

ESD Protection

Human body model —±8kV (air-gap discharge) & ±4kV (contact

discharge)

Connections

Inputs

Transmitter :1x HDMI Type A [19-pin female]

1x IR INPUT [3.5mm Stereo Mini-jack]

1x RS232 [Phoenix jack]

Receiver: 1x HDBaseT in [RJ45]

1x IR INPUT [3.5mm Stereo Mini-jack]

1x RS232 [Phoenix jack]

Outputs

Transmitter: 1x HDBaseT Out [RJ45]

1x HDMI Type A [19-pin female]

1x IR OUTPUT [3.5mm Stereo Mini-jack]

Receiver: 1x HDMI Type A [19-pin female]

1x IR OUTPUT [3.5mm Stereo Mini-jack]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

140mm [W] x 65mm [D] x 18mm [H]

Weight

406g

Power Supply

Input: AC100 - 240V 50/60Hz

Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption

Operation

Temperature

32 - 104°F / 0 - 40°C

Storage temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)

7 / 13

5. Operation Controls and Functions

5.1 Transmitter

1. Power: System power indicator.

2.DC 24V: Connect 24V/1A adaptor to AC wall outlet for power supply.

3.HDBaseT Out: Standard HDBaseT output port. Connect HDBaseT

receiver with a UTP cable following the standard of direct

interconnection method.

4.HDMI In: Connect to HDMI source device such as Blu-ray or PS4

player.

5.HDMI OUT: Connect to HDTV or monitor HDMI input port.

6.IR In: Channel 2 IR Receiver. Connect to an IR receiver cable.

7.IR Out: Channel 1 IR Transmitter. Connect to an IR emitter cable.

8.RS-232: Phoenix jack provide serial port control from transmitter to

receiver.

9.Connection Signal Indicator Lamp

•Illuminate: The Transmitter and Receiver are in good

connections status.

8 / 13

•Flashing: The Transmitter and Receiver are in poor connections

status.

•Dark: The Transmitter and Receiver are not connected.

10.Data Signal Indicator Lamp

•Illuminate: HDMI signal with HDCP.

•Flashing: HDMI signal without HDCP.

•Dark: No HDMI signal.

5.2 Receiver

1. Power: System power indicator.

2. DC 24V: Connect 24V/1A adaptor to AC wall outlet for power supply.

3. HDBaseT in: Standard HDBaseT input port. Connect HDBaseT

a. Transmitter with a UTP cable following the standard of direct

b. interconnection method.

4. HDMI Out: Connect to the HDTV or monitor HDMI input port.

5. IR in: Channel 1 IR Receiver. Connect to an IR receiver cable.

9 / 13

6. IR Out: Channel 2 IR Transmitter. Connect to an IR emitter cable.

7. RS-232: Phoenix jack provide Serial port control signal from

a. transmitter to receiver.

8. Connection Signal Indicator Lamp

•Illuminate: The Transmitter and Receiver are in good

connections status.

•Flashing: The Transmitter and Receiver are in poor connections

status.

•Dark: The Transmitter and Receiver are not connected.

9.Data Signal Indicator Lamp

oIlluminate: HDMI signal with HDCP.

oFlashing: HDMI signal without HDCP.

oDark: No HDMI signal.

•Description 1

POC (Power over Ethernet) Application Example

10 / 13

•Description 2

Bi-directional Infrared Control Application Example

•Description 3

Bidirectional RS232 control Application Example
