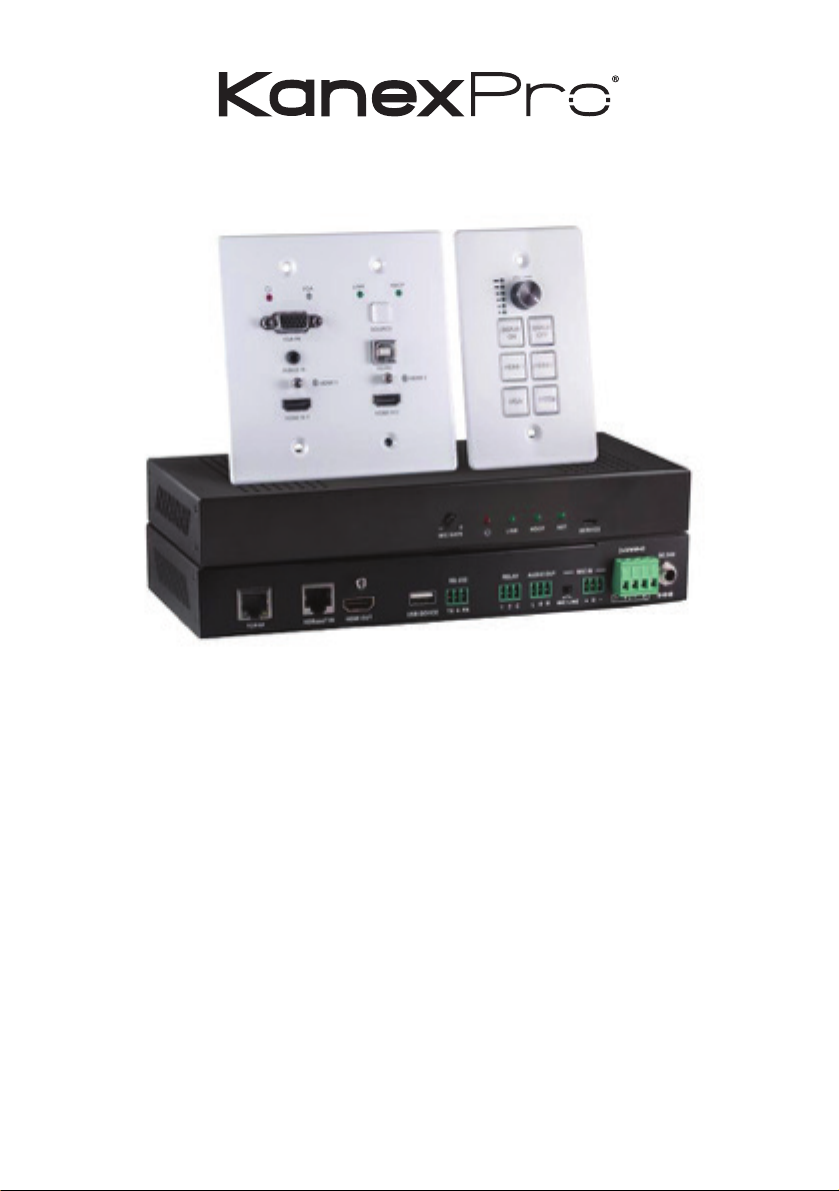

Premium Extender Kit for K-12 Educational Applications

MPN: WP-EDUKIT4K

Premium Extender Kit for K-12 Educational Applications

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully

before connecting, operating or adjusting this product. Please keep this

manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged

by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge

protection systems is highly recommended in order to protect and extend

the life of your equipment.

Premium Extender Kit for K-12 Educational Applications

Table of Contents

1. Introduction ...................................................................................................................... 4

2. Features .............................................................................................................................. 5

3. Package Contents ........................................................................................................... 5

4. Speciﬁcations ................................................................................................................... 6

5. Operation Controls and Functions ........................................................................... 7

5.1 Transmitter Panel .............................................................................................. 7

5.2 Receiver Panel .................................................................................................. 9

5.3 Control Panel .................................................................................................... 9

6. Web GUI User Guide .................................................................................................... 10

7. System ON/OFF Subroutine .................................................................................... 23

8. Display ON/OFF Subroutine ............................................................................................ 24

9. System Reset .................................................................................................................. 25

10. ApplicationExample......................................................................................................26

1. Introduction

The product is a multi-function AV intelligent education system. It offers

2HDMI and VGA video extension, video switching, system control and analog

audio ampliﬁcation. Uncompressed video and audio can be transmitted up

to 230ft/70m. This design of HDBaseT™ technology allows for full usage of

HDMI and controls over CAT5e/6/6A cable. The product supports Web GUI

and panel button control.

Transmitter support HDCP 1.4, HDCP2.2 and can be switched manually,

auto, hybrid or priority. And the maximum distance can be up to 70m at

1920x1200@60Hz or up to 40m at 4K @ 30 Hz.

Receiver support a microphone input, analog audio output, 2x30 at 4 ohms

speaker output, and Relay control to the projector screen rise and fall or RS-

232 control to the display power on and off. A USB port on the receiver will

transmit interactive display connections to the transmitter.

The extender control panel supports volume control and system control. At

the same time, it can support 2 HDMI and one VGA input selection.

The main control panel supports volume control, video switching and system

control. At the same time, it supports 2 HDMI and one VGA input selection.

The RS-232 port on the transmitter connects and provides power supply to

the RS-232 port on the control panel via CAT5e/6/7 cable.

2. Features

☆HDMI 1.4b, HDCP 2.2 and HDCP 1.4 compliant.

☆Video resolutions up to 4K2K@30Hz, 1080p@120Hz and 1080P 3D@60Hz.

☆Audio up to 7.1 channels of High Deﬁnition audio pass through (LPCM, Dolby

TrueHD, and DTS-HD Master Audio).

☆HDBaseT™ over a single CAT5e/6/7 cable up to 230ft/70m distance.

☆Support multi-VESA Standard VGA formats input.

☆Supports MIC input.

☆2x30watts@4 ohms ampliﬁer output.

☆Supports interactive display USB pass-through.

☆Supports Web GUI control.

☆Supports control panel volume control and system control.

☆Supports relay control.

☆Supports RS-232 control.

☆Supports volume control, video switching and system control

Premium Extender Kit for K-12 Educational Applications

☆RS-232 port connects between control panel and transmitter via

CAT5e/6/7 cable

☆Supports transmitter power supply to control panel

3. Package Contents

1. 1x HDMI Extender Transmitter

2. 1x HDMI Extender Receiver

3. 1x Control Panel

4. 1x 24V/3.75A DC Power Supply

5. 2x Mounting ears

6. 1x User Manual

4.Speciﬁcations

Technical

HDMI Compliance HDMI 1.4

HDCP Compliance HDCP 2.2/HDCP 1.4

Video Bandwidth 10.2 Gbps

Video Resolution up to 4K2K@30Hz,1080P@120Hz and 1080P 3D@60Hz

Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color Depth 8/10/12-bit

HDMI AudioFormats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby

TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact

discharge)

Connections

Connections Inputs: 2x HDMI IN Type A [19-pin female]

1x VGA [DB15 VGA female]

1x AUDIO IN [3.5mm Stereo Mini-jack]

1x RS-232/POWER [RJ45]

Outputs: 1x HDBaseT Out [RJ45]

Premium Extender Kit for K-12 Educational Applications

Receiver Inputs: 1x HDBaseT In [RJ45]

1x MIC IN [Screw Terminal]

1x USB [USB A TYPE]

1x TCP/IP [RJ45]

Outputs: 1x HDMI OUT Type A [19-pin female]

1x RS-232 [Screw Terminal]

1x RELAY [Screw Terminal]

1x AUDIO OUT [Screw Terminal]

1x 2x30watts@4 ohms ampliﬁer output [Screw Terminal]

Mechanical

Housing Metal Enclosure

Color Transmitter: White, Reciever: Black

Dimensions 114.3mm [W] x 69.9mm [D] x 22.2mm [H]

Weight Transmitter: 305g, Receiver: 758g

Power Supply Input: AC100 - 240V 50/60Hz, Output: DC 24V/3.75A

(US/EU standards, CE/FCC/UL certiﬁed)

Power Consumption 75W (max)

Operating Temperature 32 - 104°F / 0 - 40°C

Storage Temperature -4 - 140°F / -20 - 60°C

Relative Humidity 20 - 90% RH (no condensation)

Control Panel Mechanical

Housing Metal Enclosre

Color White — Front Panel, Black — Rear Panel

Dimensions 114.3mm [W] x 69.9mm [D] x 22.2mm [H]

Weight 180g

Operating Temperature 32 - 104°F / 0 - 40°C

Storage Temperature -4 - 140°F / -20 - 60°C

Relative Humidity 20 - 90% RH (no condensation)

Premium Extender Kit for K-12 Educational Applications

5. Operation Controls and Functions

5.1 Transmitter Panel

Number Name Function Description

1 HDCP LED HDCP compliance indicator.

▪OFF: HDMI input is not carrying HDCP content.

▪ON: HDMI input is carrying HDCP content.

2 LINK LED HDBaseT Link status indicator.

▪OFF: No Link.

▪GREEN: Link successful.

▪Blink GREEN: Link abnormal.

Premium Extender Kit for K-12 Educational Applications

Number Name Function Description

3 VGA LED VGA signal indicator.

▪OFF: There is no +5V HPD or VGA signal detected on input.

▪FLASHING: +5V HPD or VGA signal is detected.

▪GREEN: VGA is active input and VGA signal is detected.

4 POWER LED System power indicator.

5 VGA IN Connect to VGA source.

6 AUDIO IN Connect to external audio source for VGA signal.

7HDMI 1 LED HDMI 1 signal indicator.

▪OFF: There is no +5V HPD or HDMI signal detected on input.

▪FLASHING: +5V HPD or HDMI signal is detected.

▪GREEN: HDMI is active input and HDMI signal is detected.

8 HDMI 1 IN Connect to HDMI source.

9 SOURCE Press it to select one source.

10 TO PC Connect PC to transmit USB control signal from the

Receiver USB device in.

11 HDMI 2 LED HDMI 2 signal indicator.

▪OFF: There is no +5V HPD or HDMI signal detected on input

▪FLASHING: +5V HPD or HDMI signal is detected.

▪GREEN: HDMI is active input and HDMI signal is detected

12 HDMI 2 IN Connect to HDMI source device.

13 HDBaseT OUT Connect to HDBaseT Receiver with a Cat5e/6/7 cable.

14 RS-232/POWER Connect to Control Panel via CAT5e/6/7 cable.

15 24VDC (OPTIONAL) Connects 24V/1A adaptor to AC wall outlet for power supply.

16 Micro-USB For ﬁrmware updated use.

17 DIP SWITCH Select upgrade type.

Premium Extender Kit for K-12 Educational Applications

5.2 Receiver Panel

Number Name Function Description

1 MIC GAIN Set the MIC input gain.

2 POWER LED System power indicator.

3 LINK LED HDBaseT Link status indicator.

▪OFF: No Link.

▪GREEN: Link successful.

▪Blink GREEN: Link abnormal.

4 HDCP LED HDCP compliance indicator.

▪OFF: HDMI input is not carrying HDCP content.

▪ON: HDMI input is carrying HDCP content

5ACT System work indicator.

▪OFF: System standby or power off.

▪Blink GREEN: System working.

6 SERVICE For ﬁrmware updated use.

7 TCP/IP Connect to a PC access to the Web GUI for system setting.

8 HDBaseT IN Connect to HDBaseT Transmitter with a Cat5e/6/7 cable.

9 HDMI OUT Connect to a HDMI display device.

10 USB DEVICE Connect to an interactive display.

11 RS-232 RS-232 control for the display.

12 RELAY To control the projector screen rise and fall.

13 AUDIO OUT Connect to a speaker.

14 MIC LINE SWITCH ▪When the switch is set to “MIC”, the microphone input is used

to connect a dynamic microphone.

▪When the switch is set to “LINE”, the microphone input is used

for connecting a line level audio source or wireless microphone

output.

Premium Extender Kit for K-12 Educational Applications

Number Name Function Description

15 MIC IN Using Phoenix terminal cable to connect microphone input.

16 2X30 watts @4Ω Connect to speaker out.

17 DC 24V Connect 24V/3.75A adaptor to AC wall outlet for power supply.

5.3 Operations Controls and Functions

Premium Extender Kit for K-12 Educational Applications

Number Name Function Description

1 VOLUME Knob and Volume

level indicator

Adjust ampliﬁer volume output .

▪Clockwise adjustment to increase the volume.

▪Counter-clockwise adjustment to decrease the

volume.

2 DISPLAY ON Run Display ON Subroutine, see section 7.

Press and hold button to close relay 1.

3 HDMI 1 Select HDMI 1 signal as input source.

4VGA Select VGA signal as input source.

5 DISPLAY OFF Run Display OFF Subroutine, see section 7.

Press and hold button to close relay 2.

6 HDMI 2 Select HDMI 2 signal as input source.

7 SYSTEM Long-press the button for 3 seconds to open

or close the system, see section 6.

8 RS-232/POWER Connect to Transmitter via CAT5e/6/7 cable.
