PTX10002-60C Quick Start Guide

PTX10002-60C Packet Transport Router Overview

The PTX10002-60C Packet Transport Router is a second-generation PTX Series fixed-configuration core router, featuring a

compact, 2 U form factor that is easy to deploy in space-constrained Internet exchange locations, remote central offices, and

embedded peering points throughout the network, including cloud-hosted services. The PTX10002-60C operates at 6 Tbps in

a fixed core router configuration. It supports flexible interface configuration options, offering 60 physical 100-Gigabit Ethernet

ports that support the quad small form-factor pluggable transceiver QSFP28.

For more information about the PTX10002-60C hardware, see the PTX10002-60C Packet Transport Router Hardware Guide

available at:

https://www.juniper.net/documentation/en_US/release-independent/junos/information-products/pathway-pages/ptx-series/index.html

Register product serial numbers on the Juniper Networks website and update the installation base data if there is any addition

or change to the installation base or if the installation base is moved. Juniper Networks will not be held accountable for not

meeting the hardware replacement service-level agreement for products that do not have registered serial numbers or accurate

installation base data.

Update your installation base at https://www.juniper.net/customers/csc/management/updateinstallbase.jsp.

PTX10002-60C Clearance Requirements for Airflow and Hardware Maintenance

When planning the site for a PTX10002-60C installation, you must allow sufficient clearance around the installed chassis. Follow

these guidelines:

•For the cooling system to function properly, the airflow around the chassis must be unrestricted. See PTX10002-60C Cooling

System Description and Airflow in the PTX10002-60C Packet Transport Router Hardware Guide for more information about the

airflow through the chassis.

•If you are mounting a PTX10002-60C in a rack with other equipment, ensure that the exhaust from other equipment does not

blow into the intake vents of the chassis.

•You must leave at least 24 in. (60.9 cm) both in front of and behind the PTX10002-60C. For service personnel to remove and

install hardware components, you must leave adequate space at the front and back of the router. NEBS GR-63 recommends

that you allow at least 30 in. (76.2 cm) in front of the rack and 24 in. (60.9 cm) behind the rack. See Figure 1.

Figure 1: Clearance Requirements for Airflow and Hardware Maintenance for a PTX10002-60C

31 in.

(78.7 cm)

g050785

Clearance required

for maintenance

24 in. (60.9 cm)

17.4 in.

(44.2 cm)

19 in.

(48.26 cm)

Front

(Ports)

Rear

(FRUs)

Clearance required

for maintenance

24 in. (60.9 cm) 32.4 in. (81.1 cm)

Clearance required

for maintenance

24 in. (60.9 cm)

Prepare for Installation

To install and configure the PTX10002-60C router, you need:

•Either a mechanical lift or two persons to lift the PTX10002-60C into place. An additional person is needed to secure the router

to the rack.

•ESD grounding strap (not provided).

•One pair of front-mounting rails (provided).

•One pair of rear-mounting blades (provided). These mounting blades support the rear of the chassis and must be installed.

•Flat-head M4x6-mm Phillips mounting screws to secure the mounting rail to the chassis (24 screws are provided—11 for each

side and 2 extra screws).

•Sixteen screws to secure the chassis and mounting blades to the rack (not provided).

•Screwdriver appropriate for the rack-mounting screws (not provided).

•For AC installations, four power cords with plugs that are appropriate for your geographical location (provided).

•For DC installations, a DC power cable (CBL-JNP-PWR-DSUB straight cable) (provided).

•RJ-45 cable and RJ-45 to DB-9 serial port adapter (provided).

•Management host, such as a PC laptop, with a serial port (not provided).

•(Optional) Grounding cable kit with bracket, lug, and three nuts with integrated washers.

WARNING: PTX10002-60C routers must be supported at all four corners. Mounting the chassis by using only the

front brackets will damage the chassis and can result in serious bodily injury.

CAUTION: A fully-loaded PTX10002-60C weighs 80.5 lb (36.5 kg). If you are installing the PTX10002-60C above

60 in. (152.4 cm) from the floor, remove the power supplies and fan modules before attempting to install the router.

Unless you are using a mechanical lift, at least three people are required to perform the rack installation. If you are

mounting multiple units in the rack, mount the heaviest unit at the bottom and mount the others from bottom to top

in order of decreasing weight.

PTX10002-60C Quick Start Guide

Unpack the PTX10002-60C

The PTX10002-60C chassis is a rigid sheet metal structure that houses the hardware components. The PTX10002-60C is shipped

in a cardboard carton, secured with foam packing material. The carton also contains an accessory kit with a Documentation

Roadmap card. The Documentation Roadmap includes the warranty and WEEE compliance statement, as well as a QR code

and useful links that help you find more detailed information about the PTX10002-60C.

CAUTION: PTX10002-60C routers are maximally protected inside the shipping carton. Do not unpack the

PTX10002-60C until you are ready to begin installation.

1. Move the shipping carton to a staging area as close to the installation site as possible, but where you have enough room to

remove the system components.

2. Position the carton so that the arrows point upward.

3. Open the top flaps on the shipping carton.

4. Remove the accessory kit and verify the package contents: One pair of front-mounting rails, One pair of rear-mounting blades,

24 flat-head M4x6-mm Phillips mounting screws, RJ-45 cable and RJ-45 to DB-9 serial port adapter, AC or DC power cords

with plugs that are appropriate for your geographical location, Documentation Roadmap card, End User License Agreement.

5. Pull out the packing material holding the PTX10002-60C in place.

6. Remove the chassis from the box.

7. Save the shipping carton and packing materials in case you need to move or ship the chassis later.

Mount the PTX10002-60C in a Rack

Mount the PTX10002-60C in a 19-in four-post rack using the included mounting brackets. The shipping carton contains two

front-mounting rails with two matching rear-mounting blades. This configuration allows either end of the PTX10002-60C to be

mounted flush with the rack and still be adjustable for racks with different depths. The minimum distance the front and rear rack

rails can be spaced apart is 28 in. (71.1 cm) front to back. The maximum distance the front and rear rack rails can be spaced apart

is 36 in. (91.4 cm) front to back.

NOTE: If you are mounting multiple units in the rack, mount the heaviest unit at the bottom and mount the others

from bottom to top in order of decreasing weight. The PTX10002-60C weighs 80.5 lbs (36.5 kgs). Installing the

switch in a rack requires either a mechanical lift or two people to lift the device and another person to secure it to

the rack.

1. Attach the ESD grounding strap to your bare wrist and to a site ESD point.

2. Place the rack in its permanent location, allowing adequate clearance for airflow and maintenance, and secure it to the building

structure.

3. Decide whether the field-replaceable unit (FRU) end or the port end of the PTX10002-60C must be placed at the front of the

rack. Position the PTX10002-60C in such a manner that the AIR OUT labels on components are next to the hot aisle.

4. Using a Phillips screwdriver, remove the six screws on each side of the chassis that hold the cover to the chassis (see Figure 2).

These screws will be replaced with the mounting screws included in the box.

PTX10002-60C Quick Start Guide

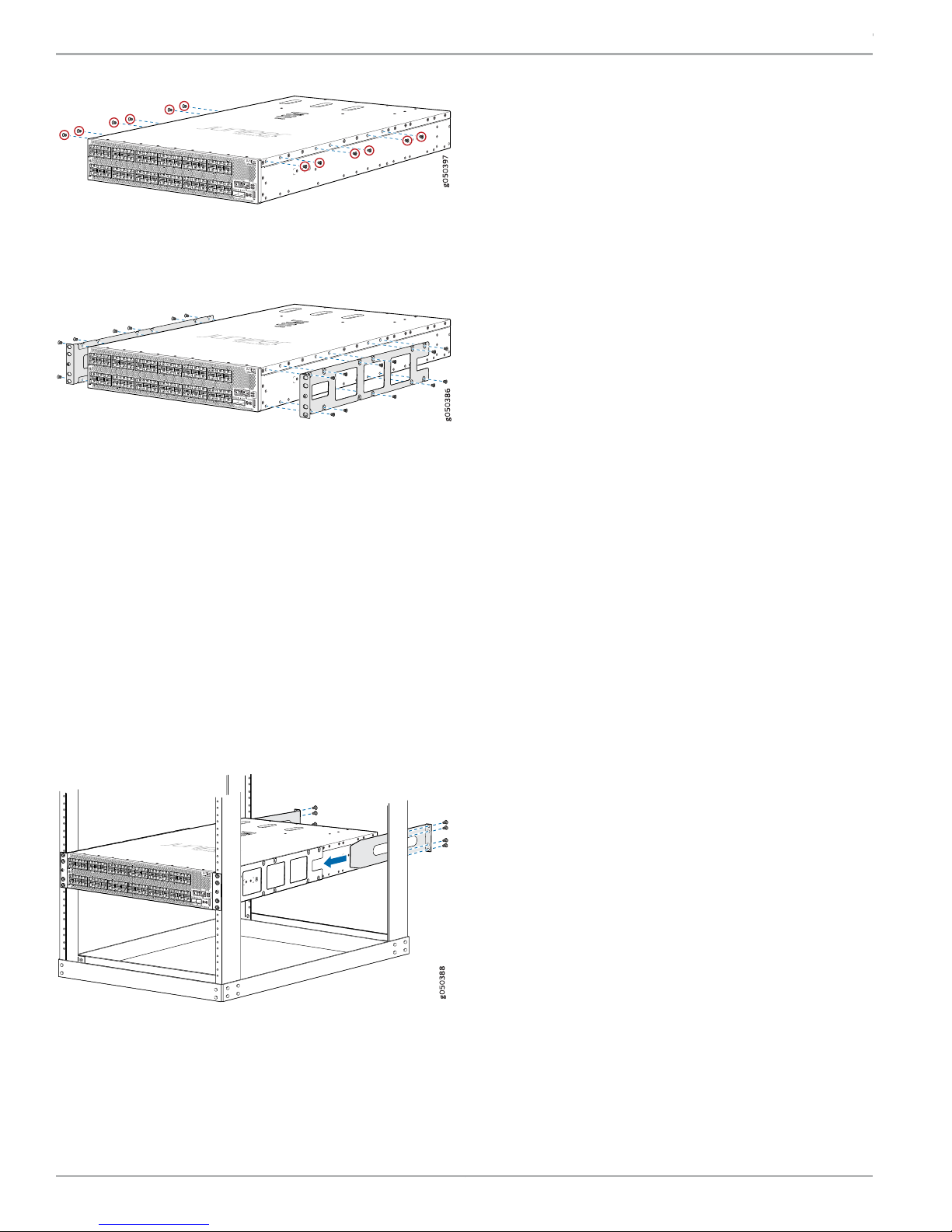

Figure 2: Removing the Screws Holding the Cover

5. Align the holes in the mounting rail with the holes on one side of the chassis. (see Figure 3).

Figure 3: Attaching Mounting Rails to the PTX10002-60C Chassis

6. Attach the mounting rail to the PTX10002-60C by using 11 flat-head M4x6-mm Phillips mounting screws. Tighten the screws.

7. Repeat Step 5and Step 6on the opposite side of the PTX10002-60C.

8. Either use a mechanical lift or have two people grasp both sides of the switch, lift it, and position it in the rack so that the front

bracket is aligned with the rack holes.

9. Have another person secure the front of the PTX10002-60C to the rack by using eight mounting screws (and cage nuts and

washers if your rack requires them). Tighten the screws.

10. Continue to support the PTX10002-60C while sliding the rear-mounting blades into the channel of the side-mounting rails

and securing the blades to the rack (see Figure 4). Use eight mounting screws (and cage nuts and washers if your rack requires

them) to attach the blade to the rack. Tighten the screws.

Figure 4: Attaching the PTX10002-60C to the Rack

11. Ensure that the PTX10002-60C chassis is level by verifying that all the screws on the front of the rack are aligned with the

screws at the back of the rack.

12. (Optional) Attach a grounding cable to earth ground and then attach it to the chassis grounding point.

PTX10002-60C Quick Start Guide

Connect the AC PTX10002-60C to Power

Before you connect the PTX10002-60C to power:

•Read General Electrical Safety Guidelines and Warnings and Action to Take After an Electrical Accident in the PTX10002-60C

Packet Transport Router Hardware Guide.

•Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see Prevention of

Electrostatic Discharge Damage in the PTX10002-60C Packet Transport Router Hardware Guide).

•Ensure that you have connected the PTX10002-60C chassis to earth ground.

NOTE: To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you

must connect the chassis to earth ground before you connect it to power. For installations that require a separate

grounding conductor to the chassis, use the protective earthing terminal on the PTX10002-60C chassis to connect

to the earth ground (see Connect the PTX10002-60C to Power in the PTX10002-60C Packet Transport Router

Hardware Guide).

CAUTION: Before you connect power to the PTX10002-60C, a licensed electrician must attach a cable lug to the

grounding and power cables that you supply. A cable with an incorrectly attached lug can damage the router (for

example, by causing a short circuit).

•Install the power supply in the chassis following the instructions in Maintaining the PTX10002-60C Power Supplies in the

PTX10002-60C Packet Transport Router Hardware Guide.

To connect the PTX10002-60C to AC power:

NOTE: Refer to the PTX10002-60C Packet Transport Router Hardware Guide for instructions on how to connect the

PTX10002-60C to DC power.

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to an approved site ESD

grounding point.

2. Ensure that the power supplies are fully inserted in the chassis and the latches are secure.

3. If the AC power source outlet has a power switch, set it to the off (O) position.

4. Insert the coupler end of the power cord into the AC power cord inlet on the AC power supply faceplate (see Figure 5).

PTX10002-60C Quick Start Guide

Figure 5: Connecting the PTX10002-60C to AC Power

5. Push the power cord retainer onto the power cord.

6. Insert the power cord plug into the power source outlet.

WARNING: Ensure that the power cord does not block access to router components or drape where people could

trip over it.

7. Repeat steps 4 through 6 for each power supply that you are connection to power.

8. If the AC power source outlet has a power switch, set it to the on (|).

NOTE: The PTX10002-60C powers on as soon as power is provided to the power supply. There is no power switch

on the router.

9. Verify that the AC LEDs for each power supply are lit green and on steadily.

If the status LED is lit amber, remove power from the power supply, and replace the power supply (see Maintaining the

PTX10002-60C Power Supplies in the PTX10002-60C Packet Transport Router Hardware Guide).

CAUTION: Do not remove the power supply until you have a replacement power supply ready: the power supplies

must be installed in the PTX10002-60C to ensure proper airflow.

CAUTION: Replace a failed power supply with a new power supply within 30 seconds of removal to prevent

overheating of the chassis.

PTX10002-60C Quick Start Guide

Perform the Initial Configuration

You must perform the initial configuration of the switch through the console port. Before you begin, set the following parameter

values from the console server or PC:

•Baud Rate—9600

•Flow Control—None

•Data—8

•Parity—None

•Stop Bits—1

•DCD State—Disregard

1. Ensure the PTX10002-60C is powered on.

2. Use any terminal emulation program, such as HyperTerminal, to connect to the device console. The CLI displays a login prompt.

3. Log in as root. There is no password. If the software booted before you connected to the console port, you might need to press

the Enter key for the prompt to appear.

4. Start the CLI.

root@% cli

5. Enter configuration mode.

root> configure

6. Add a password to the root administration user account.

[edit]

root@# set system root-authentication plain-text-password

New password: password

Retype new password: password

7. (Optional) Configure the name of the router. If the name includes spaces, enclose the name in quotation marks (“ ”).

[edit]

root@# set system host-name host-name

8. Configure the default gateway.

[edit]

root@# set routing-options static route default next-hop address

9. Configure the IP address and prefix length for the management interface.

[edit]

root@# set interfaces em0 unit 0 family inet address address/prefix-length

CAUTION: Although the CLI permits you to configure two management Ethernet interfaces within the same

subnet, only one interface is usable and supported.

PTX10002-60C Quick Start Guide

NOTE: The RJ-45 management port, em0, and SFP management port, em1, are found on the management panel

of the PTX10002-60C. They are both labeled MGMT.

10. (Optional) Configure the static routes to remote prefixes with access to the management port.

[edit]

root@# set routing-options static route remote-prefix next-hop destination-ip retain no-readvertise

11. Enable Telnet service.

[edit]

root@# set system services telnet

NOTE: When Telnet is enabled, you cannot log in to a PTX10002-60C through Telnet using root credentials. Root

12. Commit the configuration to activate it on the PTX10002-60C.

[edit]

root@# commit

Safety Warnings Summary

This is a summary of safety warnings. For a complete list of warnings, including translations, see the PTX series documentation

https://www.juniper.net/documentation/en_US/release-independent/junos/information-products/pathway-pages/ptx-series/product/.

WARNING: Failure to observe the following safety warnings can result in personal injury or death:

•Permit only trained and qualified personnel to install or replace device components.

•Perform only the procedures described in this Quick Start Guide and the PTX10002-60C documentation. Other

services must be performed only by authorized service personnel.

•Before installing the device, read the planning instructions in the PTX10002-60C documentation to make sure

that the site meets power, environmental, and clearance requirements for the device.

•Before connecting the device to a power source, read the installation instructions in the PTX10002-60C

documentation.

•Before installing or after removing an electrical component, always place it component-side up on an antistatic

mat placed on a flat, stable surface or in an antistatic bag.

•Do not work on the device or connect or disconnect cables during electrical storms.

•Before working on equipment that is connected to power lines, remove jewelry, including rings, necklaces, and

watches. Metal objects heat up when connected to power and ground and can cause serious burns or become

welded to the terminals.

Power Cable Warning (Japanese)

PTX10002-60C Quick Start Guide

WARNING: The attached power cable is only for this product. Do not use this cable for another product.

Contacting Juniper Networks

For technical support, see: https://www.juniper.net/support/requesting-support.html.

Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. and/or its affiliates in the United States

and other countries. All other trademarks may be property of their respective owners. Juniper Networks assumes no responsibility for any inaccuracies in this

PTX10002-60C Quick Start Guide

Table des matières

Autres manuels Juniper Routeur réseau

Juniper

Juniper M7i Instructions d'installation

Juniper

Juniper MX10003 Manuel utilisateur

Juniper

Juniper QFX5100-48S Manuel utilisateur

Juniper

Juniper LN1000 - RELEASE NOTES 8-27-2010 Manuel utilisateur

Juniper

Juniper ACX7100-32C Instructions d'installation

Juniper

Juniper MX204 Instructions d'installation

Juniper

Juniper Day One+ ACX7024 Manuel utilisateur

Juniper

Juniper ACX6160 Manuel utilisateur

Juniper

Juniper MX960 Manuel utilisateur

Juniper

Juniper MX10008 Instructions d'installation

Juniper

Juniper MX150 Manuel utilisateur

Juniper

Juniper ACX500 Instructions d'installation

Juniper

Juniper E SERIES BROADBAND SERVICES ROUTERS 11.3.X - E120 AND E320 MODULE GUIDE REV... Manuel utilisateur

Juniper

Juniper OCX1100 Instructions d'installation

Juniper

Juniper E-Series Instructions d'installation

Juniper

Juniper ACX1000 Instructions d'installation

Juniper

Juniper T1600 Manuel d'installation et d'exploitation

Juniper

Juniper ERX - RELEASE 11.1.X HARDWARE GUIDE... Instructions d'installation

Juniper

Juniper ACX5448 Manuel utilisateur

Juniper

Juniper M10i Instructions d'installation et d'utilisation

Juniper

Juniper PTX10008 Manuel utilisateur

Juniper

Juniper ACX2000 Instructions d'installation

Juniper

Juniper Juniper Networks Instructions d'installation

Juniper

Juniper T320 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
