AP45 Hardware Installation Guide

Juniper Networks (C) Copyright 2021. All Rights Reserved

Juniper Business Use Only

AP45 Hardware Installation Guide

Overview

The Mist AP45 contains four IEEE 802.11ax radios that deliver 4x4 MIMO

with four spatial streams when operating in multi-user (MU) or single-user

(SU) mode. The AP45 is capable of operating simultaneously in the 6GHz

band, 5GHz band, and 2.4GHz band along with a dedicated tri-band scan

radio.

2

AP45 Hardware Installation Guide

Juniper Networks (C) Copyright 2021. All Rights Reserved

Juniper Business Use Only

I/O ports

Reset Reset to the factory default settings

Eth0+PoE-in 100/1000/2500/5000BASE-T RJ45 interface that supports

802.3at/802.3bt PoE PD

Eth1+PSE-out 10/100/1000BASE-T RJ45 interface + 802.3af PSE (if PoE-

in is 802.3bt)

USB USB2.0 support interface

3

AP45 Hardware Installation Guide

Juniper Networks (C) Copyright 2021. All Rights Reserved

Juniper Business Use Only

AP45E Antenna attachment

4

AP45 Hardware Installation Guide

Juniper Networks (C) Copyright 2021. All Rights Reserved

Juniper Business Use Only

AP45 Mounting

In a wall mount installation, please use screws that have a 1/4in. (6.3mm) diameter head with

a length at least 2 in. (50.8mm).

APBR-U that is in the AP45(E) box includes a set screw and an eyehook.

5

AP45 Hardware Installation Guide

Juniper Networks (C) Copyright 2021. All Rights Reserved

Juniper Business Use Only

6

AP45 Hardware Installation Guide

Juniper Networks (C) Copyright 2021. All Rights Reserved

Juniper Business Use Only

7

AP45 Hardware Installation Guide

Juniper Networks (C) Copyright 2021. All Rights Reserved

Juniper Business Use Only

8

AP45 Hardware Installation Guide

Juniper Networks (C) Copyright 2021. All Rights Reserved

Juniper Business Use Only

9

AP45 Hardware Installation Guide

Juniper Networks (C) Copyright 2021. All Rights Reserved

Juniper Business Use Only

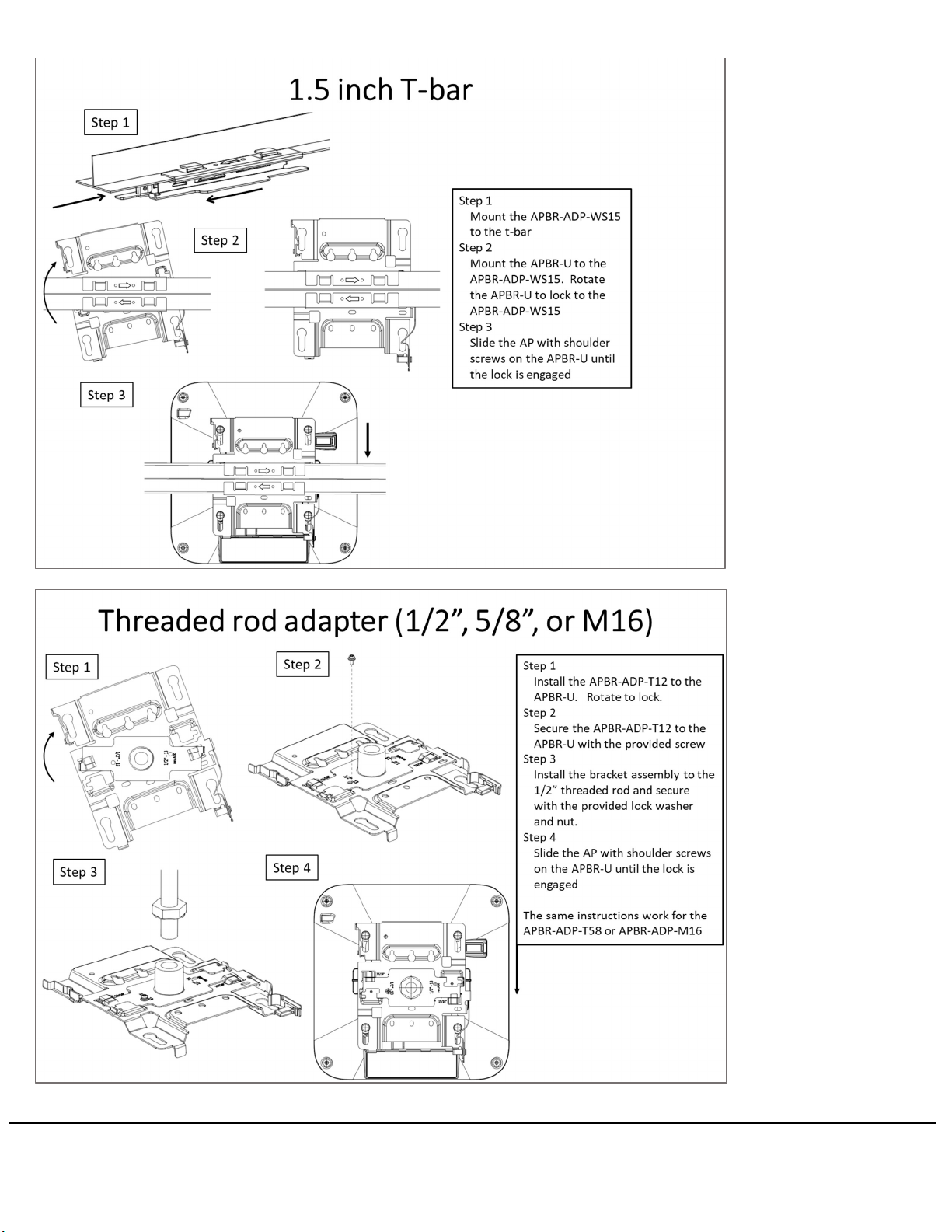

The threaded rod adapter attaches to a rod that is either 1/2"-13, 5/8”-11, or M16-2.

10

AP45 Hardware Installation Guide

Juniper Networks (C) Copyright 2021. All Rights Reserved

Juniper Business Use Only

Technical Specifications:

Feature Description

Power options 802.3at/802.3bt PoE

Dimensions 230mm x 230mm x 50mm (9.06in x 9.06in x 1.97in)

Weight AP45: 1.34 kg (2.95 lbs)

AP45E: 1.30 kg (2.86 lbs)

Operating

temperature

AP45: 0° to 40° C

AP45E: -10° to 50° C

Operating humidity 10% to 90% maximum relative humidity, non-condensing

Operating altitude 3,048m (10,000 ft)

Electromagnetic

emissions FCC Part 15 Class B

I/O

1 – 100/1000/2500/5000BASE-T auto-sensing RJ-45 with PoE

1 – 10/100/1000BASE-T auto-sensing RJ-45

USB2.0

RF

2.4GHz or 5GHz - 4x4:4SS 802.11ax MU-MIMO & SU-MIMO

5GHz - 4x4:4SS 802.11ax MU-MIMO & SU-MIMO

6GHz – 4x4: 4SS 802.11ax MU-MIMO & SU-MIMO

2.4GHz / 5GHz /6GHz scanning radio

2.4GHz BLE with Dynamic Antenna Array

Maximum PHY rate

Total maximum PHY rate – 9600 Mbps

6GHz – 4800 Mbps

5GHz – 2400 Mbps

2.4GHz or 5GHz – 1148 Mbps or 2400Mbps

Indicators Multi-color status LED

Safety standards

UL 62368-1

CAN/CSA-C22.2 No. 62368-1-14

UL 2043

ICES-003:2020 Issue 7, Class B (Canada)

Suitable for use in environmental air space in accordance with Section 300-22(C) of the

National Electrical Code, and Sections 2-128, 12-010(3), and 12-100 of the Canadian Electrical

Code, Part 1, CSA C22.1.
