Juniper ACX500 Manuel utilisateur

ACX500 Universal Metro Routers Quick

Start—ACX500 Outdoor Routers with PoE

February 2016

Part Number: 530-069055

Revision 01

This document describes how to install the Juniper Networks®ACX500 Universal Metro Routers—the

ACX500 outdoor routers with PoE.

Contents ACX500 Routers Quick Start Description | 3

Step 1: Prepare the Site for Installation | 5

Step 2: Install the Router | 8

Step 3: Ground the ACX500 Outdoor Router | 9

Tools Required to Ground the Router | 9

Connect the Grounding Cable | 10

Step 4: Connect External Devices and Cables | 12

Tools Required to Connect External Devices and Cables | 14

Connect the ACX500 Router to a Network for Out-of-Band Management | 14

Connect the ACX500 Router to a Management Console Device | 14

Connect Network Interface Cables to the ACX500 Router | 15

Step 5: Connect Power to the ACX Series Router | 16

Connect Power to an AC-Powered ACX500 Outdoor Router | 16

Connect Power to a DC-Powered ACX500 Outdoor Router | 18

Step 6: Perform Initial Software Configuration | 20

Enter Configuration Mode | 20

Configure User Accounts and Passwords | 21

Configure System Attributes | 21

Commit the Configuration | 23

Safety Warnings | 25

Compliance Statements for NEBS | 27

Compliance Statements for EMC Requirements for ACX500 Routers | 27

Canada | 27

European Community | 27

Japan | 28

United States | 28

Junos OS Documentation and Release Notes | 29

Requesting Technical Support | 29

Self-Help Online Tools and Resources | 29

Creating a Service Request with JTAC | 30

Revision History | 30

ACX500 Routers Quick Start Description

This Quick Start contains information you need to install and configure the ACX500 outdoor router with

PoE quickly. For complete installation instructions, see the ACX500 Universal Metro Router Hardware Guide

at https://www.juniper.net/documentation/.

WARNING: This Quick Start contains a summary of safety warnings in “Safety Warnings”

on page 25. For a complete list of warnings for this router, including translations, see the

ACX500 Universal Metro Router Hardware Guide at

https://www.juniper.net/documentation/.

The Juniper Networks ACX Series Universal Metro Routers are Ethernet-optimized mobile backhaul routers

that provide both switching and carrier-class Ethernet routing. The ACX Series routers enable a wide range

of business and residential applications and services, including microwave cell site aggregation, mobile

backhaul service cell site deployment, and service provider or operator cell site deployment. The routers

have high-density Ethernet interfaces and high-capacity switching throughput.

An ACX Series router has a built-in Routing Engine and one Packet Forwarding Engine. The Packet

Forwarding Engine has one “pseudo” Flexible PIC Concentrator (FPC 0). Because there is no switching

fabric, the single Packet Forwarding Engine takes care of packet forwarding.

The compact ACX500 outdoor routers with Power over Ethernet (PoE) support are environmental-hardened,

and can be deployed in an outdoor environment, such as on walls and poles. You need to purchase the

pole-mounting kit or the wall-mounting kit from Juniper Networks to mount the router in an outdoor

environment. The ACX500 outdoor router with PoE meets the International Protection Code (IP65) for

dust-tight enclosures and ingress of water jets.

With the router orientation as shown in Figure 3 on page 6, the chassis of the ACX500 outdoor router

with PoE measures 16 in. (40.64 cm) high, 4.7 in. (11.93 cm) deep, and 10 in. (25.4 cm) wide. The router

is available in both AC and DC models.

The ACX500 outdoor routers with PoE contain three Gigabit Ethernet SFP ports labeled GE, and three

RJ-45 ports that support PoE+ which are also labeled GE. Out of the three RJ-45 ports, the port labeled

0/1/0 support PoE++, and the ports labeled 0/1/1 and 0/1/2 support PoE+ with a maximum 80 W of

system PoE power limit.

Figure 1 on page 4 shows the bottom view of the router.

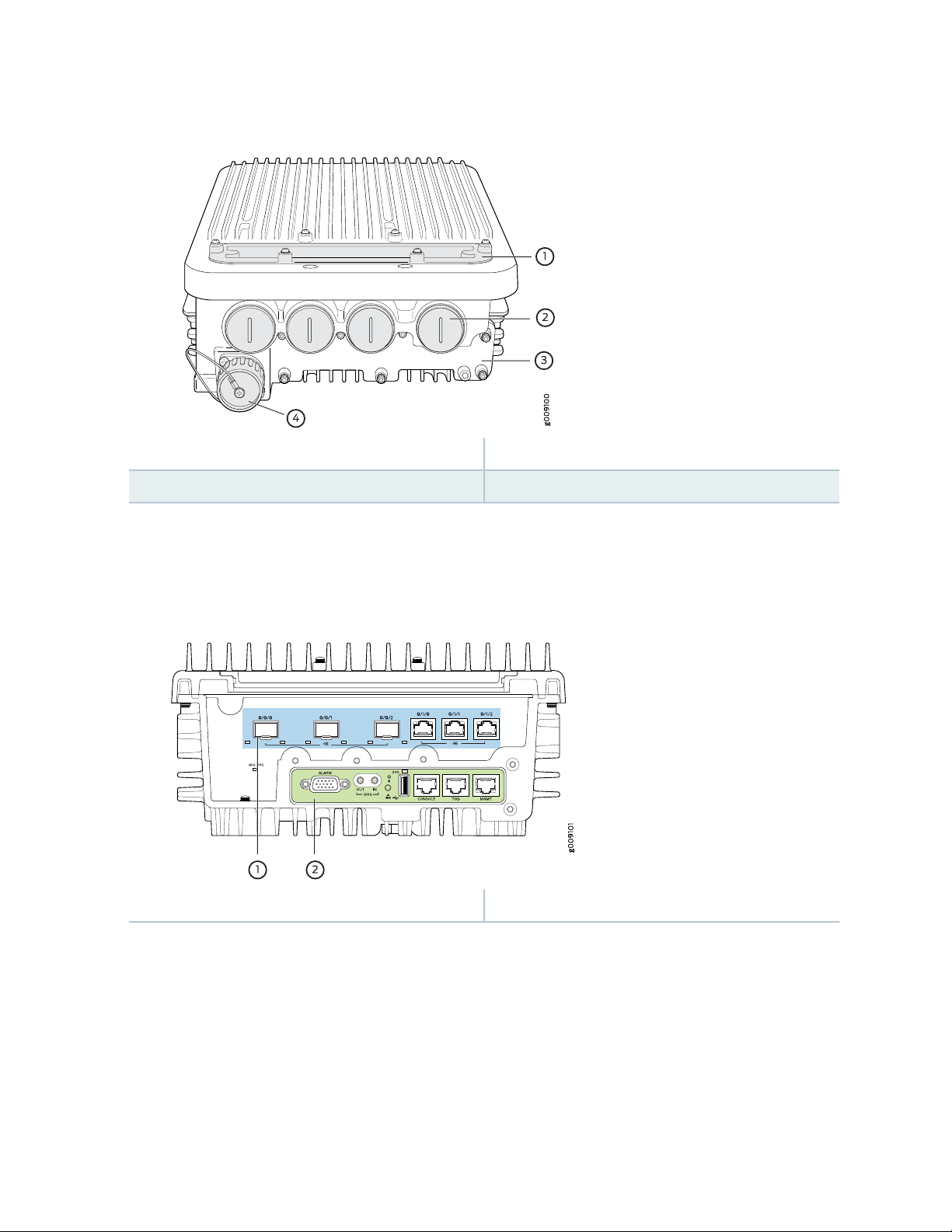

Figure 1: Bottom View of the ACX500 Outdoor Router with PoE

3—1—Management port chamber with weather seal coverInterface port chamber with weather seal cover

4—2—Power port with weather seal capCable connector ports with weather seal cap

Figure 2 on page 4 shows the front panel of the ACX500 outdoor router with PoE. For detailed information

about the interface ports and the management ports, see Figure 6 on page 13 and Figure 7 on page 13.

Figure 2: Front Panel of the ACX500 Outdoor Router with PoE

2—1—Management portsInterface ports

Step 1: Prepare the Site for Installation

Prepare your site for installation by observing the following guidelines:

•When choosing a location, allow at least 6 in. (15.2 cm) of clearance between the sides of the chassis

(with the router in installed position) and adjacent equipment or walls.

•Ensure that the wall or the pole onto which the router is installed is stable and securely supported.

•Ensure that the wall or pole is able to carry the load of the fully configured router.

•If you are mounting the router in wallboard with a gypsum plaster core or in wallboard not backed by

wall studs, use hollow wall anchors capable of supporting the combined weight of two fully loaded

chassis. Insert the screws into wall studs wherever possible to provide added support for the chassis.

•The width of the pole must be within the range of 2 in. through 16 in. for the pole-mounting brackets

to fit properly.

•To mount the router, use the pole-mounting kit or the wall-mounting kit from Juniper Networks.

•The pole-mounting kit and the wall-mounting kit are not part of the standard package and must be

ordered separately.

•One person must be available to lift the router while another secures the router.

•For service personnel to remove and install hardware components, and to access interface ports, allow

at least 24 in. (60.9 cm) on top of the router.

•When installing the ACX500 outdoor routers on a pole or on a wall, the chassis must be installed in a

vertical orientation with the cables pointing downward and the eye bolt for hoisting the router pointing

upward. See Figure 3 on page 6.

Figure 3: ACX500 Outdoor Chassis with PoE Dimensions and Clearance Requirements—Front View

Figure 4: ACX500 Outdoor Chassis with PoE Chassis Dimensions and Clearance Requirements—Top View

Step 2: Install the Router

Based on your requirement, you can mount the ACX500 outdoor router either on a wall or on a pole:

•On a pole—You can mount the ACX500 outdoor router with PoE on a suitable telephone, an electrical,

or an utility pole with the help of the pole-mounting kit. The pole-mounting kit is sold separately. It is

not shipped with the ACX500 outdoor router.

•On a wall—You can mount the ACX500 outdoor router with PoE on a suitable wall with the help of a

wall-mounting kit. The wall-mounting kit is sold separately. It is not shipped with the ACX500 outdoor

router.

For complete and detailed installation instructions, see the ACX500 Universal Metro Router Hardware Guide

at https://www.juniper.net/documentation/.

NOTE: When installing the ACX500 outdoor router with PoE, keep the following guidelines in

mind:

•The router must not be installed until all unused chassis cable openings are closed with the

weather seal caps (cap with washer) to ensure protection of the interior of the router from the

environment. Leaving chassis cable ports uncovered will damage the router.

•You need access to the management components only when there is a need to perform any

monitoring or upgradation task on the router. Other than that, the management port chamber

must always be kept closed and sealed to protect the internal ports from dust and water.

•The ACX500 outdoor router will not power on if the interface and the management port chambers

are open. Ensure that the interface and the management port chambers are closed before you

power on the router. This is an IP65 requirement for weatherproofing the router.

•Use certified outdoor enclosure (PDU or AC/DC connection box) for covering the AC and DC

input wire terminals at the power source end of the power cable. Ensure that the L, N, and earth

wire terminals of the AC power cable are connected properly to the respective L, N, and earth

of the AC power source. Similarly, ensure that the positive (+) and the negative (–) DC source

power cables are correctly connected to the respective positive (+) and the negative (–) DC power

source. A faulty connection might damage the router and can cause shock hazard and severe

injury.

•When installing the router outdoors, the branch circuit that powers the unit must have ground

fault protection according to the local and national electrical codes (for example NEC code).

Ensure that overcurrent protection fuse in the branch circuit is not greater than 20 A.

•If you are installing the GPS antenna, ensure that the antenna is located at a location away from

overhead power lines.

Step 3: Ground the ACX500 Outdoor Router

IN THIS SECTION

Tools Required to Ground the Router | 9

Connect the Grounding Cable | 10

You must ground both the AC-powered and the DC-powered routers before connecting them to power.

Failing to ground the router properly might result in shock hazard.

Tools Required to Ground the Router

To ground the router, you need the following tools:

•Phillips (+) screwdriver, number 2

•Electrostatic discharge (ESD) grounding wrist strap

•Two 0.5-inch-long stainless steel SS 316 SAE 10-32 screws, and flat washers (not provided)

•Grounding lug, Panduit LCCF6-14A-L or equivalent (not provided)

•Grounding cable, minimum 6 AWG (13.3 mm2) 90° C wire (not provided)

•Corrosion-preventing compound such as NO-OX-ID (not provided)

WARNING: The ACX500 outdoor router has a provision for connecting a two-hole

grounding lug (Panduit LCCF6-14A-L). Ensure that the router is permanently grounded

with 6-AWG copper wire with this specified two-hole lug.

Connect the Grounding Cable

You ground the router by connecting a grounding cable to earth ground and then attaching it to the chassis

grounding points. To ground the ACX500 outdoor router:

1. Verify that a licensed electrician has terminated and attached the two-hole grounding lug with the

6 AWG ground wire.

2. Attach an ESD grounding strap to your bare wrist, and connect the strap to an approved site ESD

grounding point. See the instructions for your site.

3. Ensure that all grounding surfaces are clean and brought to a bright finish before you make grounding

connections.

4. Connect the grounding cable to a proper earth ground.

5. Detach the ESD grounding strap from the site ESD grounding point.

6. Place the grounding lug over the grounding points on the back of the chassis (see Figure 5 on page 11).

NOTE: The grounding point location on the ACX500 routers is the same for both the AC and

the DC models.

7. To protect the router from rust and corrosion, perform the following steps:

a. Clean both the mating surfaces (the grounding lug and the ACX500 outdoor router’s grounding

terminals).

b. Apply a thin film (1 mm or 0.04 in.) of corrosion-preventing compound, such as NO-OX-ID, on the

router’s grounding terminals.

c. Press the lug onto the conductive surface unit to force out the excess corrosive-preventing

compound.

8. Secure the grounding lug with the washers and screws. The holes are sized for SAE 10-32 screws.

Apply 4 lb-in. (0.49 Nm) of torque to each screw. Do not overtighten the screw. (Use a number 2 Phillips

screwdriver.)
