Installation and

Maintenance Guide

Contents

:

Machine Layout

Characteristics

Installation

Programming mode

Programming options

First load of the coin changer

Reloading of the products

Fault checking and resetting

Preventive maintenance and cleaning

Adjusting channels to new products

Tel. +34 948 75 12 12

Fax +34 948 75 04 20









Ctra, Marcilla, Km.2. 31350 PERALTA, Navarra SPAIN



Ctra, Marcilla, Km.2. 31350 PERALTA, Navarra SPAIN





Ctra, Marcilla, Km.2. 31350 PERALTA, Navarra SPAIN





Ctra, Marcilla, Km.2. 31350 PERALTA, Navarra SPAIN





Ctra, Marcilla, Km.2. 31350 PERALTA, Navarra SPAIN





Ctra, Marcilla, Km.2. 31350 PERALTA, Navarra SPAIN





Ctra, Marcilla, Km.2. 31350 PERALTA, Navarra SPAIN





Ctra, Marcilla, Km.2. 31350 PERALTA, Navarra SPAIN





Ctra, Marcilla, Km.2. 31350 PERALTA, Navarra SPAIN



www.Jofemar.com



www.Jofemar.com





www.Jofemar.com





www.Jofemar.com



mnp86v03env01r02

Easy Plus

Easy Plus

Read the safety instructions at page 19 of this manual be-

fore starting working on the machine.

Page 2 of 20

Page 3 of 20

Layout of the machine:

Exterior of the machine

1.-

Display glass (Or front picture on

EasyPlus model)

2.- Card reader entry

3.- Display

4.-

Bill validator entry

5.-

Refund button

6.-

Coin entry

7.-

Door lock

8.-

Selection buttons

9.-

Coin return cup

10.-

Delivery door

11.-

Ventilation grille

Interior de la máquina-puerta

1.- Payment systems compartment locks.

2.-

Bill validator

3.- Display

4.-

Programming button

5.-

Coin changer

6.-

Coin return cup

7.-

Product delivery door

8.-

Ventilation grille

Interior of the machine- cabinet

1.-

Product trays

2.-

Fluorescent light

3.-

Door open switch

4.-

Main power switch

5.- Coins box

6.-

Product delivery box

7.-

Cooling condenser

1

2

3

4

5

6

7

9

11

11

1

4

4

6

6

2

2

3

3

7

7

2

1

3

5

7

6

4

8

3

10

10

8

5

5

5

6

Page 2 of 20

Page 3 of 20

Characteristics

:

Sizes

:

72” / 1830 mm

high

31,62” / 803mm

wide

36,81” / 930mm

deep

Weight

:

EasyCombo:655 Lb / 297Kg.

Snack Plus: 590Lb / 268Kg.

Electrics:

Power supply: 220-240 VAC. 0r 110 VAC

Verify the ground connection is proper

before turning on the machine

Capacity:

Up to 7 trays with 10 motors each

One tray up to 7

Cooling Unit

(Just Easycombo machine)

R-134A Ecological gas

To find out the amount of gas, read it on

the compressor’s sticker.

¡If the cooling unit is used leave a space

of 7” / 20cm between the wall and the

back of the machines!

Coin changer J-2000 with 5 tubes

Optional currency validator Jofemar BT10

If you need more capacity or diversity on

your sales point chech with you Jofemar

agent about the possibilitie of an Extra

Selections Unit

1825 mm

935 mm

935 mm

803 mm

The machine must be levelled to ensure ease of opening and

closing of the door

Use the machine adjustments on its base if necessary

Vision Easy

Combo and to

it’s right a Vision

E - S, optional

satellite unit to

the main Vision

machine.

Page 4 of 20

Page 5 of 20

Installation

:

Installation of the machine

:

1.- Level the machine, the machine

transport paws can be replaced by

the adjustable paws by which the

machine can be properly levelled.

2.- Open the door and o

pen the

refrigeration louvre to the desire

height, the products below this

level will be refrigerated. Only on

EasyCombo machines, the SnackPlus

model doesn’t include cooling unit.

3.-

Stock the products on the channels

and place the selection number on

label holder

4.-

Turn the machine on to start the

cooling of the cabinet

Programming:

5.-

Assign the selection numbers to its

motors (*).

6.-

Price the selections

.

7.-

Set the clock.

8.-

Load the coin changer.

(*) THE MACHINE HAS A SELECTION NUMBER

CONFIGURATION SET UP SO IT’LL BE NECESSARY TO

GO THROUGH THIS OPTION IN ORDER TO CHANGE IT.

SEE ANNEXED CONFIGURATION.

To pull the tray

out, push the tray

latch from the

right handside and

pull it towards you

Slide the pusher all the way to the back of the

channel, stock the product on the channel and

place the selection number on the label holder

There are three

louvres to set the

cooling at three

di󰘯 erent heights

on the machine.

To access the pro-

gramming button and

the payment systems

is necessary to open

their compartment

pressing the locks

as is shown on the


To remove the trans-

port paws Jofemar

optionally provide

with a jack specially

designed to perform

this task.

Page 4 of 20

Page 5 of 20

Elements of the programming system:

1.- Programming button

Press this button to get into the

programming mode.

It’s recommended to close the door

once it’s on the programming mode in

order to avoid any loss of

temperature

inside of the machine.

2.- Display

This element allows you to visualise

the programming option that the ma-

chine is in and its status

3.-

Button

the programming options

forward

4.-

Button

t

he programming options in

reverse order

5.-

Button

gets out of the programming

mode and into vending mode

On each of the programming options

you

’

ll be able to visualize and change

them with the numbered buttons.

On the union of the channels and the

assignation of the selection numbers, you

can use the selection buttons to program

the numbers on them

Programming mode:

To go THROUGH

THE OPTIONS

FORWARD

To go THROUGH THE OP-

TIONS IN THE REVERSE

ORDER

To get out of program-

ming AND RETURN

TO THE VEND MODE

Detail of the programming button on the

interior of the door

In the programming mode, the display will

display the different options

Page 6 of 20

Page 7 of 20

Programming map:

In order to put into service:

Programming Options:

First step if

necessary

Second Step

Third step

(Only change

the con gura-

tion if neces-

sary)

Communication via modem (MDB)

00

Prices programming

01

Product accountings

02

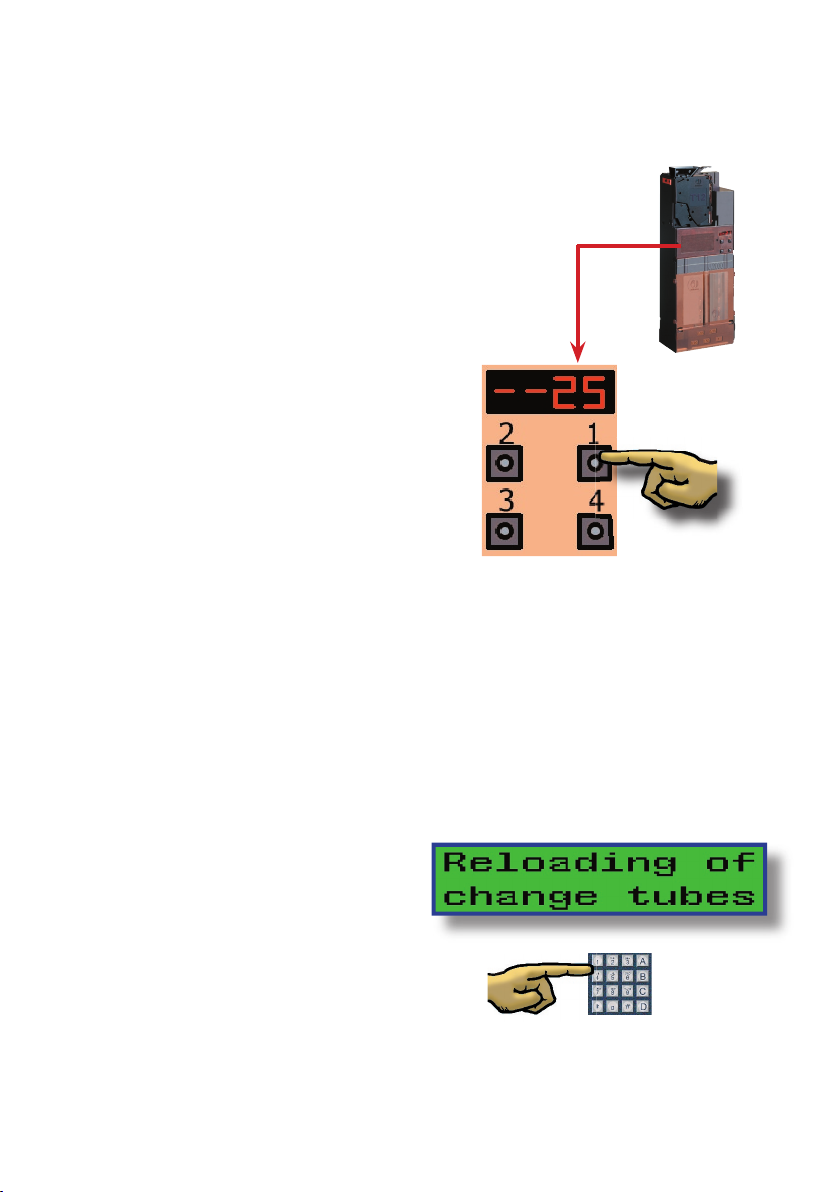

Reloading of change tubes (MDB)

03

Unloading of change tubes (MDB)

04

Money accountings (MDB)

05

Setting of the clock

06

Fault checking

07

Clearing all faults

08

Manual operation

09

Machine composition

10

Coin inhibitions (MDB)

11

Refund option (MDB)

15

Sales options

16

Maximum refund (MDB)

17

Lights programming

18

Temperature options

19

Expiration options

20

Codes programming

21

RS232 communication

22

Banknote acceptance check and

programming of banknote inhibitions

and escrow possibility (MDB)

23

Token options (MDB)

24

Slides motors voltage

25

Prices for card sales (MDB)

26

Selling hours lock out (H.V.I.)

27

Program version

30

Monetary unit programming (currency

characters)

31

Language programming

32

“Beep” (buzzer) programming

33

Dual currency state

35

Second currency review

37

Phone times programming (calling

schedule)

40

Phone number programming

41

Password programming

42

GSM PIN programming

43

Checking alarms

44

Message programming

Fourth step

Fifth step

To return

to the vend

mode

Page 6 of 20

Page 7 of 20

Numeration of the trays and channels:

The trays are numbered from bottom # 11

to the top #18

The channel connectors are numbered

from left to the right #0 through #9

Language selection:

Scroll through the programming options

until you reach option “32” “Language

Programming”

Press

to visualize the program

language

Press

to change to the desired

language

Scroll through the programming options

until you reach option “05” “Setting of the

clock” and press

-Set the time:

Buttons

and

:

They scroll

through the hours, minutes, numbers

of the day, year, day of the week and

type of time as AM-PM or 24 hours

Buttons

and

:

To change the

data .

Set the clock:

180-189

170-179

160-169

150-159

140-149

130-139

120-129

110-117

0 1 2 3 4 5 6 7 8 9

Page 8 of 20

Page 9 of 20

Assigning the channels to the selection numbers:

(Only change the con guration if necessary)

Scroll through the programming options

until you reach option

“

09

”

“

Machine

Composition

”

and press

At that moment, the machine will ask you

for a selection number.

Once you enter the selection number for

that product, the machine will ask you for

the channel number for that product.

You can set the channel numbers with the

buttons, or with the buttons

and

go

through the di󰘯 erent channels that there

are connected.

Every time you’ve selected the right

channel for that selection number, press

button

and on the display will display

a message saying “Saved” and then you

to enter another channel number for that

same selection number if you choose to.

Once you’re done, press

and continue

to the next selection number

(Repeat it until

(Repeat it until

you complete the

con guration)

Page 8 of 20

Page 9 of 20

Pricing the selections:

Scroll through the programming options

until you reach programming option

“

00

”

“

Prices Programming

”

and press

The display will read price $ 0.00

Depending on the machine program we

can 󰘰 nd two di󰘯 erent modes to program

the price:

Mode A:

Button

increases the price in 5 cent

increments

Button

increases the price in 25

cent increments

Button

decreases the price 5 cents

Button

decreases the price to zero

Button

con󰘰 rms the price

Mode B:

Use the buttosn as numeric pad

to introduct de price

Button

erases the latest introduced

number

Button

con󰘰 rms price

When you con󰘰 rm the price, the display

will ask you to enter the selection

numbers that correspond to that price

Once you enter all the selection numbers

to that price, press

Once you enter all the selection numbers

and go to the next

price

( Repeat it until

you complete the

pricing)

+1

+5

-1

=0

OK

OK

Mode A

Mode B

Page 10 of 20

Page 11 of 20

Load of the coin changer:

First load of the coin changer J-2000:

If the tubes of the coin changer are totally

empty, do the  rst initial load:

Press once button 1 of the coin changer

to get to option 25 and insert coins in this

order(*)

Three coins for tube 2

Three coins for tube 3

Three coins for tube 4

Three coins for tube 1

Three coins for tube 5

Important notes:

-

Every time you introduce three coins

for one tube, the slide will move: Wait

until it stops and then proceed with the

next tube.

-

The coin changer will get out of

programming mode after the last coin

is inserted. If this happens without

completing the  rst initial reload, go

back to option 25 and  nish the reload.

Once you’ve done the  rst load, you may

reload the tubes in any order.

After reloads through the machine

(recommended):

Scroll to option “2” of the machine

programming “Reload of Change Tubes”

and insert coins in any order

Pressing buttons 1 to 5 will show you the

value of the coin and how many coins

there are in that tube.

(*) The combination of change of the coin changer and

order of the  rst load you may consulted in the manual

of the coin changer J-2000.

Insert three coins in the

correct order to each tube
