JGaurora A-8 Manuel utilisateur

- 0 -

JGAURORA 3D PRINTER

Model:A-8

Operation Instructions

www.jgew3d.com

Read it before printing and keep it properly.

---3D printer user manual

- 1 -

---3D printer user manual

- 2 -

INTRODUCTION

A-8 is the new designed FDM big size 3d printer by Shenzhen

Aurora Technology Co., Ltd, which could print the plastic models you

have drawn.

A-8 Properties: This product adopt weldless steel as main body,

XY axis is transmited by rolling linear guide, Z axis is high accuracy

rolling ball screw rod, dual material feeding extruder structure, hot

bed coverd HBG. Thus, keep higher resolution, more stable, less

shake, easy to take off models.

Special notice：

1. All content in this manual is strictly checked, if have any printing

errors or misunderstandings on the content, Shenzhen Aurora

reserves the rights of interpretation.

2. Any update information, will not notify.

---3D printer user manual

- 3 -

Security Considerations

Do not touch the extruder and hot bed, when machine

working, temp. of extruder will be about 200 centigrade, hot bed

could be 110 centigrade.

Do not put your hand into machine when printing, in case of

crushing.

The power supply use 110V-220V~50HZ alternating current,

the tripod socket must be grounded, don’t add another power, in case

of fire or electric shock.

We suggest you wear safety goggles when tear off supports

of models.

Put the machine at a drafty room, some smells from the

material may let you uncomfortable, especially ABS material.

Pls take consideration of the following below, in case of damage and

danger.

---3D printer user manual

- 4 -

Product Details

1. Product Details

Model：A-8

Nozzle diamater：0.4mm

Layer thickness：0.05-0.3mm

Machine size：590*450*568mm

Printing speed：10-300mm/s

Machine weight：32KG

XY axis position accuracy：0.05mm

Packing size：700*570*680mm

Z axis position accuracy：0.015mm

Packing weight：36KG

Material：ABS、PLA

Build size：350*250*300mm

Material tendency：PLA

LED Display：yes

Material diamater：1.75mm

Offline printing：support

Software language：English, French,

Germany, Italian, ect

File format：STL、G-Code、OBJ

Function of support：automatically

OS：windows(linux、mac)

Software：Cura

Working condition：10-30℃，Humidity

20-50%

2. Name of machine parts

Pic 1

---3D printer user manual

- 5 -

3. Extruder analysis

Name

QTY

quick coupling

Machined part A

bearing

turbofan

Heating block

40*40 fan

Metalsheet A

K-Thermocouple

Temp. sensor

Heating pipe

nozzle

Stepper motor

M6 nuts

heatsank

cover

gear

Machined B

spring

Winding mouth

Filament pipe

Pic 2

Pic 3

---3D printer user manual

- 6 -

4. Tools list

Pic 4

---3D printer user manual

- 7 -

Software-Cura

1. Cura14.07 installation

Way to find Cura：a. SD card b. Download from website c. Steps of

installtion

Where to find the Cura in the SD card

(1) Connect your SD card to computer, open SD card files.

Pic 5

Pic 6

Pic 7

(2) Download from website

Link：https://ultimaker.com/en/cura-software/list

Choose the corresponding OS to download it.

---3D printer user manual

- 8 -

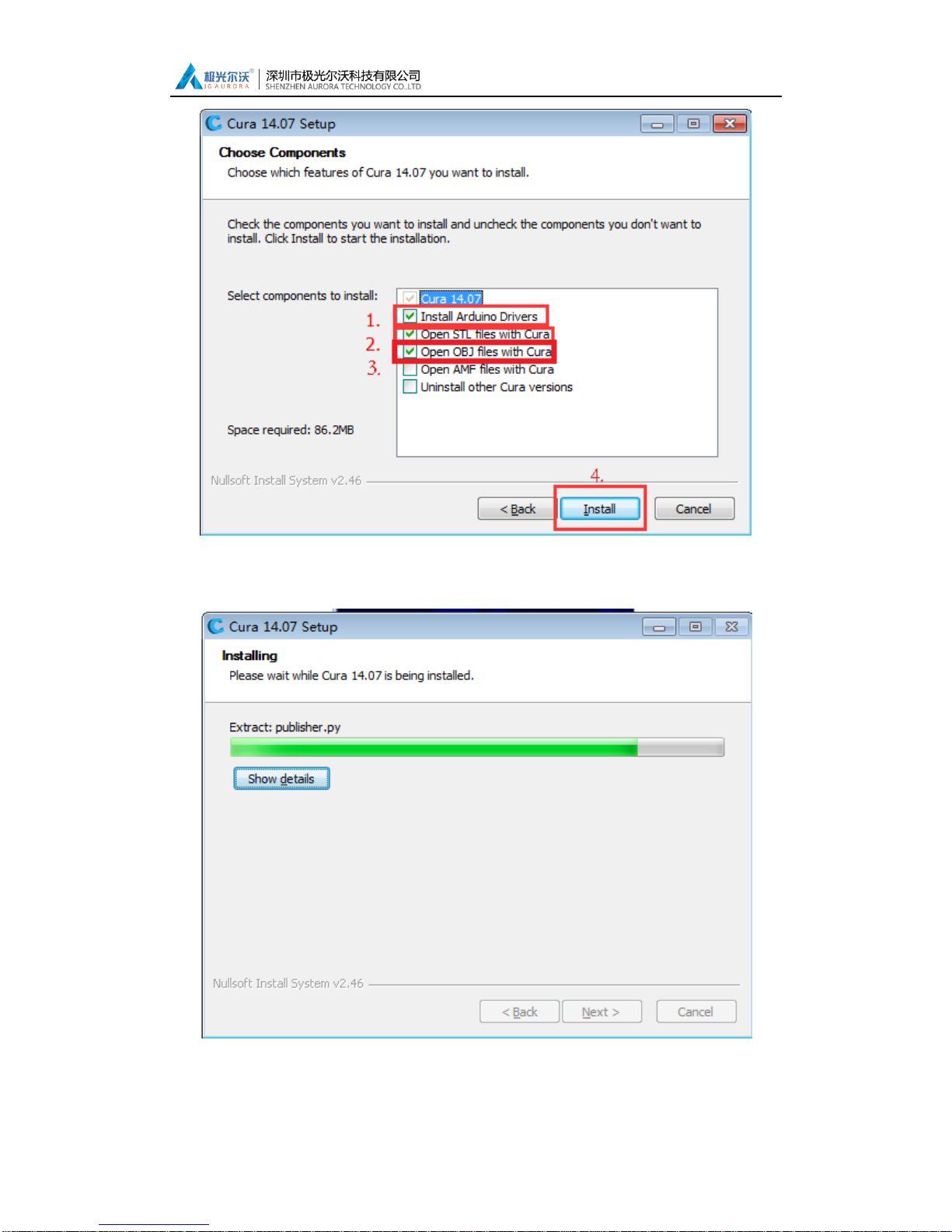

(3) Steps of installation

Double click ,follow the steps to install it.

Pic 9

Pic 8

---3D printer user manual

- 9 -

Pic 10

Pic 2
