JETWAY 993AN Manuel utilisateur

993AS-L/993AS

/993AN

USER'S MANUAL

PCIAGP Mainboard

For Pentium



II/ III or Socket 370

The author assumes no responsibility for any errors or omissions which

may appear in this document nor does it make a commitment to update

the information contained herein.

NO. G03-993ANR3A

Release date: NOV 2000

** Year 2000 compliant **

Trademark:

* Pentium is registered trademark and MMX is a trademark of Intel corporation,

the other names and brands are the property of their respective owners.

* Specifications and Information contained in this documentation are furnished for information use only, and are subject to

change at any time without notice, and should not be construed as a commitment by manufacturer.

Chapter 1

1-1 Preface............................................................................................................. 1

1-2 Feature of motherboard ................................................................................... 1

1-2-1 Overview.............................................................................................. 1

1-2-2 Key Feature......................................................................................... 2

Chapter 2

Hardware Installation..................................................................................3

2-1 Unpacking ........................................................................................................ 3

2-2 Mainboard Diagram.......................................................................................... 4

2-3 Quick Reference for Jumpers, Connectors & Expansion Socket ....................... 5

2-4 Installation Steps.............................................................................................. 6

2-5 Jumper Settings ............................................................................................... 6

2-6 System Memory (DRAM).................................................................................. 7

2-7 Central Processing Unit (CPU)......................................................................... 7

2-8 Expansion Cards.............................................................................................. 11

2-9 External Connectors......................................................................................... 11

Chapter 3

AWARD BIOS SETUP.................................................................................. 18

3-1 STANDARD CMOS SETUP ............................................................................. 19

3-2 BIOS FEATURES SETUP................................................................................ 20

3-3 CHIPSET FEATURES SETUP......................................................................... 21

3-4 POWER MANAGE MENT SETUP ................................................................... 22

3-5 PnP/PCI CONFIGURATION SETUP ............................................................... 24

3-6 LOAD OPTIMAL DEFAULTS ........................................................................... 24

3-7 LOAD STANDARD DEFAULTS ....................................................................... 25

3-8 INTEGRATED PERIPHERALS SETUP............................................................ 25

3-9 SUPERVISOR/USER PASSWORD ................................................................. 26

3-10 SAVE & EXIT SETUP ..................................................................................... 26

3-11 EXIT WITHOUT SAVING................................................................................ 26

Chapter 4

Software Installation......................................................................... 27

4-1 Mainboard Driver Install in Win9X,WinNT ........................................................ 27

4-2 PC HEALTH MONITOR-III (Option for motherboard that embedded PC Health chip)...... 28

4-3 SOUND Driver (Option for motherboard that embedded Audio chip)................ 30

APPENDIX-A Magic Install

TABLE OF CONTENT

Chapter 1

1-1 Preface

Thank you for purchasing this multifunction motherboard. It has the most flexibility you can find

in today’s computer market. The mainboard integrates both Intel Pentium®II / Pentium®III &

Celeron™(Slot 1 & Socket 370) processor interface into a compact PC/AT compatible system

along with 3D Stereo Sound System audio chip. Moreover, this mainboard allows you

conditionally approach 150MHz * of Front Side Bus Frequency.

1-2 Feature of motherboard

This motherboard is design for the PC user who wants highest possible quality and value in a

small package. It includes following main features：

1-2-1 Overview

•Support both Slot 1 & Socket 370 CPU interface (You can only use one CPU interface

at a time).

•Support Ultra DMA 66 for newer hard disk interface.

•Support Jump-less solution for setting Front Side Bus Frequency (CPU Host Clock)

and CPU ratio under CPU Host/PCI clock of CHIPSET FEATURES SETUP.

•Support CPU Host Clock and DRAM Clock Asynchronous/Synchronous mode, please

refer page 18 “ DRAM Clock”.

•Conditionally support 66MHz~150MHz * of Front Side Bus Frequency. This function

allow user select CPU Bus Frequency by the BIOS to approach Over-Clock possibility.

•Provide PC Health Monitoring to track CPU temperature, system temperature, system

voltage, and fan speed. When CPU current temperature is over CPU warning

temperature, system will slow down automatically in order to reduce the CPU’s

temperature. (Option for motherboard that embedded PC Health chip)

•Logo-DIY: Provide CBROM utility for user to create their own loge in the BIOS.

•Built in high quality PCI-Based HRTF 3D Extension Positional Audio Chip (Option for

motherboard that embedded Audio chip)

-Supports rear side speakers, C3DX positional audio in 4 channels speaker mode.

-Professional digital audio interface to support 24-bit SPDIF IN and OUT (44.1K and 48K

format).

-HRTF-base 3D positional audio, supporting DirectSound™ 3D and Aural A3D™ interface.

- Digital functions that capable to provide hi-fi stereo, Dolby, 3D surround effects, and

playing MP3 music.

•You can add our Optical kit (Option for motherboard that embedded Audio chip) to

connect any optical Input/Output device for super high quality sound transaction,

such as playing & recording MD(Mini Disk)/CD; CD-ROM directly recording to MD;

combine with DVD player to create a home theater system (This upgrade kit includes

Optical Module, Optical Cable, and Software DVD Driver).

1-2-2 Key Feature

•Multi-Speed Support ：Provide 66/75*/83*/95*/100/112*/117*/124*/133*/150*MHz Front

Side Bus Frequency to support Intel Pentium®II / Pentium®III, Celeron processor for Slot1

interface or Intel Celeron PPGA on a ZIP Socket 370 interface.

•Chipset：VIA Apollo Pro AGPset .

•DRAM Memory Support：Support 3 x 168-pin DIMM sockets (3.3V) for memory from 8M

Byte to 1.5GB Byte in either EDO (66MHz only) or SDRAM (66MHz/100MHz/133 MHz) type

module with ECC or parity check.

•AGP, ISA, and PCI expansion Slots：Provide an AGP slot, one 16-bit ISA slot, and four

32-bit PCI master slots.

•Super Multi-I/O: Provides two high-Speed UART compatible serial ports and one parallel

port with EPP and ECP capabilities. Two floppy drives of either 5.25” or 3.5” (1.44MB or

2.88MB) are also supported without an external card.

•PCI Bus Master IDE Controller and ULTRA DMA 33/66 : On-board PCI Bus Master IDE

controller with two connectors that supports four IDE devices in two channels, provides

faster data transfer rates, and supports Enhanced IDE devices such as Tape Backup, CD-

ROM, ZIP,LS-120 Drives. This controller also supports PIO Modes and Bus Master IDE

Ultra DMA 33/66Mbyte/Second.

•ACPI supporting for OS Directed Power Management.

Ring-In Wake up: When Ring-In the system can wake up from SMI Mode.

Ring-In Power On: When Ring-In the system can power on automatic by this function.

RTC Power On: Enabled RTC Power On function, you can set RTC alarm to power on the

system at the time length that correspond to your setting.

Power Button: Press the button will place the system power on/off.

Wake on LAN : The system can power on by server in Network.

Support Software Power Off function.

•Power Support: Efficient PWM switching power instead of traditional Linear Voltage

Regulator to prevent power component from being burned-out.

•PC 99 ready

•PS/2 Mouse: This mainboard support PS/2 mouse set.

•USB Port Connector: This mainboard supports two USB port connectors for USB devices.

•Optional IrDA: This mainboard supports an optional infrared port module for wireless

interface, with independent 3rd UART (32-byte FIFO).

•AGP: Accelerated Graphics Port, for to 533MB/sec data transfer rate and 66/133MHz Bus

clock to improve graphic functions.

•ATX Form Factor: Dimensions 30.5cm x 19cm.

* Your memory module(s) must be PC133 compliant SDRAM chips and specified to run

on 133MHz or 150MHz.

* When you are running at 150MHz, make sure all of your PCI devices have enough

tolerance to run on 37.5MHz . Otherwise, it may cause your system become very

unstable.

Chapter 2

Hardware Installation

2-1 Unpacking

This mainboard package should contain the following:

•The mainboard

•USER’S MANUAL for mainboard

•Cable set for Ultra DMA 66 IDE x1, Floppy x1

•CD for Drivers PACK

The mainboard contains sensitive electronic components that can be easily damaged by

electron-static, so the mainboard should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat.

The operator should be wearing an anti static wristband, grounded at the same point as the anti-

static mat.

Inspect the mainboard carton for obvious damage. Shipping and handling may cause damage to

your board. Be sure there are no shipping and handling damages on the board before proceeding.

After opening the mainboard carton, extract the system board and place it only on a grounded

anti-static surface component side up. Again inspect the board for damage.

Press down on the entire socket IC’s to make sure that they are properly inserted. Do this only

on with the board placed on a firm flat surface.

Warning: Do not apply power to the board if it has been damaged.

You are now ready to install your mainboard. The mounting hole pattern on the mainboard

matches the ATX system board.

It is assumed that the chassis is designed for a standard ATXmain board mounting. Place the

chassis on the anti-static mat and remove the cover.

Take the plastic clips, Nylon stand-off and screws for mounting the system board, and keep

them separate.

2-2 Mainboard Diagram

SLOT-1

MINI-

DI N

BATT. +

BT1

IA A

ollo Pro

U11

VIA 82C596B

U16

COM2

COM2 COM1

PARALLEL PORT

USB

ATX P

WER

NN.

PL1

IDE2

IDE1

PCI 2

PCI2

PCI 1

MIC LI NE-I

LI NE-OUT

AGC

GAM E

PCI3

PCI 3

PCI4

PCI 4

ZI F SOCKET 370

CPU

U10

DIMM2

DI MM3

DIM M 2

DIMM3

DI MM1

DIMM1

SL1

BI OS

AGP

IR1

JP12

CPUFAN

SYSFAN

IDE1

JP14

FDD

WOL

PS-ON

KEYLOCK

RST TBLE

TBSW

HDLED

SMI

JP1

SPEAKER

JP1

S P D IF IN 1

SPDIFOUT

JP4

SPKIN 1

CMI8738B

JP7

JP11

U18

Figure 2-2

Option for motherboard that embedded Audio chip

2-3 Quick Reference for Jumpers, Connectors & Expansion Socket

Jumpers

Jumper Name Description Page

JP11,JP12 CPU Bus Frequency Selection Refer to page 6 p. 6

U18 CPU Ratio Selector Refer to page 6 p. 6

JP14 CMOS RAM Clear 1-2 Normal ,2-3 Clear CMOS p. 7

Connectors

Connector Name Description Page

PL1 ATX Power Connector 20-Pin Block p.9

MINI-DIN PS/2 Keyboard/PS/2 Mouse 6-Pin Female p.9

USB USB Port Connector 5-Pin Connector p.9

PRINT Parallel Port Connector 26-Pin Female p.9

COM1, COM2 Serial Port COMA , COMB 9-Pin Connector p.10

FDD Floppy Driver Connector 34-Pin Block p.10

IDE1 Primary IDE Connector 40-Pin Block p.10

IDE2 Secondary IDE Connector 40-Pin Block p.11

HDLED IDE activity LED 2-Pin Connector p.11

SMI SMI Suspend Switch 2-Pin Connector p.11

JP13 Front Panel Connector 16-Pin Block p.11

IR1 Infrared Module Connector 10-Pin Block p.12

CPUFAN, SYSFAN FAN Connector Extra fanning system connectors p.12

PS-ON ATX power button/soft power button 2-Pin Connector p.12

WOL Wake On LAN 3-pin Block P.13

Jumpers & Connectors (Option for motherboard that embedded Audio chip)

Item number Name Description Page

JP4 On-Board Sound Enable/Disable 1-2 : Disabled , 2-3 : Enabled p.13

JP1 AUX IN 4-pin Block p.13

JP2 CD-Audio 4-pin Block p.13

JP3 CD-Audio 4-pin Block p.13

AGC Line IN/Line Out/MIC /Game Connector 15-pin Connector + 3 phone jack p.13

SPKIN 1 PC Speaker In 2-pin Block p.14

SPDIFIN 1 SPDIF (Sony/Philips Digital Interface) IN 3-pin Block p.14

SPDIFOUT SPDIF (Sony/Philips Digital Interface) OUT 2-pin Block p.14

JP7 For Optional Optical Kit Connector 10-pin Connector p.14

Expansion Sockets

Socket/Slot Name Description

DIMM1,DIMM2, DIMM3 DIMM Module Socket 168-Pins DIMM SDRAM Module Expansion Socket

Slot1 CPU Slot Pentium II/III CPU Slot

Zip Socket370 CPU Socket Celeron PPGA CPU Socket

AGP SLOT AGP SLOT AGP Expansion Slot

PCI1, PCI2,PCI3 ,PCI4 PCI Slot 32-bit PCI Local Bus Expansion slots

SL1 ISA Slot 16-bit ISA Bus Expansion slot

2-4 Installation Steps

Before using your computer, you must follow the steps as follows:

1. Set Jumpers on the Mainboard

2. Install the CPU

3. Install DRAM Modules

4. Install Expansion card

5. Connect Cables, Wires, and Power Supply

2-5 Jumper Settings

1. CPU Bus Frequency Selection : JP12, JP11

COM2

JP11

JP12

•Users also can setting the CPU Bus frequency in the “CPU Host/PCI clock” in

CHIPSET FEATURES SETUP. (Please refer to page 18)

2. CPU Ratio Selector：U18

Ratio 1 2 3 4 Ratio 1 2 3 4

2.0x ON ON ON ON 5.5x OFF OFF OFF ON

2.5x OFF ON ON ON 6.0x ON ON ON OFF

3.0x ON OFF ON ON 6.5x OFF ON ON OFF

3.5x OFF OFF ON ON 7.0x ON OFF ON OFF

4.0x ON ON OFF ON 7.5x OFF OFF ON OFF

4.5x OFF ON OFF ON 8.0x ON ON OFF OFF

5.0x ON OFF OFF ON

Table for the Pentium III and Celeron Socket 370 CPU

Celeron Pentium III Pentium III

Speed Bus Ratio Speed Bus Ratio Speed Bus Ratio

300/66 66MHz 4.5x 500E/100 100MHz 5.0x 733/133 133MHz 5.5x

333/66 66MHz 5.0x 533EB/133 133MHz 4.0x 750/100 100MHz 7.5x

366/66 66MHz 5.5x 550E/100 100MHz 5.5x 800/100 100MHz 8.0x

400/66 66MHz 6.0x 600E/100 100MHz 6.0x 800EB/133 133MHz 6.0x

466/66 66MHz 7.0x 600EB/133 133MHz 4.5x 850/100 100MHz 8.5x

500/66 66MHz 7.5x 650/100 100MHz 6.5x 866/133 133MHz 6.5x

533/66 66MHz 8.0x 667/133 133MHz 5.0x 933/133 133MHz 7.0x

533A/66 66MHz 8.0x 700/100 100MHz 7.0x 1.0GHz/133 133MHz 7.5x

566/66 66MHz 8.5x

600/66 66MHz 9.0x

633/66 66MHz 9.5x

667/66 66MHz 10.0x

700/66 66MHz 10.5x

733/66 66MHz 11.0x

766/66 66MHz 11.5x

∗Because the Ratio are fixed by CPU Manufacture, users don’t need

to setting ratio any more, this table just for reference use.

CPU External Frequency：JP12, JP11

CPU JP12 JP11 BIOS Setting

66MHz 2-3 ON Default

100MHz 1-2 ON Default

133MHz* 1-2 OFF Default

150MHz* 1-2 OFF 150MHz

∗Your Memory must meet the requirement to run on 133MHz or 150MHz

condition. In order to run 150MHz, Please set jumper at 133MHz condition and

then chan

e the settin

to 150MHz from the BIOS.

2. CMOS RAM Clear: JP14 (Yellow color selector)

WARNING: Make sure your computer is POWER OFF when you CLEAR CMOS.

Connect a jumper Cap over this jumper for a few seconds, will clears information stored in the

CMOS RAM Chip that input by user, such as hard disk information and passwords. After

CLEAR CMOS, you must enter the BIOS setup (by holding down <DEL> during power-up) to re-

enter BIOS information (see BIOS SETUP).

Selections JP14

Normal 1-2 (Default)

Clear CMOS 2-3 (momentarily)

COM2

CMOS RAM (Normal / Clear CMOS Data)

JP14 JP14

Normal

Clear CMOS

2-6 System Memory (DRAM)

This mainboard supports three 168-pins DIMM modules, the Max Memory Size is 1.5GB.

DIMM 1 DIMM 2 DIMM 3 System can be Accept or Not

168-pin DIMM x x Accept

168-pin DIMM 168-pin DIMM x Accept

168-pin DIMM 168-pin DIMM 168-pin DIMM Accept

2-7 Central Processing Unit (CPU)

2-7-1 The mainboard provides a Slot-1 for Pentium II/III processor. The CPU on board must

have a fan or heat sink attached to prevent overheating.

WARNING: Without a fan or heat sink, the CPU will overheat and cause damage to both the CPU

and the mainboard.

To install a CPU, first turn off your system and remove its cover. Locate the Slot- 1 and place

RETENTION MODULE as following:

IMPORTANT: You must set jumper JP11,JP12 for “Bus Frequency Selection” on page6 depending

on the CPU that you install.

1. Attach heat sink to the CPU.

2. Place Part A on Slot-1 and gently screw four corners on top of the main- board.

COM 2

PART A

2-7-2 The mainboard also provides a 370-pin ZIF Socket 370. The CPU on mainboard must

have a fan attached to prevent overheating.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF Socket and

open it by first pulling the lever sideways away from the socket then upwards to a 90-degree

right angle. Insert the CPU with the white dot as your guide. The white dot should point towards

the end of the level. The CPU has a corner pin for three of the four corners, the CPU will only fit

in the one orientation as shown as follow. With the added weight of the CPU fan, no force is

required to insert the CPU. Once completely inserted, hold down on the fan and close the

Socket’s lever.

IMPORTANT: You can setting the CPU ratio and Host Frequency in the BIOS setup on page 18

COM 2

CPU ZIF Socket 370

Lock

Socket 370

Blank

Lever

White Dot

Socket 370

CPU

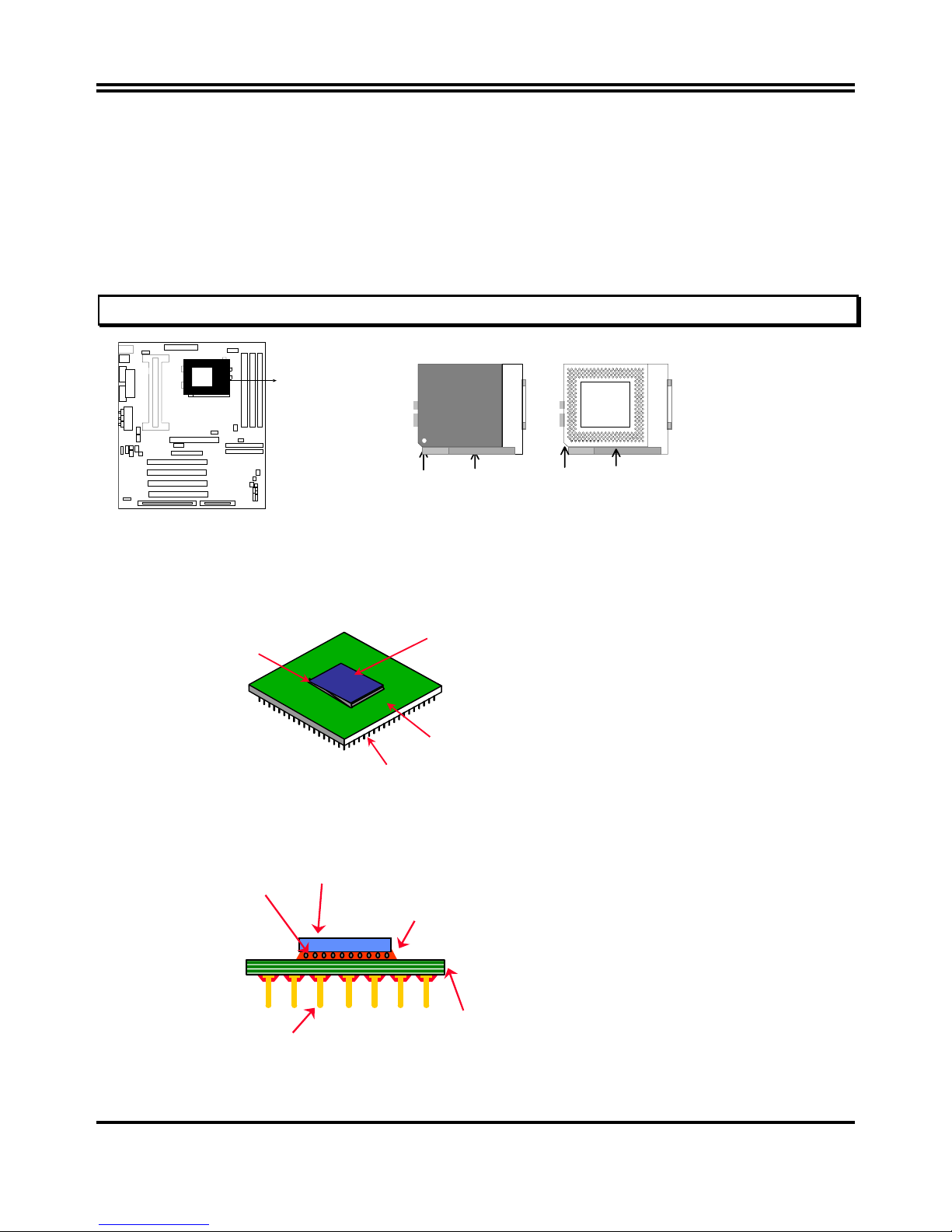

2-7-3 Intel®Pentium®III Processor (256K) in the FC-PGA form factor: Mechanical Features

The FC-PGA package has the processor’s silicon die directly mounted to a pinned interposer substrate.

The pin grid array is partially populated and there may be surface mount components in the unpopulated

central area of the pin field.

Intel®Pentium®III Processor in the FC-PGA form factor: Mechanical Features

Substrate

Flip Chip Die

Pins

Fillet Epoxy

(Not to scale)

Flip-Chip Si Core

C4 Solder bumps

Surface mounted pins

Fillet Epoxy

(Not to scale)

Multi-layer substrate

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JETWAY Carte mère

JETWAY

JETWAY NC7A Series Manuel utilisateur

JETWAY

JETWAY JNP891P Series Manuel utilisateur

JETWAY

JETWAY 694AS Manuel utilisateur

JETWAY

JETWAY S445R1A Manuel utilisateur

JETWAY

JETWAY J-Mark J-530CF Manuel utilisateur

JETWAY

JETWAY P4XFAR1C Manuel utilisateur

JETWAY

JETWAY 618AFR5A Manuel utilisateur

JETWAY

JETWAY NAF791 Series Manuel utilisateur

JETWAY

JETWAY NU591S Manuel utilisateur

JETWAY

JETWAY P4XFB Manuel utilisateur

JETWAY

JETWAY LA0H Series Manuel utilisateur

JETWAY

JETWAY 993BSR4A Manuel utilisateur

JETWAY

JETWAY NLBT-I1900 Series Manuel utilisateur

JETWAY

JETWAY NF632E Series Manuel utilisateur

JETWAY

JETWAY G03-7F2WE-F Manuel utilisateur

JETWAY

JETWAY P400MTR2A Manuel utilisateur

JETWAY

JETWAY P4X400DBR3A Manuel utilisateur

JETWAY

JETWAY P4MVM Manuel utilisateur

JETWAY

JETWAY A210GDAG Manuel utilisateur

JETWAY

JETWAY NAF95-Q87 Manuel utilisateur

JETWAY

JETWAY NMF891 Series Manuel utilisateur

JETWAY

JETWAY JBC390F841VGU Manuel utilisateur

JETWAY

JETWAY P4MBMS - REV 1.0 Manuel utilisateur

JETWAY

JETWAY I402R2A Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
