993BS / 993BN

USER'S MANUAL

PCI/ AGP Mainboard

For Pentium



II/ III or Socket 370

The author assumes no responsibility for any errors or omissions which

may appear in this document nor does it make a commitment to update

the information contained herein.

NO. G03-993BSR4A

Release date: NOV 2000

** Year 2000 compliant **

Trademark:

* Pentium is registered trademark and MMX is a trademark of Intel corporation,

the other names and brands are the property of their respective owners.

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Chapter 1

1-1 Preface.............................................................................................................1

1-2 Feature of motherboard ...................................................................................1

1-2-1 Overview..............................................................................................1

1-2-2 Key Feature.........................................................................................1

Chapter 2

Hardware Installation..................................................................................3

2-1 Unpacking........................................................................................................3

2-2 Mainboard Diagram..........................................................................................4

2-3 Quick Reference for Jumpers, Connectors & Expansion Socket.......................5

2-4 Installation Steps..............................................................................................6

2-5 Jumper Settings ...............................................................................................6

2-6 System Memory (DRAM)..................................................................................7

2-7 Central Processing Unit (CPU).........................................................................7

2-8 Expansion Cards..............................................................................................8

2-9 External Connectors.........................................................................................9

Chapter 3

AWARD BIOS SETUP..................................................................................15

3-1 STANDARD CMOS SETUP.............................................................................16

3-2 BIOS FEATURES SETUP................................................................................17

3-3 CHIPSET FEATURES SETUP.........................................................................18

3-4 POWER MANAGEMENT SETUP....................................................................19

3-5 PnP/PCI CONFIGURATION SETUP ...............................................................21

3-6 LOAD OPTIMAL DEFAULTS...........................................................................21

3-7 LOAD STANDARD DEFAULTS.......................................................................22

3-8 INTEGRATED PERIPHERALS SETUP............................................................22

3-9 SUPERVISOR/USER PASSWORD.................................................................23

3-10 SAVE & EXIT SETUP .....................................................................................23

3-11 EXIT WITHOUT SAVING................................................................................23

Chapter 4

Software Installation.........................................................................24

4-1 Mainboard Driver Install in Win9X, WinNT .......................................................24

4-2 SOUND Driver (Option for motherboard that embedded Audio chip)................25

Chapter 5

Quick Troubleshooting Guide...................................................................................41

Chapter 6

Frequently Asked Questions and Answers ..............................................................42

APPENDIX-A Magic Install

TABLE OF CONTENT

Chapter 1

1-1 Preface

Thank you for purchasing this multifunction motherboard. It has the most flexibility that you can

find in today’s computer market. The motherboard integrate both Intel Pentium®II/Pentium®III &

CeleronTM (Slot 1 ) / Coppermine processor and CeleronTM (Socket 370) PPGA / Coppermine

FC-PGA processor interface into a compact PC/AT compatible system along with PCI local bus

and many other new feature that meets future specification.

1-2 Feature of motherboard

1-2-1 Overview

•Support both Slot 1 & Socket 370 CPU interface (You can only use one CPU interface

at a time).

•Support Ultra DMA 66 for newer hard disk interface.

•Support Jump-less and Hardware solution for setting Front Side Bus Frequency (CPU

Host Clock) under CPU Host/PCI clock of CHIPSET FEATURES SETUP.

•Support CPU Host Clock and DRAM Clock Asynchronous/Synchronous mode, please

refer page 18 “ DRAM Clock”.

•Support 66MHz~100MHz of Front Side Bus Frequency. This function allow user select

CPU Bus Frequency by the BIOS to approach Over-Clock possibility.

•Logo-DIY: Provide CBROM utility for user to create their own loge in the BIOS.

•Built in high quality PCI-Based HRTF 3D Extension Positional Audio Chip (Option for

motherboard that embedded Audio chip)

-Supports rear side speakers, C3DX positional audio in 4 channels speaker mode.

-Professional digital audio interface to support 24-bit SPDIF IN and OUT (44.1K and 48K

format).

-HRTF-base 3D positional audio, supporting DirectSound™ 3D and Aural A3D™ interface.

- Digital functions that capable to provide hi-fi stereo, Dolby, 3D surround effects, and

playing MP3 music.

•You can add our Optical kit (Option for motherboard that embedded Audio chip) to

connect any optical Input/Output device for super high quality sound transaction,

such as playing & recording MD(Mini Disk)/CD; CD-ROM directly recording to MD;

combine with DVD player to create a home theater system (This upgrade kit includes

Optical Module, Optical Cable, and Software DVD Driver).

1-2-2 Key Feature

•Multi-Speed Support ：Provide 66/75*/83*/95*/100/112*/117*/124*/133*MHz Front Side

Bus Frequency to support Intel Pentium®II / Pentium®III, Celeron processor for Slot1

interface or Intel Celeron PPGA on a ZIP Socket 370 interface.

•Chipset：VIA Apollo Pro-Plus AGPset .

•DRAM Memory Support：Support 2 x 168-pin DIMM sockets (3.3V) for memory from 8M

Byte to 1.0GB Byte in either EDO (66MHz only) or SDRAM (66MHz/100MHz) type module.

•AGP, ISA, and PCI expansion Slots：Provide an AGP slot, one 16-bit ISA slot, and three

32-bit PCI master slots.

•Super Multi-I/O: Provides two high-Speed UART compatible serial ports and one parallel

port with EPP and ECP capabilities. Two floppy drives of either 5.25” or 3.5” (1.44MB or

2.88MB) are also supported without an external card.

•PCI Bus Master IDE Controller and ULTRA DMA 33/66 : On-board PCI Bus Master IDE

controller with two connectors that supports four IDE devices in two channels, provides

faster data transfer rates, and supports Enhanced IDE devices such as Tape Backup, CD-

ROM, ZIP,LS-120 Drives. This controller also supports PIO Modes and Bus Master IDE

Ultra DMA 33/66Mbyte/Second.

•ACPI supporting for OS Directed Power Management (For ATX Power supply only).

Ring-In Wake up: When Ring-In the system can wake up from SMI Mode.

Ring-In Power On: When Ring-In the system can power on automatic by this function.

RTC Power On: Enabled RTC Power On function, you can set RTC alarm to power on the

system at the time length that correspond to your setting.

Power Button: Press the button will place the system power on/off.

Wake on LAN : The system can power on by server in Network.

Support Software Power Off function.

•Power Support: Efficient PWM switching power instead of traditional Linear Voltage

Regulator to prevent power component from being burned-out.

•PC 99 ready

•PS/2 Mouse: This mainboard support PS/2 mouse set.

•USB Port Connector: This mainboard supports two USB port connectors for USB devices.

•Optional IrDA: This mainboard supports an optional infrared port module for wireless

interface, with independent 3rd UART (32-byte FIFO).

•AGP: Accelerated Graphics Port, for to 533MB/sec data transfer rate and 66/133MHz Bus

clock to improve graphic functions.

•Baby AT Form Factor: Dimensions 22cm x 25cm.

* Your memory module(s) must be PC100 or PC133 compliant SDRAM chips and

specified to run on those speeds.

* When you are running at 133MHz, make sure all of your PCI devices have enough

tolerance to run on 44MHz . Otherwise, it may cause your system become very

unstable.

Chapter 2

Hardware Installation

2-1 Unpacking

This mainboard package should contain the following:

•The mainboard

•USER’S MANUAL for mainboard

•Cable set for Ultra DMA 66 IDE x1, Floppy x1, Com1 & Com2 x 1,PS/2 Mouse x1, LPT x1,

Audio & Game x 1(for motherboard come with Audio Chip)

•CD for Drivers PACK

The mainboard contains sensitive electronic components that can be easily damaged by

electron-static, so the mainboard should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat.

The operator should be wearing an anti static wristband, grounded at the same point as the anti-

static mat.

Inspect the mainboard carton for obvious damage. Shipping and handling may cause damage to

your board. Be sure there are no shipping and handling damages on the board before proceeding.

After opening the mainboard carton, extract the system board and place it only on a grounded

anti-static surface component side up. Again inspect the board for damage.

Press down on the entire socket IC’s to make sure that they are properly inserted. Do this only

on with the board placed on a firm flat surface.

Warning: Do not apply power to the board if it has been damaged.

You are now ready to install your mainboard. The mounting hole pattern on the mainboard

matches the AT system board.

It is assumed that the chassis is designed for a standard ATmain board mounting. Place the

chassis on the anti-static mat and remove the cover.

Take the plastic clips, Nylon stand-off and screws for mounting the system board, and keep

them separate.

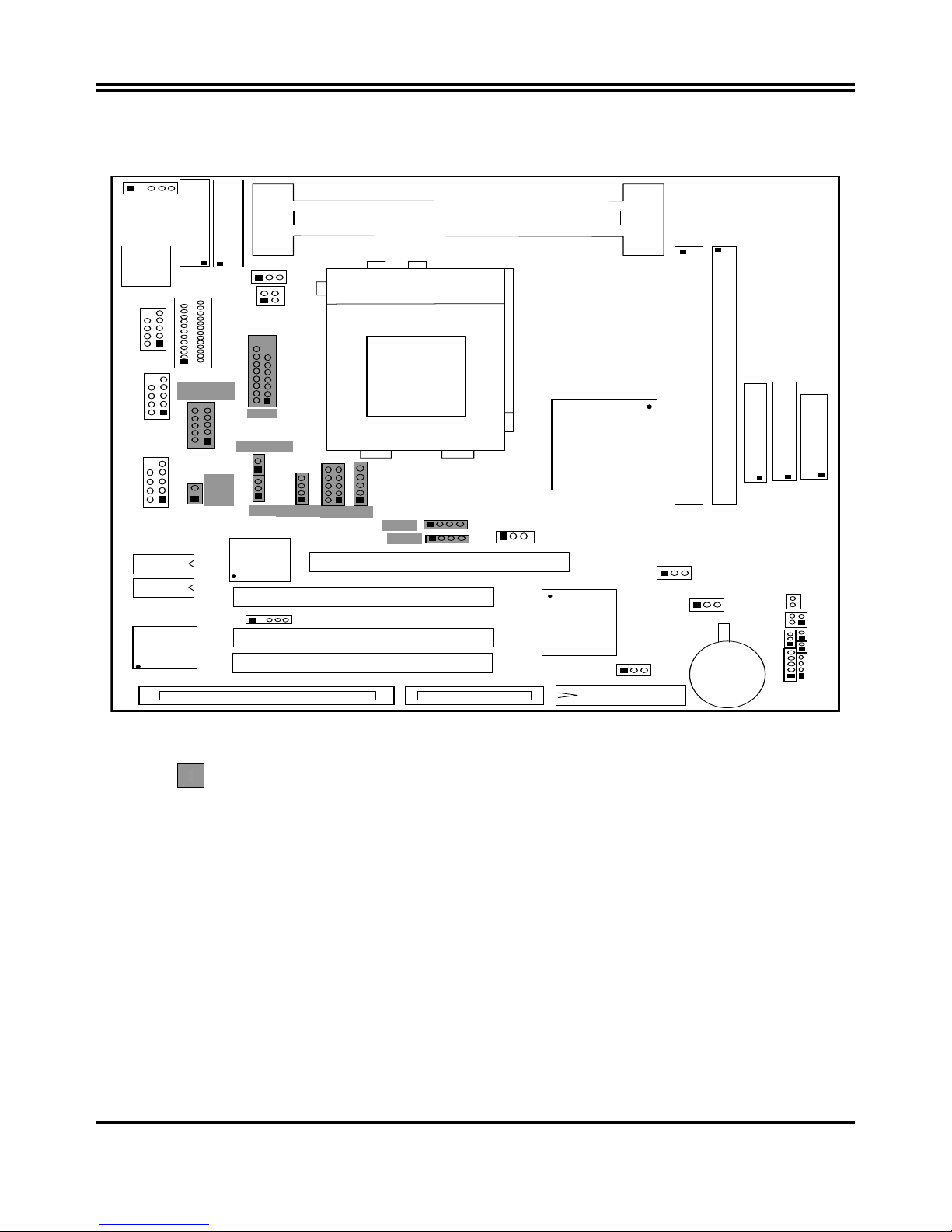

2-2 Mainboard Diagram

FDD1

FDD

SLOT1

SLOT-1

BATT.

BT1

VIA693

U11

VIA596B

U20

PCI 2

PCI2

PCI 1

PCI1

PCI3

PCI 3

ZIF SOCKET 370

CPU

BIOS

CPUFAN

DIMM2

DIMM1

DIMM 1

IDE2

IDE1

IR 1

WOL1

JP9

JP13

KEYLOC

RST TBLE

TBSW

HDLED

PS/ON

SPEAKER

SMI

SL1

LPT

COM2 COM1

USB

ATX POWER CONN.

PW1

AT POWER CONN.

PW2

GAM E

AUDIO

CM8738

GP1

AGP1

KB&M S

K / B

CONN.

U22

S75232

JP11

JP7

JP8

SYSFAN

SPKIN1

JP1 SPDFIN JP5JP4

SPDF

OUT

U23

S75232

IT8661

U24

Figure 2-2

Only for motherboard that embedded Audio chip

2-3 Quick Reference for Jumpers, Connectors & Expansion Socket

Jumpers

Jumper Name Description Page

JP9 CPU Bus Frequency Selection 1-2 : 100MHz ; 2-3: 66MHz p. 6

U21 CPU Ratio Selector Refer to page 6 p. 6

JP11 CMOS RAM Clear 1-2 Normal ,2-3 Clear CMOS p. 7

Connectors

Connector Name Description Page

ATX PWR1 ATX Power Connector 20-Pin Block p.8

AT PWR1 AT Power Connector 12-Pin Block p.9

ATKB Keyboard Connector 5-Pin Female p.9

MS-PIN PS2 Mouse Connector 5-Pin Connector p.9

PRINT Parallel Port Connector 26-Pin Block p.9

COM1, COM2 Serial Port COMA , COMB 10-Pin Block p.10

FDD Floppy Driver Connector 34-Pin Block p.10

IDE1 Primary IDE Connector 40-Pin Block p.10

IDE2 Secondary IDE Connector 40-Pin Block p.10

HDLED IDE activity LED 2-Pin Connector p.11

SMI SMI Suspend Switch 2-Pin Connector p.11

JP13 Front Panel Connector 16-Pin Block p.11

IR1 Infrared Module Connector 5-Pin Block p.11

USB USB Port Connector 5-Pin Connector p.12

CPUFAN, SYSFAN FAN Connector Extra fanning system connectors p.12

PS-ON ATX power button/soft power button 2-Pin Connector p.12

WOL1 Wake On LAN 3-Pin Block p.13

Jumpers & Connectors (Option for motherboard that embedded Audio chip)

Item number Name Description Page

JP1 On-Board Sound Enable/Disable 1-2 : Disabled , 2-3 : Enabled p.13

JP5 AUX IN 4-pin Block p.13

JP7 CD-Audio 4-pin Block p.13

JP8 CD-Audio 4-pin Block p.13

Audio Audio Connector 10-pin Connector p.13

GAME Game Port Connector 16-Pin Connector

SPKIN 1 PC Speaker In 2-pin Block p.14

SPDIFIN SPDIF (Sony/Philips Digital Interface) IN 3-pin Block p.14

SPDIFOUT SPDIF (Sony/Philips Digital Interface) OUT 2-pin Block p.14

JP4 For Optional Optical Kit Connector 10-pin Connector p.14

Expansion Sockets

Socket/Slot Name Description

DIMM1,DIMM2 DIMM Module Socket 168-Pins DIMM SDRAM Module Expansion Socket

U7 CPU Slot Pentium II/III / Coppermine CPU Slot

U5 CPU Socket (Socket 370) Celeron PPGA / Coppermine FC-PGA CPU Socket

AGP1 AGP SLOT AGP Expansion Slot

PCI1, PCI2,PCI3 PCI Slot 32-bit PCI Local Bus Expansion slots

SL1 ISA Slot 16-bit ISA Bus Expansion slot

2-4 Installation Steps

Before using your computer, you must follow the steps as follows:

1. Set Jumpers on the Mainboard

2. Install the CPU

3. Install DRAM Modules

4. Install Expansion card

5. Connect Cables, Wires, and Power Supply

2-5 Jumper Settings

1. CPU Bus Frequency Selection : JP9

JP9

•Users also can setting the CPU Bus frequency in the “CPU Host/PCI clock” in

CHIPSET FEATURES SETUP.(Please refer to page 18)

* When you are running at 133MHz , make sure all of your PCI devices have enough

tolerance to run on 44MHz . Otherwise, it may cause your system become very

unstable.

2. CPU Ratio Selector：U21

Ratio 1 2 3 4 Ratio 1 2 3 4

3.0x ON OFF ON ON 5.5x OFF OFF OFF ON

3.5x OFF OFF ON ON 6.0x ON ON ON OFF

4.0x ON ON OFF ON 6.5x OFF ON ON OFF

4.5x OFF ON OFF ON 7.0x ON OFF ON OFF

5.0x ON OFF OFF ON 7.5x OFF OFF ON OFF

8.0x ON ON OFF OFF

Table for the Pentium III and Celeron Socket 370 CPU

Celeron Pentium III

Speed Bus Ratio Speed Bus Ratio

300/66 66MHz 4.5x 500E/100 100MHz 5.0x

333/66 66MHz 5.0x 550E/100 100MHz 5.5x

366/66 66MHz 5.5x 600E/100 100MHz 6.0x

400/66 66MHz 6.0x 650E/100 100MHz 6.5x

466/66 66MHz 7.0x 700/100 100MHz 7.0x

500/66 66MHz 7.5x 750/100 100MHz 7.5x

533/66 66MHz 8.0x 800/100 100MHz 8.0x

533A/66 66MHz 8.0x 850/100 100MHz 8.5x

566/66 66MHz 8.5x

600/66 66MHz 9.0x

633/66 66MHz 9.5x

667/66 66MHz 10.0x

700/66 66MHz 10.5x

733/66 66MHz 11.0x

766/66 66MHz 11.5x

∗Because the Ratio are fixed by CPU Manufacture, users don’t need

to setting ratio any more, this table just for reference use.

2. CMOS RAM Clear: JP11 (Yellow color selector)

CPU External Frequency：JP9

CPU JP9 BIOS Seting

66MHz 2-3 Default

100MHz 1-2 Default

133MHz* 1-2 Select by BIOS setting

*Your Memory must meet the requirement to run over 100MHz.

WARNING: Make sure your computer is POWER OFF when you CLEAR CMOS.

Connect a jumper Cap over this jumper for a few seconds, will clears information stored in the

CMOS RAM Chip that input by user, such as hard disk information and passwords. After

CLEAR CMOS, you must enter the BIOS setup (by holding down <DEL> during power-up) to re-

enter BIOS information (see BIOS SETUP).

Selections JP11

Normal 1-2 (Default)

Clear CMOS 2-3 (momentarily)

CMOS RAM (Normal / Clear CMOS Data)

JP11 JP11

Normal

Clear CMOS

2-6 System Memory (DRAM)

This mainboard supports two 168-pins DIMM modules to the Max Memory Size of 1GB.

DIMM 1 DIMM 2 System can be Accept or Not

168-pin DIMM x Accept

x 168-pin DIMM Accept

168-pin DIMM 168-pin DIMM Accept

2-7 Central Processing Unit (CPU)

2-7-1 The mainboard provides a Slot-1 for Pentium II/III processor. The CPU on board must

have a fan or heat sink attached to prevent overheating.

WARNING: Without a fan or heat sink, the CPU will overheat and cause damage to both the CPU

and the mainboard.

To install a CPU, first turn off your system and remove its cover. Locate the Slot- 1 and place

RETENTION MODULE as following:

IMPORTANT: You must set jumper JP9 for “Bus Frequency Selection” on page6 depending on the

CPU that you install.

1. Attach heat sink to the CPU.

2. Place Part A on Slot-1 and gently screw four corners on top of the main- board.

PART A

2-7-2 The mainboard also provides a 370-pin ZIF Socket 370. The CPU on mainboard must

have a fan attached to prevent overheating.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF Socket and

open it by first pulling the lever sideways away from the socket then upwards to a 90-degree

right angle. Insert the CPU with the white dot as your guide. The white dot should point towards

the end of the level. The CPU has a corner pin for three of the four corners, the CPU will only fit

in the one orientation as shown as follow. With the added weight of the CPU fan, no force is

required to insert the CPU. Once completely inserted, hold down on the fan and close the

Socket’s lever.

IMPORTANT: You can setting the CPU ratio and Host Frequency in the BIOS setup on page 18

CPU ZIF Socket 370

Lock

Socket 370

Blank

Lever

White Dot

Socket 370

CPU

2-8 Expansion Cards

You must read the documentation come with expansion card for any hardware or software

settings that may be required to setup your specific card.

Installation Procedure:

1. Read the documentation from your expansion card.

2. Set any necessary jumpers on your expansion card.

3. Remove your computer’s cover.

4. Remove the bracket on the slot you intend to use.

5. Carefully align the card’s connectors and press firmly.

6. Secure the card on the slot with the screw you remove in step 4.

7. Replace the computer’s cover.

8. Setup the BIOS if necessary.

9. Install the necessary software drivers for your expansion card.

Assigning IRQs for Expansion Cards

Some expansion cards may require an IRQ to operate. Generally an IRQ must be exclusively

assigned to only one device. In an standard design there are 16 IRQs available but most of

them are occupied by the system and leaves 6 free for expansion cards.

With most recent device, the BIOS automatically assign an IRQ number to PCI expansion cards.

Please make sure there are no any of two devices use same IRQs, otherwise your computer

may experience some problems when those two devices are in use at the same time.

Assigning DMA Channels for Expansion Cards

Some devices may also need to use a DMA (Direct Memory Access) channel. DMA

assignments for this mainboard are handled the same way as the IRQ assignment process

described above. You can select a DMA channel in the PCI and PnP configuration section of the

BIOS Setup utility.

2-9 External Connectors

1. Power Connector: AT Power Connector (12-pin block): ATPWR1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JETWAY Carte mère

JETWAY

JETWAY V266BR4A Manuel utilisateur

JETWAY

JETWAY S447R1C Manuel utilisateur

JETWAY

JETWAY 845DBA3A Manuel utilisateur

JETWAY

JETWAY NU792V Manuel utilisateur

JETWAY

JETWAY POLARIS400 Manuel utilisateur

JETWAY

JETWAY NF731 Manuel utilisateur

JETWAY

JETWAY 868ASR1A Manuel utilisateur

JETWAY

JETWAY V266AR1A Manuel utilisateur

JETWAY

JETWAY NF835F Series Manuel utilisateur

JETWAY

JETWAY G03-NF796-F Manuel utilisateur

JETWAY

JETWAY NC9T Manuel utilisateur

JETWAY

JETWAY 694AS Manuel utilisateur

JETWAY

JETWAY 845GLM Manuel utilisateur

JETWAY

JETWAY MBD-J-JNC9VL-H81 Manuel utilisateur

JETWAY

JETWAY G03-NMF93-F Manuel utilisateur

JETWAY

JETWAY ALIOTH Manuel utilisateur

JETWAY

JETWAY 939AGPECR110 Manuel utilisateur

JETWAY

JETWAY 845EDAR1A Manuel utilisateur

JETWAY

JETWAY NP591 Manuel utilisateur

JETWAY

JETWAY P4XFB Manuel utilisateur

JETWAY

JETWAY G03-NF95A-F Manuel utilisateur

JETWAY

JETWAY 695AS Manuel utilisateur

JETWAY

JETWAY NF792I Series Manuel utilisateur

JETWAY

JETWAY NMF691 Series Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
