JETWAY FDF10 Instructions d'utilisation et d'entretien

1

Quick Installation Manual

NO: G03-FDF10QIG-F

Rev: 2.0

Release date: 2022-02-22

Notice:

The photos in this file are for illustration purpose only. The model may not be the latest

version. Please refer to the product you purchased for actual specification.

2

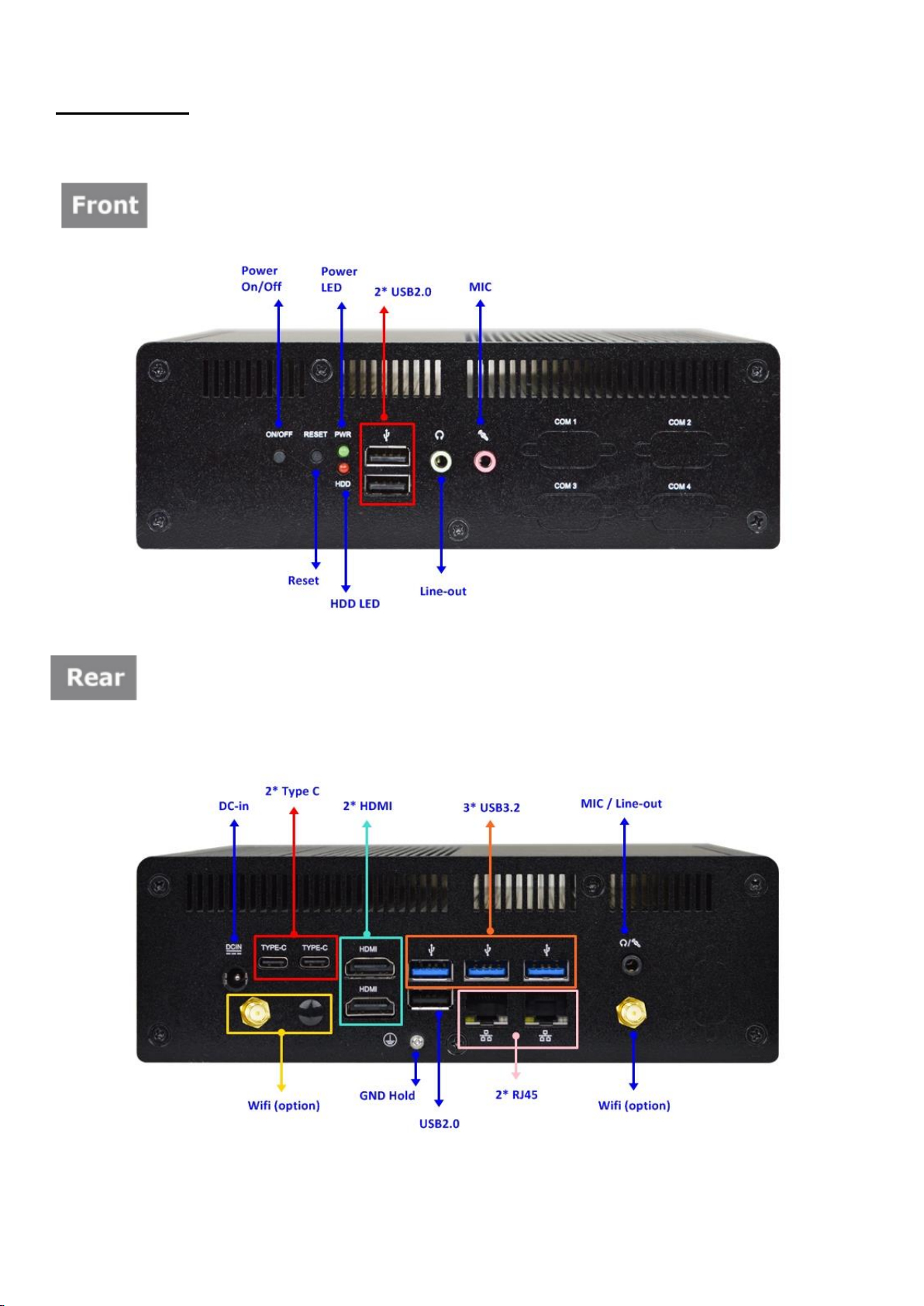

I/O Outlets

3

Dimension and Outlines

I. To Dissemble the Chassis

1. Locate the screws at the spots marked on this side of the system and unscrew them one by

one.

4

2. Remove the marked screw on the front IO panel.

3. Remove the marked screw on the rear IO panel.

4. Lift the cover up to open the chassis.

5. The overview of the internal structure of the system with HDD tray pre-installed.

5

6. Remove the marked screws to dissemble the HDD tray from the system.

7. The overview of the internal structure of the system.

6

II. To Install SO-DIMM to the board

1. Locate the SO-DIMM slots on the board.

2. Insert the gold-figure side of the compatible SO-DIMM into the slot at a 30 degree angle. See to

it that the break of the module fit into the notch of the slot and the golden-finger side should be

fully plugged into the slot.

7

3. Press down to secure the SO-DIMM to the slot. The eject tabs will lock automatically if installing

direction is correct.

III. To Install M.2 M-Key SATA (2242/2280) card

1. Locate the M.2 SATA slot on the board. System supports two types of M.2 M-Key card in different

lengths (2280/2242). Prepare compatible M.2 SATA card.

8

2. Toinstall compatible card, please remove the screw in the marked spot at first.

3. Insert compatible M.2 M-Key, type-2280 card into the slot. See to it that the golden-finger side

should be fully plugged into the slot.

9

4. Tighten up the screw removed before to the marked spot to secure the card.

*Note: The screw post and nut fixed at location MH4 by default for 8cm type-2280 card installation.

If you wish to install type-2242 card, please remove corresponding screw post under the screw as

well and lock the screw post into location MH3 before installing 4.2 cm card to the slot. The other

steps are the same.

IV. To Install M.2 E-Key (2230) USB 2.0/PCIe Card

1. Locate the M.2 E-Key PCIe(2230) slot on the board. Prepare compatible M.2 PCIe, type -

2230 card.

10

2. Remove the marked screw and use it to lock compatible card to the slot in later installation.

3. Insert the gold-figure side of the compatible card into the slot and press down. See to it that the

golden-finger side should be fully plugged into the slot.
