Jetson JOURNEY Manuel utilisateur

JOURNEY

ELECTRIC BIKE

TABLE OF CONTENTS

What’s in the Box 3

Features & Specs 6

Attaching the Handlebar 7

Attaching the Fender and Headlight 8

Attaching the Front Disc Brake 9

Attaching the Front Tire 10

Attaching the Seat 12

Attaching the Pedals 13

Charging the Battery 14

Operating the Journey 15

LCD Display 16

Pedal Assist Mode 17

Connecting to Bluetooth® 18

Riding the Journey 19

Care and Maintenance 20

Safety Warnings 21

Safey Checklist 23

1. WHAT’S IN THE BOX

1. FRONT TIRE

2. HEADLIGHT

3. HANDLEBAR

4. CHARGING PORT

5. SEAT CLAMP

6. SEAT

7. FRONT DISC BRAKE

8. KICKSTAND

9. CHARGER

10. CHARGING CABLE

Assembling the Journey should take between 30-35 minutes (including unboxing).

2. FEATURES & SPECS

• Product Dimensions: 72” x 26” x 44”

• Weight Limit: 300 lbs / 136 kg

• Product Weight: 42 lbs / 19 kg

• Recommended Age: 13+

• Tire Size: 27.5”Cruiser Tires

• Pedal Assist: 9 Levels

• Shimano Gears: 7-Speeds

• Max Speed: Up To 20 mph / 32 km/h

• Max Range: Up To 30 miles / 48 km

• Battery: 36V, 7.8Ah Lithium-Ion

• Motor: 250W Hub Motor

• Charger: 110-240V

• Charge Time: Up To 6 Hours

• Climbing Angle: Up To 15°

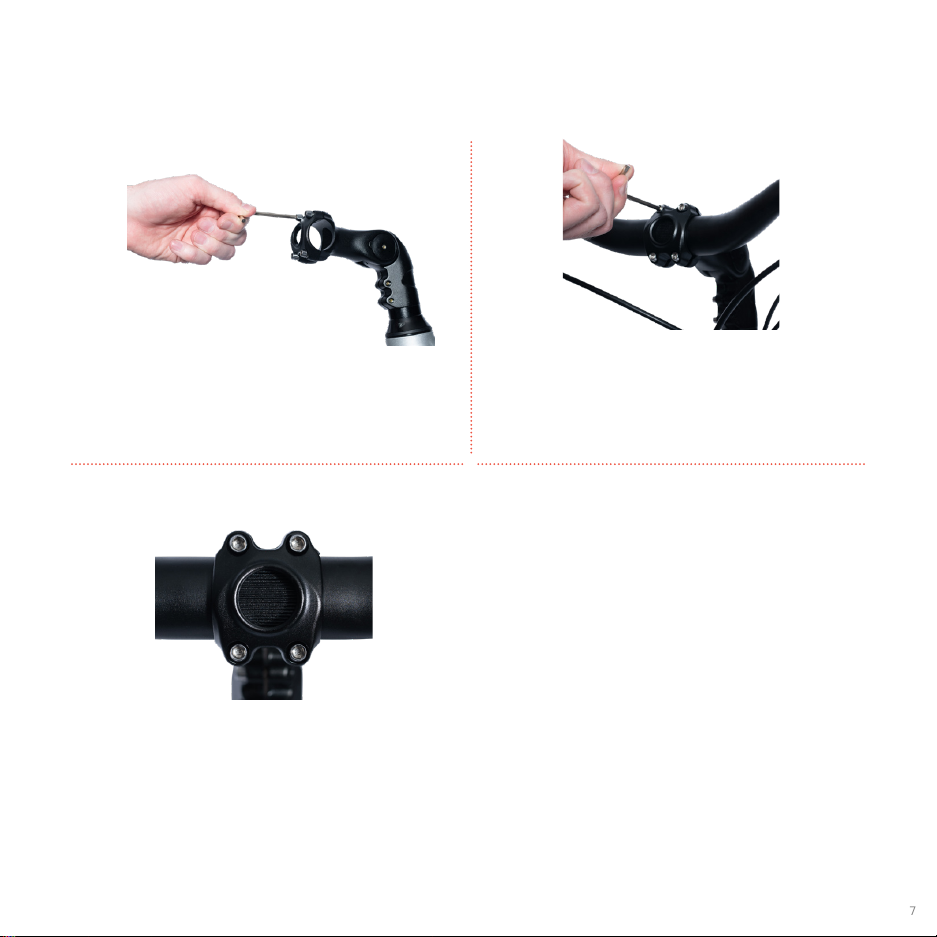

3. ATTACHING THE HANDLEBAR

3.1 3.2

3.3

Remove the 4 bolts from the Metal

Guard on the Handlebar Stem.

Then, remove the Metal Guard.

Place the Handlebar into the

Handlebar Stem. Make sure the

markings on the Handlebar are

centered.

Replace the Metal Guard by

tightening the 4 bolts.

Please Note: Assembling the Journey should take between 30-35

minutes (including unboxing).

4. ATTACHING THE FENDER AND HEADLIGHT

Connect the Support Bars to

the Fender using the small bolt

in the Fender.

Small

Bolt

Connect the Support Bars to

the Front Fork using the 2 small

screws and 2 washers.

Small screw

and washer

Connect the Fender and Headlight

to the Front Fork using the Large Bolt

and Washer.

Connect the two small wires to

the back of the Headlight.

4.1 4.2

4.3 4.4

5. ATTACHING THE FRONT DISC BRAKE

Connect the Front

Disc Brake to the

Front Fork using

the 2 bolts

2 Bolts

5.1

5.2

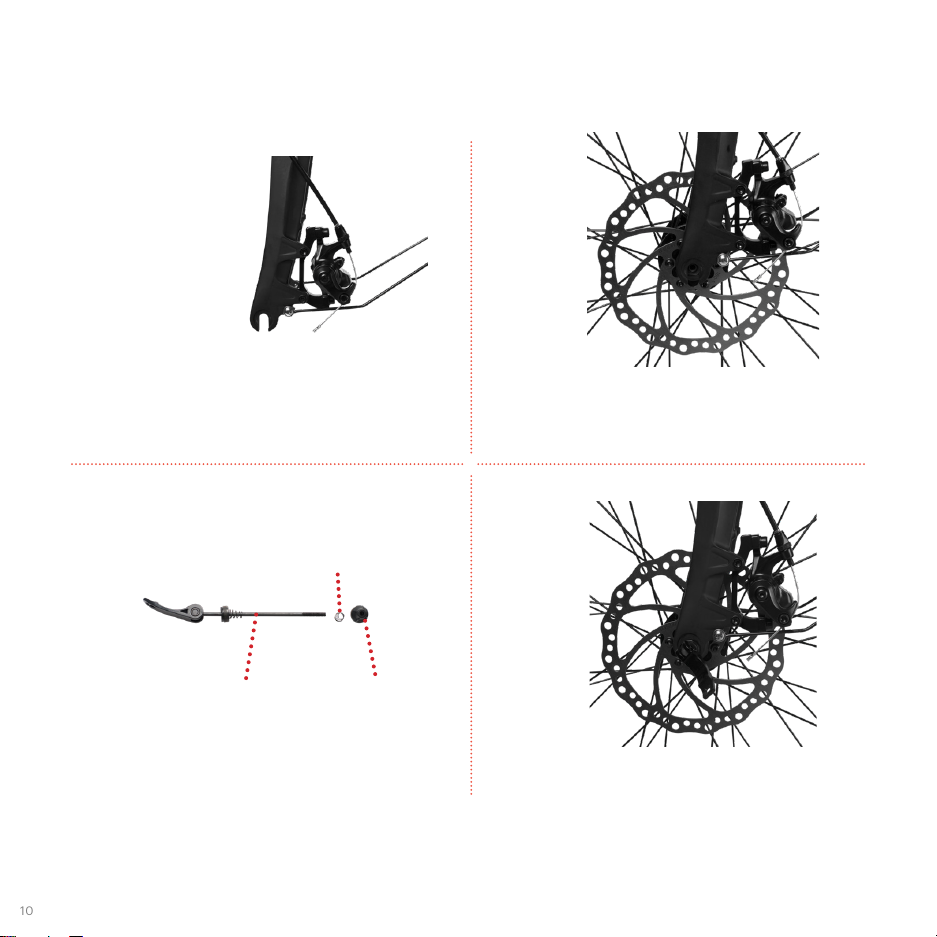

6. ATTACHING THE FRONT TIRE

6.1 6.2

6.3 6.4

Remove the plastic protector from

the Fork. Then, Slide the Front Tire

between the Fork.

Hook the Fork onto both sides of

the tire and slide the Disc Brake

into the Disc.

Quick Release

Spring

Cap

Remove the Cap and one Spring

from the Quick Release.

Slide the Quick Release through

the Front Tire. Then, place the

Spring and Cap back onto the

Quick Release.
