INTRODUCTION

TABLE OF CONTENTS

page page

DESCRIPTION AND OPERATION

VEHICLE IDENTIFICATION NUMBER ..........1

VEHICLE SAFETY CERTIFICATION LABEL ......2

INTERNATIONAL SYMBOLS.................2

FASTENER IDENTIFICATION.................3

FASTENER USAGE ........................3

THREADED HOLE REPAIR ..................3

METRIC SYSTEM .........................6

TORQUE REFERENCES.....................6

DESCRIPTION AND OPERATION

VEHICLE IDENTIFICATION NUMBER

The Vehicle Identification Number (VIN) plate is

located on the lower windshield fence near the left

A-pillar. The VIN contains 17 characters that provide

data concerning the vehicle. Refer to the VIN decod-

ing chart to determine the identification of a vehicle.

The Vehicle Identification Number is also

imprinted on the:

•Body Code Plate.

•Vehicle Safety Certification Label.

•Frame rail.

To protect the consumer from theft and possible

fraud the manufacturer is required to include a

Check Digit at the ninth position of the Vehicle Iden-

tification Number. The check digit is used by the

manufacturer and government agencies to verify the

authenticity of the vehicle and official documenta-

tion. The formula to use the check digit is not

released to the general public.

VEHICLE IDENTIFICATION NUMBER DECODING CHART

POSITION INTERPRETATION CODE = DESCRIPTION

1 Country of Origin 1 = United States

2 Make J = Jeep

3 Vehicle Type 4 = MPV

4 Gross Vehicle Weight Rating F = 4001-5000 lbs.

5 Vehicle Line F= Cherokee 4X4 (LHD)

N = Cherokee 4X4 (RHD)

B = Cherokee 4X2 (RHD)

T = Cherokee 4X2 (LHD)

6 Series 2 = SE

6 = Sport/Classic

7 = Limited

7 Body Style 7 = 2dr Sport Utility

8 = 4dr Sport Utility

8 Engine P = 2.5L Gasoline

S = 4.0L Gasoline

9 Check Digit

10 Model Year Y=2000

11 Assembly Plant L = Toledo #1

12 thru 17 Vehicle Build Sequence

XJ INTRODUCTION 1

VEHICLE SAFETY CERTIFICATION LABEL

A vehicle safety certification label (Fig. 1) is

attached to every DaimlerChrysler Corporation vehi-

cle. The label certifies that the vehicle conforms to all

applicable Federal Motor Vehicle Safety Standards.

The label also lists:

•Month and year of vehicle manufacture.

•Gross Vehicle Weight Rating (GVWR). The gross

front and rear axle weight ratings (GAWR’s) are

based on a minimum rim size and maximum cold tire

inflation pressure.

•Vehicle Identification Number (VIN).

•Type of vehicle.

•Type of rear wheels.

•Bar code.

•Month, Day and Hour (MDH) of final assembly.

•Paint and Trim codes.

•Country of origin.

The label is located on the driver-side door shut-

face.

INTERNATIONAL SYMBOLS

DESCRIPTION

The graphic symbols illustrated in the following

International Control and Display Symbols Chart are

used to identify various instrument controls. The

symbols correspond to the controls and displays that

are located on the instrument panel.

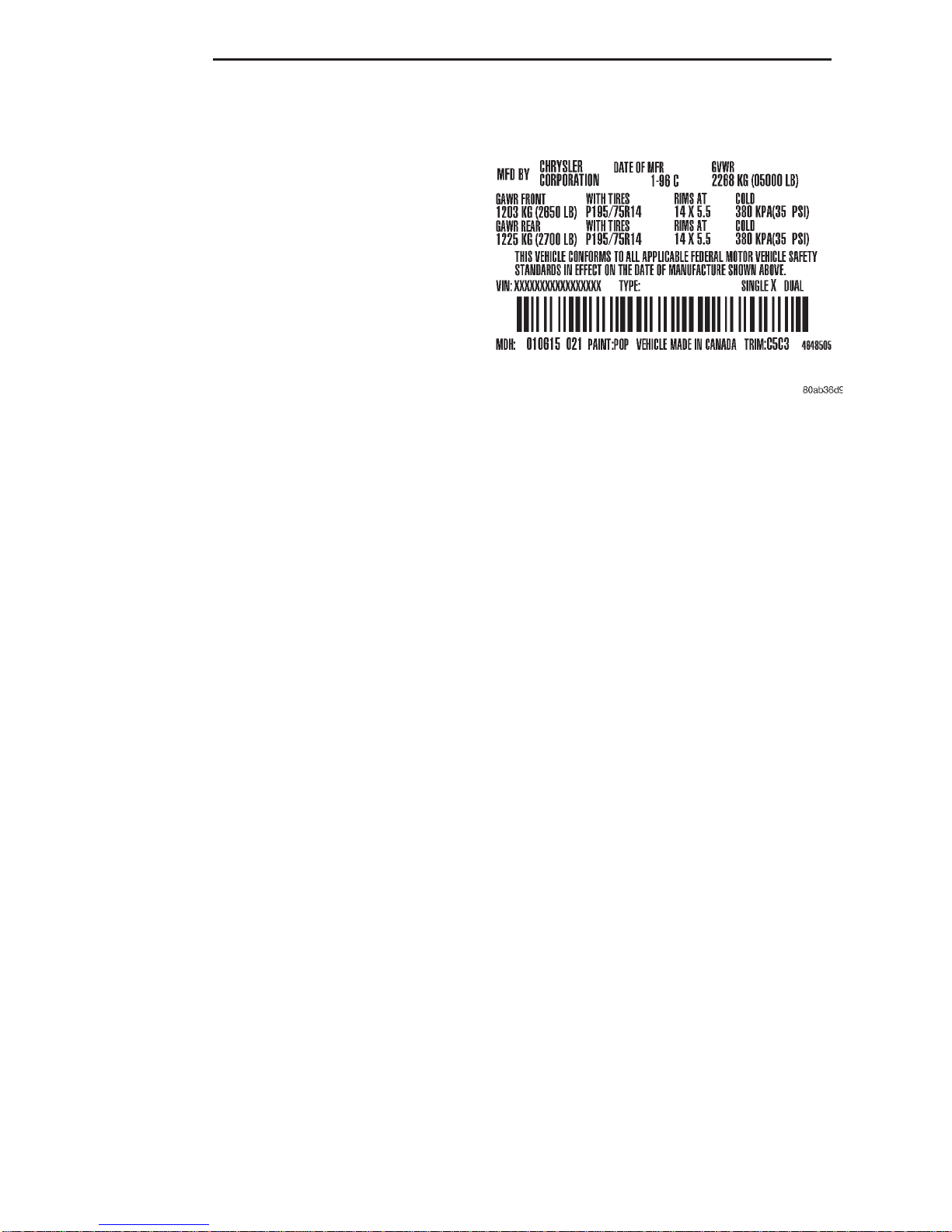

Fig. 1 Vehicle Safety Certification Label—Typical

2 INTRODUCTION XJ

DESCRIPTION AND OPERATION (Continued)

FASTENER IDENTIFICATION

DESCRIPTION

GRADE/CLASS IDENTIFICATION

The SAE bolt strength grades range from grade 2

to grade 8. The higher the grade number, the greater

the bolt strength. Identification is determined by the

line marks on the top of each bolt head. The actual

bolt strength grade corresponds to the number of line

marks plus 2. The most commonly used metric bolt

strength classes are 9.8 and 10.9. The metric

strength class identification number is imprinted on

the head of the bolt. The higher the class number,

the greater the bolt strength. Some metric nuts are

imprinted with a single-digit strength class on the

nut face. Refer to the Fastener Identification and

Fastener Strength Charts.

FASTENER USAGE

WARNING: USE OF AN INCORRECT FASTENER

MAY RESULT IN COMPONENT DAMAGE OR PER-

SONAL INJURY.

Figure art, specifications and torque references in

this Service Manual are identified in metric and SAE

format.

During any maintenance or repair procedures, it is

important to salvage all fasteners (nuts, bolts, etc.)

for reassembly. If the fastener is not salvageable, a

fastener of equivalent specification must be used.

THREADED HOLE REPAIR

Most stripped threaded holes can be repaired using

a Helicoilt. Follow the manufactures recommenda-

tions for application and repair procedures.

1 High Beam 13 Rear Window Washer

2 Fog Lamps 14 Fuel

3 Headlamp, Parking Lamps, Panel Lamps 15 Engine Coolant Temperature

4 Turn Warning 16 Battery Charging Condition

5 Hazard Warning 17 Engine Oil

6 Windshield Washer 18 Seat Belt

7 Windshield Wiper 19 Brake Failure

8 Windshield Wiper and Washer 20 Parking Brake

9 Windscreen Demisting and Defrosting 21 Front Hood

10 Ventilating Fan 22 Rear hood (Decklid)

11 Rear Window Defogger 23 Horn

12 Rear Window Wiper 24 Lighter

XJ INTRODUCTION 3

DESCRIPTION AND OPERATION (Continued)

FASTENER IDENTIFICATION

4 INTRODUCTION XJ

DESCRIPTION AND OPERATION (Continued)

FASTENER STRENGTH

XJ INTRODUCTION 5

DESCRIPTION AND OPERATION (Continued)

METRIC SYSTEM

DESCRIPTION

The metric system is based on quantities of one,

ten, one hundred, one thousand and one million.

The following chart will assist in converting metric

units to equivalent English and SAE units, or vise

versa.

CONVERSION FORMULAS AND EQUIVALENT VALUES

MULTIPLY BY TO GET MULTIPLY BY TO GET

in-lbs x 0.11298 = Newton Meters (N·m) N·m x 8.851 = in-lbs

ft-lbs x 1.3558 = Newton Meters (N·m) N·m x 0.7376 = ft-lbs

Inches Hg

(60° F) x 3.377 = Kilopascals (kPa) kPa x 0.2961 = Inches Hg

psi x 6.895 = Kilopascals (kPa) kPa x 0.145 = psi

Inches x 25.4 = Millimeters (mm) mm x 0.03937 = Inches

Feet x 0.3048 = Meters (M) M x 3.281 = Feet

Yards x 0.9144 = Meters M x 1.0936 = Yards

mph x 1.6093 = Kilometers/Hr. (Km/h) Km/h x 0.6214 = mph

Feet/Sec x 0.3048 = Meters/Sec (M/S) M/S x 3.281 = Feet/Sec

mph x 0.4470 = Meters/Sec (M/S) M/S x 2.237 = mph

Kilometers/

Hr. (Km/h) x 0.27778 = Meters/Sec (M/S) M/S x 3.600 Kilometers/Hr.

(Km/h)

COMMON METRIC EQUIVALENTS

1 inch = 25 Millimeters 1 Cubic Inch = 16 Cubic Centimeters

1 Foot = 0.3 Meter 1 Cubic Foot = 0.03 Cubic Meter

1 Yard = 0.9 Meter 1 Cubic Yard = 0.8 Cubic Meter

1 Mile = 1.6 Kilometers

Refer to the Metric Conversion Chart to convert

torque values listed in metric Newton- meters (N·m).

Also, use the chart to convert between millimeters

(mm) and inches (in.)

TORQUE REFERENCES

DESCRIPTION

Individual Torque Charts appear at the end of

many Groups. Refer to the Standard Torque Specifi-

cations Chart for torque references not listed in the

individual torque charts.

6 INTRODUCTION XJ

DESCRIPTION AND OPERATION (Continued)

METRIC CONVERSION CHART

XJ INTRODUCTION 7

DESCRIPTION AND OPERATION (Continued)

TORQUE SPECIFICATIONS

8 INTRODUCTION XJ

DESCRIPTION AND OPERATION (Continued)

INTRODUCTION

TABLE OF CONTENTS

page page

DESCRIPTION AND OPERATION

VEHICLE IDENTIFICATION NUMBER ..........1 E-MARK LABEL ..........................2

MANUFACTURER PLATE ...................2

DESCRIPTION AND OPERATION

VEHICLE IDENTIFICATION NUMBER

DESCRIPTION

The Vehicle Identification Number (VIN) plate is

located on the lower windshield fence near the left

A-pillar. The VIN contains 17 characters that provide

data concerning the vehicle. Refer to the VIN decod-

ing chart to determine the identification of a vehicle.

The Vehicle Identification Number is also

imprinted on the:

•Body Code Plate.

•Vehicle Safety Certification Label.

•Frame rail.

To protect the consumer from theft and possible

fraud the manufacturer is required to include a

Check Digit at the ninth position of the Vehicle Iden-

tification Number. The check digit is used by the

manufacturer and government agencies to verify the

authenticity of the vehicle and official documenta-

tion. The formula to use the check digit is not

released to the general public.

VEHICLE IDENTIFICATION NUMBER DECODING CHART

POSITION INTERPRETATION CODE = DESCRIPTION

1 Country of Origin 1 = United States

2 Make J = Jeep

3 Vehicle Type 4 = MPV

4 Gross Vehicle Weight Rating F = 4001-5000 lbs.

5 Vehicle Line F = Cherokee 4X4 (LHD)

J = Cherokee 4X4 (RHD) EXPORT

N = Cherokee 4X4 (RHD)

B = Cherokee 4X2 (RHD)

T = Cherokee 4X2 (LHD)

6 Series/Transmission N = 5 Speed Manual

A = 3 Speed Auto

B = 4 Speed Auto

4 = Sport

6 = Cherokee Country/Limited

5 = Classic

7 Body Style 7 = 2dr Sport Utility

8 = 4dr Sport Utility

8 Engine M = 2.5L Diesel

P = 2.5L Gasoline

S = 4.0L Gasoline

9 Check Digit

10 Model Year Y = 2000

11 Assembly Plant L = Toledo Assembly#1

12 thru 17 Vehicle Build Sequence

XJ INTRODUCTION 1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Jeep Automobile

Jeep

Jeep Grand Cherokee Manuel utilisateur

Jeep

Jeep Grand Cherokee 4x2 2019 Manuel du propriétaire

Jeep

Jeep COMPASS 2018 Manuel utilisateur

Jeep

Jeep Jeep Wrangler Manuel utilisateur

Jeep

Jeep Gand Sherokee 2016 Manuel utilisateur

Jeep

Jeep Right-hand-drive Postal Model Guide de configuration

Jeep

Jeep grand cherokee 2018 Manuel utilisateur

Jeep

Jeep Grand Cherokee 2015 Manuel utilisateur

Jeep

Jeep 2012 Wrangler Manuel utilisateur

Jeep

Jeep 1987 Wrangler Manuel d'instructions

Jeep

Jeep Patriot Guide d'installation

Jeep

Jeep Patriot 2011 Manuel du propriétaire

Jeep

Jeep Cherokee 2019 Manuel utilisateur

Jeep

Jeep Cherokee 1988 Manuel utilisateur

Jeep

Jeep Cherokee 1988 Manuel utilisateur

Jeep

Jeep COMPASS 2018 Manuel utilisateur

Jeep

Jeep Liberty 2007 Manuel utilisateur

Jeep

Jeep 2016 CHEROKEE Manuel utilisateur

Jeep

Jeep Patriot 2011 Manuel utilisateur

Jeep

Jeep Renegade Guide de l'utilisateur

Jeep

Jeep 2014 Grand Cherokee Manuel utilisateur

Jeep

Jeep GRAND WAGONEER 2022 Manuel utilisateur

Jeep

Jeep Cherokee 1988 Manuel utilisateur

Jeep

Jeep Compass 2013 Manuel utilisateur

Manuels Automobile populaires d'autres marques

Toyota

Toyota 2000 Tundra Manuel utilisateur

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur
