Jbc WS140 Manuel utilisateur

WS140

High-Temperature Precision

Wire Stripper Tweezers

INSTRUCTION MANUAL

Manual ............................................... 1 unit

Ref. 0025147

High-Temperature Precision Wire

Stripper Tweezers ................................ 1 unit

Metal Brush................................................1 unit

Ref. 0022793

Packing List

The following items are included:

This manual corresponds to the following reference:

WS140-A

Screw Driver ............................................1 unit

R ef . 0 0 2 3511

Features and Connections

Power Socket

Control Unit

(not included)

WSST

Stand for

WS140-A

(not included)

Stand Cable

Ref. 0024227

(not included)

Equipotential Connector

USB Connector

Main Switch

Fuse

WS140

High-Temperature

Precision Wire

Stripper Tweezers

W140

Blade Cartridges

(not included)

WSU

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

WS140

Align the tip edges and ﬁx the cartridge in its

working position.

Tighten the screw.

Important: It is essential to tighten the screws for

the tool to function.

Blade Cartridges

Alignment

Cartridge Electric

Connection Screw

Reference Ring

3. Positioning 4. Fixing

Insert the cartridge until the reference ring touches

the wire stripper. Take the ring as a reference and

check that both tips match.

Important: It is essential to insert the cartridge all

the way in (up to the ring) for a good connection.

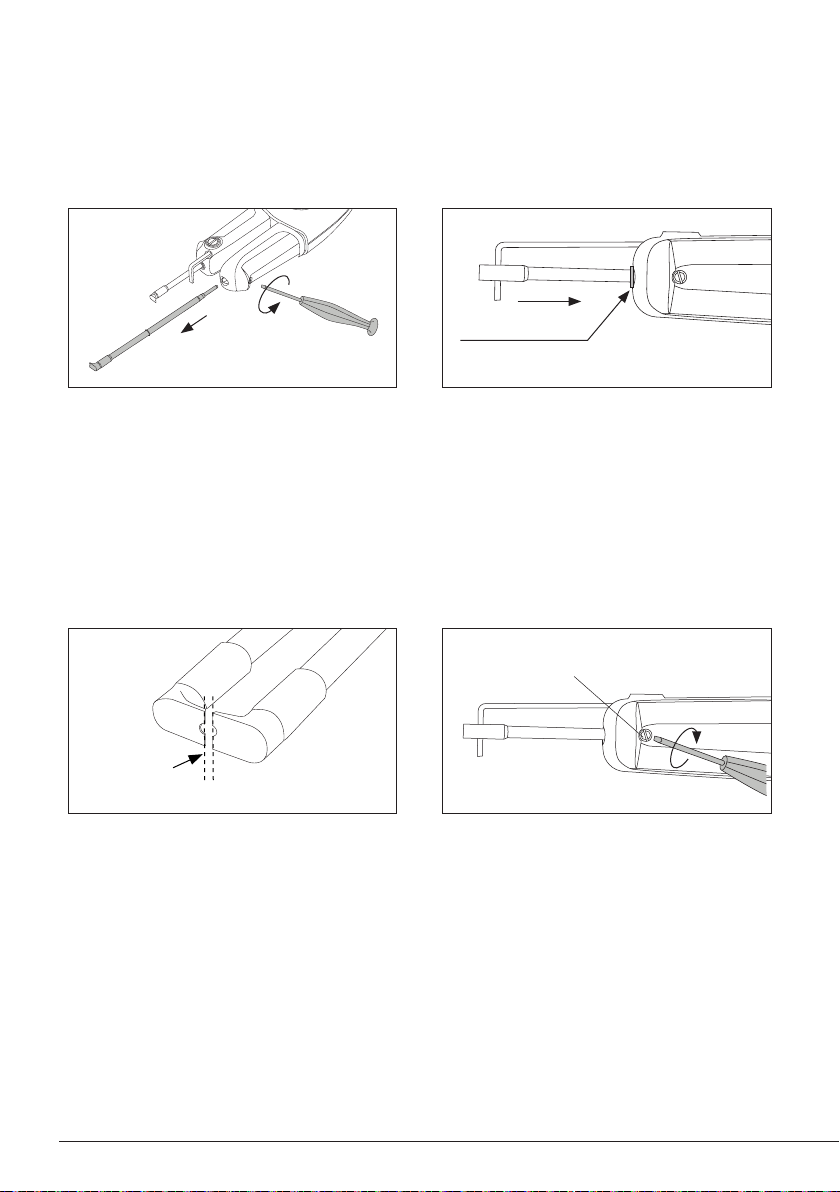

Loosen the screws and remove the cartridges.

Changing W140 Cartridges

1. Removing 2. Inserting

WS140

Adjustable Strip Gauge

Adjust the strip gauge according to your stripping requirements and tighten the screw.

Place the wire touching the strip gauge.The wheel allows adjusting the wire stripper arm

position according to the wire diameter. Move

the wheel backward for a wider and forward

for a narrower position.

4. Remove Wire

Pull from the wire stripper while still pinching

the wire to strip off the wire end.

3. Close Cartridges

Choose cartridges according to the wire

diameter. Pinch the wire with the blades. The

pinched area will be melted by heat.

Stripping a Wire

1. Adjust Arm Position 2. Align Wire

Strip Gauge

WS140

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

WS140

9 mm

0.354 in

3 mm

0.118 in

W14003F

Cartridge

Ref.

Flat Tip

3 / 0.118

Tip

mm / in

AWG

Solid

W14018G

Cartridge

Ref.

1,02 / 0,0402

Tip Hole ø

mm / in

AWG

Stranded

20 (7x28)

20 (19x32)

20 (42x36)

W14020G 0,81 / 0,0319 22 (19x34)

W14022G 0,64 / 0,0252 24 (7x32)

24 (19x36)

9 mm

0.354 in

3 mm

0.118 in

9 mm

0.354 in

W14024G 0,51 / 0,0201 26 (10x36)

26 (19x38)

W14026G 0,40 / 0,0157

27 (7x35)

28 (19x40)

W14028G 0,32 / 0,0126 30 (19x42)

30 (7x38)

W14036G

W14030G

W14032G

W14034G

0,20 / 0,0079

0,25 / 0,0098

0,13 / 0,0051

0,16 / 0,0063

36 (7x44)

34 (7x42)

32 (19x44)

W14037G

0,11 / 0,0043

AWG

Solid

Cartridge

Ref.

Tip Hole ø

mm / in

AWG

Stranded

3 mm

0.118 in

Cartridge Range

WS140-A is compatible with W140 Blade Cartridge Range. Find the model that best suits your

soldering needs on www.jbctools.com.

W14040G

0,08 / 0,0031

W14038G

0,10 / 0,0039

WS140

AWG

Solid

W14016G

Cartridge

Ref.

W14014G

1,29 / 0,0508

Tip Hole ø

mm / in

1,63 / 0,0642

AWG

Stranded

16 (7x24)

18 (19x30)

W14005F

Cartridge

Ref.

Flat Tip

5 / 0.197

Tip

mm / in

10.5 mm

0.413 in

5 mm

0.197 in

10.5 mm

0.413 in

5 mm

0.197 in

If an application requires a special tip design, contact JBC by mail [email protected] for

special blade cartridges.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

WS140

Accessories

To loosen or tighten the wire stripper screws use the JBC Flat Screw Driver Ref. 0023511.

To manipulate the cartridges use the JBC Cartridge Extractor Pliers Ref. PLR195. More Information at

www.jbctools.com

Align cartridges with JBC pliers.Remove cartridges with JBC pliers.

Removing Inserting and Positioning

Flat Screw Driver*

Cartridge Extractor Pliers*

For cleaning the tips if unwanted material is stuck there. Metal Brush Ref. 0022793.

Metal Brush

* not included

Safety

Warning

- Do not touch the blade or the metal parts around.

- Do not leave the blade close to flammable materials.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when wor-

king to avoid personal harm.

- This appliance can be used by children over the age of eight and also persons with reduced

physical, sensory or mental capabilities or lack of experience provided that they have been given

adequate supervision or instruction concerning the use of the appliance and understand the ha-

zards involved.

- Maintenance must not be carried out by children unless supervised.

- Place the tool on the stand when is not in use.

- Turn off the power when not in use, changing parts or storing.

Caution

- Do not use the wire stripper for other applications than wire stripping.

- Do not modify or customize the wire stripper.

- Do not hit the blade against the workbench to eliminate stripped insulation debris, This behavior

would damage the blade.

- Remove power from the tool by holding the plug, not the wires.

- Be careful with the fumes produced when stripping. We recomend to use a fume extractor.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

NotesNotes
