Jbc RHS Manuel utilisateur

RHS

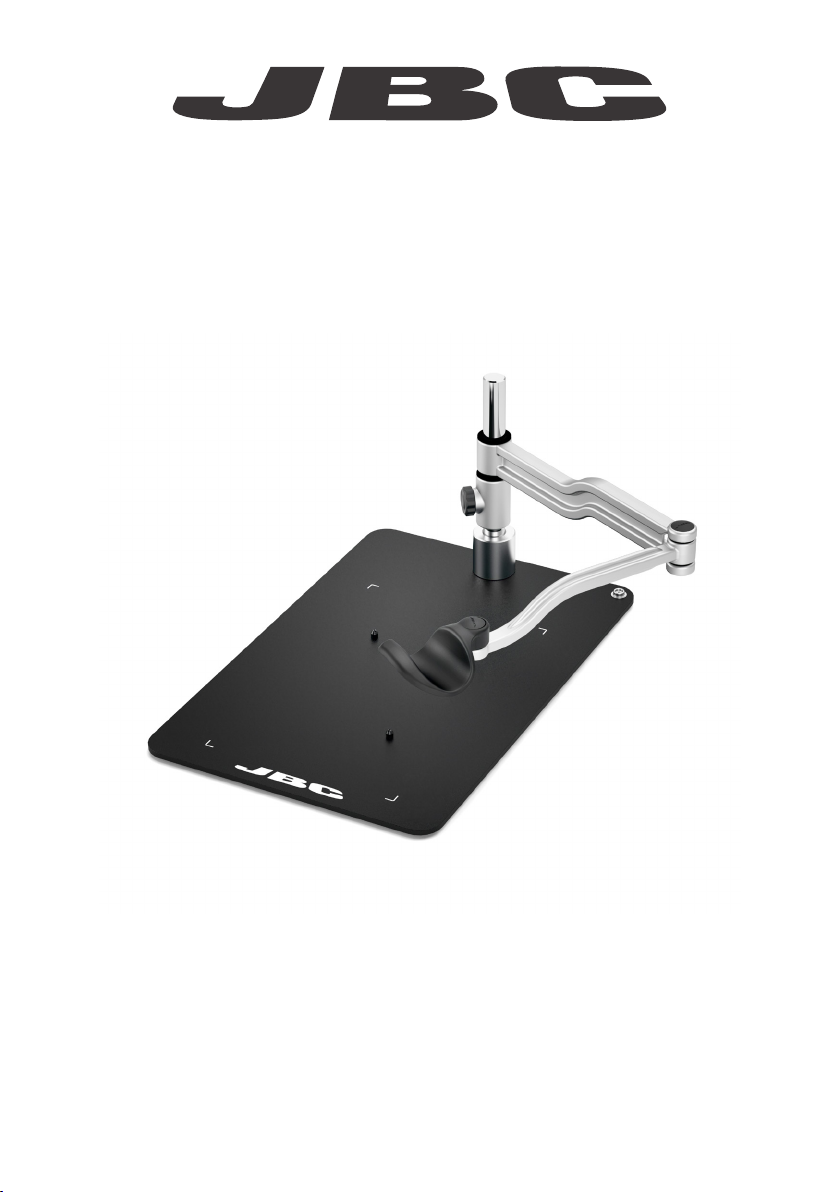

Rework Hand Support for PHSK

INSTRUCTION MANUAL

www.jbctools.com

Hand

Support Arm ................. 1 unit

Ref. HRR-A

Height

Adjustment Flange .... 1 unit

Ref. 0023991

Shaft ............................... 1 unit

Base PHS compatible ............................ 1 unit Headless Screw ..................................... 1 unit

Ref. 0017057

Allen key ...................................................... 1 unit

Ref. 0013609

Manual ......................................................... 1 unit

Ref. 0028766

Packing List

The following items are included:

This manual corresponds to the following reference:

RHS-A

JTT

Hand

Support Arm

Height Adjustment Flange

Shaft

Base

Hand Support

Features

Headless Screw

Positioning Bolds

Printed Corner Guides

Assembly

ESD Connector

(connect to ESD

Common Grounding

Point)

Setting up the Hand Support

Arm

Fit the shaft into the base bushing

(1) and tighten the headless screw

(2). Then assemble ﬁrst the height

adjustment ﬂange (3) and ﬁnally the

hand support arm (4) onto the shaft.

The hand support arm position

should be as shown in the image.

The right hand support ist marked at

its bottom side with the letter “R”.

Headless Screw

(at the back)

Shaft

Base

Bushing

Height

Adjustment

Flange

Hand Support

Arm

Bottom View

Right Hand

Support

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

JTT

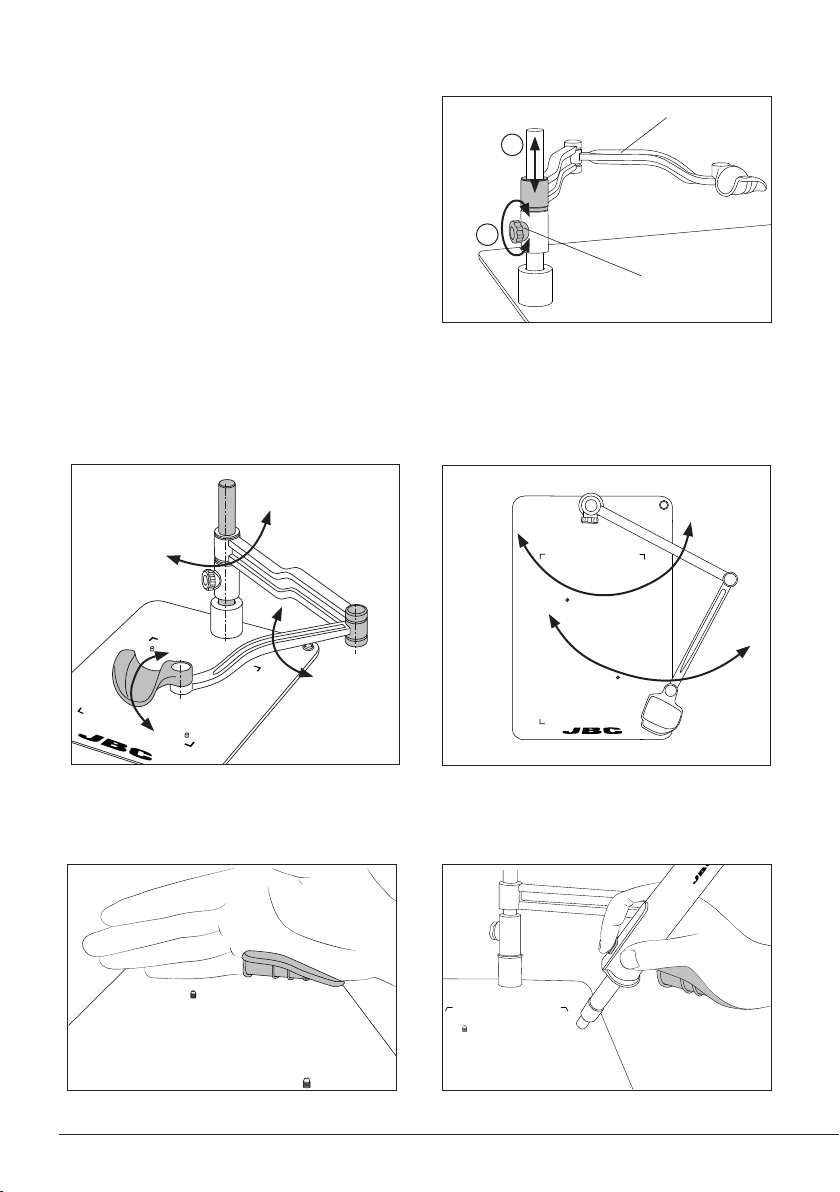

Work Position Adjustment

RHN arm allows adjustment for different positions according to your work needs. The articulated

arm covers all work areas.

Position the arm and tighten the knobs.

The correct hand work posion ist shown in the following images:

Knob

Height Adjustment

According to your work needs the hand support

arm allows adjustment for different heights

through the vertical axis.

Slide the arm to the appropriate height (1) and

secure by tightening the knob (2) to guarantee

stability.

Arm

JTT

Preheater Positioning

Positioning Caps

If a fixed preheater position

is not wanted the positioning

bolts can be removed

with a screwdriver.

Corner

Guides

Positioning Bolds

Note: For each preheater size there are different rework hand supports with different base

dimensions available.

Preheater Rework Hand Support Base Dimension

PHNK RHN 310 x 239 mm / 12.20 x 9.41 in

PHNS RHS 400 x 270 mm / 15.75 x 10.63 in

PHNB RHB 550 x 480 mm / 21.65 x 18.90 in

RHS has been designed to work together with PHS

Fit PHS onto the positioning bolts (1) for a proper alignment. The four corner guides (2) help to place

the heater unit in its position.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

JTT

In case of using both left and right arms, assemble both as shown in the illustration according to the

letters on the back of the hand support, to keep the hand supports at the same level.

Accessories*

If a second hand support ist need, Left Hand Support HRL is available. HRL also allows adjustment

for different positions.

HRL

Left Hand Support

HRL

Rework Left Hand Support

HRR

Rework Right Hand Support

Bottom View

Mark for left hand

support

Mark for right hand

support

* Not included, sold separately.

JTT

HRR and HRL can be combined with RWT, RWS or RWB.

Assemble first the height adjustment flange (1), then the HRR (2) and afterwards the HRL (3). Assemble

the second height adjustment flange (4) and finally the RWT (5).

Compatible JBC Articles*

* Not included, sold separately.

RWT

Rework Ajustable Arm

Without Base

4 different sizes for PCB Supports are available:

- PHNK Nano Preheater Set

- PHSK Small Preheater Set

- PHBK Large Preheater Set

- PHXK XL Preheater Set

HRL

Rework Left Hand Support

HRR

Rework Right Hand Support

Place the preheater set

in the area below the

hot air tool

Heights Adjustmet

Flange (1st)

Heights Adjustmet

Flange (2nd)

JTT

In case of using both left and right arms, assemble both as shown in the illustration according to the

letters on the back of the hand support, to keep the hand supports at the same level.

Accessories*

If a second hand support ist need, Left Hand Support HRL is available. HRL also allows adjustment

for different positions.

HRL

Left Hand Support

HRL

Rework Left Hand Support

HRR

Rework Right Hand Support

Bottom View

Mark for left hand

support

Mark for right hand

support

* Not included, sold separately.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Sliding Parts

Maintenance

- Check periodically that RHS is clean,

especially the sliding parts and the shaft.

- Use a damp cloth when cleaning. Alcohol

can only be used to clean the metal parts.

- Replace any defective damaged parts.

Use original JBC spare parts only.

Not leave up RHN over the preheater

when the preheater is working.

Safety

- Do not use the equipment for any purpose other than PCB rework.

- The temperature of accessible surfaces may remain high after the unit is turned off. Handle with care.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when

working to avoid personal harm.

- Not leave up the arms directly above heat surfaces.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight as well as persons with reduced

physical, sensory or mental capabilities or lacking experience provided that they have been given

adequate supervision or instruction concerning use of the appliance and understand the hazards

involved. Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

It is imperative to follow safety guidelines to prevent electric shock, injury,

fire or explosions.

Shaft

Notes

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Notes
