Jbc C115 Manuel utilisateur

0021102

NASE Updating Kit C115

INSTRUCTION MANUAL

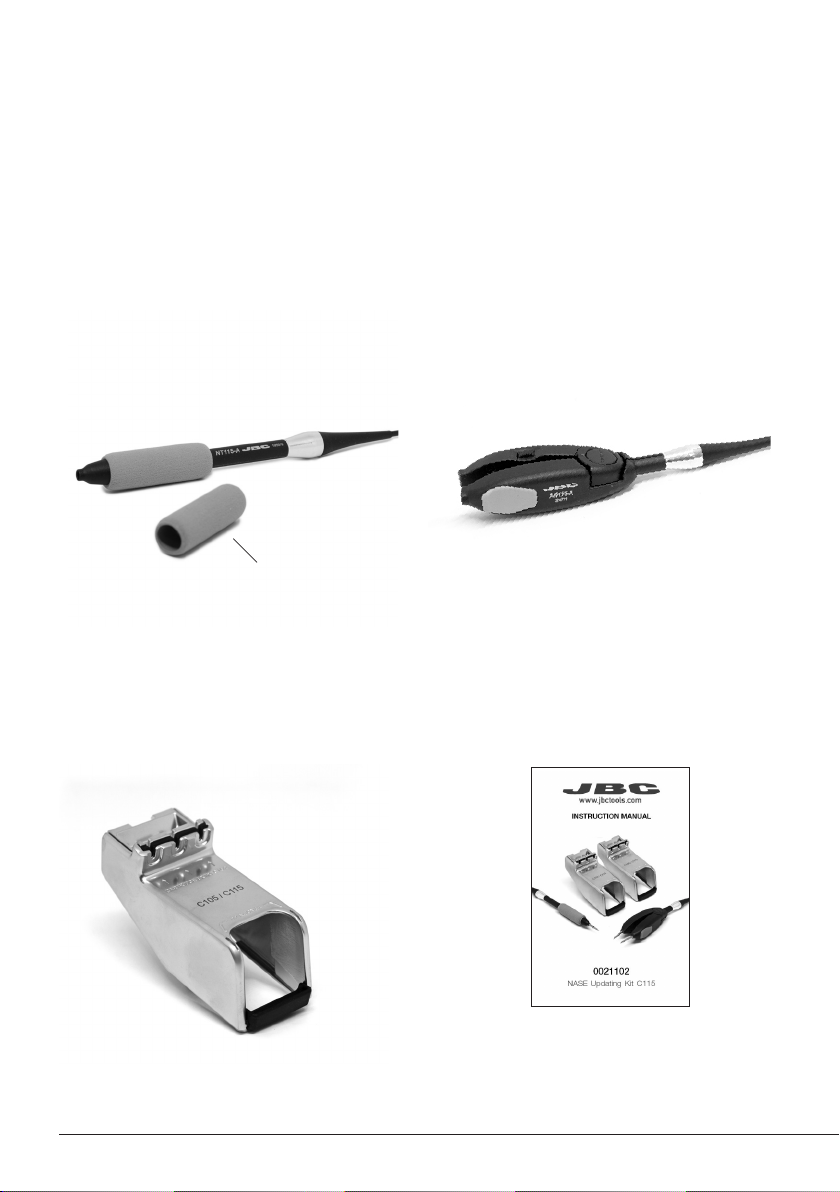

Adjustable Nano Tweezers .................... 1 unit

Ref. A N115 - A

Splashguard .................................... 2 units

Ref. CL3462 Splashguard (without drawer)

Nano Handle .............................................. 1 unit

Ref. N T115 - A

Grip for:

NT115-A / NT105-A

(Ref.0018662)

Manual ......................................................... 1 unit

Ref. 0021681

Packing List

The following items are included:

This manual corresponds to the following references:

0021102 NASE Updating Kit

Nano Handle

Ref. N T115 - A

Adjustable Nano

Tweezers

Ref. A N115 - A

Connections

*Not included, sold separately

Is necessary to update the software to use C115 Cartridges in NT115-A and AN115 -A with NAE-A

and NAE-B. Software version number should be higher than 8886229.

See the software updater. Available at www.jbctools.com/software.html

Press back the tap to change the Splashguard

CL3462.

Remove the Drawer from the Splashguard.

Drawer*

Changing the Splashguard

Power Socket

Main Switch

www.jbctools.com

Changing Grips

1. Push the grip with

the tabs onto the

handle.

2. To remove the tabs,

hold the grip and

pull them out.

Use a pliers if

necessary.

Changing Cartridges for NT115-A

Removing Inserting Aligning

Place the Cartridge in the

slot as shown and pull the

handle to remove it.

Push the Cartridge into the

handle to the ring*.

Use the holes to rotate the

Cartridges for a proper

alignment.

*Important

It is essential to insert the Cartridges as far as the ring for a proper connection.

Save time and change Cartridges safely without having to switch the station off.

Nano Handle

Grip for NT115-A / NT105-A

(Ref.0018662)

Ring

Changing Cartridges for AN115-A

Aligning Cartridges

Save time and change Cartridges safely without switching the station off.

Use the alignment systems to better suit the component to work.

1. Removing

Tip Aligner Vertical Cartridge Alignment

2. Inserting * Important

Place the tool in the slot and

pull to remove the cartridge.

Fit the tip into the aligner and

turn to the desired position.

Turn the screw of the tweezers for a vertical alignment of the

Cartridges. One tip lines up with the other.

Push the Cartridge into the

tool to the ring*.

For a proper connection insert

the Cartridges as far as the ring.

www.jbctools.com

Maintenance

- Before carrying out maintenance or storage, always unplug the tool.

- Check periodically that the metal parts are clean to ensure it is detected when on the stand.

Always use a damp cloth or alcohol.

- Periodically check all cables and tubes connections.

- Replace any defective or damaged pieces. Use original JBC spare parts only.

- Repairs should only be performed by a JBC authorized technical service.

¥

ø 0,3

ø 0,6

0,3

2,5

2,4 x 0,6

Ø2,5

0,2 x 0,1

Compatible Cartridges

The AN115 -A and NT115-A works with C115 Cartridges. Find the model that suits your needs in

www.jbctools.com

Round Chisel Bevel KnifeRound

bent

High thermal

performance

Stainless

steel chisel

It is imperative to follow safety guidelines to protect health and prevent electric

shock, injury, fire or explosions.

- Do not use the tool for any purpose other than soldering or rework. Incorrect use may cause fire.

- The mains cable must be plugged into approved bases. Make sure that it is properly grounded

before use. When unplugging it, hold the plug, not the wire.

- The temperature of accessible surfaces may remain high after the unit is turned off.

Handle with care.

- Do not leave the appliance unattended when it is on.

- It is necessary to turn the station off before changing tips.

- Heat can cause inflamable products to ignite even when out of sight.

- Be careful with the remains of liquid tin. In contact with skin, it can cause burns.

- Avoid flux coming into contact with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when

working to avoid personal harm.

- This appliance can be used by children over the age of eight as well as persons with reduced

physical, sensory or mental capabilities or lacking of experience provided that they have been

given adequate supervision or instruction concerning use of the appliance and understand the

hazards involved. Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

Safety

www.jbctools.com

This product should not be thrown in the garbage.

In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must

be collected and returned to an authorized recycling facility.

Warranty

JBC’s 2 year warranty covers this equipment against

all manufacturing defects, including the replacement

of defective parts and labour.

Warranty does not cover product wear or misuse.

In order for the warranty to be valid, equipment must

be returned, postage paid, to the dealer where it was

purchased.

Get 1 extra year JBC warranty by registering here:

https://www.jbctools.com/productregistration/

within 30 days of purchase.

www.jbctools.com

0021681-0221

Specifications

NASE Updating Kit 0021102

NT115-A

- Net Weight: 28 gr / 0.06 lb

- Cable Length: 120 cm / 47.24 in

AN115 -A

- Net Weight: 50 gr / 0.11 lb

- Cable Length: 120 cm / 47.24 in

CL3462

(Without Drawer)

- Net Weight: 146 gr / 0,32 lb

- Dimensions: 92 x 40 x 42 cm

(L x W x H) 3.62 x 1.57 x 1.65 in

NANE Updating Kit

- Total Net Weight: 370 gr / 0.816 lb

- Total Package Dimensions / Weight: 230 x 140 x 130 mm / 620 gr

(L x W x H) 9.06 x 5.51 x 5.12 in / 1.37 lb
