INSTRUCTION MANUAL

TES / JTS

Stand for Heater Hose Set

Stand for

JT Heater Hose Set .................................. 1 unit

Manual ......................................................... 1 unit

Ref. 0027184

Stand for

TE Precision Heater Hose Set .............. 1 unit

Box includes one stand according to purchased reference.

This manual corresponds to the following references:

TE-SF (for TE Precision Heater Hose Set)

JT-SF (for JT Heater Hose Set)

Packing List

Nozzle Changer

Nozzle Storage

Ajustable

Tool Holder

Control Unit

Features and Connections

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

NHS (NH)

JTS

TES

JTT

NHS (NH)

JTS

TES

JTT

NHS (NH)

JTS

TES

JTT

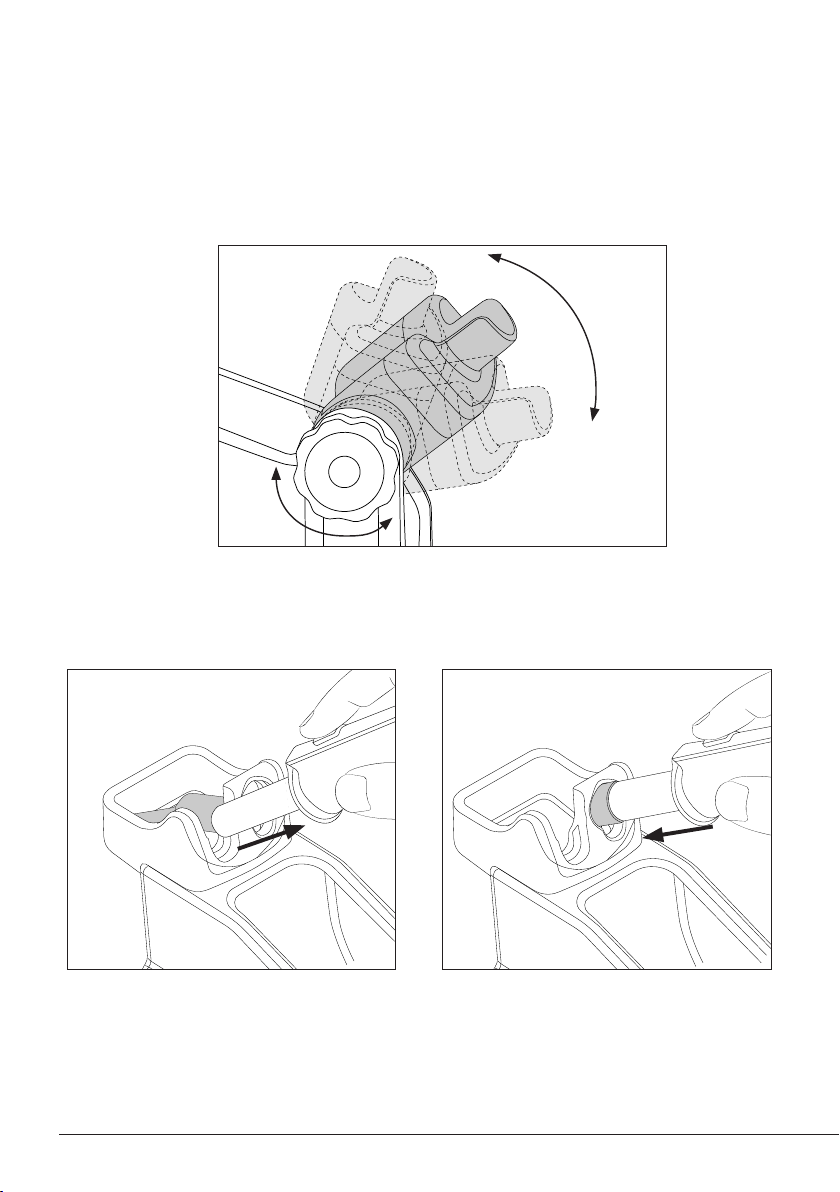

Nozzle Extractor

Place the heating element with the assembled

nozzle in the nozzle changer and pull the tool

to remove the nozzle.

The nozzle comes to rest in the nozzle storage.

Assembly

Adjust the tool holder angle to suit your work position.

Attach the nozzle and press the nozzle onto the

heating element with the help of the opening

in the nozzle changer.

Maintenance

Before carrying out maintenance or storage, always unplug the stand from the station

- Use a damp cloth to clean the stand. Alcohol can be used only when cleaning the metal parts.

- Check periodically that the metal parts of the tool/stand are clean so that the station can check

the tool’s status.

- Periodically check all cables.

- Replace any defective or damaged parts. Use original JBC spare parts only.

- Repairs should only be performed by a JBC authorized technical service.

Clean periodically

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Notes

Safety

- Do not use the stands for any purpose other than soldering or rework.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded before

use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- The tool should be placed in the stand when not in use in order to activate the sleep mode. The

soldering tip, the metal part of the tool and the stand may still be hot even when the station is turned

off. Handle with care, including when adjusting the stand position.

- Avoid the contact of flux with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working

to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced physical,

sensory or mental capabilities or lack of experience provided that they have been given adequate

supervision or instruction concerning use of the appliance and understand the hazards involved.

Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

It is imperative to follow safety guidelines to prevent electric

shock, injury, fire or explosion.

Notes

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

This product should not be thrown in the garbage.

In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must

be collected and returned to an authorized recycling facility.

Warranty

JBC’s 2 year warranty covers this equipment against

all manufacturing defects, including the replacement

of defective parts and labour.

Warranty does not cover product wear or misuse.

In order for the warranty to be valid, equipment must

be returned, postage paid, to the dealer where it was

purchased.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

TES

Stand for TE Precision Heater Hose Set

Ref.: TE-SE

- Includes Nozzle extractor

- Total Net Weight 1203 g / 2.65 lb

- Package Dimensions / Weight: 1449 g / 3.19 lb

(L x W x H) 342 x 155 x 120 mm / 13.46 x 6.10 x 4.72 in

JTS

Stand for JT Heater Hose Set

Ref.: JT-SE

- Includes Nozzle extractor

- Total Net Weight 1234 g / 2.72 lb

- Package Dimensions / Weight: 1515 g / 3.34 lb

(L x W x H) 342 x 155 x 120 mm / 13.46 x 6.10 x 4.72 in

Complies with CE standards

ESD safe

Specifications

0027184-130522
