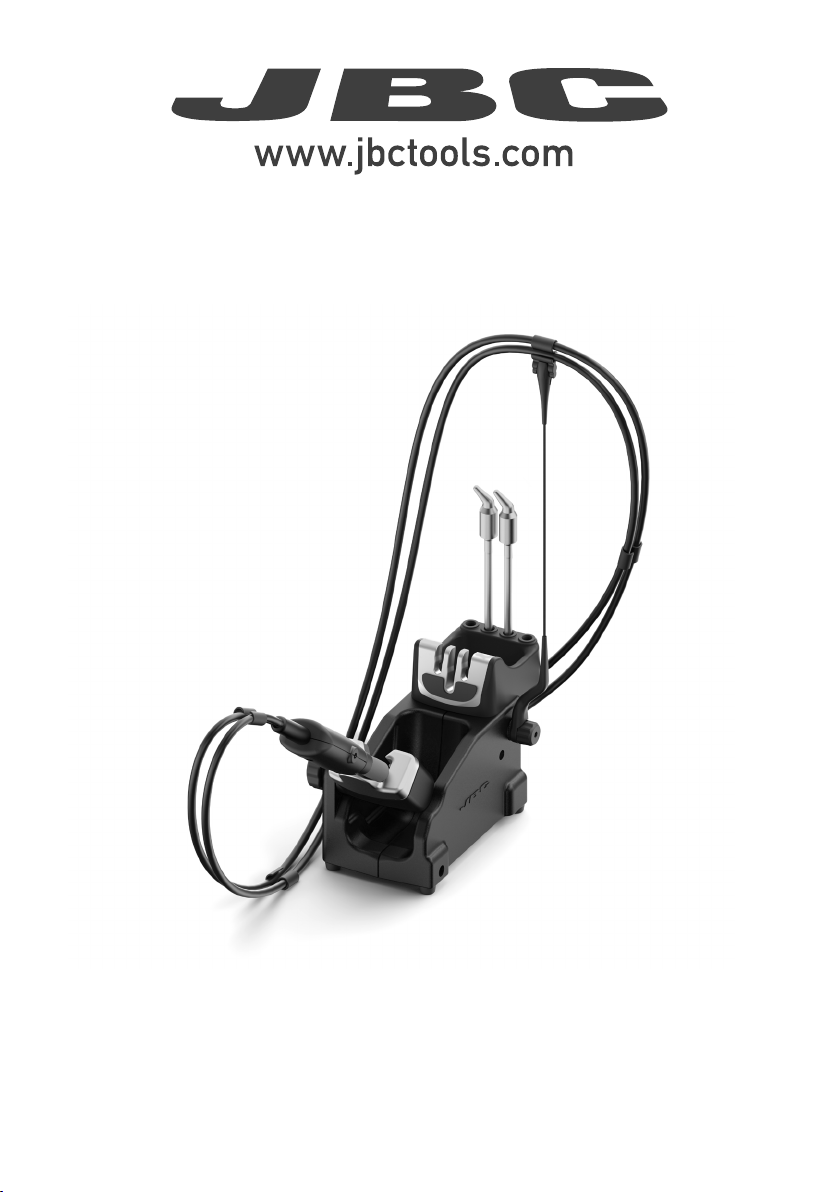

Jbc HDTS Manuel utilisateur

INSTRUCTION MANUAL

HDTS

Stand for HT470

Heavy Duty Thermal Tweezers

Manual .......................................................... 1 unit

Ref. 0027314

Stand for HT470 Heavy Duty Thermal Tweezers ........................................................................... 1 unit

The following items are included:

This manual corresponds to the following reference:

HDT-SF

Packing List

Stand Cable 1m ......................................... 2 unit

Ref. 0024227

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Features and Connections

*HDTS requires

two heavy duty control units

(HDU) to manage the HT470.

To HD470

Heavy Duty Tweezers

To HDU Control Unit 1*

To HDU Control Unit 2*

Adjustable Cable Collector

Ref. CC1001

Quick Tip Changer

Cartridge Storage

Ajustable Tool Holder

HDTS (HT470)

AT420

HDTS (HT470)

AT420

HDTS (HT470)

AT420

Assembly

Cable Collector and Adjustable Tool Holder

Adjust the tool holder angle to

suit the work position.

Insert the cable into the cable

collector clip. Do not leave the

cable longer than necessary

to reach the work area freely.

The cable collector is flexible.

It accompanies and adapts

to the movements during the

soldering process.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

HT-SE

HT 420-A

HT-SE

HT 420-A

HDTS (HT470)

AT420

HDTS (HT470)

AT420

2. Removing

1. Unlocking

Place the cartridges in the quick tip changer

and pull the tweezers to remove the cartridges.

Unlock the cartidge ﬁxing screws.

3. Inserting 4. Locking

Use the grooves to insert the cartridges as far

as the mark*.

Lock the ﬁxing screws.

*Important

It is essential to insert the cartridges as far as the mark for a proper connection.

Mark

Changing Cartridges

For a safe cartridge exchange, unplug the tool or turn the station off.

srews

Stand Extension Cable

Ref. A1286

Length: 1.5m

Stand Cable

Accessories

Clean periodically

Maintenance

Before carrying out maintenance or storage,

always unplug the stand from the station and

the tool.

- Use a damp cloth to clean the stand. Alco-

hol can be used only when cleaning the metal

parts.

- Check periodically that the metal parts of the

tool/stand are clean so that the station can

check the tool’s status.

- Periodically check all cables and tube

connections.

- Replace any defective or damaged parts. Use

original JBC spare parts only.

- Repairs should only be performed by a

JBC authorized technical service.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Safety

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded before

use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- The tool should be placed in the stand when not in use in order to activate the sleep mode. The

soldering tip, the metal part of the tool and the stand may still be hot even when the station is turned

off. Handle with care, including when adjusting the stand position.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.

- Avoid the contact of flux with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working

to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced physical,

sensory or mental capabilities or lack of experience provided that they have been given adequate

supervision or instruction concerning use of the appliance and understand the hazards involved.

Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

It is imperative to follow safety guidelines to prevent electric

shock, injury, fire or explosion.

This product should not be thrown in the garbage.

In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must

be collected and returned to an authorized recycling facility.

Warranty

JBC’s 2 year warranty covers this equipment against

all manufacturing defects, including the replacement

of defective parts and labour.

Warranty does not cover product wear or misuse.

In order for the warranty to be valid, equipment must

be returned, postage paid, to the dealer where it was

purchased.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

0027314-0422

HDTS

Stand for HT470 Heavy Duty Thermal Tweezers

Ref.: HDT-SF

- Includes Sleep Mode, Hibernation Mode

- Total Net Weight 1328 g / 2.93 lb

- Package Dimensions / Weight 342 x 155 x 120 mm / 1974 g

(L x W x H) 13.46 x 6.10 x 4.72 in / 4.35 lb

Complies with CE standards

ESD safe

Specifications
