English

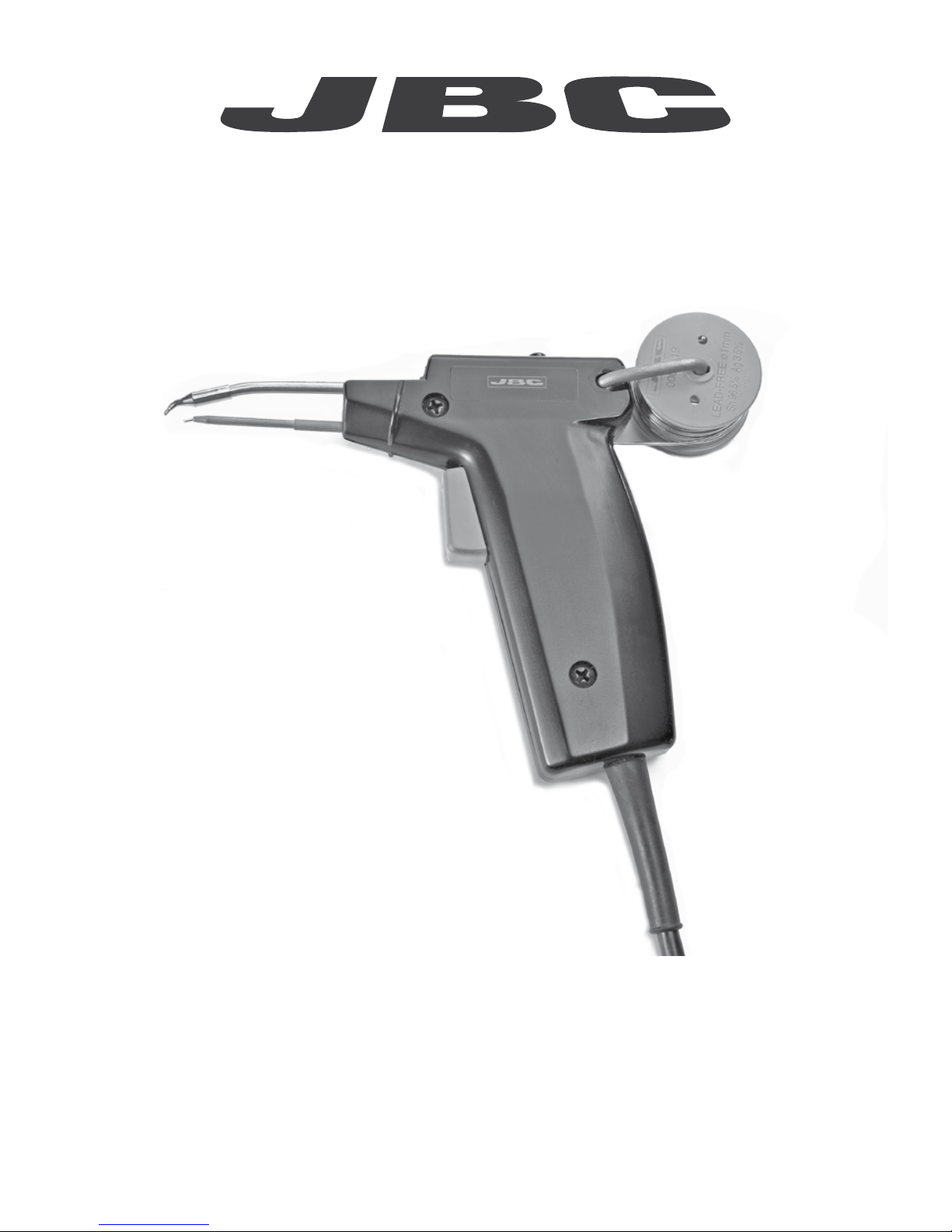

Solder Feed Iron

Ref. AP130-A

www.jbctools.com

2

Packing List

The following items should be included:

Solder Feed Iron

Ref. AP130-A

Solder Feed Iron ....................................... 1 unit

Reel ................................................................ 1 unit

Feeding Tube ............................................. 1 unit

Reel

Ref. 0002801

Feeding Tube

Ref. 0006559

Manual

www.j b ct ool s.c om

Solder Feed Iron

Ref. AP130-A

3

Power cord

socket

Equipotential

connection

Features

Solder Feed Iron

Ref. AP130-A

Solder Feed Stand

Ref. AP-SD

Control Unit

Ref. DD-2B / DD-2B / DD-9B

The AP130-A Solder Feed Iron is fully compatible with any JBC station within the Modular Line and

with the CF Solder Feed station within the Compact Line.

www.jbctools.com

2. Inserting

3. Aligning

4. Fixing

4

Align the tip of the cartridge with the feeding

tube. Use a plier for a safe tip alignment.

Changing cartridge

For a safe cartridge change, unplug the tool or turn the station off before following these guidelines:

Loosen the screw and remove the cartridge.

Use a plier to remove it if still hot.

1. Removing

Alignment

Important: Tighten the screw again. This is

necessary for the tool to function.

Important: Insert the cartridge as far as

the mark for a correct connection.

Mark

1. Remove the remaining solder wire

3. Insert the new solder wire

5

Pull out the solder remaining inside the

feeding tube. Use a plier if necessary.

Note: Always use 0.8 - 1.0 mm diameter solder wire.

Insert the solder wire and push the trigger

intermittently until the solder feed system

works by itself.

Replacing solder wire

2. Replace the solder reel

Push the empty reel to remove it and ﬁt the

new one.

www.jbctools.com

Note: All the cartridges shown are actual size.

The AP130-A Solder Feed Iron works with C130 cartridge range. Find the model that best suits your

soldering needs in www.jbctools.com

ø 0,6

ø 3

ø 0,8

2,2x1

ø 4

ø 1,7

3,2x1,5

4,8x1,5

ø 1

1,2x0,7

1,8x0,8

ø 2,2

C130-401

C130-405

C130-416

C130-402 C130-403

C130-406

C130-417

C130-409

C130-418 C130-419

C130-404C130-410

Compatible Cartridges

6

7

For production in line, we recommend using

our BE-SA Solder Reel Holder which allows to

work with up to 2.5 Kg of solder wire.

Simply wrap a couple of turns of the solder

wire around an empty reel as shown.

Solder Reel Stand

Accessories

Solder Reel Stand

Ref. BE-SA

Solder Feed Iron

Ref. AP130-A

The fume extractor is an easy & safe solution to suck the fume generated at the solder joint.

Fume Extractor

Suction pump

and ﬁlter

Fume Extractor

Ref. F1204

www.jbctools.com

0008861-0614

This product should not be thrown in the garbage.

In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life

must be collected and returned to an authorized recycling facility.

Warranty

JBC’s 2 year warranty covers this equipment

against all manufacturing defects, including the

replacement of defective parts and labour.

Warranty does not cover product wear due to use

or mis-use.

In order for the warranty to be valid, equipment

must be returned, postage paid, to the dealer

where it was purchased.

www.jbctools.com
