Fein BSS 2.0 E Guide de configuration

BSS 2.0E

Repair instructions

C-SC_CSSM

Version 1.0

2013-07-18

FEIN retains all rights of disposal, such as copying and circulation.

Page 1of 36

BSS 2.0E

Contents

C-SC_CSSM

Version 1.0

2013-07-18

FEIN retains all rights of disposal, such as copying and circulation.

Page 2of 36

1. Models described

2. Technical data

3. Notes and requirements

4. Tools required

5. Lubricants and auxiliary substances required

6. Disassembly

7. Assembly

8. Troubleshooting

9. Connection diagram

BSS 2.0E

1. Models described

C-SC_CSSM

Version 1.0

2013-07-18

FEIN retains all rights of disposal, such as copying and circulation.

Page 3of 36

These instructions describe how to repair the following models:

Model Order number

BSS 2.0E 7 230 33 00 23 0

BSS 2.0E

2. Technical data

C-SC_CSSM

Version 1.0

2013-07-18

FEIN retains all rights of disposal, such as copying and circulation.

Page 4of 36

Technical data

The complete technical data can be found in the operating instructions for the specific model.

Test data

Up-to-date test data for all models can be found on the FEIN Extranet (Customer Service → Repair Guides).

Lubricants

The lubricants and container sizes available from FEIN can be found on the FEIN Extranet (Customer Service → Repair Guides).

Lists of spare parts

Lists of spare parts and exploded views are available online at www.fein.com

BSS 2.0E

3. Notes and requirements

C-SC_CSSM

Version 1.0

2013-07-18

FEIN retains all rights of disposal, such as copying and circulation.

Page 5of 36

Note

These instructions are only intended for persons with suitable technical training. It is assumed that the reader has mechanical and

electrical training.

Only use original FEIN spare parts!

Provisions

Please note that power tools may only be repaired, maintained and checked by a trained electrician, as improper repair can result in

serious risks to the user.

The provisions set out in DIN VDE 0701-0702 should be observed after repairs.

The relevant accident prevention regulations of the employers’ liability insurance associations are to be observed when

commissioning.

The German Equipment and Product Safety Act applies for correct use.

Outside Germany, the regulations applicable in the relevant country must be observed!

BSS 2.0E

4. Tools required

C-SC_CSSM

Version 1.0

2013-07-18

FEIN retains all rights of disposal, such as copying and circulation.

Page 6of 36

Standard tools

Special tool

Hex key 2mm; 2.5mm; 3mm; 4mm Assembly aid 6 41 22 108 00 0

Plastic mallet Drawing-off socket cap 6 41 04 150 00 8

Torx screwdriver T10; T15; T20 19mm chuck cone 6 41 07 019 00 7

Slotted screwdriver 26mm chuck cone 6 41 07 026 00 0

Phillips head screwdriver

Circlip pliers

Punch 2.8mm; 4.5mm; 5.7mm; 5.9mm

Arbor press

Cable hooks

Sleeves 4.5mm internal Ø

7mm internal Ø

12mm internal Ø

55mm internal Ø

Ball bearing support 19mm; 26mm

Internal puller 8-12mm

Puller 60x50mm

Feeler gauge 0.1-0.15mm

Pressure piece Ø 6.8mm; Ø 11mm

BSS 2.0E

5. Lubricants and auxiliary substances required

C-SC_CSSM

Version 1.0

2013-07-18

FEIN retains all rights of disposal, such as copying and circulation.

Page 7of 36

Lubricants

Grease 0 40 101 0100 4 8 g Gearbox

BSS 2.0E

6. Disassembly

C-SC_CSSM

Version 1.0

2013-07-18

FEIN retains all rights of disposal, such as copying and circulation.

Page 8of 36

Disassembling the motor

1. Pull the plug.

2. Remove the three screws (1) and take off the cover (2).

3. Unscrew the brush holder (3).

4. Unscrew the cable clamping piece (4).

5. Unplug the screw connections between motor and electronics.

6. Remove electronics (5).

7. Disconnect the supply cable (6).

Tool:

- Phillips head

screwdriver

- Torx T15

BSS 2.0E

6. Disassembly

C-SC_CSSM

Version 1.0

2013-07-18

FEIN retains all rights of disposal, such as copying and circulation.

Page 9of 36

Separating motor and gearbox

1. Remove the two cylinder head screws (1).

2. Remove the housing (2) together with the adapter (3).

3. Remove the four screws (4) on the intermediate flange.

4. Remove the armature with intermediate flange (5).

5. Remove the air guide ring (6).

Tool:

- 4mm hex key

- Torx T15

BSS 2.0E

6. Disassembly

C-SC_CSSM

Version 1.0

2013-07-18

FEIN retains all rights of disposal, such as copying and circulation.

Page 10 of 36

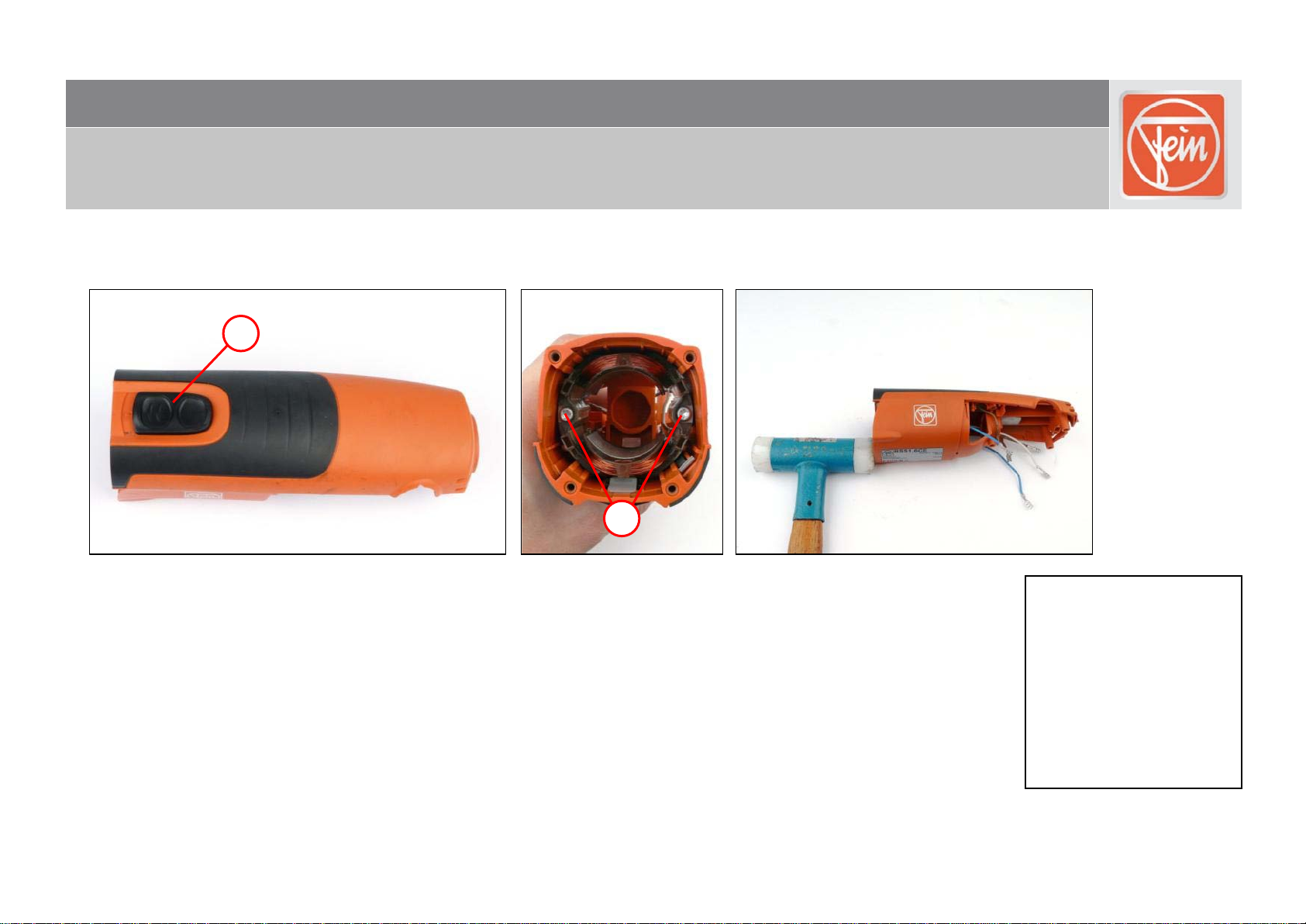

Disassembling the stator

1. Lift up slide switch (1) with a slotted screwdriver.

2. Unscrew the two screws (2).

3. Drive field coil out of the motor housing by tapping it gently with the mallet.

Tool:

- Slotted screwdriver

- Torx T15

- Plastic mallet
