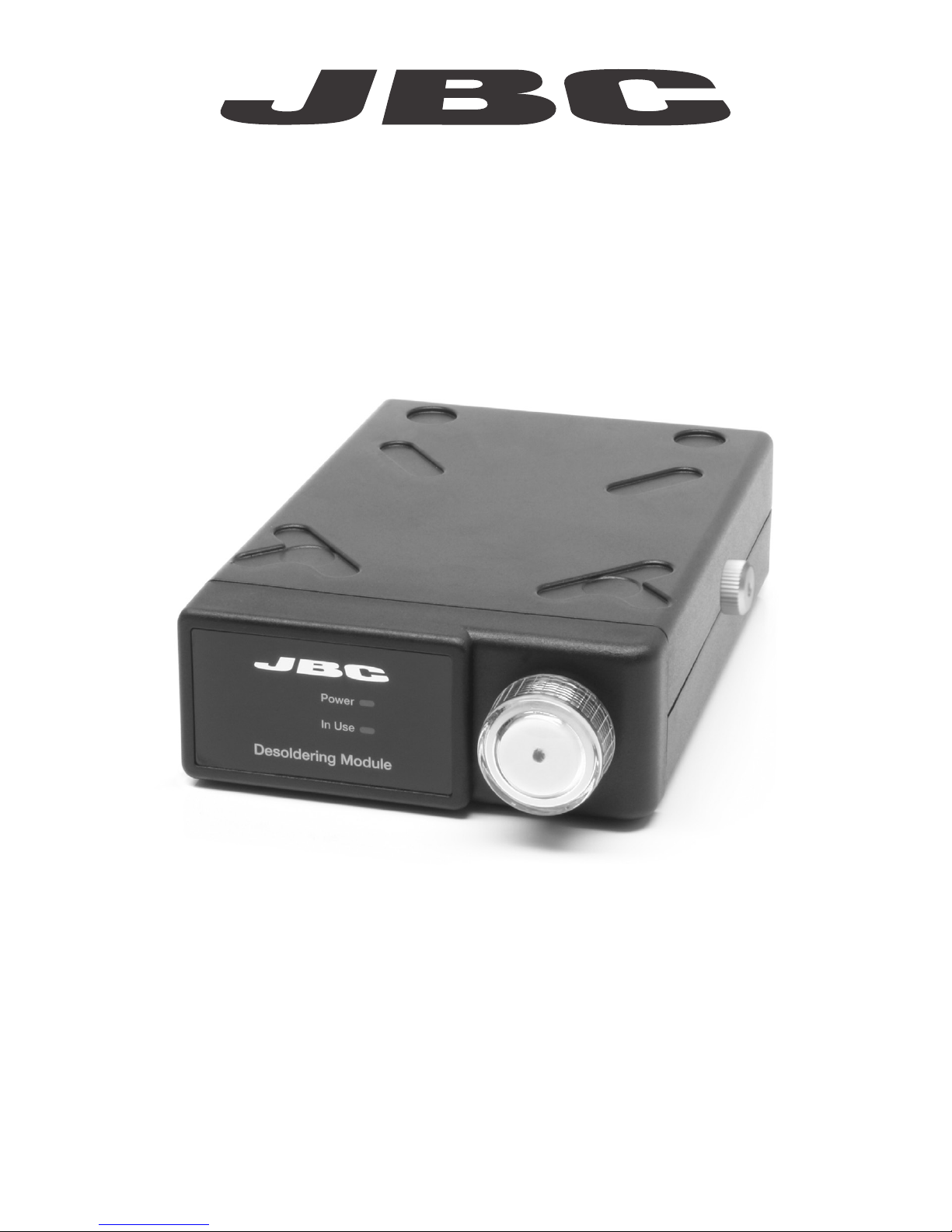

Pneumatic Desoldering Module

Ref. MVE-A

www.jbctools.com

Packing List

The following items should be included:

Pneumatic Desoldering

Module .............................1 unit

Ref. MVE-A

Filter Box ........................ 1 unit

Ref. 0005966

It contains 50 filters

Suction Filter ..................1 unit

Ref. 0821830

Module Cable

connector ........................1 unit

R ef. 0 014 874

Cotton Filter ...............10 units

Ref. 0781046

Manual .............................1 unit

Ref. 0017955

Pneumatic Desoldering Module

Ref. MVE-A

Escape Filter ..................1 unit

Ref. 0008446

www.jbctools.com

Air pressure

(4-6 bar)

Tubing Ø4 x Ø6 mm

(Not supplied)

Compatibility

Select the equipment that best suit your soldering or desoldering needs.

Module Stand Tool Cartridge

Range

Control Units Peripherals

DDE DME P-005

MVE-A

DS-SD DS360-A C360

DR-SD DR560-A C560

Pneumatic Desoldering Module

Ref. MVE-A

to Another peripheral

Control Unit

Tool

to Pedal

Suction Filter

Features

www.jbctools.com

17:14 ?

Install

MODULE

Air pump

Postpone

Peripherals Port 2-DR

17:14

Pedal None

Module None

Module

MVE_a

None

Initial Set up

For DDE Control Unit

When a new module is detected, a pop-up

screen appears and proceed as indicated.

If no screen is shown, click on the icon

on the main bar and follow the steps.

Once set up, you can change the module

settings by entering the Peripherals Menu.

For DME Control Unit

Appears only when the

installation is postponed

1. Select the module from the list of peripheral

connections. Remember your first connection

is denoted as “a”, the second being “b”, etc.

(e.g. MVE_a, MVE_b,...)

2. Press Menu or Back to save changes.

Once set up, you can change the module

settings by entering the Peripherals Menu.

Peripherals

After connecting the module, enter the Peripherals Menu and select the port which

you want to join with the module.

Maintenance

Spare filters

Ref. 0005966

Cotton filters

Ref. 0781046

Suction filter

Ref. 0821830

O Ring

Ref. 0007717

Filter cover

Ref. 0004710

Important: Do not use sharp pointed objects to open the suction filter.

Before carrying out maintenance, always unplug the electric and pneumatic connectors.

- Use a damp cloth to keep the casing clean.

- Periodically check all cable and tube connections.

- Keep filters clean to ensure proper solder suction and replace them when necessary.

Escape filter

Ref. 0008446

- Use original JBC spare parts on

- Do not work with defective or damaged pieces.

- Repairs should only be performed by a JBC authorized technical service.

- Maintenance must not be carried out by children unless supervised.

Removing the pneumatic tubing

Push the release ring to remove

the pneumatic tubing. Release ring

www.jbctools.com

It is imperative to follow safety guidelines to prevent electric

shock, injury, fire or explosion.

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.

- The power cord must be plugged into approved bases. Make sure that it is properly grounded

before use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.

- Avoid flux coming into contact with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when

working to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight as well as persons with reduced

physical, sensory or mental capabilities or lack of experience provided that they have been given

adequate supervision or instruction concerning use of the appliance and understand the hazards

involved. Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

Safety

Exploded View

www.jbctools.com

This product should not be thrown in the garbage.

In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life

must be collected and returned to an authorized recycling facility.

Manual in other languages available on our website

Warranty

JBC’s two year warranty covers this equipment

against all manufacturing defects, including

the replacement of defective parts and labour.

Warranty does not cover product wear or misuse.

In order for the warranty to be valid, equipment

must be returned, postage paid, to the dealer

where it was purchased. Please register your

product warranty within 30 days of purchase in:

www.jbctools.com/productregistration.

www.jbctools.com

-Weight: 700 gr (1.54 lb)

- Dimensions: 145 x 55 x 225 mm (5.71 x 2.17 x 8.86 in)

- Air Pressure supply range: 4 - 6 Bar

- Vacuum at 6 Bar: 90% / 680 mmHg / 26.8 inHg

- Flow rate: 15 SLPM

- Ambient operating temp.: 10 - 40 ºC (50 - 104 ºF)

- Pedal connection

Complies with CE standards.

ESD protected.

Specifications

0017955-0318
