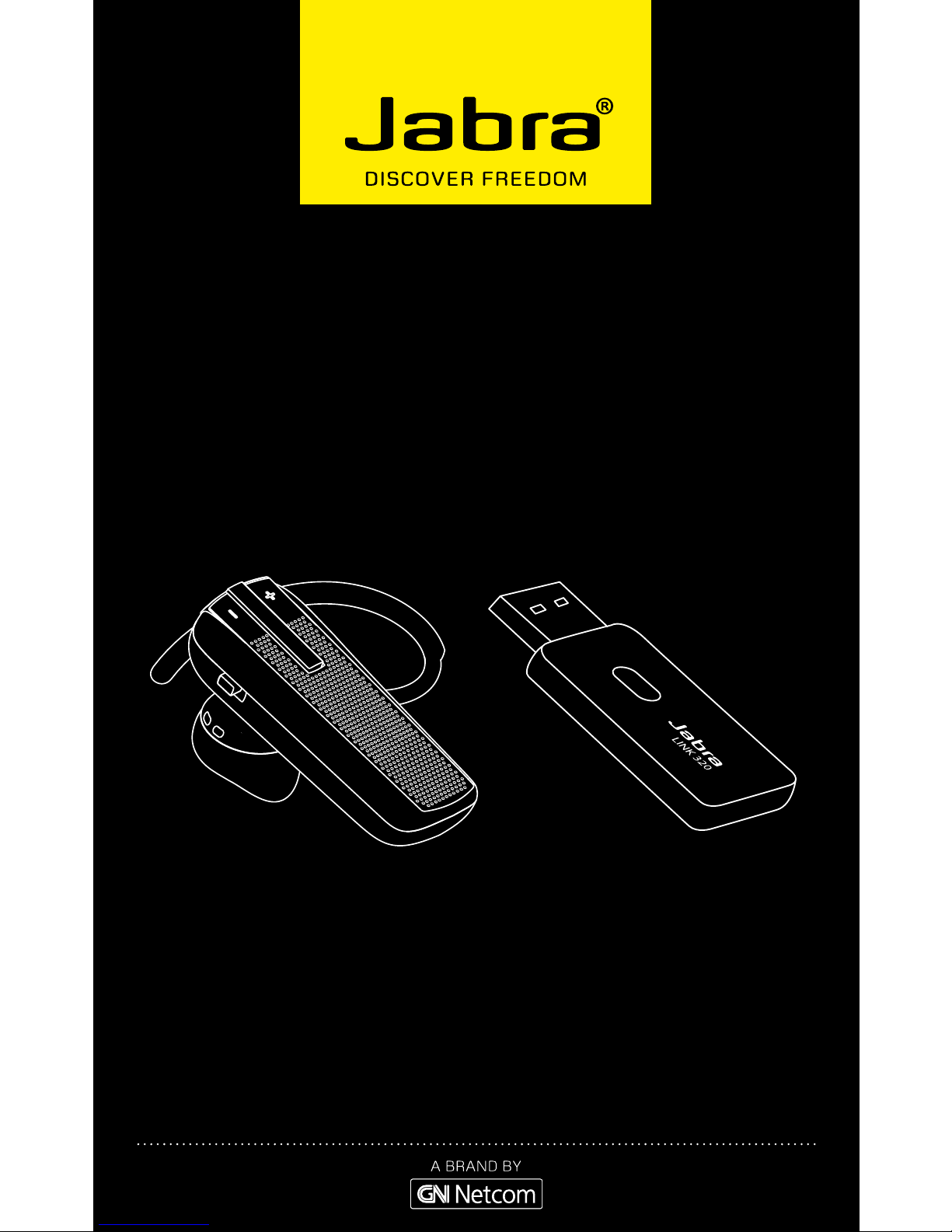

USER MANUAL

Jabra® EXTREME –

FOR PC

jabra

english

Jabra EXTREME  FOR PC

CONTENTS

THANK YOU....................................................2

ABOUT YOUR Jabra EXTREME  FOR PC . . . . . . . . . . . . . . . . . . . . . . . . 2

ABOUT YOUR Jabra LINK 320 USB ADAPTER . . . . . . . . . . . . . . . . . . . . 3

ABOUT Jabra PC SUITE .........................................3

WHAT YOUR HEADSET DOES...................................4

GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CHARGE YOUR HEADSET.......................................5

TURNING YOUR HEADSET ON AND OFF . . . . . . . . . . . . . . . . . . . . . . . . 6

PRE PAIRED ....................................................6

PAIRING YOUR HEADSET WITH YOUR PHONE. . . . . . . . . . . . . . . . . . . 6

WEARING STYLE ...............................................7

HOW TO .......................................................7

WHAT THE LIGHTS IN THE HEADSET MEAN . . . . . . . . . . . . . . . . . . . . . 9

LISTENING TO MUSIC USING THE Jabra EXTREME. . . . . . . . . . . . . . 10

MULTIUSE™ ...................................................10

TROUBLESHOOTING & FAQ ...................................10

NEED MORE HELP?............................................12

TAKING CARE OF YOUR HEADSET . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

GLOSSARY ....................................................13

english

Jabra EXTREME  FOR PC

THANK YOU

Thank you for purchasing the Jabra EXTREME – FOR PC Bluetooth®

wireless technology headset and LINK 320 USB adapter. We hope

you enjoy it! This instruction manual will get you started and ready

to make the most of your headset.

ABOUT YOUR Jabra EXTREME  FOR PC

A Answer/end button

B On/o button

C LED light

D Charging socket

E Volume up/volume down

F Microphones

G Earhook

H Eargels

jabra

english

Jabra EXTREME  FOR PC

ABOUT YOUR Jabra LINK 320 USB ADAPTER

A USB Plug

B LED Light

C Button

ABOUT Jabra PC SUITE

Jabra PC Suite

Jabra PC Suite is a colletction of software designed to support the

Jabra EXTREME for PC.

To install Jabra PC Suite, launch the setup le on the supplied

installation CD, or download the latest version from the Jabra

website at www.jabra.com/pcsuite.

SETUP

When the Jabra EXTREME for PC is connected to a PC, Windows

will automatically congure the speakerphone as the default

audio device.

To manually change the default audio device to an audio device

other than the Jabra EXTREME for PC:

1. Click on Windows Start and then launch Windows Control Panel.

2. Open Sound and Audio Devices, and select the Audio tab.

3. Under Sound Playback, and Sound Recording, set the preferred

audio device as the default device . Click apply to save the

settings.

english

Jabra EXTREME  FOR PC

WHAT YOUR HEADSET DOES

Your Jabra EXTREME lets you do all this:

- Answer calls2

- End calls2

- Reject calls1 2

- Voice dialing with your phone1

- Last number redialing1 2

- Call waiting1 2

- Put call on hold1 2

- Mute

- Multiuse™ - being connected to two Bluetooth® devices at the

same time

- Play music from you phone1

Headset specications

- Talk time up to 5⁄ hours/standby time up to 10⁄ days

- Rechargeable battery with charging option from AC power supply,

PC via USB charger or car charger

- Multi-colored light for status and battery indicator

- Quiet mode – turns light o after one minute

- Size: L 47 x W 18.5 x H 27.5 mm (L 1.9 x W 0.7 x H 1.1 in)

- Weight: 10 grams (0.35 oz)

- Noise Blackout™ EXTREME with dual microphones

- Digital sound enhancement via DSP technology

- Noise reduction on transmitted and received audio

- Noise dependent volume control

- Automatic volume adjustment on receive audio

- Acoustic shock protection

- Qualied for Bluetooth® Specication version 2.1 + EDR

(enhanced data rate), supporting Headset and Hands-free Proles

for phone conversations and Advanced Audio Distribution Prole

(A2DP) for streaming music

- e-SCO for enhanced audio quality

- 128 bit encryption

- Operating range up to 10 meters (approx. 33 feet)

1 Phone dependent

2 Jabra PC Suite needs to be installed and running on PC

english

Jabra EXTREME  FOR PC

GETTING STARTED

You should follow three steps before using your headset

1. Charge your headset

2. Insert the USB adapter into your PC

3. Pair your headset to your mobile phone

The Jabra EXTREME is easy to operate. The answer/end button on

the headset performs dierent functions depending on how long

you press it.

Instruction Duration of press

Tap Press briey

Double Tap 2 quickly repeated taps

Press Approx: 1 second

Press and hold Approx: 5 seconds

CHARGE YOUR HEADSET

Make sure that your headset is fully charged before you start using

it (duration app. 2 hours). Use the AC power supply to charge from

a power socket. When the light indicator (LED) has a solid LED light,

your headset is charging. When the LED light is solid green and

goes into quiet mode, your headset is fully charged.

Use only the charger provided in the box - do not use chargers

from any other devices as this may damage your headset.

What you see Charge Level

Solid Red Less than 70% charged

Solid Yellow Between 70% and fully charged

Solid Green - quiet mode Fully charged

Please note: The lifetime of the battery will be signicantly reduced

if your device is left uncharged for a long period. We therefore

recommend that you recharge your device at least once a month.

english

Jabra EXTREME  FOR PC

TURNING YOUR HEADSET ON AND OFF

- Slide the on/o button forward on the side of the headset to

turn on the headset. The LED will ash green for a second when

the headset is on.

- Slide the on/o button backward to turn o the headset.

PRE PAIRED

Your headset is already pre paired to the USB Adapter out of the

box. If pairing is deleted and later pairing is needed this is done in

a few easy steps.

1. Put the USB Adapter into pairing mode by pressing the button

on the USB Adapter until the LED light is solid blue.

2. Put Your headset into pairing mode by pressing the MFB until

the light in the headset is solid blue and wait a few moments.

3. When the blue light on both headset and USB adapter is blinking,

pairing is complete and the headset and USB adapter will connect

automatically and the LED on the USB Adapter turns solid green

and the green LED on the headset is blinking.

PAIRING YOUR HEADSET WITH YOUR PHONE

Headsets are connected to phones using a procedure called

‘pairing’. By following a few simple steps, a phone can be paired

with a headset in a matter of minutes.

1. Put the headset in pairing mode

- When you turn on your Jabra EXTREME for the rst time, the

headset will automatically start up in pairing mode – i.e. it is

discoverable for your phone. When the headset is in pairing

mode the LED is constantly lit blue.

2. Set your Bluetooth® phone to ‘discover’ the Jabra EXTREME

- Follow your phone’s instruction guide. First make sure that

Bluetooth® is activated on your mobile phone. Then set your

phone to discover the headset. This usually involves going

to a ‘setup,’ ‘ connect’ or ‘Bluetooth®’ menu on your phone and

selecting the option to ‘discover’ or ‘add’ a Bluetooth® device.*

* Phone dependent / For use with PC, Jabra PC Suite needs to be installed and

running on PC

english

Jabra EXTREME  FOR PC

3. Your phone will nd the Jabra EXTREME

- Your phone will nd the headset under name “Jabra EXTREME

”.

Your phone then asks if you want to pair with the headset.

Accept by pressing ‘Yes’ or ‘OK’ on the phone and conrm with

the passkey or PIN = 0000 (4 zeros). Your phone will conrm

when pairing is complete.

EXTREME

In case of unsuccessful pairing, put the Jabra EXTREME into pairing

mode manually. Make sure the headset is on. Press and hold the

answer/end button for approximately 5 seconds until the LED has a

constant light. Keep holding down the button until light is constant.

WEARING STYLE

The Jabra EXTREME is ready to be worn with or without the ear

hook. The ear hook can be removed and the headset can be used

with the Ultimate-t EargelsTM.

The Ultimate-t EargelsTM can be used for both left and right wearing.

The Ultimate-t EargelsTM come in two dierent styles to t any ear.

You can also twist the eargel slightly to optimize the t and comfort.

For optimal performance, wear the Jabra EXTREME and your mobile

phone on the same side of your body or within line of sight. You will

get better performance when there are no obstructions

between

your headset and your mobile phone.

HOW TO

Answer a call

- Tap the answer/end button on your headset to answer a call.

End a call

- Tap the answer/end button to end an active call.

english

Jabra EXTREME  FOR PC

Reject a call*

- Press the answer/end button when the phone rings to reject an

incoming call. Depending on your phone settings, the person

who called you will either be forwarded to your voice mail or

will hear a busy signal.

Make a call

- When you make a call from your mobile phone, the call will

(subject to phone settings) automatically transfer to your

headset. If your phone does not allow this feature, tap on the

Jabra EXTREME’s answer/end button to transfer the call to the

headset.

Activate voice dialing*

- Press the answer/end button. For best results, record the voice

dialing tag through your headset. Please consult user manual

of your phone for more information about using this feature.

Redial last number*

- Double tap the answer/end button when the headset is on and

not used.

Adjust sound and volume*

- Tap the volume up or down to adjust the volume.

Mute/un-mute

- To mute, press both volume up and down at the same time.

A low beep alert plays during a muted call.

- To un-mute, tap either of the volume buttons.

Call waiting and placing a call on hold*

- This lets you put a call on hold during a conversation and

answer a waiting call.

- Press the answer/end button once to put the active call on hold

and answer the waiting call.

- Press the answer/end button to switch between the two calls.

- Tap the answer/end button to end the active conversation.

* Phone dependent / For use with PC, Jabra PC Suite needs to be installed and

running on PC

english

Jabra EXTREME  FOR PC

Battery indicator

- Tap one of the volume buttons to see the battery level.

What you see Battery level/Talk time

2 Green ashes 1-5½ hours talk time

2 Yellow ashes 10 min.-1 hour

2 Red ashes 10 min.

WHAT THE LIGHTS IN THE HEADSET MEAN

What you see Battery level/Talk time

Flashing blue and green light Incoming call

Flashing blue light Flashing every three seconds:

In Standby mode and

connected to mobile phone

(only for 1 minute then o)

Flashing green light Flashing every three seconds:

In standby mode – not

connected (only for 1 minute

then o)

Flashing blue light Flashing every second:

active call (only for 30 seconds

then o)

Flashing red light Running low on battery

Flashing purple light Flashing every seconds:

Connected in A2DP streaming

music (only for 30 seconds

then o)

Solid blue light In pairing mode

Solid purple light Special music pairing mode

See chapter Troubleshooting

& FAQ - Frequently Asked

Questions

Autres manuels pour EXTREME

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Jabra casque

Jabra

Jabra Pro 9470 Mono Manuel utilisateur

Jabra

Jabra GN2000 CIPC Manuel utilisateur

Jabra

Jabra ARROW - Manuel utilisateur

Jabra

Jabra IBM lotus sametime Manuel utilisateur

Jabra

Jabra BT2070 - Headset - In-ear ear-bud Manuel utilisateur

Jabra

Jabra PRO 9450 Duo Guide de sécurité

Jabra

Jabra BT620S - MANUAL 2 Manuel du propriétaire

Jabra

Jabra Engage 65 Manuel utilisateur

Jabra

Jabra HALO2 Manuel utilisateur

Jabra

Jabra GN2000 OC Series Manuel utilisateur

Jabra

Jabra GN9350e Guide de sécurité

Jabra

Jabra SUPREME UC Manuel utilisateur

Jabra

Jabra SPORT - CORDED Manuel utilisateur

Jabra

Jabra Step Wireless Manuel utilisateur

Jabra

Jabra Engage 65 Manuel utilisateur

Jabra

Jabra Engage 55 Manuel utilisateur

Jabra

Jabra Pro 920 Mono Manuel utilisateur

Jabra

Jabra GO 660 Mode d’emploi

Jabra

Jabra BT325s Manuel utilisateur

Jabra

Jabra GN9330e - USB - Headset Manuel utilisateur

Jabra

Jabra Pro 9470Mono Manuel utilisateur

Jabra

Jabra Pro 920Mono Manuel utilisateur

Jabra

Jabra FreeSpeak 100-91030000-02 Manuel utilisateur

Jabra

Jabra Engage 65 Manuel utilisateur

Manuels casque populaires d'autres marques

Sena

Sena SMH10 Manuel utilisateur

IASUS

IASUS Stealth IA-NT4-BASIC-BT Manuel utilisateur

Sennheiser

Sennheiser EPOS ADAPT 230 Manuel utilisateur

Doro

Doro Flexus HS2005 Manuel utilisateur

GE 98971 Manuel utilisateur

Hama

Hama 00184070 Manuel utilisateur

Plantronics

Plantronics Blackwire 3200 Series Manuel utilisateur

Blue Tiger

Blue Tiger Advantage PLUS Manuel utilisateur

Jawbone

Jawbone Icon Manuel utilisateur

Roxcore

Roxcore Flow A+ Manuel utilisateur

Turtle Beach

Turtle Beach XP 510 Manuel utilisateur

Philips

Philips SHB6101 Manuel utilisateur

HyperX

HyperX HyperX Cloud Flight Manuel utilisateur

Bose

Bose MIE2 Mobile Manuel utilisateur

HyperX

HyperX cloud ii Manuel utilisateur

Southwing

Southwing SA505 Manuel utilisateur

Plantronics

Plantronics VOYAGER 520 Manuel utilisateur

Blueant

Blueant X5i Manuel utilisateur
