IOGear GHDSW4K4 Q1326 Manuel utilisateur

4-Port 4Kx2K HDMI Switch with Remote

Quick Start Guide

GHDSW4K4

PART NO. Q1326

www.iogear.com

INPUT SELECT

Package Contents

Requirements

Overview

1 x GHDSW4K4 4-Port HDMI Switch

1 x IR Remote

1 x Quick Start Guide

1 x Warranty Card

Display:

HDMI HDTV, Display or Projector

Source:

Media source with HDMI Out

REMOTE

Remote:

1. Select Next Port

2. Port 1

3. Port 2

4. Port 3

5. Port 4

Switch:

1. Input Port 1

2. External IR

Receiver Port (Optional)

3. IR Receiver

4. Port 1 LED

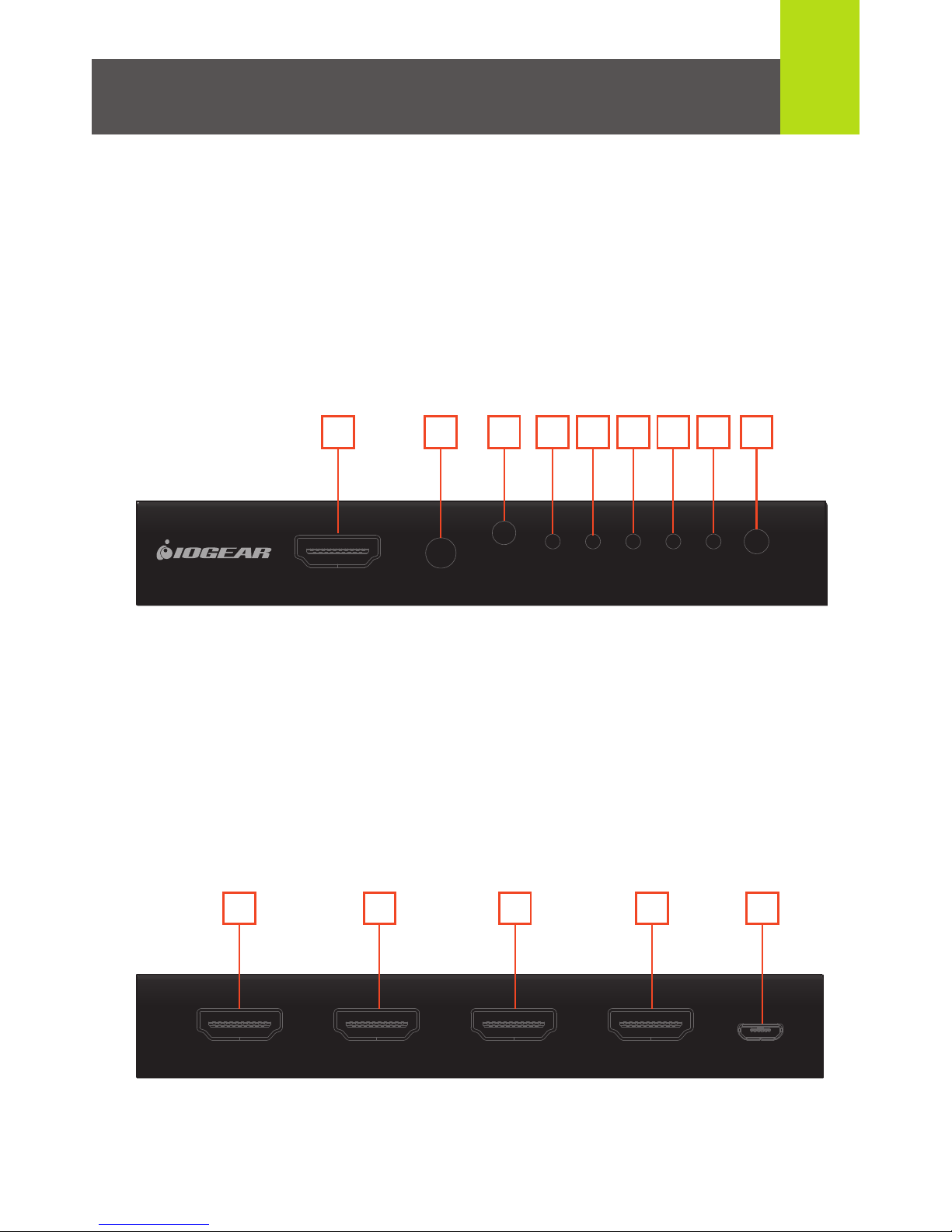

FRONT VIEW

BACK VIEW

5. Port 2 LED

6. Port 3 LED

7. Port 4 LED

8. Output Port LED

9. Port Selection Button

10. Input Port 2

11. Input Port 3

12. Input Port 4

13. Output Port

14. USB Power Port (Optional)

5V/1AOUTPUTINPUT 2 INPUT 3 INPUT 4

SELECT

INPUT 1 IR Ext 1 2 3 4 OUT

10 11 12 13 14

2 3 4 5 6 7 8 9

Installation

STEP 2

Connect any HDMI media devices to the input ports of the HDMI

switch. The switch will automatically power on when a powered

HDMI device is connected.

STEP 1

Connect an HDMI cable from the output port of the switch to

any available HDMI input on your HDTV, HD projector or

HDMI display.

5V/1AOUTPUTINPUT 2 INPUT 3 INPUT 4

Note: The switch will automatically select the input that a

powered HDMI device is connected to

Compliance Information

FCC Statement

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential setting. This

product generates, uses, and can radiate radio

frequency energy and, if not installed and used as

directed, it may cause harmful interference to radio

communications. Although this product complies

with the limits for a Class B digital device, there is no

guarantee that interference will not occur in a

particular installation.

CE Compliance

This device has been tested and found to comply

with the following European Union directives:

Electromagnetic Capability (2004/108/EC), Low

Voltage (2006/95/EC) and R&TTED (1999/5/EC).

STEP 3

Use the remote control or front panel selection button to switch

to the desired port, then power on your HDTV or HD display

and media source.

WE’RE HERE TO HELP YOU!

NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information.

2. Visit www.iogear.com/support for live help and

product support.

Warranty Information

This product carries a 1 Year Limited Warranty. For the

terms and conditions of this warranty, please go to

http://www.iogear.com/support/warranty.

Important Product Information

Product Model

Serial Number

Contact

Limited Warranty

iogear.custhelp.com

support@iogear.com

www.iogear.com

19641 Da Vinci, Foothill Ranch, CA 92610
