Invacare Thumb Saver 1109379 Manuel utilisateur

Thumb Saver Wheel Lock

Assembly, Installation and Operating Instructions

Kit No. 1109379

SAVE THESE INSTRU TIONS

NOTE: Check all parts for shipping damage. In case of damage, DO NOT use. Contact Carrier/Invacare

for further instructions.

SAFETY SUMMARY

To ensure the safe and proper installation of the Thumb Saver Wheel Lock, these instructions

MUST be followed:

GENERAL WARNING

DO NOT install this equipment without first reading and understanding this

instruction sheet and the owners manual provided with the wheelchair. If you

are unable to understand the warnings, cautions and instructions, contact a

healthcare professional, dealer or technical personnel if applicable, before

attempting to install this equipment otherwise, injury or damage may occur.

INSTALLATION WARNING

After ANY adjustments, repair or service and BEFORE use, make sure that all

attaching hardware is tightened securely.

This kit contains the following items:

Description Quantity

Thumb Saver Wheel Lock (RT 1

Thumb Saver Wheel Lock (LT 1

Wheel Lock Clamp 2

REPLACING/ADJUSTING THE WHEEL LOCKS (FIGURE 1)

NOTE: efore adjusting or replacing the wheel locks, ensure that the tires are inflated to the recom-

mended psi on the sidewall of the tire.

REPLACING THE WHEEL LOCK

1. Loosen the hex screws and remove the existing wheel lock and clamp from the wheelchair.

2. Install the new wheel lock clamp onto the wheelchair frame. Tighten the hex screws securely.

ADJUSTING THE WHEEL LOCK

1. Engage the wheel locks.

NOTE: Any wheel lock adjustment should embed the wheel lock shoe at least 3/16-inch into the pneu-

matic tire (1/8-inch for urethane wheels) when engaged.

2. If necessary, loosen the hex screw(s that secure the wheel locks to the wheelchair frame

and adjust the position of the wheel lock until the 3/16-inch (1/8-inch for urethane wheels

measurement is obtained for correct wheel lock adjustment.

3. Securely tighten the hex screw(s .

4. Engage the wheel locks and push against the wheelchair and determine if the wheel locks

engage the wheel enough to hold the wheelchair.

5. Repeat the above procedures until the wheel locks hold the wheelchair.

Invacare Corporation www.invacare.com

USA Canada

One Invacare Way 570 Matheson Blvd E Unit 8 Invacare is a registered trademark o

Elyria, Ohio USA Mississauga Ontario Invacare Corporation.

44036-2125 L4Z4G4 Canada Yes, you can. is a trademark o Invacare

800-333-6900 800-668-5324 Corporation.

Rev A 1/02 Part No. 1106671

3/16-inch

(1/8-inch)

Tire

Thumb Saver

Wheel Lock

Shoe

Hex Screws

Wheel Lock Shoe

lamp

Thumb Saver Wheel Lock

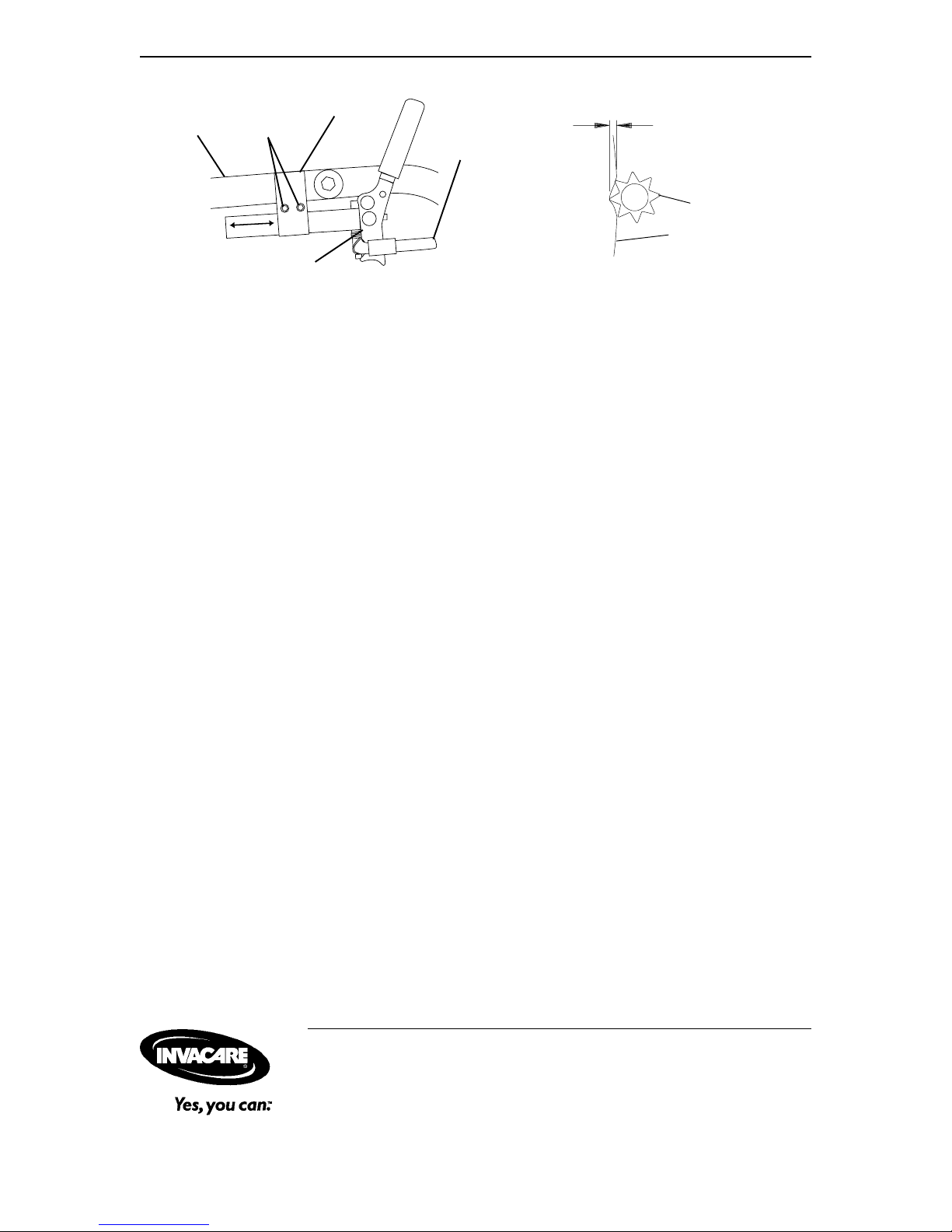

FIGURE 1 - REPLA ING/ADJUSTING THE WHEEL LO KS

Wheelchair

Frame
