Intermec SR61 Manuel utilisateur

SR61

Cordless Scanner

᮴㒓ᠿᦣҾ

scanneur sans l

Schnurlos-Scanner

Ⱑ㈍B㎑㽽⇵

Leitor sem Fio

эксплуатации беспроводного сканера

escáner inalámbrico

Quick Start Guide

ᖿ䗳ܹ䮼ᣛ

Guide de démarrage rapide

Kurzanleitung

⽍⩥B㏉㡾B㘵↡㈉

Manual de Consulta Rápida

Краткое руководство

Guía de comienzo rápido

Contents

SR61 Cordless Scanner Quick Start Guide . . . . . . . . . . . . . . 3

65᮴㒓ᠿᦣҾᖿ䗳ܹ䮼ᣛ. . . . . . . . . . . . . . . . . . . . 8

Guide de démarrage rapide de scanneur sans fil SR61. . . . . 13

Kurzanleitung für den Schnurlos-Scanner SR61 . . . . . . . . . 18

utXSBⰡ㈍B㎑㽽⇵B⽍⩥B㏉㡾B㘵↡㈉ . . . . . . . . . . . . . 23

Manual de Consulta Rápida do Leitor sem Fio SR61 . . . . . 28

Ʉɪɚɬɤɨɟ ɪɭɤɨɜɨɞɫɬɜɨ ɩɨ ɷɤɫɩɥɭɚɬɚɰɢɢ ɛɟɫɩɪɨɜɨɞɧɨɝɨ

ɫɤɚɧɟɪɚ SR61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Guía de comienzo rápido del escáner inalámbrico SR61 . . . 38

SR61 Cordless Scanner Quick Start Guide

The SR61 is a rugged, industrial scanner that uses a Bluetooth

radio for RF communications. This guide describes how to

charge the SR61, connect it to a host device, and scan bar codes.

Unpacking the SR61

Charging the SR61

• Place the SR61 with the AB3 battery installed in an AC5

1-bay charger.

Or,

• Remove the AB3 battery from the SR61, and place the battery

in an AC6, AC7, or AC8 multibay charger.

For more information, see the instructions that ship with the

charger.

See Compliance Insert for use restrictions

associated with this product.

SR61 Cordless

Scanner

Battery

EasySet CD Documentation

Intermec

Ready-to-Work indicator

Connecting the SR61 to a Host Device

You can connect the SR61 to these host devices:

• Intermec computer that is Bluetooth-enabled

• PC with a USB Bluetooth adapter (P/N 203-771-xxx) or an

RS-232 Bluetooth adapter (P/N 203-768-xxx)

• Other Bluetooth-enabled devices that support Serial Port

Profile (SPP)

To connect to an Intermec computer

1On your PC, start EasySet v5.4.1. Make sure that SR61 is

selected as your product.

2From the EasySet commands window, select Data

transmission settings > Bluetooth Parameters > connect/

disconnect.

3Double-click compose BT address.

4Enter the Bluetooth address of your Intermec computer and

click OK. The bar code appears on the setup sheet.

5Scan the bar code onscreen with the

SR61xA or SR61xV, or print the bar code

setup sheet and scan the bar code. The

SR61 beeps once, the green status light

flashes once, and the blue Intermec

Ready-to-Work™ indicator starts blinking.

On your Intermec computer, the Authen.

Request dialog box appears.

6In the Enter PIN field, enter the default PIN (0000) and

select OK. When the SR61 connects to your Intermec

computer, the SR61 emits a series of beeps from low to high,

and the blue Intermec Ready-to-Work indicator turns on and

stays on. The SR61 is ready to scan data.

For more information, see your Intermec computer user’s

manual.

To connect to a PC with a USB or RS-232 Bluetooth adapter

1Install the USB or RS-232 Bluetooth adapter.

2Connect and pair your SR61 to your host PC.

For more information, see the instructions that ship with the

adapter.

Scanning Bar Codes

The SR61 ships with these bar code symbologies enabled:

Code 39, Code 128, UPC/EAN, PDF417, and DataMatrix

(SR61xA only).

To enable more bar code symbologies, see the SR61 Cordless

Scanner User’s Guide (P/N 934-000-xxx).

To scan a bar code

1Point the SR61 at a bar code. You can use this Code 39 test

bar code:

*123456*

2Pull the trigger. A narrow aiming beam of light appears. If you

are using an SR61xA, an area of light also appears.

3Pass the aiming beam over the bar code. When the SR61

successfully reads a bar code, you hear a single beep and the

status light briefly turns green.

ABCD

Status light

ABCD

Troubleshooting

If you need more help, please visit our Product Support web site

at intermec.custhelp.com, or call 1-800-755-5505.

Where to Find More Information

Go to the Intermec web site at www.intermec.com to find

manuals as PDF files. To order accessories and printed

documentation, contact your local Intermec sales representative.

Patent Information: This product is protected by one or more

patents. Refer to the SR61 Cordless Scanner User’s Guide (P/N

934-000-xxx) for the list of patents.

Electrical rating: x5V, 1.7A

Problem Possible Solution

You scan a data bar code,

the status light flashes red

for 2 seconds, and the

SR61 beeps three times.

The SR61 may not be connected to a host.

Make sure the blue Intermec Ready-to-

Work indicator is on and the SR61 is

linked to your host device.

You pull the trigger and

the status light turns on

and stays red.

The battery is low. Charge the battery

immediately and try scanning again.

You cannot establish a

Bluetooth connection

(the Intermec Ready-to-

Work indicator is not

on).

Scan the following bar code to reset the

SR61 to its default configuration and try

establishing a link again. You will need to

reconfigure the SR61.

Administrator Reset to Factory Defaults

\60\08\55\22

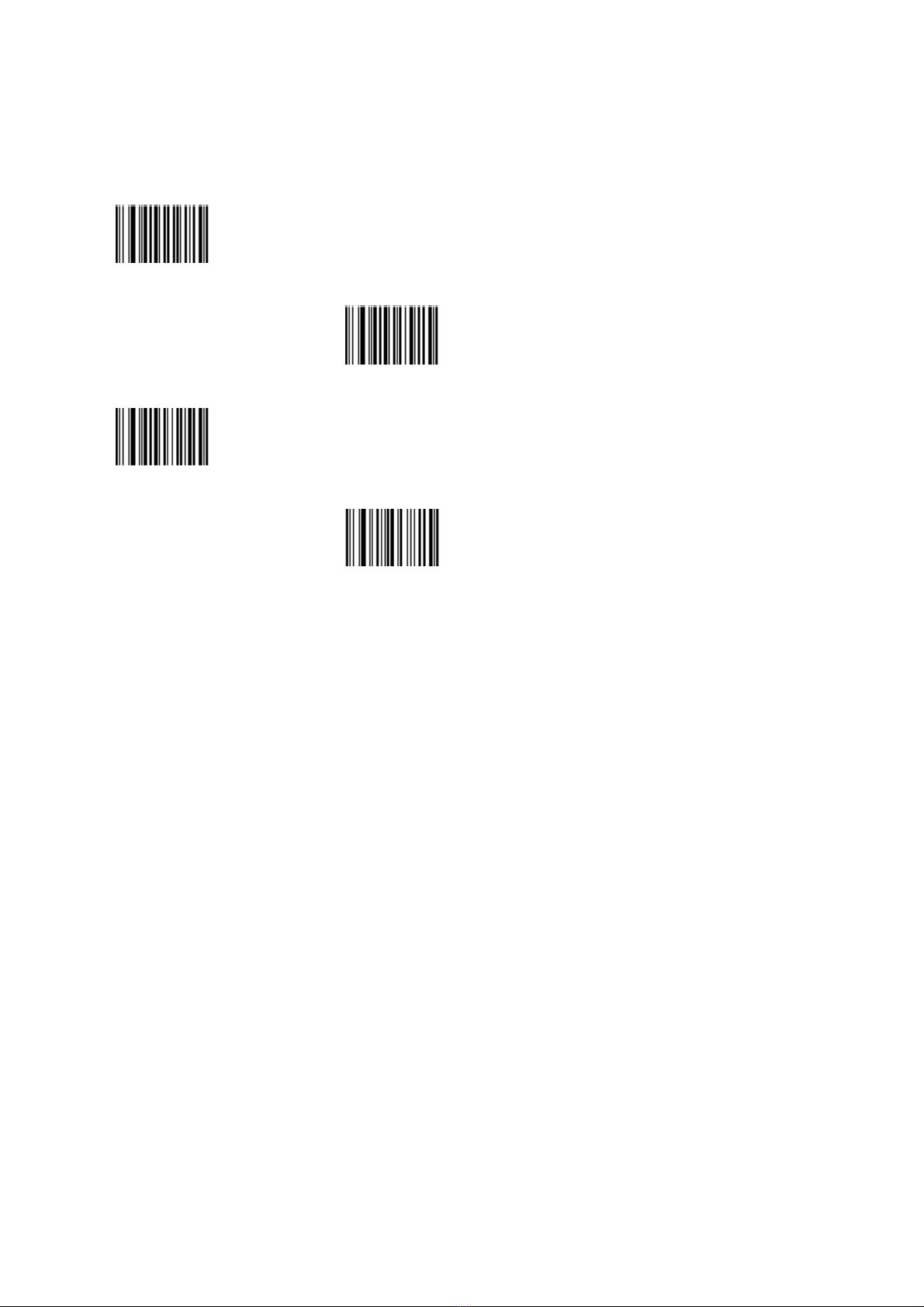

Useful Bar Codes

These bar codes can be useful if you need to call Intermec

Product Support. The Scanner Power Down bar code turns off

the SR61. The other bar codes get the SR61 version and the

Bluetooth address information.

Get Product Version

\30\0F\37\20

Get Sub-System Versions

\60\0F\37\23

Get SR61 Bluetooth Address

\60\0F\37\23

Scanner Power Down

\60\08\2A\46

65᮴㒓ᠿᦣҾᖿ䗳ܹ䮼ᣛ

65ᰃϔℒ㗤⫼ൟᎹϮᠿᦣҾˈᅗՓ⫼㪱⠭᮴㒓⬉䖯㸠5)䗮ֵǄᴀ

ᣛҟ㒡བԩᇍ65ܙ⬉ǃབԩᇚ݊䖲᥹ࠄЏᴎ䆒໛ˈҹঞབԩᠿ

ᦣᴵᔶⷕǄ

ᠧᓔ65ࣙ㺙

ᇍ65ܙ⬉

•ᇚ㺙᳝$%⬉∴ⱘ65ᬒܹ$&ᦦᑻܙ⬉఼Ǆ

៪㗙ˈ

•Ң65Ёপߎ$%⬉∴ˈ✊ৢᇚℸ⬉∴ᬒܹ$&ǃ$&៪$&

໮ᦦᑻܙ⬉఼ЁǄ

᳝݇䆺㒚ֵᙃˈ䇋খ䯙ܙ⬉఼䱣䰘ⱘ䇈ᯢǄ

᳝݇ᴀѻકⳌ݇ⱘՓ⫼䰤ࠊˈ䇋খ䯙 Āヺড়ᗻᦦ义āǄ

ᇚ65䖲᥹ࠄЏᴎ䆒໛

ৃᇚ65䖲᥹ࠄϟ߫Џᴎ䆒໛˖

•㛑䖯㸠㪱⠭䗮ֵⱘ,QWHUPHF䅵ㅫᴎ

•䜡㕂њ86%㪱⠭䗖䜡఼31[[[៪56㪱⠭䗖䜡

఼31[[[ⱘ3&

•݊ᅗ㛑໳䖯㸠㪱⠭䗮ֵϨᬃᣕІ㸠ッষ῵ᓣ633ⱘ䆒໛

㽕䖲᥹ࠄ,QWHUPHF䅵ㅫᴎ

1೼ᙼⱘ3&Ϟˈࡼ(DV\6HW v5.4.1Ǆ⹂ֱᇚ65䗝Ўᙼⱘѻ

કǄ

2೼(DV\6HWҸにষˈ䗝ᢽ'

DWDWUDQVPLVVLRQVHWWLQJV ˄᭄᥂

Ӵ䕧䆒㕂˅!%

OXHWRRWK3DUDPHWHUV ˄㪱⠭খ᭄˅!F

RQQHFW

GLVFRQQHFW ˄䖲᥹  ᮁᓔ䖲᥹˅Ǆ

3ঠߏF

RPSRVH%7DGGUHVV ˄䆒㕂㪱⠭ഄഔ˅Ǆ

4䕧ܹ,QWHUPHF䅵ㅫᴎⱘ㪱⠭ഄഔˈᑊߏ2

.˄⹂ᅮ˅Ǆᴵᔶⷕ

䱣ߎ⦄೼䆒㕂义ϞǄ

5Փ⫼65ᠿᦣሣᐩϞⱘᴵᔶⷕˈ៪ܜᠧ

ℸᴵᔶⷕ䆒㕂义ˈ✊ৢݡᠿᦣᴵᔶⷕǄ

65

[

$៪㗙65

[

9থߎϔ󱂖௳௳ໄˈ㓓㡆

⢊ᗕᣛ⼎♃ህӮ䮾⚕ϔ󱂖ˈᑊϨ㪱㡆

,QWHUPHF5HDG\WR:RUN™ᣛ⼎♃ᓔྟ䮾⚕Ǆ

೼,QWHUPHF䅵ㅫᴎϞˈߎ⦄ Ā$XWKHQ

5HTXHVWā˄偠䆕䇋∖˅ᇍ䆱ḚǄ

6೼(

(

QWHU3,1 ˄䕧ܹ3,1˅ᄫ↉Ёˈ䕧ܹ咬䅸ⱘ3,1ᑊ䗝

ᢽ2

.˄⹂ᅮ˅Ǆᔧ65䖲᥹ࠄ,QWHUPHF䅵ㅫᴎৢˈ65Ӯথ

ߎϔ䖲І⬅Ԣࠄ催ⱘ௳௳ໄˈϨ㪱㡆,QWHUPHF5HDG\WR:RUNᣛ

⼎♃Ӯ⚍҂Ϩֱᣕ⚍҂⢊ᗕǄ65ޚ໛ህ㒾ˈৃᓔྟᠿᦣ᭄᥂Ǆ

᳝݇䆺㒚ֵᙃˈ䇋খ䯙,QWHUPHF䅵ㅫᴎ⫼᠋᠟ݠǄ

㽕䖲᥹ࠄ䜡㕂њ86%៪56㪱⠭䗖䜡఼ⱘ3&

1ᅝ㺙86%៪56㪱⠭䗖䜡఼Ǆ

2ᇚ65䖲᥹ࠄ3&ЏᴎˈᑊᇚᅗӀ䜡ᇍǄ

᳝݇䆺㒚ֵᙃˈ䇋খ䯙䗖䜡఼䱣䰘ⱘ䇈ᯢǄ

ᠿᦣᴵᔶⷕ

65䱣䰘њ䖭ѯৃՓ⫼ⱘᴵᔶⷕヺো˖&RGHǃ&RGHǃ83&

($1ǃ3')'DWD0DWUL[ ˄ҙ䰤65

[

$˅Ǆ

㽕Փ⫼᳈໮ⱘᴵᔶⷕヺোˈ䇋খ䯙

65&RUGOHVV6FDQQHU8VHU

’s



*XLGH

31[[[Ǆ

㽕ᠿᦣᴵᔶⷕ

1ᇚ65ᇍޚᴵᔶⷕǄᙼৃՓ⫼ϟ䴶ⱘ&RGH⌟䆩ᴵᔶⷕ˖

*123456*

2ᣝϟᡇᶘǄߎ⦄ϔじᴳᇍޚܝᴳǄབᵰՓ⫼65

[

$ˈ䖬Ӯߎ⦄ϔ

ϾܝǄ

3ᇚᇍޚܝᴳ䗮䖛ᴵᔶⷕǄᔧ65៤ࡳ䇏পᴵᔶⷕৢˈᙼӮࠄ௳

ⱘϔໄડˈϨ⢊ᗕᣛ⼎♃Ӯ᱖ᯊᗻব㓓Ǆ
