Intermec ScanPlus 1800ST Manuel utilisateur

ScanPlus 1800ST

Scanner

Service Manual

Intermec Technologies Corporation

6001 36th Avenue West

Everett, WA 98203-9280

U.S. service and technical support: 1-800-755-5505

U.S. media supplies ordering information: 1-800-227-9947

Canadian service and technical support: 1-800-668-7043

Canadian media supplies ordering information: 1-800-268-6936

Outside U.S.A. and Canada: Contact your local Intermec service supplier.

The information contained herein is proprietary and is provided solely for the purpose of allowing customers

to operate and/or service Intermec manufactured equipment and is not to be released, reproduced, or used for

any other purpose without written permission of Intermec.

Information and specifications in this manual are subject to change without notice.

2001 by Intermec Technologies Corporation

The word Intermec, the Intermec logo, INCA (under license), MobileLAN, JANUS, IRL, Trakker Antares,

EZBuilder, TE 2000, Data Collection Browser, dcBrowser, Universal Access Point, UAP, Duratherm,

EasyCoder, Precision Print, PrintSet, Virtual Wedge, and CrossBar are either trademarks or registered

trademarks of Intermec.

Throughout this manual, trademarked names may be used. Rather than put a trademark (or ) symbol in

every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion, and

to the benefit of the trademark owner, with no intention of infringement.

There are U.S. and foreign patents pending.

Contents

iii

Contents

Before You Begin v

Warranty Information v

Safety Summary v

Warnings, Cautions, and Notes vi

About This Manual vi

Repairing the 1800

Cautions 1-3

Ordering Replacement Parts 1-3

Replacing Parts 1-4

Spare Parts List 1-4

Disconnecting the Cable 1-5

Opening the 1800 1-7

Assembling the 1800 1-8

Replacing the Top Shell Assembly 1-9

Replacing the Bottom Shell Assembly or Trigger Spring 1-9

Replacing the Exit Window or Front Rubber Enclosure 1-11

Replacing the Main PCB Assembly 1-13

Replacing the Laser Absorber, Buzzer Cap, or Laser Frame 1-15

Replacing the Scan Engine 1-18

Replacing the Connector PCB Assembly 1-20

Connecting the Cable 1-22

Testing and Upgrading the 1800

Testing the 1800 2-3

Test Conditions 2-3

Test Procedure 2-3

Test Parameters 2-5

Upgrading the 1800 Firmware 2-5

Upgrading the Smart Cable Firmware 2-6

Before You Begin

This section introduces you to standard warranty provisions, safety precautions,

warnings and cautions.

Warranty Information

To receive a copy of the standard warranty provision for this product, contact your

local Intermec support services organization. In the U.S. call 1-800-755-5505, and in

Canada call 1-800-668-7043. If you live outside of the U.S. or Canada, you can find

your local Intermec support services organization on the Intermec Web site at

www.intermec.com.

Safety Summary

Your safety is extremely important. Read and follow all warnings and cautions in this

book before handling and operating Intermec equipment. You can be seriously injured,

and equipment and data can be damaged if you do not follow the safety warnings and

cautions.

Do not repair or adjust alone Do not repair or adjust energized equipment alone

under any circumstances. Someone capable of providing first aid must always be

present for your safety.

First aid Always obtain first aid or medical attention immediately after an injury.

Never neglect an injury, no matter how slight it seems.

Resuscitation Begin resuscitation immediately if someone is injured and stops

breathing. Any delay could result in death. To work on or near high voltage, you should

be familiar with approved industrial first aid methods.

Energized equipment Never work on energized equipment unless authorized by a

responsible authority. Energized electrical equipment is dangerous. Electrical shock

from energized equipment can cause death. If you must perform authorized emergency

work on energized equipment, be sure that you comply strictly with approved safety

regulations.

ScanPlus 1800ST Service Manual

Warnings, Cautions, and Notes

The warnings, cautions, and notes in this manual use this format:

Warning

A warning alerts you of an operating procedure, practice, condition, or statement

that must be strictly observed to avoid death or serious injury to the persons

working on the equipment.

Caution

A caution alerts you to an operating procedure, practice, condition, or statement

that must be strictly observed to prevent equipment damage or destruction, or

corruption or loss of data.

Follow ESD

Procedures

Follow ESD Procedures

This icon appears at the beginning of any procedure in this manual that could

cause you to touch components (such as printed circuit boards) that are susceptible

to damage from electrostatic discharge (ESD). When you see this icon, you must

follow standard ESD guidelines to avoid damaging the equipment you are

servicing.

Note: Notes are statements that either provide extra information about a topic or

contain special instructions for handling a particular condition or set of circumstances.

Page 1-3 lists cautions you must follow before repairing the 1800 scanner.

About This Manual

This manual will help you troubleshoot and repair the 1800 scanner. It also explains

how to replace parts and shows the spare parts lists.

This manual is written for service technicians who will troubleshoot and repair the

1800 scanner.

Repairing the 1800

1-3

This chapter explains how to open, assemble, and repair the ScanPlus 1800. It also

gives preliminary cautions to follow when servicing the 1800.

Cautions

Because finger oils can dissolve the reflective coating of the plastic mirrors, always

wear finger cots or non-powdered latex gloves when handling optical parts.

Caution

Always wear an anti-static bracelet when handling all PCB assemblies.

Caution

Never touch the optical surfaces of the mirror, reflector, or lenses, even when you are

wearing gloves.

Caution

Take all precautions to protect the plastic outer case from stains, marks, and

scratches.

ScanPlus 1800ST Service Manual

1-4

Replacing Parts

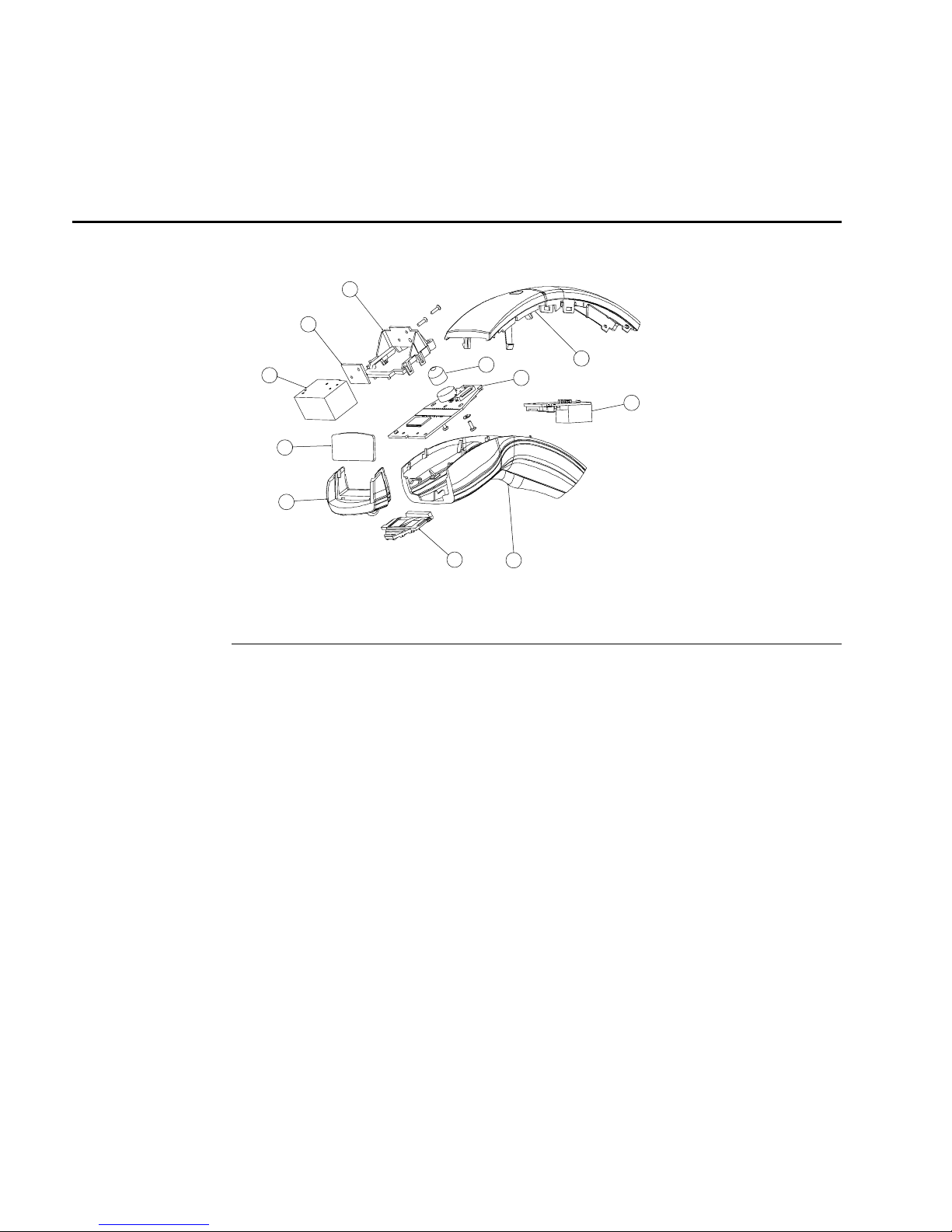

Thenext illustration showsthe parts of the 1800.

910

1800M001.eps

Spare Parts List

Description Callout

Number Part Number

Front rubber enclosure 13-360039-31

Exit window23-360039-31

Top shell assembly 33-360039-30

Trigger spring43-360039-31

Bottomshell assembly 53-360039-31

Scanengine63-360039-08

Laser absorber 73-360039-32

Laser frame83-360039-32

Buzzer cap 93-360039-32

MainPCB withlaser flex 10 3-360039-32

Connector PCB withconnector flex 11 3-360039-33
