Intermec Sabre 1551C Manuel utilisateur

Sabre 1551C Decoding

Laser Scanner

P/N 068442-002

Quick Reference Guide

1233*

FranklinGothic Helv Condensed

Intermec Technologies Corporation

6001 36th Avenue West

P.O. Box 4280

Everett, WA 98203-9280

U.S. service and technical support: 1-800-755-5505

U.S. media supplies ordering information: 1-800-227-9947

Canadian service and technical support: 1-800-688-7043

Canadian media supplies ordering information: 1-800-268-6936

Outside U.S. and Canada: Contact your local Intermec service

supplier.

The information contained herein is proprietary and is provided

solely for the purpose of allowing customers to operate and/or

service Intermec manufactured equipment and is not to be

released, reproduced, or used for any other purpose without the

written permission of Intermec.

Information and specifications in this manual are subject to

change without notice.

1998-2000 by Intermec Technologies Corporation

The word Intermec, the Intermec logo, JANUS, IRL,

TRAKKER, Trakker, Antares, Adara, Duratherm, EasyCoder,

EZBuilder, Precision Print, PrintSet, Virtual Wedge, and

CrossBar are trademarks of Intermec Technologies Corporation.

Throughout this manual, trademarked names may be used.

Rather than put a trademark (or ) symbol in every

occurrence of a trademarked name, we state that we are using

the names only in an editorial fashion, and to the benefit of the

trademark owner, with no intention of infringement.

1233*

FranklinGothic Helv Condensed

iii

Contents

Overview of the Sabre 1551C Laser Scanner 5

Unpacking the Sabre 1551C Laser Scanner 6

Understanding the Scanner Features 7

Light 7

Beeps 8

Electrical Rating 8

Ordering Cables 8

Connecting the 1551C Laser Scanner 12

Operating the Sabre 1551C Laser Scanner 13

Hand-Held Scanning 13

Hands-Free Scanning 14

Configuring the Marker Beam 15

Configuring for Selected Terminals 16

Troubleshooting 18

Maintaining the Sabre 1551C Laser Scanner 20

Accessories for the Scanner 20

Agency Approvals 22

Patents 23

1233*

FranklinGothic Helv Condensed

C39

Overview of the Sabre 1551C Laser Scanner

The Sabre 1551C laser scanner delivers quick, effortless bar

code scanning. You can use each type of scanner with a portable

terminal in Wand Emulation mode, but it is also designed to

collect data for a specific type of terminal as listed in this table.

Scanner Terminal

1551C0200 Compatible with DEC VT220/320/420 and devices

equipped with an RS-232 PC serial port or terminal

serial port.

1551C0201 An advanced long-range optics scanner with RS-232

PC or terminal serial ports that is compatible with the

same devices as the 1551C0200.

1551C0202 A long-range optics scanner with RS-232 PC or

terminal serial ports that is compatible with the same

devices as the 1551C0200.

1551C0204 A high-visibility optics scanner with RS-232 PC or

terminal serial ports that is compatible with the same

devices as the 1551C0200.

1551C0205 A high-density optics scanner with RS-232 PC or

terminal serial ports that is compatible with the same

devices as the 1551C0200.

1551C0700 Keyboard wedge interface for use with these personal

computers:

•IBM PC XT/AT or PS/2 Mod 30/50/60/80

compatible

•IBM 3151, 317X/318X/319X, 347X

•IBM Thinkpad

•Apple MAC ADB

•Zenith CruisePAD

•Laptops

•TTL RS232

1551C0702 A long-range optics scanner with keyboard interface for

use with the same personal computers as the

1551C0700.

Co de 39

Configurations (continued)

Scanner Terminal

1551C0704 A high-visibility optics scanner with keyboard

interface for use with the same personal computers as

the 1551C0700.

1551C0705 A high-density optics scanner with keyboard interface

for use with the same personal computers as the

1551C0700.

*Requires an external power supply. See the footnote on page 11 for part

numbers.

Terminals are continually being added to this list. Consequently,

some of the most recent additions may not be shown here.

Contact your local Intermec representative for a current list.

Unpacking the Sabre 1551C Laser Scanner

Your Sabre 1551C laser scanner was thoroughly tested and

inspected before it was shipped from the factory. The shipping

box contains the laser scanner and this document.

Note: Unless you have ordered a kit, you must order the

appropriate interface cables separately. For help, see “Ordering

Cables”later in this guide. For help configuring your scanner,

you may also need to order a Sabre 1551C Decoding Laser

Scanner User’s Manual (Part No. 066104) or find the manual on

the internet at www.intermec.com.

If any of these items are missing or damaged, please contact

your local Intermec representative. Retain the shipping box in

case you need to ship the scanner.

Understanding the Scanner Features

Please acquaint yourself with these important parts of the

scanner before continuing.

Light

The light indicates the status of the scanner.

Color Description

Yellow The device is scanning.

Green The bar code has been successfully scanned.

None The device is not scanning.

Sabre 1551C Laser Scanner Features

Light

Sound port

Trigger

Scan

window

Cable

1551Q.001

Co de 39

Beeps

The scanner emits these beeps to indicate either a successful

scan or a situation that requires your attention.

Beep Description

One medium beep A bar code has been read successfully

and you may scan another.

Two beeps (High, Low) A command bar code has been scanned.

Two medium beeps The scanner has been turned on.

Three medium beeps Indicates an error. For help, see

“Troubleshooting” later in this guide.

Electrical Rating

The Sabre 1551C laser scanner electrical ratings are

4,5 to

12V; 215 mA.

Ordering Cables

To order a cable, contact your local Intermec representative. Use

this table to determine which cable to order.

1551C020X

Reader/Terminal Cable

Connector Length Part No.

DEC VT220/320/420 8 Pin Modular 6 ft (1.83m) 068414-050

Intermec 944X, 9430,

95XX RJ11 Modular 6 ft (1.83m) 068414-011

Intermec 9465/9450,

J2050, JG2050 11 Pin Fisher 6 ft (1.83m) 068414-046

Intermec J2010,

JG2010, 97XX,

T242X, T246X,

T248X, 5020

10 Pin Modular 6 ft (1.83m) 068414-012

1551C020X

(cont.)

Reader/Terminal Cable

Connector Length Part No.

Intermec J2010,

JG2010, 97XX,

T242X, T246X,

T248X, 5020

10 Pin Modular 25 ft (1.83m) 068414-055

T2455 10 Pin Modular 6 ft (1.83m) 068414-056

T2455 10 Pin Modular 25 ft (7.63m) 068414-057

MaxiLAN CX,

MaxiLAN DX,

MicroBAR NX,

MaxiBAR, T1700,

5900, 6540 and other

manufacturer

reader/terminal

9 Pin Squeeze

D-Sub 6 ft (1.83m) 068414-063

T241X 16 Pin Amp 6 ft (1.83m) 068414-060

RS-232 DCE* 25 Pin Male

D-Sub 6 ft (1.83m) 068414-001

RS-232 DCE* 25 Pin Male

D-Sub 25 ft (7.71m) 068414-049

RS-232 DTE, 6400,

6550, 5055** 9 Pin Female

D-Sub 6 ft (1.83m) 068426

RS-232 DCE* 25 Pin Female

D-Sub 6 ft (1.83m) 068414-002

RS-232 DCE** 9 Pin Male D-Sub 6 ft (1.83m) 068414-039

RS-232 DCE* 9 Pin Female

D-Sub 6 ft (1.83m) 068414-042

RS-232 DCE* 9 Pin Male D-Sub 6 ft (1.83m) 068414-043

RS-232 DTE** 9 Pin Female

D-Sub 20 ft (6.10m) 068414-044

RS-232 DTE* 25 Pin Male

D-Sub 6 ft (1.83m) 068414-003

RS-232 DTE* 25 Pin Female

D-Sub 6 ft (1.83m) 068414-004

Co de 39

Ordering Cables (continued)

1551C020X

(cont.)

Reader/Terminal Cable

Connector Length Part No.

RS-232 DCE** 9 Pin Female

D-Sub 6 ft (1.83m) 068414-040

RS-232 DTE** 9 Pin Male D-Sub 6 ft (1.83m) 068414-041

RS-232 DTE, 6400,

6550, 5055** 9 Pin Female

D-Sub 20 ft (6.10m) 068414-045

RS-232 DCE, 6400,

6550, 5055** 9 Pin Female

D-Sub 15 ft (4.60m) 068414-051

MaxiLAN CX, DX,

6540* 9 Pin Female

D-Sub 6 ft (1.83m) 068414-042

1551C070X

Apple Mac ADB Y 4 Pin Mini-DIN 6 ft (1.83m) 068414-024

DEC VT510/520,

PS/2 30/50-80 Y 6 Pin Mini-DIN 6 ft (1.83m) 068414-006

Esprit 200, 400 Y 6 Pin Mini-DIN 6 ft (1.83m) 068414-006

IBM 3151, 347X Y 8 Pin Modular 6 ft (1.83m) 068414-007

IBM 317X, 318X,

319X 5 position DIN 6 ft (1.83m) 068414-030

IBM ThinkPad 6 Pin Mini-DIN 6 ft (1.83m) 068414-025

Intermec 944X, 9430,

95XX RJ11 Modular 6 ft (1.83m) 068414-011

Intermec 9465/9450,

J2050, JG2050 11 Pin Fisher 6 ft (1.83m) 068414-046

Intermec J2010,

JG2010, 97XX,

T242X, T248X, 5020

10 Pin Modular 6 ft (1.83m) 068414-012

Intermec J2010,

JG2010, 97XX,

T242X, T248X,

T246X, 5020

10 Pin Modular 25 ft (1.83m) 068414-055

Autres manuels pour Sabre 1551C

Table des matières

Autres manuels Intermec Scanner

Intermec

Intermec SR61T Manuel utilisateur

Intermec

Intermec MaxiScan 2220 Manuel

Intermec

Intermec Sabre 1552 Scanner Manuel utilisateur

Intermec

Intermec SF51 Manuel utilisateur

Intermec

Intermec MaxiScan 3100 Manuel utilisateur

Intermec

Intermec MaxiScan 2220 Manuel utilisateur

Intermec

Intermec MaxiScan 2100 Manuel utilisateur

Intermec

Intermec Trakker Antares 2420 Manuel utilisateur

Intermec

Intermec Sabre 1545 Manuel

Intermec

Intermec SG20T Manuel utilisateur

Intermec

Intermec Sabre 1400 Manuel

Intermec

Intermec Microbar 9745 Base Station Manuel utilisateur

Intermec

Intermec SG20B Manuel utilisateur

Intermec

Intermec SR31T Manuel utilisateur

Intermec

Intermec IF30 Manuel

Intermec

Intermec Sabre 1517 Manuel

Intermec

Intermec MaxiScan 2300 Manuel utilisateur

Intermec

Intermec MaxiScan 3300 Manuel utilisateur

Intermec

Intermec Trakker Antares 2480 Manuel utilisateur

Intermec

Intermec MaxiScan 2200 Manuel utilisateur

Intermec

Intermec MaxiScan 2200 Manuel utilisateur

Intermec

Intermec MaxiScan 3010 Manuel utilisateur

Intermec

Intermec 1550 Series Manuel utilisateur

Intermec

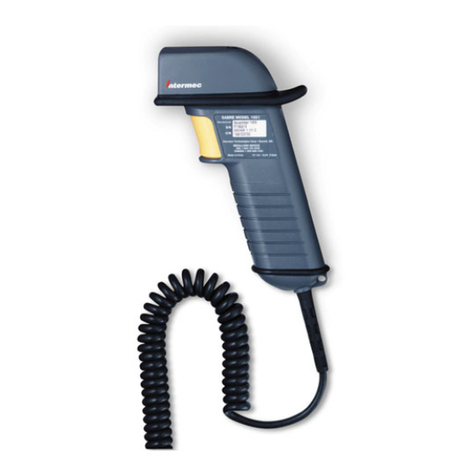

Intermec Sabre 1551 Manuel utilisateur
