Intermec EasyCoder 101 Manuel

EasyCoder F/XP-Series

Bar Code Label Printers

EasySet Bar Code Wand Setup

P/N 1-960560-00

Edition 1

November 2001

Intermec EasyCoder F/XP-Series – EasySet Bar Code Wand Setup, Ed. 1 1

Chapter 1

1. Connection and Operation

1. Connect the optional EasySet bar code wand to the receptacle

on the printer’s rear plate.

3. When the bar code has been accepted, the printer emits a

short beep and the “Ready”control lamp on the printer’s

front blinks brieﬂy.

2. Read the appropriate bar code to set up the printer. Hold the wand

like a pencil and move it swiftly across the bar code.

Connect

here!

EasyCoder F/XP-Series

EasySet Bar Code Wand Setup

Edition 1, November 2001

Part No. 1-960560-00

Intermec EasyCoder F/XP-Series –EasySet Bar Code Wand Setup, Ed. 1 2

Chapter 2

The only bar code that can be used eith the EasySet bar code wand is

a Code 128 containing the function character FNC3 (ASCII 130 dec).

If the FNC character is missing, the printer will regard the bar code

as containing ordinary ASCII input to the "wand:" device.

The syntax for the bar code input data is:

START FNC3 CODE C <setup id1> <setup value1>[<setup

id2> <setup value2> .................. <checksum> STOP

The setup bar code may contain up to 100 bars, which corresponds

to 15-16 characters.

Intermec Fingerprint creates START, CODE C, checksum and

STOP automatically, so the only data you need to add to print a setup

bar code is FNC3, the setup id, and the setup value.

Setup id is a two-digit number that speciﬁes the setup parameter

to be changed.

Setup value can be of three types:

•List index, which means a post in a list of ﬁxed options speciﬁed

by two digits.

•Unsigned number, which means a positive value in the range

0000 to 9999 speciﬁed by four digits. In the list on the pages to

follow, unsigned numbers are represented by “UUUU”.

•Signed number, which means a negative value in the range

-5000 to + 4999 speciﬁed by four digits. To avoid having to

use a minus sign (-) in the bar code, there is a negative offset

of 5000, which means that:

- Input value 5000 corresponds to the setup value 0

- Input value 0 corresponds to the setup value -5000

- Input value 9999 corresponds to the setup value 4999.

In the list on the pages to follow, signed numbers are represented

by “SSSS”.

2. Creating Setup Bar Codes

Introduction

Intermec EasyCoder F/XP-Series –EasySet Bar Code Wand Setup, Ed. 1 3

Chapter 2 Creating Setup Bar Codes

Introduction, cont.

Example:

Creating a bar code, which sets the contrast to -10% and the stop

adjust value to 500:

10 BARSET "CODE128",2,1,3,240 (speciﬁes bar code)

20 A$ = CHR$(130) (FNC3)

30 B%=7000 (contrast: setup id +

list index)

40 C% = 915500 (stop adjust: setup id +

signed number)

50 PRBAR A$;B%;C% (bar code input)

60 PRINTFEED (print bar code)

RUN (execute)

Intermec EasyCoder F/XP-Series –EasySet Bar Code Wand Setup, Ed. 1 4

Chapter 2 Creating Setup Bar Codes

Serial Communication

Parameter Setting Setup ID Setup

uart1: uart2: uart3: Value

BAUDRATE 300 00 20 40 00

600 00 20 40 01

1200 00 20 40 02

2400 00 20 40 03

4800 00 20 40 04

9600 00 20 40 05

19200 00 20 40 06

38400 00 20 40 07

57600 00 20 40 08

115200 00 n.a. n.a. 09

PARITY none 01 21 41 00

even 01 21 41 01

odd 01 21 41 02

mark 01 21 41 03

space 01 21 41 04

CHAR LENGTH 7 bits 02 22 42 00

8 bits 02 22 42 01

STOPBITS 1 bit 03 23 43 00

2 bits 03 23 43 01

FLOWCONTROL, RTS/CTS Enable 04 24 44 00

Disable 04 24 44 01

FLOWCONTROL,ENQ/ACK Enable 05 25 45 00

Disable 05 25 45 01

FLOWCONTROL,XON/XOFF,DATA TO HOST Enable 06 26 46 00

Disable 06 26 46 01

FLOWCONTROL,XON/XOFF,DATA FROM HOST Enable 07 27 47 00

Disable 07 27 47 01

NEW LINE CR/LF 08 28 48 00

LF 08 28 48 01

CR 08 28 48 02

REC BUF 0000 to 9999 09 29 49 UUUU

TRANS BUF 0000 to 9999 10 30 50 UUUU

BAUDRATE,PARITY,CHAR LENGHT,STOPBITS see note! 15 35 55 see note!

Note: This setup bar code is used to change all four parameters using a generic ID, followed by the setup values according

to each parameter in the list. For example to set "uart1:" for baudrate 19200, parity none, char length 7, and stopbits

2, use this input data to the bar code: 1506000001.

Intermec EasyCoder F/XP-Series –EasySet Bar Code Wand Setup, Ed. 1 5

Chapter 2 Creating Setup Bar Codes

Feed Adjust

Parameter Setting ID Value

FEEDADJ,STARTADJ -5000 to +4999 90 SSSS

FEEDADJ,STOPADJ -5000 to +4999 91 SSSS

Media

Parameter Setting ID Value

MEDIA,CONTRAST -10% 70 00

-8% 70 01

-6% 70 02

-4% 70 03

-2% 70 04

±0% 70 05

+2% 70 06

+4% 70 07

+6% 70 08

+8% 70 09

+10% 70 10

MEDIA,MEDIA SIZE,XSTART 0000 to 9999 71 UUUU

MEDIA,MEDIA SIZE,WIDTH 0000 to 9999 72 UUUU

MEDIA,MEDIA SIZE,LENGTH 0000 to 9999 73 UUUU

MEDIA,MEDIA TYPE Label (w gaps) 74 00

Ticket (w mark) 74 01

Ticket (w gaps) 74 02

Fix Length Strip 74 03

Var Length Strip 74 04

MEDIA,PAPER TYPE Direct Thermal 75 00

Transfer 75 01

MEDIA,PAPER TYPE,TRANSFER,RIBBON CONSTANT 0000 – 9999 76 UUUU

MEDIA, PAPER TYPE,TRANSFER,RIBBON FACTOR 0000 – 9999 77 UUUU

MEDIA, PAPER TYPE,TRANSFER,LABEL OFFSET -5000 – +4999 78 SSSS

MEDIA, PAPER TYPE,DIRECT THERMAL,LABEL CONSTANT 0000 – 9999 79 UUUU

MEDIA, PAPER TYPE,DIRECT THERMAL,LABEL FACTOR 0000 – 9999 80 UUUU

MEDIA,PAPER TYPE,TRANSFER,RIBBON CONSTANT,RIBBON FACTOR,LABEL OFFSET 81 see note

MEDIA,PAPER TYPE,DIRECT THERMAL,LABEL CONSTANT,LABEL FACTOR 82 see note

Note: This setup bar code is used to change all three or four parameters using a generic ID, followed by the setup values

according to each parameter in the list. For example, to set paper type to transfer, ribbon constant to 110, ribbon factor to 35,

and label offset to 0, use this input data to the bar code: 8101011000355000.

Intermec EasyCoder F/XP-Series – EasySet Bar Code Wand Setup, Ed. 1 6

Chapter 2 Creating Setup Bar Codes

Media, cont.

Parameter Setting ID Value

MEDIA,TESTFEED see note 2 83 see note

Note: The input data to a testfeed setup bar code is 83UUUUUUUU, where the first 4 digits specify the comparator

value, and the second 4 digits specify the gain value.

Print Defines

Parameter Setting ID Value

PRINT DEFS, PRINT SPEED 0000 to 9999 60 UUUU

PRINT DEFS,TESTPRINT Test Label #1 61 00

Test Label #2 61 01

Test Label #3 61 02

Test Label #4 61 03

Test Label #5 61 04

Intermec EasyCoder F/XP-Series –EasySet Bar Code Wand Setup, Ed. 1 7

Chapter 3

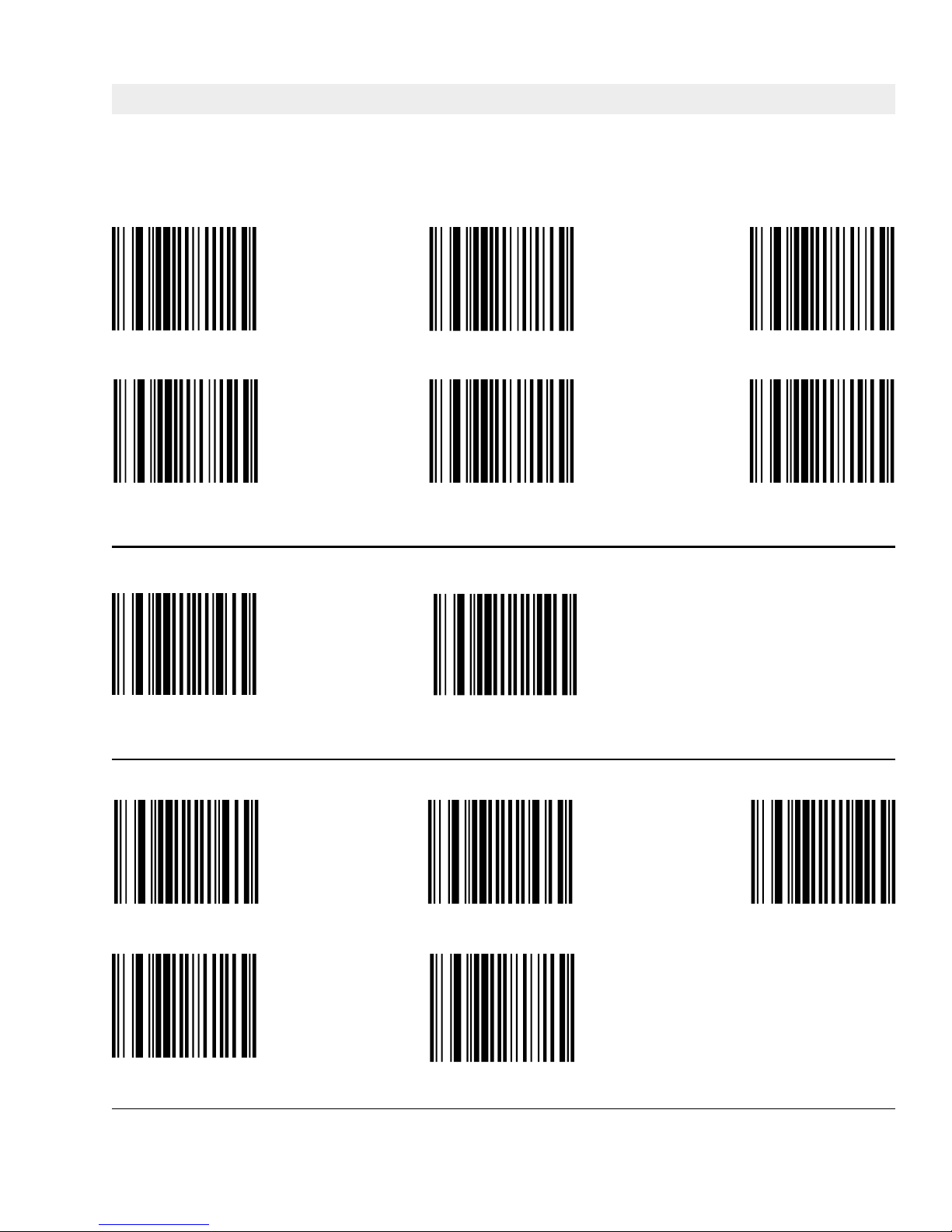

Serial Communication on "uart1:" (All)

Baud Rate

4800 9600 19200

38400 57600

115200

Parity

None Even

Odd

Mark

Space

Char. Length

Intermec EasyCoder F/XP-Series –EasySet Bar Code Wand Setup, Ed. 1 8

Chapter 3 Setup Bar Code Samples

Serial Communication on "uart1:" (All), cont.

No. of Stop Bits

RTS/CTS

XON/XOFF, Data to Host

Reset comm. to default

1 2

Enable Disable

DisableEnable

Enable Disable

9600-8-none-1

ENQ/ACK

Intermec EasyCoder F/XP-Series –EasySet Bar Code Wand Setup, Ed. 1 9

Chapter 3 Setup Bar Code Samples

XON/XOFF, Data from Host

New Line

Enable Disable

CR/LF

Serial Communication on "uart1:" (All), cont.
