Intermec EasyCoder 3400e Manuel utilisateur

3400, 4420, and 4440 Cutter

P/N 066391-001

User’s Manual

Intermec Technologies Corporation

6001 36th Avenue West

P.O. Box 4280

Everett, WA 98203-9280

U.S. service and technical support: 1-800-755-5505

U.S. media supplies ordering information: 1-800-227-9947

Canadian service and technical support: 1-800-688-7043

Canadian media supplies ordering information: 1-800-268-6936

Outside U.S. and Canada: Contact your local Intermec service supplier.

The information contained herein is proprietary and is provided solely for the purpose of allowing

customers to operate and/or service Intermec manufactured equipment and is not to be released,

reproduced, or used for any other purpose without written permission of Intermec.

Information and specifications in this manual are subject to change without notice.

1998 by Intermec Technologies Corporation

The word Intermec, the Intermec logo, JANUS, IRL, TRAKKER, Antares, Adara, Duratherm,

EZBuilder, Precision Print, PrintSet, Virtual Wedge, and CrossBar are either trademarks or

registered trademarks of Intermec Technologies Corporation. Throughout this manual, trademarked

names may be used. Rather than put a trademark (or ) symbol in every occurrence of a

trademarked name, we state that we are using the names only in an editorial fashion, and to the

benefit of the trademark owner, with no intention of infringement.

Introduction to the Cutter

This manual explains how to install and clean the cutter on your 3400, 4420, or 4440

printer. It also explains how to enable the cutter using PrintSet.

Introduction to the Cutter

With the cutter on your 3400, 4420, or 4440 printer, you can cut media into

individual labels of the same or random lengths that are ready for use. The

cutter blade is capable of cutting a wide range of die cut roll, continuous roll, or

fanfold media; however, the cutter performs best with 7- to 10-mil thickness tag

stock.

The cutter is mounted externally on the printer and cannot be used in

conjunction with the self-strip/batch takeup option.

Note: If you use the cutter on adhesive backed materials, cut the liner between the

labels. Cutting through adhesive is not recommended. You will need to clean the cutter

every 10,000 cuts or when it fails to cut cleanly if you cut through adhesive backed

material.

Cutter Parts and Function

The following table describes the parts and function of the cutter and how they

connect to the printer.

Name Description

Mounting plate Attaches the cutter to the printer. The mountin

plate has a

sprin

mounted hin

e that allows the cutter to swin

down so

that media can be fed easily through the cutter.

Cutter cable Powers and sends commands from the main PCB to the cutter.

Cutter connector Connects the cutter cable to the main PCB.

Cutter cover Prevents fin

ers from comin

into contact with the cutter blade.

It opens easily for cleaning.

Cutter blade Cuts the media when the printer reaches the end of the label.

Thumbscrews Attach the mountin

plate to the cutter and the cutter to the

mounting plate.

3400, 4420, and 4440 Cutter User’s Manual

Attaching the Cutter

1. Turn off the printer.

2. Unplug the printer power supply cord.

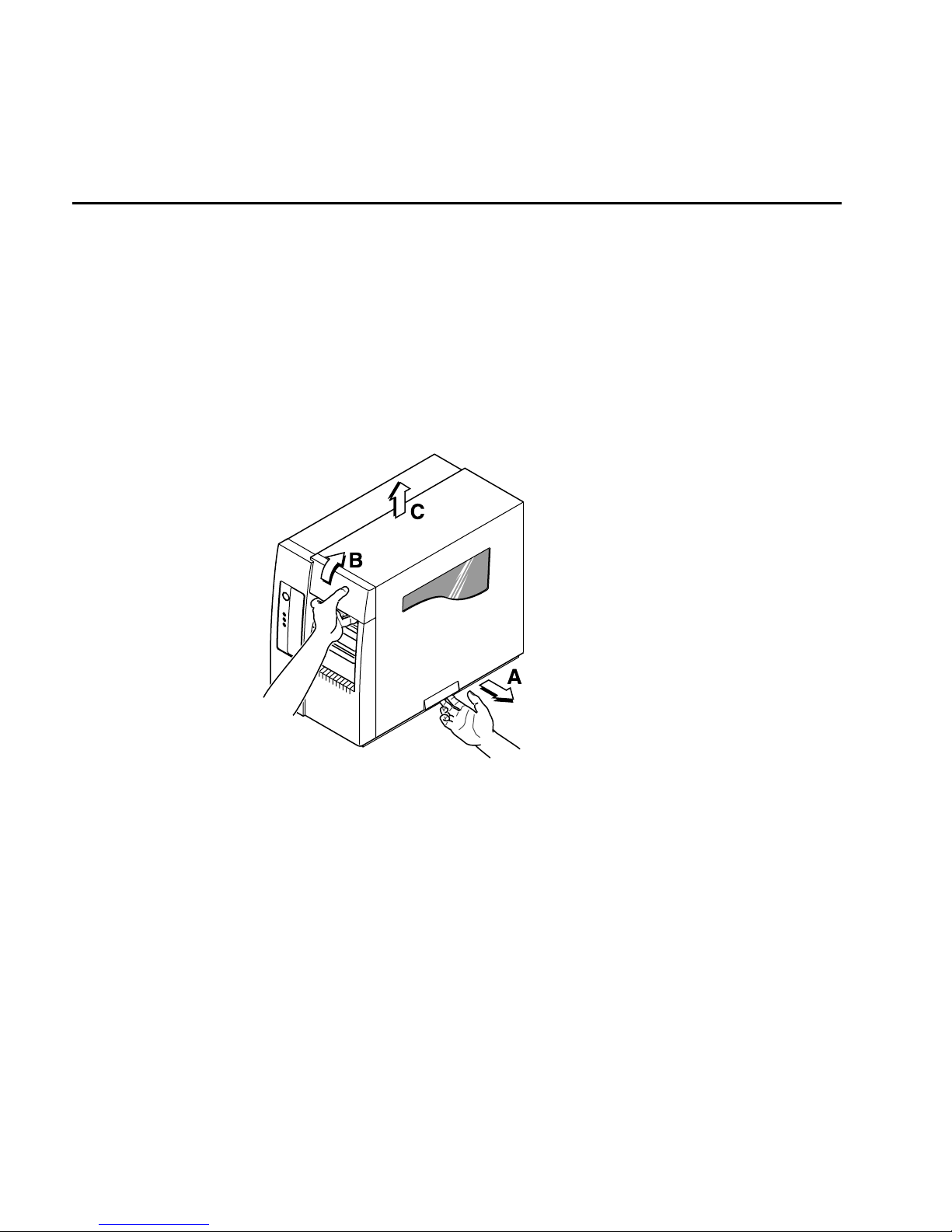

3. Remove the media cover.

A. Pull the bottom of the media cover away from the base of the printer.

B. Lift the front of the media cover upward to release it from the printer

frame.

C. Lift the media cover away from the top of the printer.

44XXU.001

Feed/Pause

Power/Data

Alert

Empty/Pause

IntermecIntermec

4420

4. Turn the head lift lever clockwise and pull the media back to the printhead.

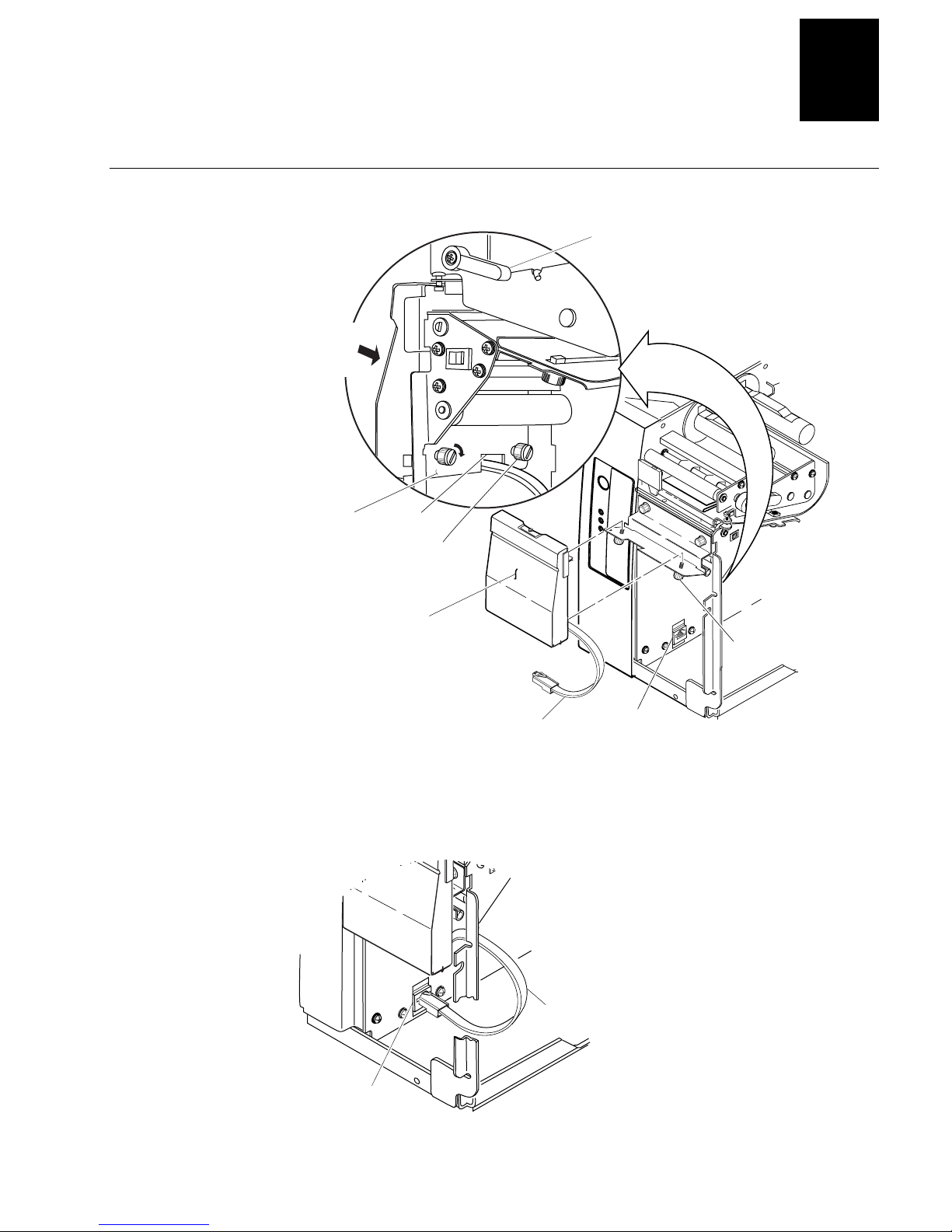

5. Push down on the mounting plate below the hinge and hold it down with

the cutter pressed against the mounting plate.

6. Using the thumbscrews on the mounting plate, attach the cutter to the

mounting plate. Make sure the cutter cable goes through the notch in the

mounting plate.

Attaching the Cutter

Attaching the Cutter to the Mounting Plate

Feed/Pause

Power/Data

Alert

Empty/Pause

Intermec

4420

44XXU.002

Front of

cutter

Cutter

connector

Cutter

cable

Front of

cutter

Mounting

plate

Thumbscrew

Head lift

lever

Cable

notch

Thumbscrew

7. Plug the cutter cable into the cutter connector at the base of the inside wall

of the printer.

44XXU.003

Cutter

connector

Cutter

cable

3400, 4420, and 4440 Cutter User’s Manual

8. Feed the media through the cutter. The media should extend out past the

opening in the cutter cover.

Feed/Pause

Power/Data

Alert

Empty/Pause

IntermecIntermec

4420

Cutter

cover

44XXU.004

9. Turn the head lift lever counterclockwise to secure the printhead.

10. Replace the media cover.

11. Plug in the printer power supply cord.

12. Turn on the printer.

Enabling the Cutter

The following instructions use PrintSet to enable the cutter, but you can also

use the IPL to enable the cutter. For help, see the IPL Programming Reference

Manual.

1. Start PrintSet on your PC.

Note: Under the Printer Select menu, check that PrintSet is set up for your printer

configuration (3400, 4420, or 4440). To customize the configuration for your

printer, see the Help menu.

2. Click the Paper Handling button.

3400, 4420, and 4440 Cutter User’s Manual

3. From the Paper Handling dialog box, select Cutter.

4. Choose OK.

Note: If you want to change other configuration settings, you should do so before

going to Step 5. For help changing the configuration, see the Help menu.

5. Choose the Send Command button.

A message box appears asking if you want to overwrite the current printer

settings. Choose send to enable the cutter with either the default printer

configuration or the configuration you have created.

6. Exit PrintSet.

Note: To disable the cutter, use this procedure but deselect Cutter at Step 3.

Cleaning the Cutter

It is important that you routinely clean the cutter to keep it in excellent working

condition. If you are cutting through adhesive-backed media, you should clean

the cutter after every 10,000 cuts. To see the number of cuts made, print out a

hardware configuration test label as described in your printer user’s manual.

The information following “Labels Cut” indicates how many labels have been

cut since the cutter was installed. Use this number to determine when to clean

the cutter.

If you are not using adhesive-backed media, you should clean the cutter when

it no longer cuts precisely.

Warning

Use extreme caution when cleaning the cutter to avoid cutting yourself.

Avertissement

Lors du nettoyage de la barre coupante, prenez bien soin de ne pas vous

couper.

To clean the cutter blade and paper guide

1. Turn off the printer.

2. Unplug the printer power supply cord and the cutter cable.

3. Turn the head lift lever clockwise and back the media out of the cutter.

4. Using a straight-slot screwdriver, loosen the screw on the top of the cutter

and swing the cutter cover down.

Feed/Pause

Power/Data

Alert

Empty/Pause

IntermecIntermec

4420

Cutter

cover

44XXU.005

3400, 4420, and 4440 Cutter User’s Manual

5. Push down on the tab so that the cutter blade swings forward.

Feed/Pause

Power/Data

Alert

Empty/Pause

IntermecIntermec

4420

44XXU.006

Tab

Cutter

blade

6. With a cotton swab moistened with alcohol, clean the blade.

Note: Do not clean or get alcohol on the lubricated portions of the cutter.

7. Swing the blade up.

8. Remove any dust or media debris from inside the cutter.
