2 Model 730 Color Quick Start Guide

Thank you

for purchasing the Intermec

Model730ColorMobileComputerwith

Microsoft Windows Mobile 2003. You will

find your Model 730 useful in a variety of

applications. Its integrated peripherals and

rugged design ensure reliable service for years

to come.

This guide provides information needed to get

started using your Model 730. For more de-

tailed information refer to “Where to Find

More Information” on page 20 of this guide.

3Model 730 Color Quick Start Guide

Table of Contents

Model 730 Color Mobile Computer

Description 4.................

Setting up your Model 730 5...........

Learning About the Keypad 7...........

Gold Plane Keys 7.............................

Alpha Blue Plane Keys-Numeric Keypad 7..........

Linear Imager/Keypad Shift and Notification LED 8...

Action and Up/Down Navigational Buttons 8........

Battery Status LED 9..........................

About Microsoft Windows Mobile 2003

software for Pocket PC 10.......

The Today Screen 11..........................

Navigation Bar and Command Bar 12..............

Pop-up Menus 12.............................

Entering Information 13........................

Battery Management 14...............

Linear Imager 15.....................

Data Collection Applet 15.............

Wireless Printing 16..................

Wireless Network 17..................

Warm Resetting Your Model 730 17.....

Cold Resetting Your Model 730 18......

Troubleshooting 18...................

Cleaning Your Model 730 20...........

Case and Display 20...........................

Where to Find More Information 20.....

End User License Agreement 21.........

Intermec Technologies Corporation

End User License Agreement 26..

Product Warranty 27.................

Obtaining Warranty Service 27...................

Patent Information 28................

4 Model 730 Color Quick Start Guide

Model 730 Color Mobile Computer

Description

Front View

Backlight

(Gold + 3)

Gold plane

key

ON/OFF

Navigational

key

Imager/

Alpha

LED Power

Status

LED

Alpha (Blue)

plane key

Battery

compartment

Speaker

Stylus

IrDA

Back View

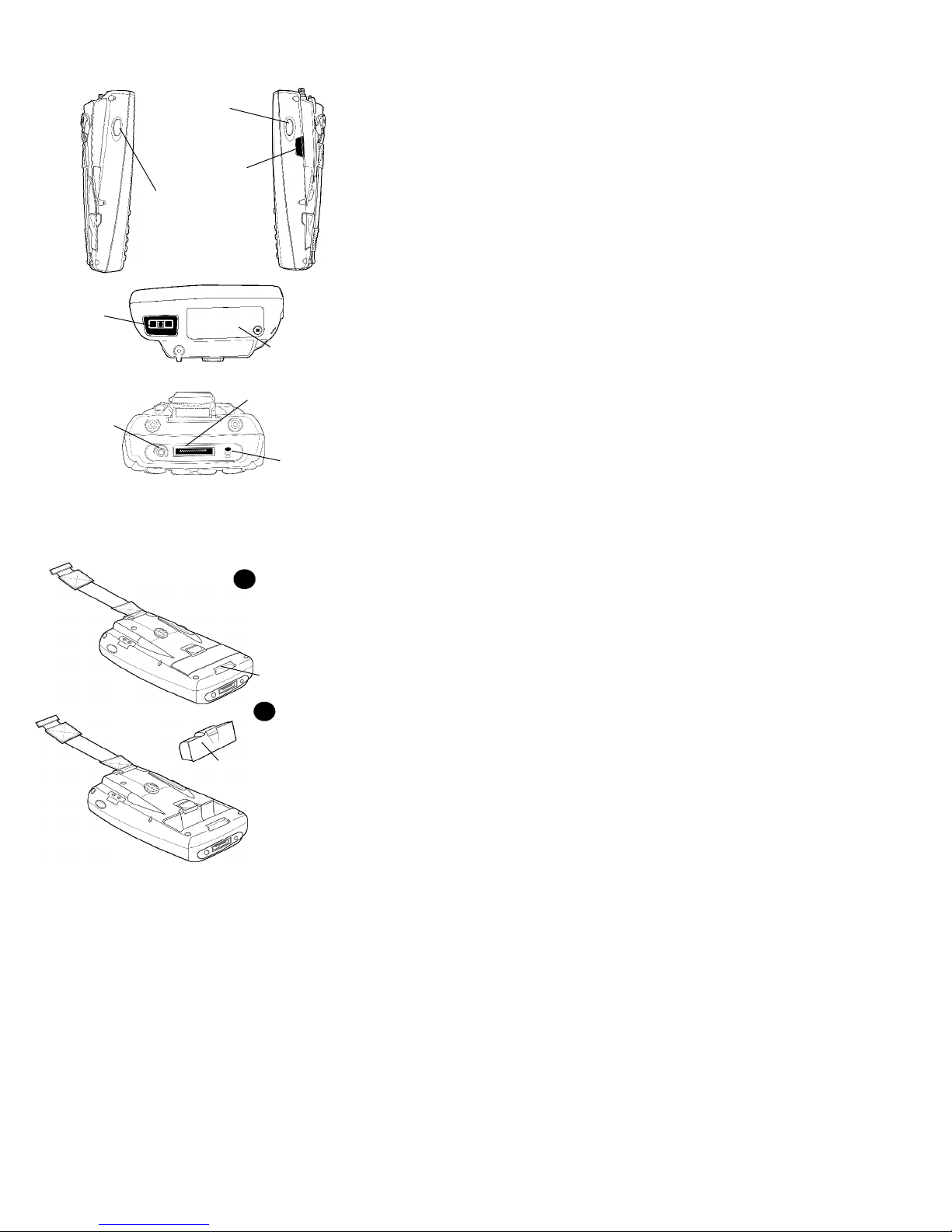

5Model 730 Color Quick Start Guide

IrDA

Scanner trigger

Charging/Docking

connector

Microphone

Headset

jack

Scanner trigger or

Recorder button

left side of unit

Linear

Imager

lens Secure Digital

(SD) card slot

Setting Up Your Model 730

Battery pack

Hand strap clip-in slot

Unclip Hand Strap

and move Hand Strap

outoftheway.

Remove Battery

Pack and insert

new or fresh pack.

Replace Hand

Strap when done.

6 Model 730 Color Quick Start Guide

1Insert SD card (if applicable).

Remove the cover

screw and lift

cover off

Reinstall cover

Insert SD Card

into card slot

with label side

toward keypad.

2Connect to AC Adapter or dock (dock not

shown).

3Charge battery pack (4 hours) before us-

ing. However, to ensure proper charging,

perform the remaining steps first, with the

AC adapter or dock connected.

4ThefirsttimeyouturnonyourModel730

it boots to the operating system. After a

few seconds you see the Windows Mobile

2003 Welcome screen. Tap your stylus to

advance to the next screen.

7Model 730 Color Quick Start Guide

5Youwillbepromptedthroughtheseveral

screens to complete the setup process. Read

the display messages and follow the in-

structions. When you reach the Windows

Mobile Today screen, you have completed

the setup.

Learning About The Keypad

Gold Plane Keys

The Gold bplane keys provide you access to

display controls, special characters, and Win-

dows Mobile 2003 options.

Press the gold bkey for each gold plane key

stroke you wish to make. For example to turn

on the front light, press and hold the gold b

key plus the 3key. To turn the front light

off press and hold the gold and the 3key

again.

Alpha (Blue) Plane Keys-Numeric

Keypad

The Alpha (Blue) Fplane keys work a bit

differently than the gold plane keys. When

you press the Alpha key, the Imager/Alpha

CLED lights ‘red’ to indicate Alpha mode.

ThekeypadstaysintheAlphamodeuntilyou

press it again.

For example, pressing the Alpha Fkey and

the 1key allows the next letter to be capi-

talized. Again it stays in this mode until you

press the Alpha key again.

Another example of how this works, if you

want to type a ‘c’ press the Fkey and the

2key three times. If you need a letter that

is on the same key as the last letter entered,

wait two seconds after you pressed the last key

8 Model 730 Color Quick Start Guide

then you can enter the correct series of key-

strokes to create the next letter.

Linear Imager/Keypad Shift and

Notification LED

The Linear Imager/Keypad Shift and Noti-

fication LED Cturns red, green, or yel-

low.

SMomentary Green:Indicatesa‘goodscan’.

SBlinking Green: Indicates that the imager

is initializing.

SSteady Red: Indicates the keypad is shifted

totheAlpha(Blue)planeandtheModel

730 is On.

SYellow:Whenkeypadisinalphamode,

the LED momentarily changes from red to

yellow indicating a ‘good scan’.

ThisLEDisalsotheWindowsMobile

2003 Notification signal. It blinks yellow at

regular intervals indicating a Calendar or

Task activity occurred.

Action and Up/Down Navigational

Buttons

SAction button:Presstoopenanitem(simi-

lar to pressing ENTER on the keypad).

SUp/Down controls: Press to scroll through

a list (similar to pressing the arrow keys on

akeyboard).

9Model 730 Color Quick Start Guide

Battery Status LED

Power to run your Model 730 is supplied by a

powerful Li-Ion battery pack designed to give

you approximately 6-10 hours of operation

(depending on application). In addition, your

Model 730 contains backup capabilities to

prevent loss of data when the main battery is

discharged or when switching out battery

packs.

For maximum effectiveness it is important to

leave the main battery installed in your Model

730 even if it is discharged. If the main bat-

tery is removed, it should be replaced within

10 minutes to avoid the possibility of data

loss.

The Battery status LED Bturns red,

green, or yellow.

SSteady Green: Battery is more than 95%

charged and unit is on a charger.

SBlinking Red: Battery is low. The speed of

the blinking increases as the battery’s power

gets increasingly lower.

SRed: Main battery is low, or if charging,

will remain red until your Model 730

reaches 95% charge status.

SYellow:YourModel730isonacharging

source and there is no battery pack

installed.CanalsomeanthatyourModel

730 is out of charging range 32°to 122°F

(0°to 50°C). Once your Model 730 gets

back in range, charging resumes and the

LED changes to red or green.

SAlternating between Red and Yellow: The

battery pack needs to be replaced.

10 Model 730 Color Quick Start Guide

About Microsoft Windows Mobile

2003 software for Pocket PC

Your Model 730 comes with Microsoft Win-

dows Mobile 2003 software preloaded. For

more information regarding:

SPrograms on your device: See the 700 Series

Color Mobile Computer User’s Manual (p/n:

961-054-031) or access the Help screen on

the Start Menu. To view Help, tap

then tap Help.

SAdditional programs that can be installed

on the device: The Windows Mobile 2003

Companion CD (included with your Model

730).

SConnecting to and synchronizing with a

desktop computer: ActiveSync Help on

your desktop computer. To view Help,

click Help and then Microsoft ActiveSync

Help.

SLast-minute updates and detailed technical

information: The Readme files, located in

the Microsoft ActiveSync folder on the

desktop computer and on the Windows Mo-

bile 2003 Companion CD.

SUp-to-date information on Windows Mo-

bile 2003: <http://www.microsoft.com/

windowsmobile>
