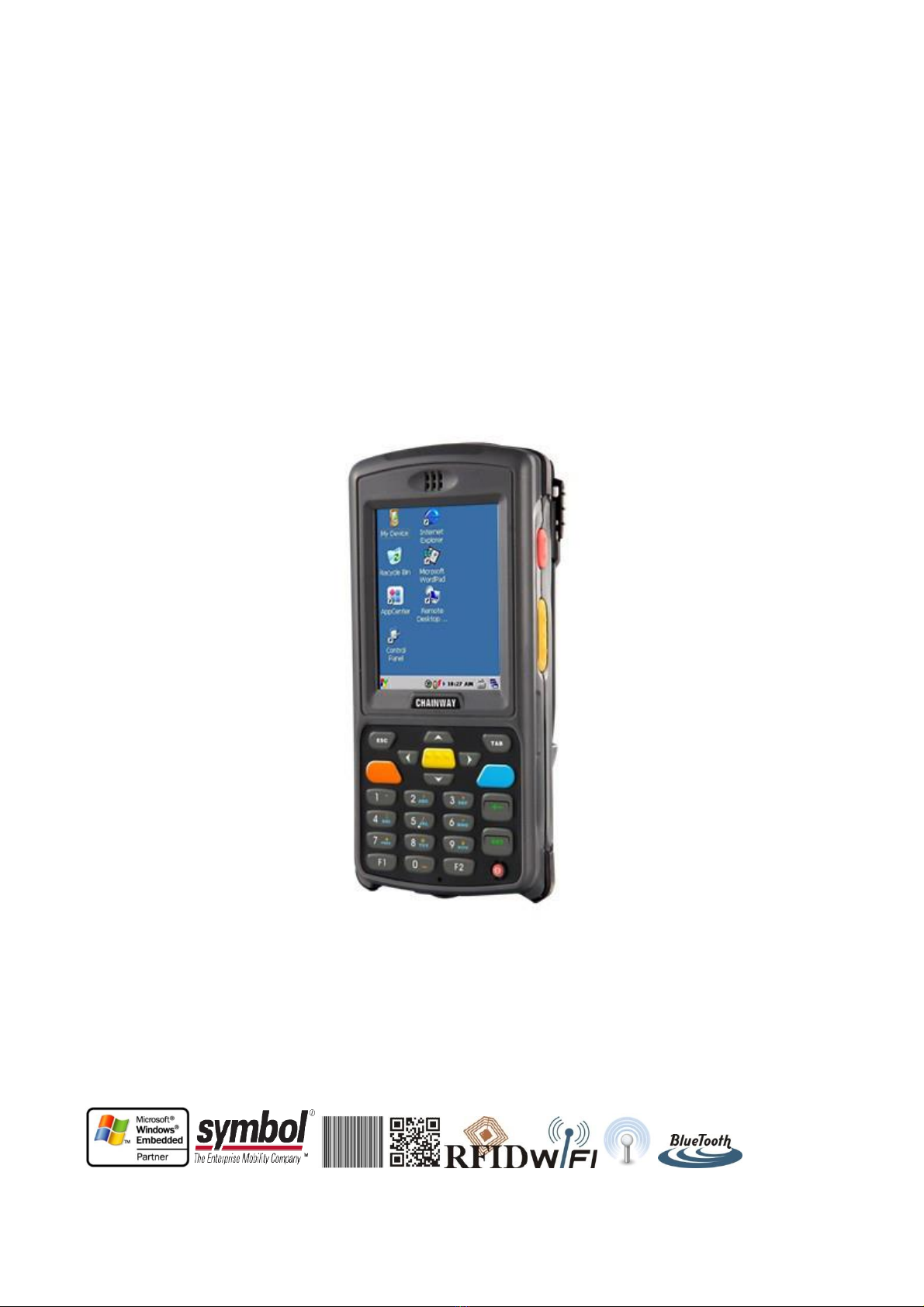

C2000 Mobile Data Terminal

User Manual

○

No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,

without permission written from Chainway. This includes electronic or mechanical means, such as

photocopying, recording, or information storage and retrieval systems. The material in this manual is subject

to change without notice.

The software is provided strictly on an “as is”basis. All software, including firmware, furnished to the user is

on a licensed basis. Chainway grants to the user a non-transferable and non-exclusive license to use each

software or firmware program delivered hereunder (licensed program). Except as noted below, such license

may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of

Chainway. No right to copy a licensed program in whole or in part is granted, except as permitted under

with other program material, create a derivative work from a licensed program, or use a licensed program in

a network without written permission from Chainway.

Chainway reserves the right to make changes to any software or product to improve reliability, function, or

design.

Chainway does not assume any product liability arising out of, or in connection with, the application or use

of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under any Chainway

intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained

in Chainway products.

Bluetooth is a registered trademark of Bluetooth SIG. Microsoft, Windows and ActiveSync are either

registered trademarks or trademarks of Microsoft Corporation. All other product or service names are the

property of their respective owners.

Chainway Information Technology Co., Ltd

Address: 9/F, Building 2, Phase 2, Gaoxinqi Industrial Park, Liuxian 1st Rd, District 67, Bao’an,

Shenzhen

Zip Code：518057

Telephone：400-0755-23223300

Fax: 0755-23223310

Web Site: www.chainway.net

Email:sales@chainway.cn

CATALOGUE

Chapter 1 Product Introduction ...............................................................................- 6 -

1.1 Technical Parameters..........................................................................................- 6 -

1.2 Accessories ..........................................................................................................- 8 -

Chapter 2 Getting Started ........................................................................................- 9 -

2.1 Introduction.........................................................................................................- 9 -

2.2 TF card ...............................................................................................................- 11 -

2.3 Stand-by and Wake-up.......................................................................................- 12 -

2.3.1 Suspend............................................................................................................- 12 -

2.3.2 Wake-up...........................................................................................................- 12 -

2.3.3 Power on..........................................................................................................- 12 -

2.3.4 Power off..........................................................................................................- 12 -

2.4 Taskbar ..............................................................................................................- 13 -

2.5 Desktop..............................................................................................................- 15 -

Chapter 3 System Settings .....................................................................................- 16 -

3.1. Internet Options .................................................................................................- 18 -

3.2. PC Connection....................................................................................................- 20 -

3.3. Storage Manager ...............................................................................................- 20 -

3.4. Power ................................................................................................................- 21 -

3.5. Keyboard............................................................................................................- 22 -

3.6. Password ...........................................................................................................- 22 -

3.7. Regional Settings................................................................................................- 23 -

3.8. Date/Time..........................................................................................................- 24 -

3.9. Remove Programs..............................................................................................- 24 -

3.10. Input Panel .................................................................................................- 25 -

3.11. Mouse ........................................................................................................- 25 -

3.12. Owner (personal information of the owner) ...............................................- 26 -

3.13. Network and Dial-up Connections ..............................................................- 26 -

3.14. System ........................................................................................................- 27 -

3.15. Display ........................................................................................................- 29 -

3.16. Volume &Sounds ........................................................................................- 30 -

3.17. Dialing.........................................................................................................- 31 -

3.18. Certificates .................................................................................................- 32 -

3.19. Stylus ..........................................................................................................- 32 -

3.20. USB Mode Switch .......................................................................................- 33 -

Chapter 4 Keyboard and Input Methods ................................................................- 35 -

4.1. Soft keyboard:....................................................................................................- 35 -

Chapter 5 Network Connection..............................................................................- 36 -

5.1. WIFI ...................................................................................................................- 36 -

5.2. GPRS Dial-up Connection ...................................................................................- 37 -

5.2.1. GPRS Configuration.......................................................................................- 37 -

5.2.2 GPRS Dial-up Connection..............................................................................- 40 -

Chapter 6 Synchronization with the PC and Updating OS.......................................- 42 -

6.1. Introductions on the ActiveSync ........................................................................- 42 -

6.3.1 Copy System Files to SD Card ...........................................................................- 47 -

6.3.2 Update OS for Windows CE ..............................................................................- 47 -

Chapter 7 Functional Utilization.............................................................................- 49 -

Chapter 8 Malfunction and Repair .........................................................................- 50 -

8.1. Equipment and System Problems....................................................................- 50 -

8.2. Scanning Problems.............................................................................................- 50 -

8.3. RFID Problems....................................................................................................- 51 -

8.4. Network and Communication Problems ............................................................- 51 -

Chapter 9 Maintenance .............................................................................................52

Appendix 1 Code Types of 1D Barcode Scanner .........................................................53

A1.1 Supported Code Types ..........................................................................................53

A1.2 Transmit Code Type Character ..............................................................................53

A1.3 Enable / Disable Barcodes .....................................................................................54

Chapter 1 Product Introduction

C2000 terminal handheld with its smart appearance, rugged structure, easy portability,

barcode and RFID tags reading, can satisfy different users with different application

environments.

C2000 handheld has ideal advantages of fast reading speed and high recognition rate by using

Symbol SE955/SE4500 high-performance scanning engine. It supports screen touch operation

by using Wince 6.0 OS, and increases the work and long standby time effectively by using the

3200mAh high-capacity lithium battery.

1.1 Technical Parameters

Physical Parameters

Dimensions

148mm*70mm*31mm

Weight

<250g (including the battery)

Screen

2.8″QVGA TFT-LCD, 65K colors, backlight

Keyboard

21 silica gel numeric keys

Battery

3.7V, 3200mAh, rechargeable li-ion polymer battery

Expansion Slot

MicroSD/TF, maximum capacity of 8G

SIM Slot

one SIM card

Audio

0.5W wat

Camera

Samsung 3.2 mega pixels

Performance Parameters

CPU

Samsung ARM920T，533MHz

Windows CE 6.0

Memory

128MB RAM + 512MB NAND FLASH

Interface

USB 2.0 Client

Storage Card Type

MicroSD card

Maximum Expansion

Storage

32GB

Environmental Parameters

Operating Temperature

-20℃to 50℃

Storage Temperature

-20℃to 70℃

Humidity

5%RH-95%RH（non-condensing）

Dropping Survive

Withstands 1.2m dropping to concrete (six sides)

Sealing

IP54

Wireless Communication

WAN

GSM/GPRS/EDGE(850,900,1800,1900MHz), speed

85.61/42.8bps

WLAN

WiFi IEEE 802.11 b/g

WPAN

Bluetooth 2.0

Data Collection

Barcode

1D barcode（Symbol SE955, laser, hardware decoding）:

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5,

Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ect

2D barcode（Symbol SE4500，COMS, software decoding）：

Data Matrix, QR Code, Aztec Code, PDF417, US Planet, UK Postal,

ect.

RFID

HF 13.56MHz, ISO14443A/ISO15693（optional）

Developing Environment

SDK

Chainway SDK

Programming Language

C++/C#/VB.Net

Developing Tool

Visual Studio 2005 / Visual Studio 2008

1.2 Accessories

Title

Piece

Note


Power Adapter

Charging the battery

USB cable

Synchronizing with the PC,

charging the battery

Stylus

Operating the screen touch

Battery

3200mAh high- capacity lithium

battery

Chapter 2 Getting Started

2.1 Introduction

Please refer to <C2000 User Manual> which introduces the functional characteristic, battery

installation, SD card installation, SIM card installation, charging, barcode reading, and RFID

tags reading, ect.

2.1.1 Functional characteristic：Pic 2.1-1

2.1.2 Installation：Pic 2.1-2

Pic 2.1-2

2.1.3 Charging: Pic 2.1-3

Pic 2.1-4
