700 Series Color Mobile Computer Quick Start Guide

Thank you for purchasing Inter-

mec’s 700 Series Color Mobile Computer.

You will find the 700 Color useful in a va-

riety of applications. Its integrated pe-

ripherals and rugged design ensure reli-

able service for years to come.

This guide provides information needed to

get started using your 700 Color. For

more detailed information consult the 700

Color Mobile Computer User’s Manual.

For details on application development

and software configuration of the 700 Col-

or, consult the 700 Color Software Tools

CD--ROM.

Note that the hardware configuration of

your 700 Color may differ from the de-

scriptions in this guide. Depending on op-

tions selected, your unit might not be

equipped with a radio or scanner.

Note that the software operation descrip-

tions are based on factory defaults. Your

700 Color might be shipped pre-pro-

grammed with application software that

causes your 700 Color to operate different-

ly than described in this document.

700 Series Color Mobile Computer Quick Start Guide

Table of Contents

700 Color Mobile Computer

Description 4...............

700 Color Mobile Computer Features 5.........

Learning About the Keypad

Functions 6.................

Gold Plane Keys 6..........................

Alpha (Blue) Plane Keys 6....................

Ambient Light Sensor 7......................

Scanning/Keypad Shift and

Notification (checkmark icon) Light 7.......

Battery Status Light 8........................

Setting up your 700 Color Mobile

Computer 9.................

About Microsoft Pocket PC 2002 14.

The Today Screen 15........................

Navigation Bar and Command Bar 16..........

Pop-up Menus 17...........................

Entering Information into Your 700

Color Mobile Computer 17................

Synchronizing With Your Desktop

Computer 18................

Checking Your Scanning Options 19

Checking Your Network Options 21.

Cleaning Your 700 Color Mobile

Computer 22................

Case and Display 22.........................

If Your Mobile Computer Gets Wet 22..........

Troubleshooting 23................

Cold Booting your 700 Color 24...............

Warm Booting your 700 Color 25..............

Where to Find More Information 26..

End User License Agreement 26....

Intermec Technologies Corporation

End User License

Agreement 31...............

Product Warranty 32...............

Conditions of warranty 32.....................

700 Series Color Mobile Computer Quick Start Guide

700 Color Mobile Computer

Description

Front View

Back View

Battery

compartment

Stylus

Front light

(Gold + 3)

Gold plane

key

ON/OFF

Navigational

keys

Scanning/

Alpha LED Power status

Ambient light

sensor

Hand

strap

Alpha (Blue)

plane key

Speaker

700 Series Color Mobile Computer Quick Start Guide

IrDA

Scanner trigger

Right Side View

Top View

Bottom View

Scanner lens

Charging/Docking

connector

Microphone

Headset

jack

CompactFlash

Secure Digital

SIM card

compartment

Scanner trigger or

Recorder button

left side of unit

Left Side View

700 Color Mobile Computer Features

Here are some of the key features that

you will use a lot throughout your daily

operation.

"Action button: Press to open an item

(similar to pressing ENTER on the

keypad).

700 Series Color Mobile Computer Quick Start Guide

"Up/Down controls: Press to scroll

through a list (similar to pressing

the arrow keys on a keyboard).

"Power to run your 700 Color is sup-

plied by a powerful Li--Ion battery

pack designed to give you approxi-

mately 6--10 hours of operation (de-

pending on application). In addition,

your 700 Color contains backup ca-

pabilities to prevent loss of data

when the main battery is discharged

or when switching out battery

packs. For maximum effectiveness it

is important to leave the main bat-

tery installed in your 700 Color even

if it is discharged. If the main bat-

tery is removed, it should be re-

placed within 10 minutes to avoid

the possibility of data loss.

Learning About the Keypad

Functions

Gold Plane Keys

The [Gold] plane keys provide you

access to display controls, special charac-

ters, and Pocket PC options.

Press the Gold key for each gold plane key

strokeyouwishtomake.Forexampleto

turn on the front light, press and hold the

Gold key plus the ‘3’ key. To turn

the front light off press the Gold and the

‘3’ key again.

Alpha (Blue) Plane Keys

The Alpha (Blue) plane keys work a

bit differently than the Gold plane keys.

When you press the Alpha key, the Scan-

ning/Alpha LED lights ’red’ to indicate

Alpha mode. The keypad stays in the Al-

pha mode until you press it again.

700 Series Color Mobile Computer Quick Start Guide

For example, pressing the Alpha key

and the ‘1’ key allows the next letter

to be capitalized. Again it stays in this

mode until you press the Alpha key again.

Another example of how this works, if you

want to type a ‘c’ press the key and

the ‘2’ key three times. If you need a

letter that is on the same key as the last

letter entered, wait two seconds after you

pressed the last key then you can enter

the correct series of keystrokes to create

the next letter.

Ambient Light Sensor

Ambient light sensor turns on the display

lighting when conditions warrant but au-

tomatically turn if off again as surround-

ing light increases. This conserves your

700 Color’s battery power. This is a fea-

ture which can be set by you through the

“Settings” options, accessed from the Start

Menu (Settings>Backlight>Both Power).

Scanning/Keypad Shift and

Notification (checkmark icon) Light

The Scanning/Keypad Shift and Noti-

fication status light (LED) turns

red, green, or yellow.

"Green, indicates a ’Good Scan’ and

while the scanner is initializing.

"Red, keypad is shifted to the AL-

PHA (Blue) plane and the 700 Color

is On.

"Blinking Red, radio is powered up

when 700 Color is in suspend mode.

700 Series Color Mobile Computer Quick Start Guide

"Yellow, ’Good Scan’ and keypad is

shifted into the ALPHA mode. Also

when the Notification signal blinks

on periodically to indicate that some

event has occurred and you need to

take some action.

Battery Status Light

The Battery status light (LED) turns

red, green, or yellow.

"Green, battery is more than 95%

charged.

"Blinking Red, battery is low. The

speed of the blinking increases as

the battery’s power gets increasing-

ly lower.

"Red, main battery is low or if charg-

ing will remain red until your 700

Color reaches 95% charge status.

"Yellow, no battery pack in your 700

Color. Can also mean that your 700

Color is out of charging range 32 to

122°F(0to50°C). Once your 700

Color gets back in range, charging

resumes.

"Alternating between red and

yellow means the battery pack

needs replacing.

700 Series Color Mobile Computer Quick Start Guide

Setting up your 700 Color

Mobile Computer

1. Remove 700 Color from packaging.

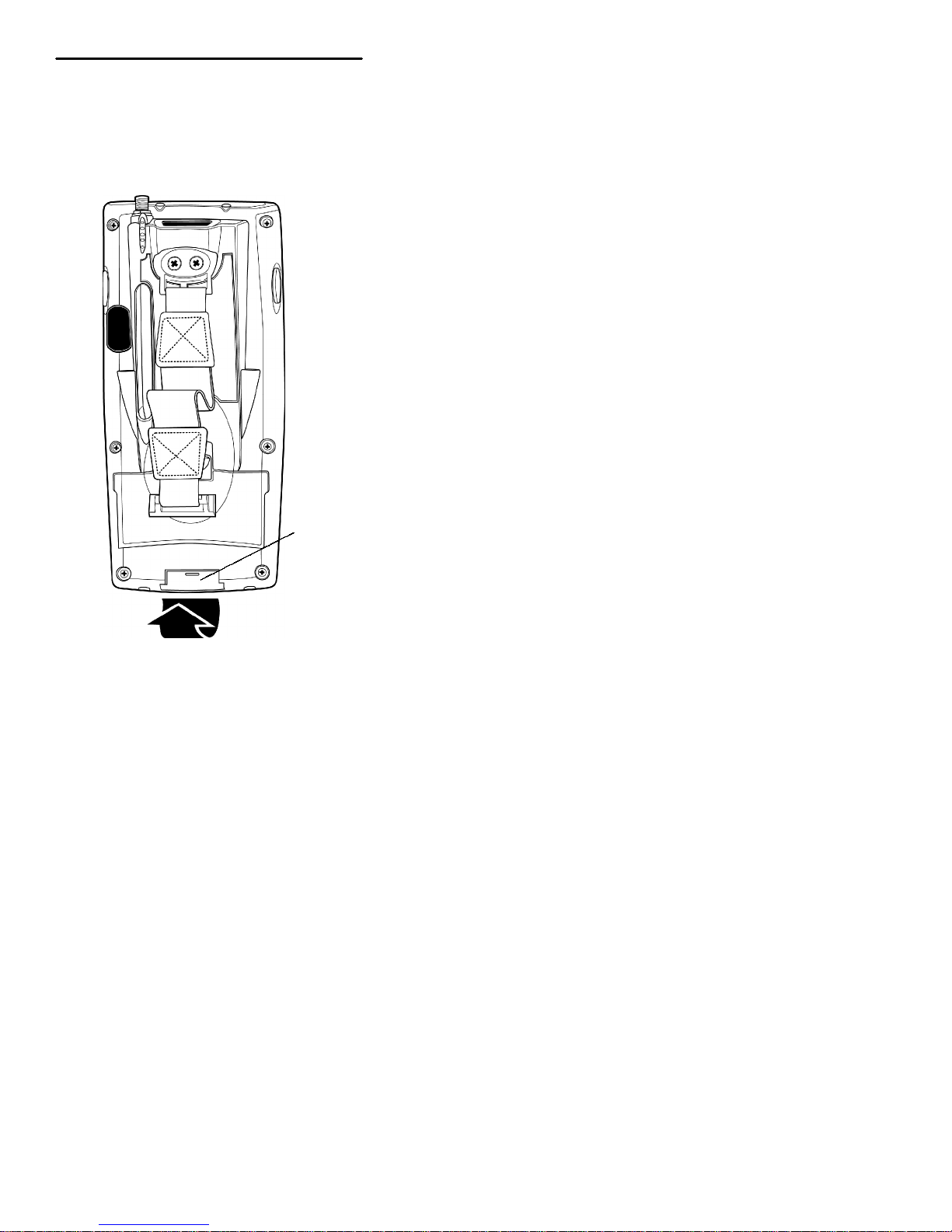

2. Release hand strap.

Slide bottom of

strap forward

to release

Strap retaining

slot

700 Series Color Mobile Computer Quick Start Guide

3. Install battery and reattach hand

strap.

Tilt, insert, and

place battery into

compartment.

Ensure battery compartment

latch “clicks” so battery is

secure in compartment.

Battery compartment

latch

Battery compartment

Battery pack

4. Install antenna (if applicable).

Remove the antenna

from packaging

Install by turning in

a clockwise motion
