Intermec 700 Series Manuel utilisateur

Quick Start

700 Color

Mobile

Computer

With

Guide

Windows

Mobile

2003

2 700 Color with Windows Mobile 2003

Thank you for purchasing the Intermec 700 Series

Color Mobile Computer. You will find your 700 Col-

or useful in a variety of data collection and data man-

agement applications. Its integrated peripherals and

rugged design ensure reliable service for years to come.

This guide provides information needed to get started

using your 700 Color. For more detailed information

refer to “Where to Find More Information” of this

guide.

Note that the hardware configuration of your 700

Color may differ from the descriptions in this guide.

Software operation descriptions are based on factory

defaults.

3700 Color with Windows Mobile 2003

Contents

700 Series Color Mobile Computer

Description 5.........................

Setting Up Your 700 Color 7................

Learning About The Keypad 11..............

Gold Plane Keys 11................

Alpha (Blue) Plane Keys-Numeric

Keypad 11.......................

Alpha (Blue) Plane Keys-Alphanumeric

Keypad 11.....................

Ambient Light Sensor 12............

Scanning/Keypad Shift and

Notification LED 12...............

Action and Up/Down Navigational

Buttons 12.......................

Battery Status LED 13..............

About Microsoft Windows Mobile 2003 Software

for Pocket PC 13.......................

The Today Screen 14..............

Navigation Bar and Command Bar 15..

Pop-up Menus 15.................

Entering Information into Your 700

Color 16......................

Setting the Time and Date 17........

Ownership Registration 18..........

Battery Management 19....................

Synchronizing With Your Desktop

Computer 22.........................

Checking Your Scanning Options 21.........

Data Collection Applet 21...........

Wireless Printing 22...............

Wireless Network 22...............

Warm Resetting Your 700 Color 23..........

4 700 Color with Windows Mobile 2003

Cold Resetting Your 700 Color 23...........

Troubleshooting 24.......................

Cleaning Your 700 Color 25................

Case and Display 25...............

Where to Find More Information 25..........

Radio Use Safety Precautions 26.............

End User License Agreement 27.............

Microsoft Windows Mobile 2003

for Pocket PC 27..................

Intermec Technologies Corporation End User

License Agreement 31...................

Product Warranty 32......................

Obtaining Warranty Service 32.......

Global Services and Support 32..............

Warranty Information 32...........

Web Support 32..................

Telephone Support 33.....................

Patent Information 34.....................

5700 Color with Windows Mobile 2003

700 Series Color Mobile Computer

Description

Front light (Gold + 3)

Gold plane key

On/Off

Navigational keys

(up and down

controls)

Scanning/Alpha

LED

Power status

Ambient light

sensor

Alpha (Blue) plane key

Action button

Alphanumeric Keypad Model

Power status

Action

button

Alpha (Blue)

plane key

Ambient light

sensor

Gold/White

plane key

On/Off

Scanning/

Alpha LED

Navigational keys

(up and down

controls)

Numeric Keypad Model

Front light

(Gold + I)

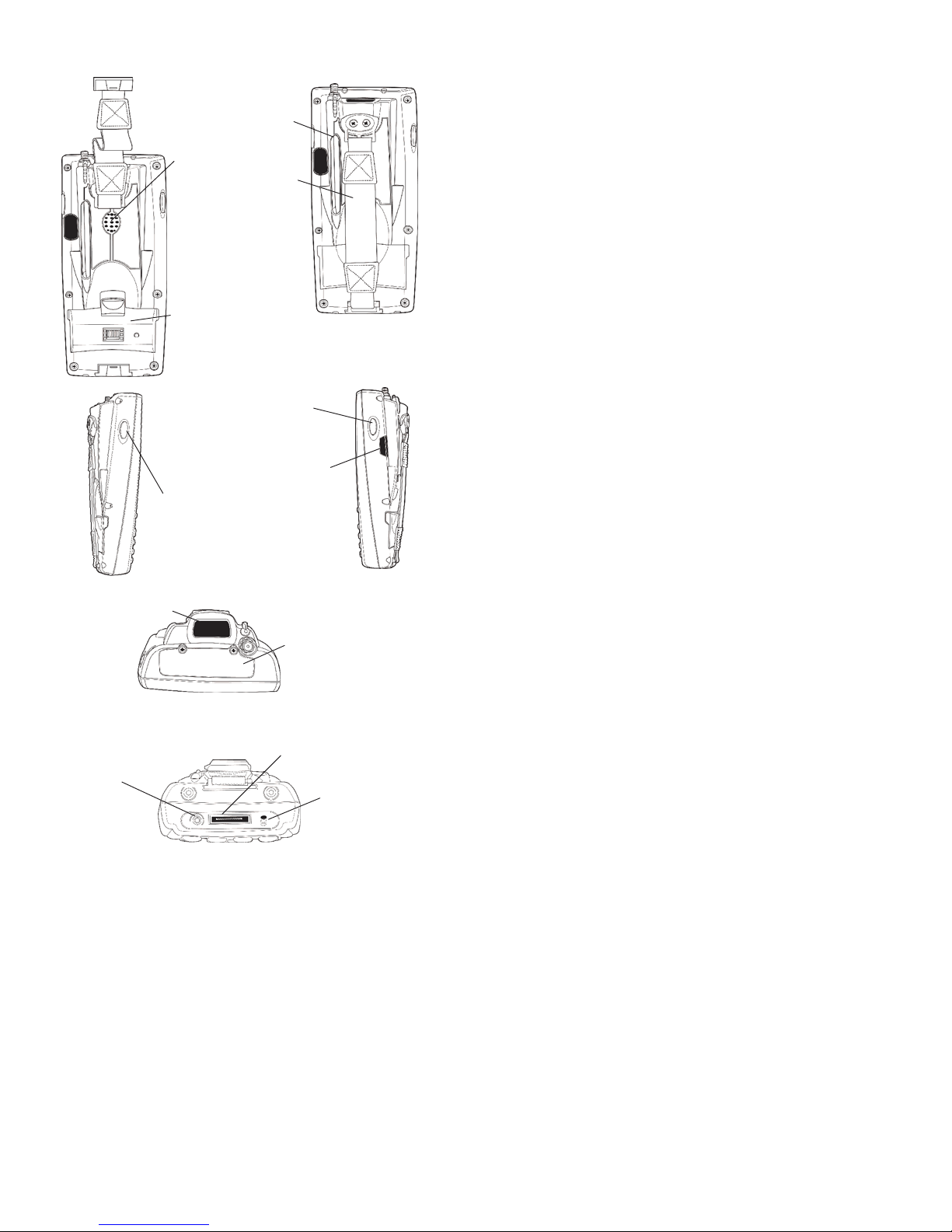

6 700 Color with Windows Mobile 2003

Battery compartment

Stylus

Hand strap

Speaker

IrDA

Scanner trigger

Scanner lens

Charging/Docking connector

Microphone

Headset jack

CompactFlash, Secure

Digital, SIM card

compartment

ScannertriggerorRe-

corder button

left side of unit

7700 Color with Windows Mobile 2003

Setting Up Your 700 Color

1Remove 700 Color from its packaging.

2Release hand strap.

Slide bottom of strap forward

to release

Strap retaining slot

3Install battery and reattach hand strap.

Tilt, insert, and place battery into

compartment.

Ensure battery compartment latch clicks so battery is

secure in compartment.

Battery compartment latch

Battery compartment

Battery pack

8 700 Color with Windows Mobile 2003

4Install acrylic adhesive pull tabs on SD or SIM

cards (if applicable). Ensure the pull tab does not

cover any metal contacts on the card.

Split paper adhesive backing

Pull tab

Peel and stick to card

Card

9700 Color with Windows Mobile 2003

5Insert CF, SD, or SIM cards.

Remove the two cover

screws and lift cover off.

Slide card into slot.

Reinstall cover

SD Card, with adhesive

pull tab, insert with

contacts toward key-

pad

SIM Card with adhesive

pull tab, insert with con-

tacts toward back of unit

and facing away from the

keypad.

CF card with extractor and

insertion orientation. Leave

card extractor installed on

CF card.

Note: 700 Color models with 802.11b radio have a

card permanently installed in the CF Card slot. If

this card is present, it should not be removed.

Removal of the card may damage your mobile

computer.

10 700 Color with Windows Mobile 2003

6Install antenna (if applicable).

Remove the antenna from packaging

Install by turning in a clockwise motion

7Connect to AC adapter or dock (dock not shown).

8Charge battery pack (4 hours) before using. How-

ever, to ensure proper charging, perform the re-

maining steps first, with the AC adapter or dock

connected.

9The first time you turn on your 700 Color it boots

to the operating system. After a few seconds you see

the Windows Mobile 2003 Welcome screen. Tap

your stylus to advance to the next display on the

screen.

10 You will be prompted through the several screens to

complete the setup process. Read the display mes-

sages and follow the instructions. When you reach

the Windows Mobile Today screen, you have com-

pleted the setup.
