Quick Start Guide
Portable
Reader (UHF)
IP3 Intellitag
2 IP3 Intellitag Portable Reader (UHF) Quick Start Guide
Packing List
Checktoensurethatyoureceivetheseitems:
SIntermecRIP3UA1104 Intellitag Portable Reader (UHF)
SBattery Pack (p/n: 318-014-001)
SCompliance Statement
SWarranty Card
Setting up Your 700 Color Mobile
Computer
BeforeusingyourPortableReaderwiththe700ColorMobile
Computer you need to load the Portable Reader CAB files onto
your mobile computer. Do that by going to either of these two
sources:
S700 Series Color Software Tools CD-ROM (p/n:
235-099-001)
SIntellitag Developer’s CD (p/n: ITD001)
3
IP3 Intellitag Portable Reader (UHF) Quick Start Guide
Connecting the Portable Reader to the
700 Color Mobile Computer
RF Exposure regulations limit exposure to
radiofrequency (RF) radiation. To comply with
these regulations, operators of this device must
maintain a distance of at least 20 cm. (8 inches)
from the cover on the antenna assembly (The cover
on the antenna is the dome shaped surface). While
the device is on, the operator’s body and parts of
the body such as eyes, hands, or head, must be 20
cm. (8 inches) or farther from the cover of the
antenna assembly.

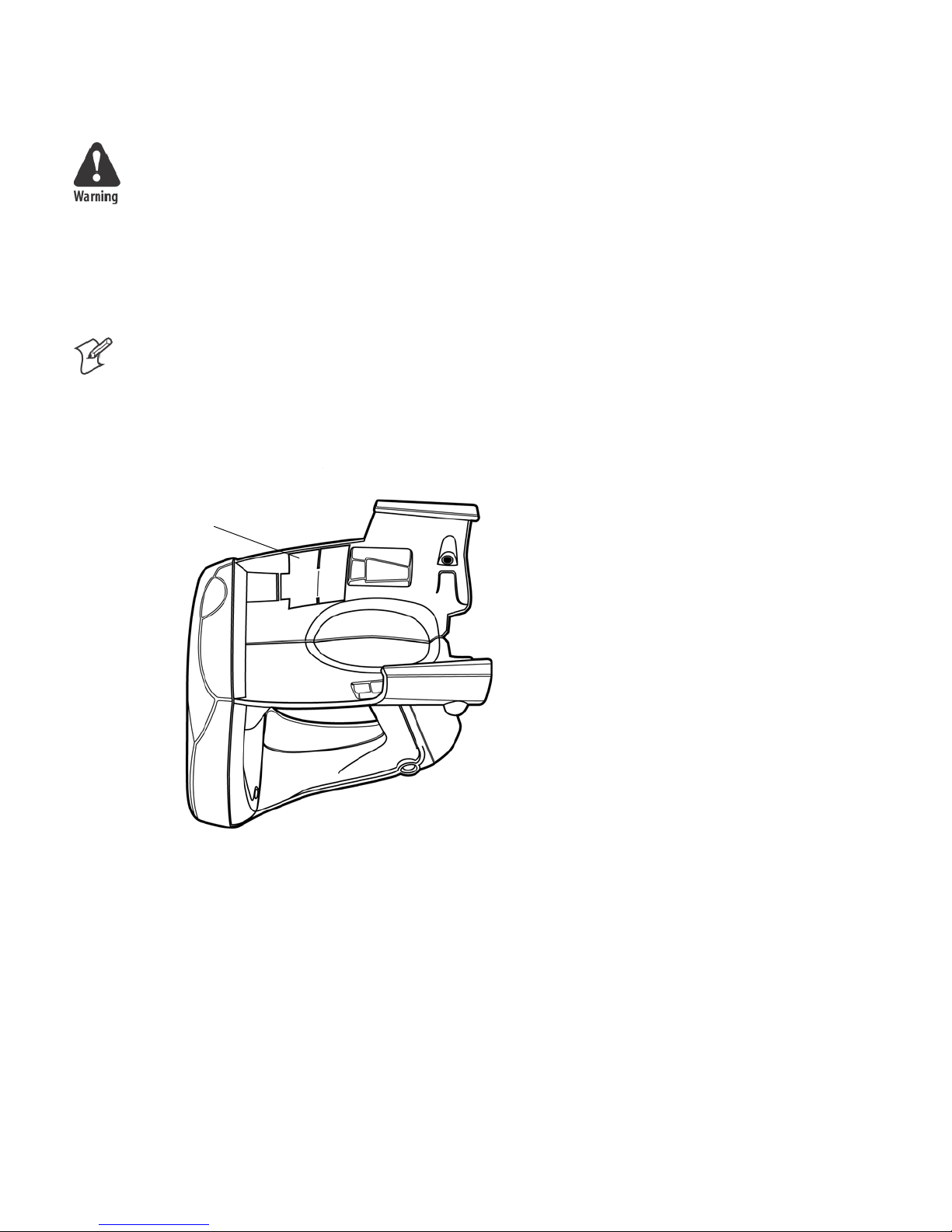

Note: DO NOT remove the IR reflector from the
inside of the Portable Reader. This IR reflector aids
in the communication of the IrDA signal between
the Portable Reader and your Mobile Computer
Gold IR Reflector DO NOT REMOVE
4 IP3 Intellitag Portable Reader (UHF) Quick Start Guide
1Slide your Mobile Computer into your Portable Reader.
2Ensure it slides in all the way. Your Mobile Computer com-
municates with the Reader via the IrDA. Therefore, the IrDA
signal passing from the Portable Reader must have a good
IrDA acceptance on the side of the Mobile Computer. You
will hear a click when you have the Mobile Computer com-
pletely inserted into the Portable Reader.
Mobile Computer fully engaged into Portable Reader
3Attach the two retaining screws. Ensure that they go straight
into the mobile computer openings.
Ensure retaining screws go
straight into the slots on your
mobile computer
5
IP3 Intellitag Portable Reader (UHF) Quick Start Guide
Removing the 700 Color Mobile Computer from
Portable Reader
4Remove the two retaining screws.
5Grasp the 700 Color Mobile Computer at the display end,
and simultaneously lift up (away from the Reader), then pull
forward.
Portable Reader LED Location and
Explanation
LEDs position
(top to bottom)
1, 2, 3, 4, 5
Reader label
Portable Reader LED Explanation
LED Indicates Meaning
1PWR +5 Power is On. Reader is ready.
2HOST COMM Data communication with Host is active.
3RF ON RF Power is On.
4TAG COMM Valid tag transaction.
5BATT Battery condition (Low RED, Full GREEN,
more than 20% but less than 80% ORANGE).
6 IP3 Intellitag Portable Reader (UHF) Quick Start Guide
Battery Installation and Removal
To charge the battery contained in your Portable Reader, it is
necessary to remove the battery from the handle and place it in
the IP3U Dual Battery Pack Charger. This charging unit
charges the battery in four hours.
1To install the battery into the Portable Reader, insert the bat-
tery (tilt to fit into notch) into the compartment opening and
press in until the latch on the bottom of the battery snaps
closed. The battery tab on the top of the battery pack fits into
the notch in the compartment.
Battery tab
Battery latch
2To remove the battery pack, push the battery release latch
forward and remove the battery pack from the handle.
Battery release latch
7
IP3 Intellitag Portable Reader (UHF) Quick Start Guide
Using the Portable Reader
1Charge battery four hours before using the first time.
2Squeeze trigger on Reader to check capacity of battery (bot-
tom LED).
3Aim the Reader front at the ID Tag and squeeze the trigger.
To obtain a good first time read, you need to be within three
feet of the ID Tag.
Reader front
Trigger
8 IP3 Intellitag Portable Reader (UHF) Quick Start Guide
Performance Specifications
You can expect to read at least six tags per second up to three
feet. Attempting to read tags beyond these specifications
produces poor results.
Sometimes using the Reader continuously reading tags may
result in the unit overheating. This causes the Reader to stop
reading tags. Allow the Reader to cool and get back within
temperature range then the Reader will return to good tag reads.
915 MHz Specifications
Frequency reference Source Spec Detail
Source type Frequency hopper
Frequency band 902-928 MHz
Transmitter Spec Detail
Output power
1 w maximum
minimum: 28.5 dBm
typical: 29.5 dBm
maximum: 30.0 dBm
Modulation 99%, 40 dB on/off
Data Rates 33 to 40 kbps
Environmental Specifications
Temperature Spec Detail
Operating -4°F to +131°F(-20°C to +55°C)
Non-Operating -40°F to +158°F(-40°C to +70°C)
Humidity Spec Detail
Operating 0-95% Relative, Non-Condensing
9
IP3 Intellitag Portable Reader (UHF) Quick Start Guide
Overall Performance
Dispatch Rates Spec Detail
RFID tag identification rate At lease six tags per second with one to
ten tags per field, located at half the maxi-
mumreaddistancefromtheReaderfront
panel.
RFID tag read distance 36 inches
RFID tag data exchange rates Read a tag containing 8 bytes of data
within 50 mS.
Perform a verified write to a tag at an av-
erage rate of 75 mS per byte per tag.
Regulatory
Safety and Regulatory
Approvals
Spec Detail
Reader cULus Listed Accessory
CB Report for international product safety
FCC OET Bulletin 65, Evaluating Com-
pliance with FCC Guidelines for Human Ex-
posure to Radio Frequency Electromagnetic
Fields, for general population uncontrolled ex-
posure.
AS/NZS 2772.1 (INT): 1998 Radio Frequen-
cy Fields-Part 1: Maximum exposure levels - 3
kHz to 300 GHz, for non aware users.
Part 15 of the FCC Rules and with Industry
Canada Rules.
AN/NZS 4268:2003 Radio Equipment and
Systems - Short Range Devices - Limits and
Methods of Measurement.
Electromagnetic
Compatibility
Spec Detail
Reader FCC Part 15/Industry Canada
ICES-003/CISPR
Class B digital emissions
Firmware Architecture
Firmware Spec Detail
Communicates in one mode: Application Peripheral
Interface (API).
Protocol/Compatibility ANSI NCITS 256.2000 for API, part 2, part 3-1.
10 IP3 Intellitag Portable Reader (UHF) Quick Start Guide
Reader Configuration Access Summary
Function Responsibile Party Control Machanism
Change Country Code Factory or Intermec
Field Technician
Hardware key or config-
uration tag etc.
Download updated
firmware
Remote or on-site field
technician
Intermec-only password
Setup, system configura-
tion not secured at high-
er level (i.e. change bat-
tery wake up default
etc.)
Customer System Ad-
ministrator
Configuration file, etc.
Global Services and Support
Warranty Information
To understand the warranty for your Intermec product, visit the
Intermec web site at http://www.intermec.com and click Service
& Support. The Intermec Global Sales & Service page appears.
From the Service & Support menu, move your pointer over
Support,andthenclickWarranty.
Disclaimerofwarranties:Thesamplecodeincludedinthisdoc-
ument is presented for reference only. The code does not neces-
sarily represent complete, tested programs. The code is provided
“as is with all faults.” All warranties are expressly disclaimed,
including the implied warranties of merchantability and fitness
for a particular purpose.
Web Support
Visit the Intermec web site at http://www.intermec.com to
download our current manuals in PDF format. To order printed
versions of the Intermec manuals, contact your local Intermec
representative or distributor.
Visit the Intermec technical knowledge base (Knowledge Cen-
tral) at http://intermec.custhelp.com to review technical infor-
mation or to request technical support for your Intermec prod-
uct.
