Intermec ScanPlus 1802 Manuel utilisateur

Getting Started

Guide

ScanPlus 1802

Cordless System

2 3

Step 1

Step 2

Step 3

Quick setup

PC Keyboard wedge cable or USB Cable .......... 4

RS-232 C cable............................................................6

Return to the default setup.............................................. 9

Using more than one Cordless System ........................ 9

Use the EasySet software for additional setup

options..................................................................................10

Operating your Cordless System.................................11

Add more scanners to your system.............................11

Test bar codes.....................................................................16

Read the Recommendations...............................................3

Choose your connection:

Select symbologies for your scanners .............................8

If necessary . . .

The ScanPlus Cordless System consists of a base station (MicroBar 9735) and at

least one scanner (ScanPlus1802).

2 3

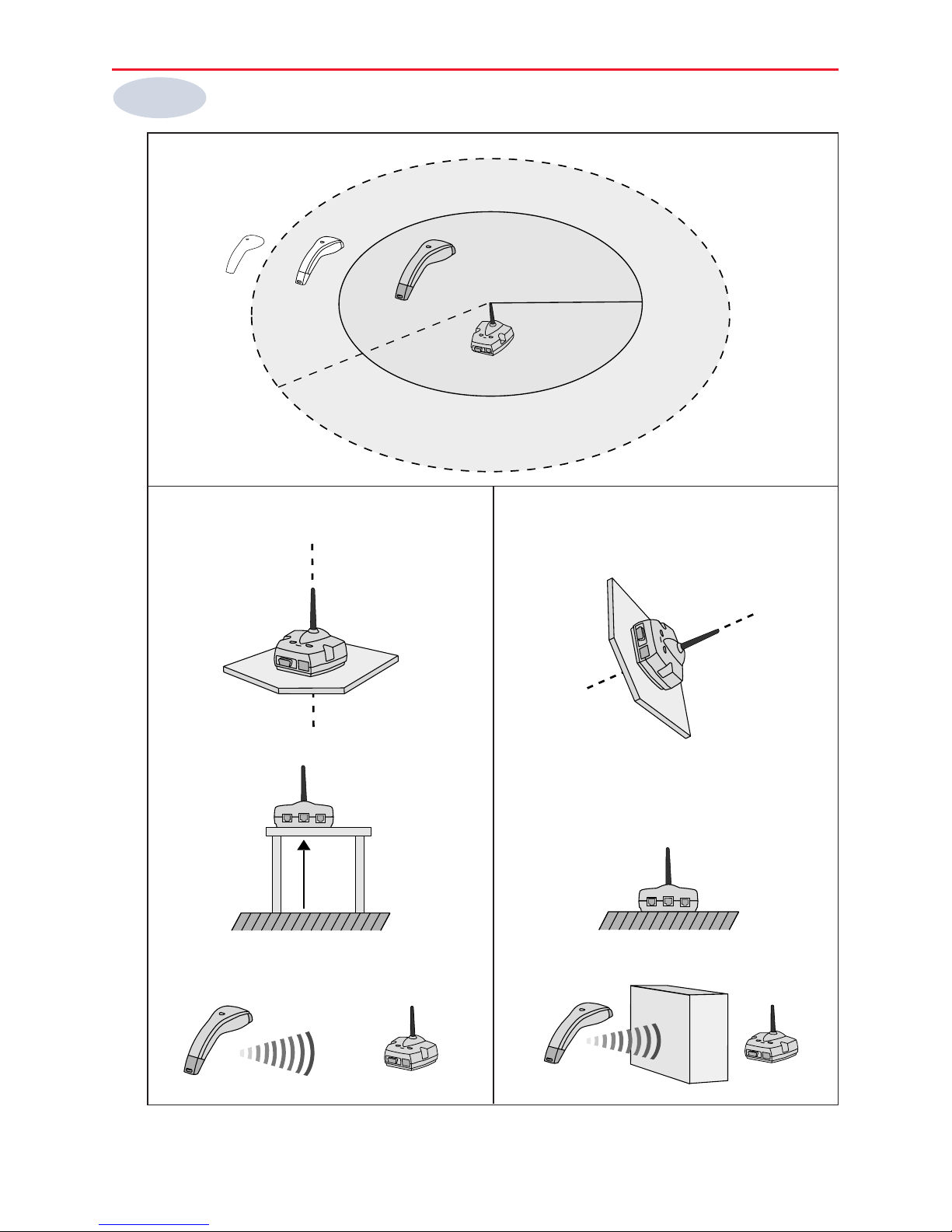

Step 1 Recommendations

Recommended Not recommended

0 - 15 m

(0 - 50 ft)

15 - 25 m

(50 - 80 ft)

The MicroBar 9735 must not be connected by the RJ connectors to any type of telecom-

munications circuits.

Step 2

PC wedge cable

P/N 3-414037-11

Keyboard wedge or USB (PC)

Connect base station

System power OFF

System power ON







Associate cordless scanner(s)



Recharge battery

"beep beep"

Only do this if you are using a Keyboard wedge or a USB cable.

USB cable

P/N 3-414038-11

port 3

Keyboard wedge cable USB cable

AZERTY French

QWERTZ German

QWERTY English

Select keyboard



QWERTY Italian

QWERTY Danish

QWERTZ Swiss / French

QWERTY Swedish / Finnish

QWERTY Spanish

QWERTY Portuguese

QWERTY Norwegian

Postamble = Carriage Return

Postamble = Tab

Postamble = Enter (*)

Postamble = none

Customize parameters (optional)

(*) = default value



6 7

Step 2

Read this code (standard RS-

232 C PC serial port compa-

tible)

9600 baud, 7 data bits, even parity, 2 stop bits

postamble = carriage return + line feed



Associate cordless scanner(s)

System power ON



Connect base station

Direct RS-232 cable

P/N 3-414032-10



System power OFF



Recharge battery

"beep beep"

power supply

RS-232 C

Only do this if you are using an RS-232 C cable.

6 7

Customize parameters (optional)

(*) = default value



Postamble = Carriage Return + Line Feed (*)

Postamble = none

Postamble = Carriage Return

Even parity

No parity

Odd parity

7 data bits

8 data bits

19200 baud

9600 baud

8 9

PDF417

Code 39

Code 128 / EAN 128

UPC-A, UPC-E, EAN-8, EAN-13

(UPC-A -> UPC-A)

UPC-A, UPC-E, EAN-8, EAN-13

(UPC-A -> EAN-13)

Step 3 Symbologies

Select symbology

Disable all symbologies





Set symbologies for each cordless scanner.

Use the bar codes on the back cover to test your setup



8 9

Default setup

Using more than one Cordless System

When using more than one cordless system in the same area, we strongly

recommend using dierent channels for optimal performance.

North American version 906MHz - channel 2

European version 433MHz - channel 5

channel 1 channel 2

10 11

Full setup with EasySet

Connect base station

Associate cordless scanner(s)

Start the EasySet software

Send setup bar codes to the EasySet setup sheet

Print setup sheet











Read the bar codes on the setup sheet



"beep beep"
