Intel DH61KVCH Manuel utilisateur

December 2011

Order Number: G37719-001

The Intel®Desktop Board DH61KVCH may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current

characterized errata are documented in the Intel Desktop Board DH61KVCH Specification Update.

Intel® Desktop Board

DH61KVCH

Technical Product Specification

Revision History

Revision Revision History Date

-001 Intel®Desktop Board DH61KVCH Technical Product Specification December 2011

This product specification applies to only the standard Intel®Desktop Board DH61KVCH with

BIOS identifier KVH6110H.86A.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®PRODUCTS. NO LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS

GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR

SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR

IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR

WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT

OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS OTHERWISE AGREED IN

WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN

WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR

DEATH MAY OCCUR.

Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other

intellectual property rights that relate to the presented subject matter. The furnishing of documents and

other materials and information does not provide any license, express or implied, by estoppel or otherwise,

to any such patents, trademarks, copyrights, or other intellectual property rights.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved”

or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for

conflicts or incompatibilities arising from future changes to them.

Intel®desktop boards may contain design defects or errors known as errata, which may cause the product to

deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your

product order.

Copies of documents which have an ordering number and are referenced in this document, or other Intel

literature, may be obtained from:

Intel Corporation

P.O. Box 5937

Denver, CO 80217-9808

or call in North America 1-800-548-4725, Europe 44-0-1793-431-155, France 44-0-1793-421-777,

Germany 44-0-1793-421-333, other Countries 708-296-9333.

Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries.

* Other names and brands may be claimed as the property of others.

iii

Board Identification Information

Basic Desktop Board DH61KVCH Identification Information

AA Revision BIOS Revision Notes

G35197-100 KVH6110H.86A.0007 1,2

Notes:

1. The AA number is found on a small label on the component side of the board.

2. The Intel®H61 Express Chipset used on this AA revision consists of the following component:

Device Stepping S-Spec Numbers

H61 PCH B3 SLJ4B

Errata

Current characterized errata, if any, are documented in a separate Specification

Update. See http://developer.intel.com/products/desktop/motherboard/index.htm

for the latest documentation.

Intel Desktop Board DH61KVCH Technical Product Specification

Preface

This Technical Product Specification (TPS) specifies the board layout, components,

connectors, and power and environmental requirements for Intel®Desktop Board

DH61KVCH. It describes the standard product and available manufacturing options.

Intended Audience

The TPS is intended to provide detailed, technical information about the Intel Desktop

Board DH61KVCH and its components to the vendors, system integrators, and other

engineers and technicians who need this level of information. It is specifically not

intended for general audiences.

What This Document Contains

Chapter Description

1 A description of the hardware used on the board

2 Technical reference for the board

3 Regulatory compliance and battery disposal information

Typographical Conventions

This section contains information about the conventions used in this specification. Not

all of these symbols and abbreviations appear in all specifications of this type.

Notes, Cautions, and Warnings

NOTE

Notes call attention to important information.

INTEGRATOR’S NOTES

Integrator’s notes are used to call attention to information that may be useful to

system integrators.

CAUTION

Cautions are included to help you avoid damaging hardware or losing data.

Intel Desktop Board DH61KVCH Technical Product Specification

Other Common Notation

# Used after a signal name to identify an active-low signal (such as USBP0#)

GB Gigabyte (1,073,741,824 bytes)

GB/s Gigabytes per second

Gb Gigabit (1, 073,741,824 bits)

KB Kilobyte (1024 bytes)

Kb Kilobit (1024 bits)

kb/s 1000 bits per second

MB Megabyte (1,048,576 bytes)

MB/s Megabytes per second

Mb Megabit (1,048,576 bits)

Mb/s Megabits per second

xxh An address or data value ending with a lowercase h indicates a hexadecimal value.

x.x V Volts. Voltages are DC unless otherwise specified.

* This symbol is used to indicate third-party brands and names that are the property of their

respective owners.

vii

Contents

1Product Description

1.1Overview.......................................................................................... 9

1.1.1Feature Summary .................................................................. 9

1.1.2Board Layout

....................................................................... 10

1.2Online Support/Information .............................................................. 12

2Technical Reference

2.1Connectors, Headers, and Jumpers .................................................... 13

2.1.1Component-side Headers and Connectors ................................ 13

2.1.2Clear CMOS Jumper

.............................................................. 17

2.1.3Back Panel Connectors

.......................................................... 18

2.2Mechanical Considerations ................................................................ 19

2.2.1Form Factor......................................................................... 19

2.3Electrical Considerations

................................................................... 20

2.3.1Power Supply Considerations ................................................. 20

2.4Thermal Considerations

.................................................................... 21

2.5Reliability ....................................................................................... 21

2.6ACPI Wake-up Devices and Events

..................................................... 22

3Regulatory Compliance and Battery Disposal Information

3.1Regulatory Compliance..................................................................... 23

3.1.1Product Ecology Statements................................................... 23

3.1.2China RoHS

......................................................................... 24

3.2Battery Disposal Information............................................................. 25

Figures

1. Major Board Components.................................................................. 10

2. Component-side Connectors and Headers ........................................... 13

3. Clear CMOS Jumper ......................................................................... 17

4. Back Panel Connectors ..................................................................... 18

5. Board

Dimensions ........................................................................... 19

6. Intel Desktop Board DH61KVCH China RoHS Material

Self Declaration Table ...................................................................... 24

Intel Desktop Board DH61KVCH Technical Product Specification

viii

Tables

1. Feature Summary.............................................................................. 9

2. Board Components Shown in Figure 1 ................................................ 11

3. Connectors and Headers Shown in Figure 2 ......................................... 14

4. Serial ATA Connectors...................................................................... 14

5. COM Port Header............................................................................. 14

6. Chassis Fan Header ......................................................................... 15

7. Processor Fan Header ...................................................................... 15

8. Front Panel Audio Header ................................................................. 15

9. Front Panel Header .......................................................................... 15

10. Front Panel USB Headers .................................................................. 15

11. Processor Core Power Connector........................................................ 16

12. Main Power Connector...................................................................... 16

13. Speaker

Header .............................................................................. 16

14. Clear CMOS Jumper Settings............................................................. 17

15. Recommended Power Supply Current Values ....................................... 20

16. Thermal Considerations for Components ............................................. 21

17. Wake-up Devices and Events ............................................................ 22

1Product Description

1.1 Overview

1.1.1 Feature Summary

Table 1 summarizes the major features of the Intel Desktop Board DH61KVCH.

Table 1. Feature Summary

Form Factor MicroATX (9.60 inches by 7.04 inches [243.84 millimeters by 178.82 millimeters])

Processor •Intel®Core™ i7, Intel®Core™ i5, Intel®Core™ i3, and Intel®Pentium®

processors in an LGA1155 socket with up to 95 W TDP:

―Integrated graphics processing (processors with Intel®Graphics Technology)

―External graphics interface controller

―Integrated memory controller

Memory •Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets

•Support for DDR3 1333 MHz and DDR3 1066 MHz DIMMs

•Support for up to 16 GB of system memory with two DIMMs

•Support for non-ECC memory only

Chipset Intel®H61 Express Chipset consisting of the Intel®H61 Platform Controller

Hub (PCH)

Graphics •Integrated graphics support for processors with Intel®Graphics Technology:

―VGA

―DVI-I

Discrete graphics support for PCI Express 2.0 x16 add-in graphics card

Audio Six (5.1)-channel audio subsystem including:

•Back panel audio jacks

•Front panel audio header

Legacy I/O

Control Legacy I/O controller that provides serial and PS/2* ports and hardware

management

Peripheral

Interfaces

•Eight USB 2.0 ports (four back panel connectors and two front panel headers

each providing two USB ports)

•Three Serial ATA (SATA) interfaces

•One back panel external SATA (eSATA) interface

•PS/2 keyboard port

•One on-board serial port header

LAN Support 10/100/1000 Mb/s LAN subsystem using a Realtek RTL8111E Gigabit Ethernet

Controller

BIOS AMI* BIOS

Expansion

Capabilities

•One PCI Express x16 bus add-in card connector

•One PCI Express x1 add-in card connector

•Two Conventional PCI bus connectors

Intel Desktop Board DH61KVCH Technical Product Specification

1.1.2 Board Layout

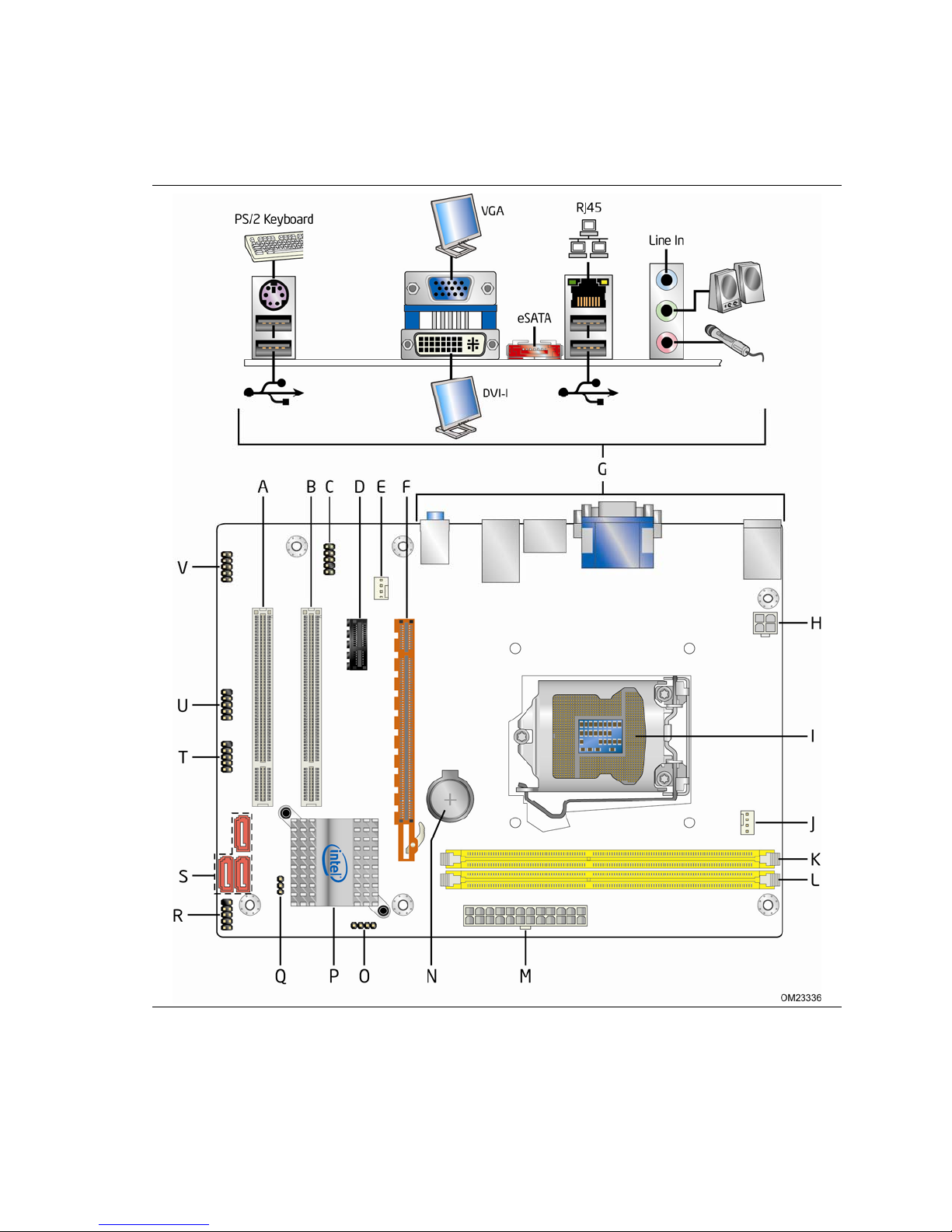

Figure 1 shows the location of the major components of Intel Desktop DH61KVCH.

Figure 1. Major Board Components

Autres manuels pour DH61KVCH

Table des matières

Autres manuels Intel Carte mère

Intel

Intel DP55WG - Media Series P55 ATX Core i7 i5 LGA1156 Desktop... Manuel technique

Intel

Intel DH77DF Manuel utilisateur

Intel

Intel Desktop Board D845GLLY Manuel utilisateur

Intel

Intel G41 Express Chipset Manuel utilisateur

Intel

Intel D915GAG Manuel utilisateur

Intel

Intel D945GTP Manuel utilisateur

Intel

Intel D925XEBC2 Manuel utilisateur

Intel

Intel D810E2CA3 Manuel utilisateur

Intel

Intel S975XBX2 - Workstation Board Motherboard Manuel utilisateur

Intel

Intel D910GLDW Manuel utilisateur

Intel

Intel Desktop Board D845GVFN Manuel utilisateur

Intel

Intel D915GVWB Manuel utilisateur

Intel

Intel D975XBX2 - Desktop Board Motherboard Manuel utilisateur

Intel

Intel Desktop Board D845GLLY Manuel utilisateur

Intel

Intel BLKD945PSNLK Guide de configuration

Intel

Intel D945GCZ - Desktop Board Motherboard Manuel utilisateur

Intel

Intel BOXDG43RK Manuel utilisateur

Intel

Intel D945PLRN Manuel utilisateur

Intel

Intel DG41TX Manuel utilisateur

Intel

Intel D915GVWB Manuel utilisateur

Intel

Intel BX80623I52500 Manuel utilisateur

Intel

Intel DH77EB Manuel utilisateur

Intel

Intel DH61AGL Manuel utilisateur

Intel

Intel i845-PE Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
