Intel G41 Express Chipset Manuel utilisateur

USER'S MANUAL

Intel G41 Express Chipset

Intel ICH7 Chipset

Based

M/B for LGA 775 Quad Core Ready

Intel Core Processor Family

No. G03-MI5G41SGMD2F

Rev: 5.0

Release date: Nov., 2009

Trademark:

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Environmental Safety Instruction

zAvoid the dusty, humidity and temperature extremes. Do not place the product in any

area where it may become wet.

z0 to 40 centigrade is the suitable temperature. (The figure comes from the request of

the main chipset)

zGenerally speaking, dramatic changes in temperature may lead to contact malfunction

and crackles due to constant thermal expansion and contraction from the welding

spots’ that connect components and PCB. Computer should go through an adaptive

phase before it boots when it is moved from a cold environment to a warmer one to

avoid condensation phenomenon. These water drops attached on PCB or the surface

of the components can bring about phenomena as minor as computer instability

resulted from corrosion and oxidation from components and PCB or as major as short

circuit that can burn the components. Suggest starting the computer until the

temperature goes up.

zThe increasing temperature of the capacitor may decrease the life of computer. Using

the close case may decrease the life of other device because the higher temperature in

the inner of the case.

zAttention to the heat sink when you over-clocking. The higher temperature may

decrease the life of the device and burned the capacitor.

Environmental Protection Announcement

Do not dispose this electronic device into the trash while discarding. To minimize pollution

and ensure environment protection of mother earth, please recycle.

CHAPTER 1 INTRODUCTION OF INTEL G41 MOTHERBOARD SERIES

1-1 FEATURES OF MOTHERBOARD .............................................................................1

1-1.1 SPECIAL FEATURES OF MOTHERBOARD...............................................2

1-2 SPECIFICATION.........................................................................................................3

1-3 ITEM CHECKLIST.......................................................................................................4

1-4 LAYOUT DIAGRAM....................................................................................................4

CHAPTER 2 HARDWARE INSTALLATION

2-1 INSTALL LGA 775 SUPPORTED INTEL PROCESSOR...........................................6

2-2 INSTALL MEMORY ....................................................................................................6

2-3 EXPANSION CARDS..................................................................................................8

CHAPTER 3 CONNCTORS, HEADERS & JUMPERS SETTING

3-1 CONNECTORS ...........................................................................................................9

3-2 HEADERS ...................................................................................................................12

3-3 JUPPER SETTING......................................................................................................15

CHAPTER 4 USEFUL HELP

4-1 HOW TO UPDATE BIOS ............................................................................................17

4-2 TROUBLE SHOOTING...............................................................................................17

TABLE OF CONTENT

Chapter 1

Introduction of Intel G41 Motherboard Series

1-1 Features of motherboard

The Intel G41 chipset motherboard series are based on the latest Intel G41 Express

Chipset and Intel ICH7 Chipset technology which supports the innovative 65nm and

90nm Intel® Pentium® Dual Core Processor，Intel® Core 2 Quad, Intel® Core 2 Duo®

(Code Name: Conroe) Processor with Intel® Hyper-Threading Technology and fully

supports the future 45nm processors. The motherboard is optimized to deliver innovative

features and professional desktop platform solution with the advantages of the new

generation dual core Intel® Core 2 Duo® Processor for those who demand the best

experience of personal computing.

The motherboards implement Intel G41 Express Chipset which supports Front Side

Bus 1333MHz of data transferring. The model MI5-G41SGMD2-LF supports

dual-channel DDRII 667/DDRII 800 memory module with capacity expandable to 8GB

while MI5-G41SGMD3-LF supports dual-channel DDRIII 800 /DDRIII 1066MHz RAM

Module expandable to 8GB. The motherboard is embedded with ICH7 chipset of

providing one parallel Ultra ATA 100 interface for one IDE drives and four serial ATA2

interface of 3Gb / s data transfer rate for four serial ATA devices.

The G41 motherboard series offer one PCI-Express x16 graphics slot of 8Gbyte/sec

data transfer rate at each relative direction which gets 7 times of bandwidth more than

AGP 8X and up to 16Gbyte/sec peak concurrent bandwidth at full speed to guarantee

the ultimate GPU computing performance. One PCI Express x1 I/O slots and two

32-bit PCI slots guarantee the rich connectivity for the I/O of peripherals. The

motherboards are designed of tackling the profuse multimedia requirements

nowadays.

The motherboards provide 10/100 Ethernet LAN function by using the PCI-E megabit

LAN. The embedded Realtek ALC662 chipset is fully compatible with Sound Blaster

Pro standards providing HD audio 6-CH CODEC offers you with the home cinema

quality and satisfying software compatibility.

Embedded USB controller as well as capability of expanding to 8 of USB2.0 functional

ports delivering 480Mb/s of rich connectivity, these motherboards meet the demands

of future USB peripherals which are also equipped with hardware monitor function on

system to monitor and protect your system and maintain your non-stop business

computing.

Some special features---CPU Thermal Throttling/ CPU Vcore 7-shift /OC-CON in this

motherboard are designed for power user to use the over-clocking function in more

flexible ways. But please be caution that the over-clocking maybe causes the fails in

system reliabilities. This motherboard provides the guaranteed performance and

meets the demands of the next generation computing. But if you insist to gain more

system performance with variety possibilities of the components you choose, please

be careful and make sure to read the detailed descriptions of these value added

product features, please get them in the coming section.

1-1.1 Special Features of Motherboard

CPU Thermal Throttling Technology---(The CPU Overheat Protection

Technology)

To prevent the increasing heat from damage of CPU or accidental shutdown while at

high workload, the CPU Thermal Throttling Technology will force CPU to enter

partially idle mode from 87.5% to 12.5% according to preset CPU operating

temperature in BIOS (from 40℃to 90℃). When the system senses the CPU

operating temperature reaching the preset value, the CPU operating bandwidth will be

decreased to the preset idle percentage to cool down the processor. When at

throttling mode the beeper sound can be optionally selected to indicate it is in working.

CPU Vcore 7-Shift--- (Shift to Higher Performance)

The CPU voltage can be adjusted up by 7 steps for the precisely over-clocking of

extra demanding computing performance.

Solid Capacitors ---（High-polymer Solid Electrolysis Aluminum Capacitors）

The working temperature is from 55 degrees Centigrade below zero to 125 degrees

Centigrade, Solid capacitors possess superior physical characteristics that can be

while reducing the working temperature between 20 degrees Centigrade each time,

intact extension 10 times of effective product operation lives, at not rising degrees

Centigrade of working temperatures each time a relative one, life of product decline

10% only too.

1-2 Specification

Spec Description

Design zMicro ATX form factor 4 layers PCB size: 24.5*18cm

Chipset zIntel G41 Memory Controller Hub (MCH) Chipset

zIntel 82801GB I/O Controller Hub (ICH7) Chipset

CPU Socket

(LGA775 )

zSupports the innovative 65nm and 90nm Intel® Pentium® Dual Core

Processor，Intel® Core 2 Quad, Intel® Core 2 Duo® (Code Name:

Conroe) Processor with Intel® Hyper-Threading Technology and

fully supports the future 45nm processors. Suggest the power of the

CPU should below 65w

zSupport FSB Frequency 1333 / 1066 / 800MHz

Memory Socket

z240-pin DDR2 RAM module socket x 2 for MI5-G41SGMD2-LF

zMI5-G41SGMD2-LF supports dual-channel DDR2 667 /DDR2

800MHz RAM Module expandable to 8GB.

z240-pin DDR3 RAM module socket x 2 for MI5-G41SGMD3-LF

zMI5-G41SGMD3-LF supports dual-channel DDR3 800

/DDR31066MHz RAM Module expandable to 8GB.

Expansion Slots zPCI-Express x16 slot 1pcs.

zPCI-Express x1 slot 1pcs

z32-bit PCI slot 2pcs

Integrate IDE and

Serial ATA2

zOne PCI IDE controller that supports PCI Bus Mastering, ATA

PIO/DMA and the ULTRA DMA 33/66/100 functions that deliver the

data transfer rate up to 100 MB/s; four Serial ATA2 ports each

provides 3.0 Gb /sec data transfer rate.

Integrated VGA zIntegrated Graphic Media Accelerator 4500

LAN

zIntegrated PCI-E 10/100 LAN chip

zSupport Fast Ethernet LAN function of providing 10Mb / 100Mb

data transfer rate

HD Audio

zRealtek ALC662 Azalia 6-channel Audio Codec integrated

zAudio driver and utility included

BIOS zAMI 8MB DIP Flash ROM

Multi I/O

zPS/2 keyboard and PS/2 mouse connectors

zFloppy disk drive connector x1

zParallel header x1 / Serial port x1

zD-Sub 15-pin VGA Conn.

zUSB 2.0 connector x 4, headers x2

zHDMI-SPDIF header x1

zSATA Connector x4

zRJ45 LAN connector x1

zAudio connector x1 (Line-in, Line-out, MIC)

1-3 Item Checklist

5Intel G41 Platform Processor Chipset based motherboard

5DVD for motherboard utilities

5Hard disk cable

5User’s Manual

5Back panel

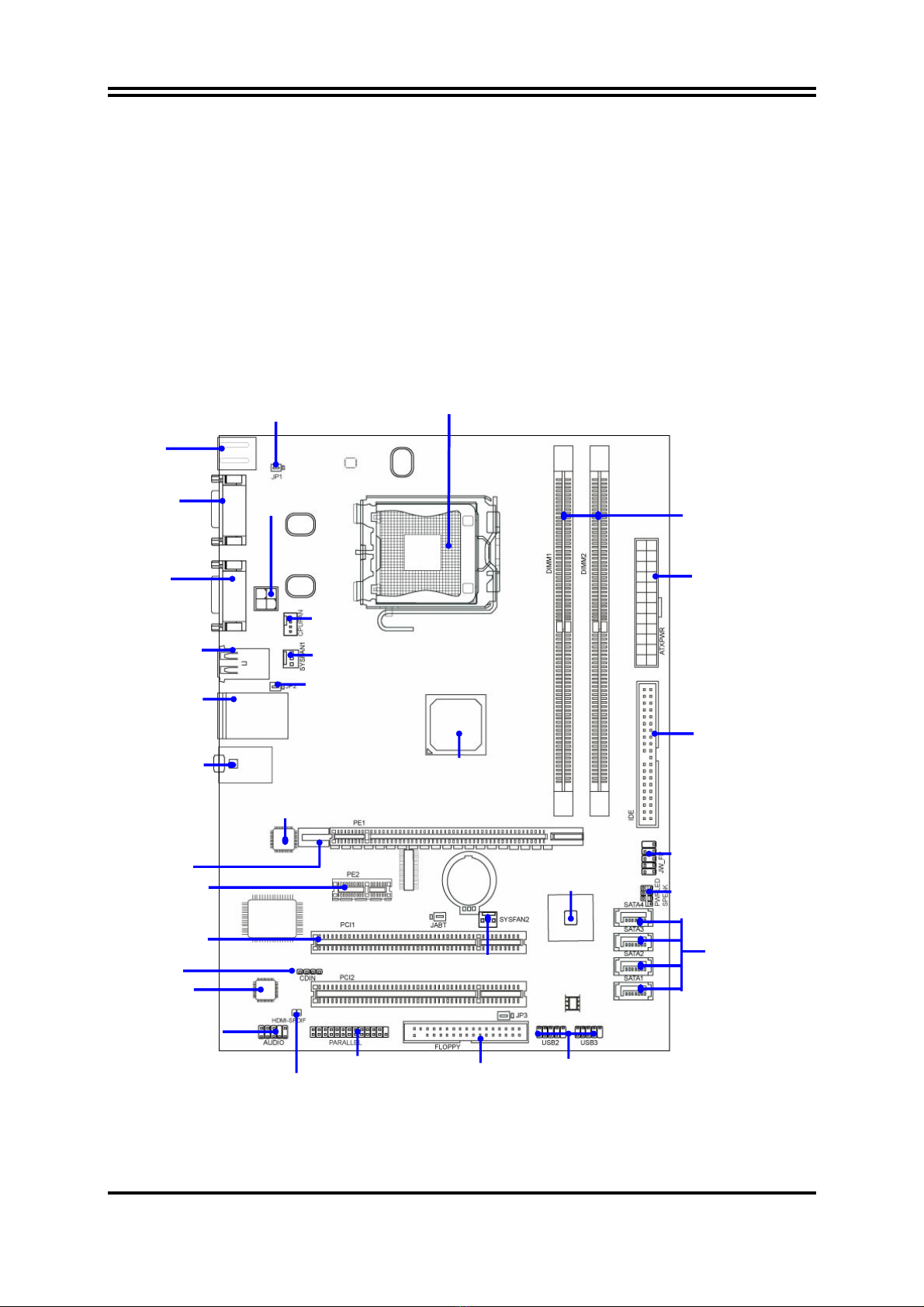

1-4 Layout Diagram

Diagram is for MI5-G41SGMD2-LF

ATX 12V Power

Connector

Front Panel Header

ATX Power

Connector

CPU Socket mPGA775

Intel 82801GB

ICH Chipset Power Led &

Speaker Header

DDR2

DIMMx2

ALC662 HD

Audio Codec

32-bit PCI Slot

COM

B／MS Power ON

Jumper (JP1)

USB Port

6-CH

Audio Connector

SYSFAN1

Front Panel Audio

Megabit LAN Chip

IDE Connector

Serial-ATA2

Connector

(SATA1, 2, 3, 4)

CPU FAN

PCI Express x1

VGA

RJ45 Ove

USB Port

PCI Express x16

CD Audio In

Floppy Connector

Intel G41Express

Chipset

SYS FAN2

Parallel Header

USB Power ON Jumper

(JP2)

PS2 KB/Mouse

Port

USB Connector

HDMI-SPDIF Header

Diagram is for MI5-G41SGMD3-LF

ATX 12V Power

Connector

Front Panel

Header

ATX Power

Connector

CPU Socket mPGA775

Intel 82801GB

ICH Chipset

Power Led &

Speaker Header

DDR3

DIMMx2

ALC662

HD Audio Codec

32-bit PCI Slot

COM

B／MS Power ON

Jumper (JP1)

USB Port SYSFAN1

Front Panel Audio

Megabit LAN Chip

IDE Connector

Serial-ATA2

Connector

(SATA1, 2, 3, 4)

CPU FAN

PCI Express x1

VGA

RJ45 Ove

USB Port

PCI Express x16

CD Audio In

Floppy Connector

Intel G41Express

Chipset

SYS FAN2

Parallel Header

USB Power ON Jumper (JP2)

PS2 KB/Mouse

Port

USB Header

HDMI-SPDIF Header

6-CH

Audio Connector

Chapter 2

Hardware Installation

2-1 Install LGA 775 Supported Intel Processor

This motherboard provides a 775-pin surface mount, LGA775 Land Grid Array socket,

referred to as the LGA775 socket supports Intel Pentium Dual Core processor in the

775 Pin package utilizes Flip-Chip Land Grid Array (FC-LGA) package technology.

The CPU that comes with the motherboard should have a cooling FAN attached to

prevent overheating. If this is not the case, then purchase a correct cooling FAN

before you turn on your system.

WARNING! 1.Be sure that there is sufficient air circulation across the processor’s

heatsink and CPU cooling FAN is working correctly, otherwise it may

cause the processor and motherboard overheat and damage, you

may install an auxiliary cooling FAN, if necessary.

. Suggest the power of CPU should below 65w.

To install a CPU, first turn off your system and remove its cover. Locate the LGA775

socket and open it by first pulling the level sideways away from the socket then

upward to a 90-degree angle. Insert the CPU with the correct orientation as shown

below. The notched corner should point toward the end of the level. Because the CPU

has a corner pin for two of the four corners, the CPU will only fit in the orientation as

shown.

CPU LGA775 Socket

Colden Arrow

LGA775

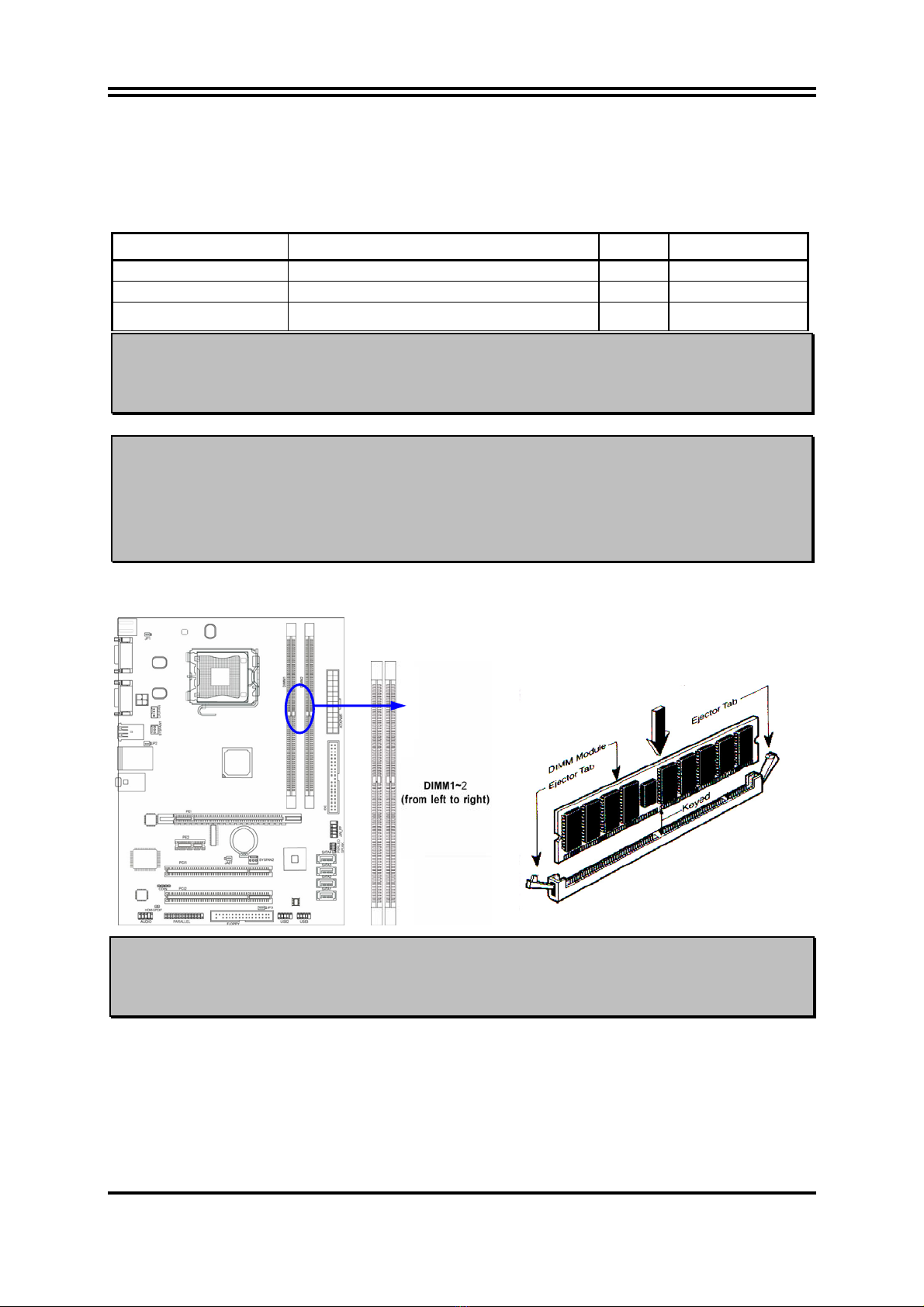

2-2 Install Memory

Model MI5-G41SGMD2-LF provides two 240-pin DDR2 DUAL INLINE MEMORY

MODULES (DIMM) socket for DDR2 memory expansion to maximum memory

volume of 8GB DDR2 SDRAM.

Valid Memory Configuration for MI5-G41SGMD2-LF

Bank 240-Pin DIMM PCS Total Memory

Bank 0, 1 (DIMM1) DDR2 667/ 800 X1 4GB

Bank 2, 3 (DIMM2) DDR2 667/ 800 X1 4GB

Total Memory (Max.4GB)

2 8GB

Model MI5-G41SGMD3-LF provides two 240-pin DDR3 DUAL INLINE MEMORY

MODULES (DIMM) socket for DDR3 memory expansion to maximum memory

volume of 8GB DDR3 SDRAM.

Valid Memory Configuration for MI5-G41SGMD3-LF

Bank 240-Pin DIMM PCS Total Memory

Bank 0, 1 (DIMM1) DDR3 800/ DDR3 1066 X1 4GB

Bank 2, 3 (DIMM2) DDR3 800/ DDR3 1066 X1 4GB

Total Memory (Max.4GB)

2 8GB

Recommend DIMM Module Combination

1. One DIMM Module ----Plug in DIMM1

2. Two DIMM Modules---Plug in DIMM1 and DIMM2 for Dual channel function

For Dual channel Limited!

1. Dual channel function only supports when 2 DIMM Modules plug in either both DIMM1

& DIMM2

2. DIMM1 & DIMM2 must be the same type, same size, and same frequency for dual

channel function.

Install memory modules to your motherboard is not difficult, you can refer to figure

below to see how to install a memory module.

NOTE! When you install DIMM module fully into the DIMM socket the eject

tab should be locked into the DIMM module very firmly and fit into its

indention on both sides.

Autres manuels pour G41 Express Chipset

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Intel Carte mère

Intel

Intel DB75EN Manuel utilisateur

Intel

Intel BOXD850EMD2L - 850E 478PIN MAX-2GB UATX 3PCI Manuel utilisateur

Intel

Intel DX48BT2 - Desktop Board Extreme Series... Manuel utilisateur

Intel

Intel D955XBK Manuel utilisateur

Intel

Intel Edison Instructions d'installation

Intel

Intel BLKDG41WV Guide de configuration

Intel

Intel DH57DD Manuel utilisateur

Intel

Intel DP55WG - Media Series P55 ATX Core i7 i5 LGA1156 Desktop... Manuel technique

Intel

Intel BOXD2700DC Manuel utilisateur

Intel

Intel DG33TL Manuel utilisateur

Intel

Intel BLKDH55PJ Manuel utilisateur

Intel

Intel DP43BF Guide de référence

Intel

Intel DH61ZE Manuel utilisateur

Intel

Intel DH77KC Manuel utilisateur

Intel

Intel Cougar Canyon 2 Instructions de montage

Intel

Intel D865PCD Guide de configuration

Intel

Intel DH55TC Manuel utilisateur

Intel

Intel D915GVWB Manuel utilisateur

Intel

Intel D945GCLF2D - Desktop Board With Integrated Atom Processor... Manuel utilisateur

Intel

Intel BLKDH61WWB3 Manuel utilisateur

Intel

Intel i915GL Manuel utilisateur

Intel

Intel BOXDX79SR Manuel utilisateur

Intel

Intel BOXDH61ZE Manuel utilisateur

Intel

Intel DZ68DB Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
