Intel®Desktop Board

D845GVAD2

Quick Reference

This guide is written for technically qualified personnel with experience

installing and configuring desktop boards.

Before You Begin

Warning and Caution .......................................................................... 3

Safety and Regulatory Notice ............................................................. 3

Desktop Board Components ....................................................... 4

Supported Components................................................................. 5

Installation Steps

1Installing the I/O Shield ................................................................ 7

2Installing the Desktop Board......................................................... 7

3Installing the Processor ................................................................. 8

4Installing the Memory Modules .................................................... 8

5Connecting the Fans...................................................................... 9

6Attaching the IDE Drives............................................................. 10

Using the BIOS Setup Program................................................. 10

Setting the BIOS Configuration Jumper Block................. 11

Troubleshooting Tips ..................................................................... 12

Customer Support Links............................................................... 12

Items on the Intel®Express Installer CD-ROM

• Product warranty

• Intel Express Installer

• Intel®Desktop Board D845GVAD2 Product Guide

• Software utilities and drivers

• Software license agreement

• Readme file

2Intel Desktop Board D845GVAD2

Quick Reference

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH

INTEL®PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL

OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED

BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND

CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO

LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR

IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL

PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO

FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR

INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL

PROPERTY RIGHT. INTEL PRODUCTS ARE NOT INTENDED FOR USE IN

MEDICAL, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS. INTEL MAY

MAKE CHANGES TO SPECIFICATIONS AND PRODUCT DESCRIPTIONS AT

ANY TIME, WITHOUT NOTICE.

Desktop Board D845GVAD2 may contain design defects or errors known as

errata which may cause the product to deviate from published specifications.

Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest

specifications and before placing your product order.

Copies of documents which have an ordering number and are referenced in this

document, or other Intel literature, may be obtained from Intel Corporation by

going to the World Wide Web site at: http://www.intel.com or by calling

1-800-548-4725.

Intel, Celeron and Pentium are registered trademarks of Intel Corporation or its

subsidiaries in the United States and other countries.

†Other names and brands may be claimed as the property of others.

Intel Desktop Board D845GVAD2 3

Quick Reference

Before You Begin

Warning and Caution

WARNING

Disconnect the desktop board’s power supply from its AC power

source before you connect or disconnect cables, or install or remove

any board components. Failure to do this can result in personal

injury or equipment damage. Some circuitry on the desktop board

can continue to operate even though the front panel power switch

is off.

CAUTION

Electrostatic discharge (ESD) can damage desktop board components.

Install the board at an ESD-controlled workstation. If such a workstation

is not available, wear an antistatic wrist strap or touch the surface of the

antistatic package before handling the board.

CAUTION

Many of the midboard and front panel connectors provide operating

voltage (+5 V DC and +12 V DC, for example) to devices inside the

computer chassis, such as fans and internal peripherals. These

connectors are not overcurrent protected. Do not use these connectors

for powering devices external to the computer chassis. A fault in the load

presented by the external devices could cause damage to the computer,

the interconnecting cables, and the external devices themselves.

Safety and Regulatory Notice

See the Intel Desktop Board D845GVAD2 Product Guide for all applicable

regulatory compliance statements, product certification markings, and safety and

electromagnetic compatibility (EMC) standards and regulations this desktop

board is compliant with.

Replacement battery warning label provided: Place the label inside the chassis

in an easy-to-see location near the battery but not on the board itself.

Intended uses: This product was evaluated as information technology

equipment (ITE) for home or office use when installed into an appropriate

computer chassis. Other end uses or locations may require further evaluation.

4Intel Desktop Board D845GVAD2

Quick Reference

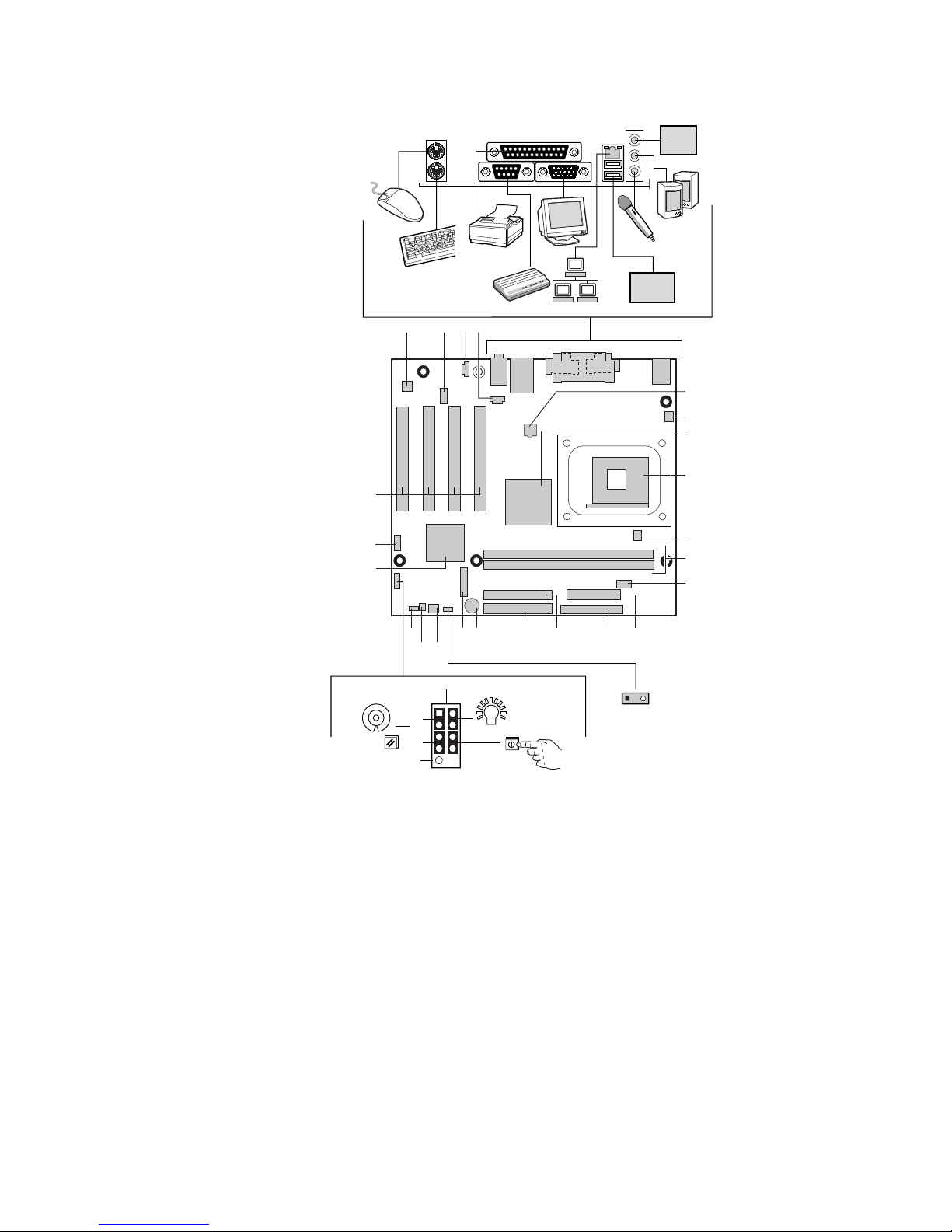

Desktop Board Components

OM14565

USB 2.0

Devices

Line

2-pin alternate

power/sleep LED

connector

Reset

HD LED

Power LED

No Connection

MNO

continued

Intel Desktop Board D845GVAD2 5

Quick Reference

Desktop Board Components (continued)

A Audio codec M Diskette drive connector

B Front panel audio connector

(optional)

N Secondary IDE connector

C Auxiliary line-in connector

(ATAPI)

O Primary IDE connector

D CD-ROM connector (ATAPI) P Speaker

E 12 V processor core voltage

connector

Q Battery

F Rear chassis fan connector R Front chassis fan connector

G Intel®Graphics Memory

Controller Hub (GMCH)

S Chassis intrusion connector

H Processor socket T BIOS configuration jumper

I Processor fan connector U Intel®I/O Controller Hub (ICH4)

J DIMM sockets V Front panel USB 2.0 connector

K Serial port B connector W PCI bus add-in card connectors

L Power connector

CAUTION

Failure to use an ATX12V or SFX-12V power supply, or not connecting

the additional power supply lead to the Desktop Board D845GVAD2 may

result in damage to the desktop board and/or power supply.

For more information on the ATX12V and SFX -12V power supply, refer to

the Intel Desktop Board D845GVAD2 Product Guide on the Intel Express

Installer CD-ROM.

Supported Components

Processors

The Desktop Board D845GVAD2 supports the following processors:

Type

Designation

Front Side Bus

Frequency

L2 Cache

2.8, 2.66, 2.53,

2.4B, and 2.26 GHz

533 MHz 512 KBIntel®Pentium®4 processor on

.13 micron process in an

mPGA478 package 2.6, 2.5, 2.40, 2.20,

2A, 1.80A, and

1.60A GHz

400 MHz 512 KB

Intel Pentium 4 processor

on .18 micron process in an

mPGA478 package

2, 1.90, 1.80, 1.70,

1.60, 1.50, and

1.4 GHz

400 MHz 256 KB

Intel®Celeron®processor in an

mPGA478 package

1.8 and 1.7 GHz 400 MHz 128 KB

6Intel Desktop Board D845GVAD2

Quick Reference

For the latest information on processors supported by the Desktop Board

D845GVAD2, refer to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop

Memory Module Requirements

Desktop Board D845GVAD2 supports system memory as defined below:

• Two 184-pin DIMMs

• 2.5 V, 266 MHz or 200 MHz DDR SDRAM interface

• Memory configurations up to 2 GB using 512 Mbit technology

• Serial Presence Detect (SPD)

• Suspend to RAM (STR)

• Non-ECC RAM (registered memory is not supported)

• Unbuffered and non registered single or double-sided DIMMs

The desktop board supports Serial Presence Detect (SPD), suspend to RAM

(STR), and unbuffered, non-ECC RAM (registered memory is not supported).

✏NOTES

The Desktop Board D845GVAD2 has been designed to support DIMMs

based on 512 Mbit technology up to 2 GB, but this technology has not

been validated on this board.

All memory components and DIMMs used with the desktop board must

comply with the PC SDRAM specifications. These include the PC

SDRAM Specification (memory component specific), the PC Unbuffered

DIMM Specification. To view or download these specifications, refer to

this Intel World Wide Web site:

http://www.intel.com/technology/memory/pcsdram/

For information about vendors that support these memory requirements,

refer to the Desktop Board D845GVAD2 link on this Intel World Wide Web

site:

http://support.intel.com/support/motherboards/desktop/

Intel Desktop Board D845GVAD2 7

Quick Reference

Installation Steps

1 Installing the I/O Shield

The desktop board comes with an I/O shield. When installed in the chassis, the

shield blocks radio frequency transmissions, necessary to pass emissions (EMI)

certification testing, protects internal components from dust and foreign objects,

and promotes correct airflow within the chassis.

Install the I/O shield before installing the desktop board in the chassis. Place the

shield inside the chassis as shown in the following figure. Press the shield into

place so that it fits tightly and securely. If the shield doesn’t fit, obtain a

properly-sized shield from the chassis supplier.

OM13621

2 Installing the Desktop Board

CAUTION

Failure to use an ATX12V or SFX-12V power supply, or not connecting

the additional power supply lead to the Desktop Board D845GVAD2 may

result in damage to the desktop board and/or power supply.

For more information on the ATX12V and SFX-12V power supply, refer to

the Intel Desktop Board D845GVAD2 Product Guide on the Intel Express

Installer CD-ROM.

Refer to your chassis manual for specific instructions on installing and removing

the desktop board. Secure the desktop board to the chassis standoffs using the

screws.

Desktop Board D845GVAD2 is secured to the chassis with six screws. Refer to

the illustration on page 4 for the location of the mounting holes.

8Intel Desktop Board D845GVAD2

Quick Reference

3 Installing the Processor

To install the processor, follow these steps:

1. Observe the precautions in “Before You Begin”on page 3.

2. Lift the processor socket lever.

3. Install the processor so that the corner with the triangle marking (A) is

aligned with the corner where the lever is attached to the socket.

4. Lower the lever back to its original position.

OM12078

mPGA478B

5. The desktop board comes with an integrated processor heat sink retention

mechanism (RM). For instructions on how to install the processor fan heat

sink, refer to the boxed processor manual or the Intel customer support

World Wide Web site:

http://support.intel.com/support/processors/pentium4/intnotes478.htm

4 Installing the Memory Modules

CAUTION

Install memory in the DIMM sockets prior to installing a video card in PCI

slot 1 to avoid interference with the memory retention mechanism.

The two DIMM sockets on Desktop Board D845GVAD2 are arranged as

DIMM 0 and DIMM 1, as shown in the figure below. If installing a single

DIMM, install it in DIMM 0.

To install DIMMs, follow these steps:

1. Observe the precautions in “Before You Begin”on page 3.

2. Remove the PCI card from PCI slot 1 if it interferes with the DIMM clips

from being easily opened and closed.

3. Align the small notch in the bottom edge of the DIMM with the key in the

socket.

4. When the DIMM is inserted, push down on the top edge of the DIMM until

the retaining clips snap into place. Make sure the clips are firmly in place.

Intel Desktop Board D845GVAD2 9

Quick Reference

The figure below shows how to install DDR SDRAM DIMMs.

OM13685

5 Connecting the Fans

The following figure shows the location of the fan connectors. Connect the

processor’s fan heat sink cable to the processor fan connector on the board.

Connect the chassis fan cables to the board connectors as shown in the following

figure.

OM14566

Chassis Rear

Fan

Processor

Fan

Chassis Front

Fan

J2F1

J1B1

J8H2

10 Intel Desktop Board D845GVAD2

Quick Reference

6 Attaching the IDE Drives

The Intel®boxed desktop board package includes an IDE cable. The cable can

connect two drives to the desktop board. The cable supports the ATA-66/100

(40-contact, 80-conductor) transfer protocol and is backward compatible with

drives using slower IDE transfer protocols.

The cable will work correctly only when oriented as shown in the following

figure. For correct cable function:

1. Observe the precautions in “Before You Begin”on page 3.

2. Attach the cable end with the single connector (A) to the desktop board.

3. Attach the cable end with the two closely spaced connectors (B) to the

drives.

OM14567

J9H2

Using the BIOS Setup Program

The BIOS Setup program can be used to view and change the BIOS settings for

the computer. The BIOS Setup program is accessed by pressing the <F2> key

after the Power-On Self-Test (POST) memory test begins and before the

operating system boot begins.

Table des matières

Langues :

Autres manuels Intel Carte mère

Intel

Intel D201GLY - Desktop Board Motherboard Manuel utilisateur

Intel

Intel DG965MQ Manuel utilisateur

Intel

Intel BLKDX79TO Manuel utilisateur

Intel

Intel P31 Manuel utilisateur

Intel

Intel D850GB Manuel utilisateur

Intel

Intel DH61AGL Manuel utilisateur

Intel

Intel BOXD845GVSR Manuel utilisateur

Intel

Intel BLKD510MO Guide de configuration

Intel

Intel BOXDG43GT Manuel utilisateur

Intel

Intel DZ77GA-70K Manuel utilisateur

Intel

Intel D815EGEWLU - P3 Socket 370 MicroATX... Manuel utilisateur

Intel

Intel DZ87KLT-75K Manuel utilisateur

Intel

Intel D945GCL Manuel utilisateur

Intel

Intel G31 EXPRESS CHIPSET SPECIFICAT Manuel utilisateur

Intel

Intel DQ35MP Manuel utilisateur

Intel

Intel S1200BTL Manuel utilisateur

Intel

Intel D975XBX2 - Desktop Board Motherboard Manuel utilisateur

Intel

Intel R1000 Manuel utilisateur

Intel

Intel DZ68DB Manuel utilisateur

Intel

Intel DQ67OW Manuel utilisateur

Intel

Intel DP55WB - Media Series P55 micro-ATX Core i7 i5 LGA1156 Desktop... Manuel utilisateur

Intel

Intel D845GVSR - Desktop Board Motherboard Manuel utilisateur

Intel

Intel Desktop Board D915PSY Manuel utilisateur

Intel

Intel PMB-601LF Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
