Intel NUC8i7BEH Manuel utilisateur

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH

Intel® NUC Kit NUC8i7BEH

Intel® NUC Kit NUC8i5BEH

Intel® NUC Kit NUC8i5BEHS

Intel® NUC Kit NUC8i3BEH

Intel® NUC Kit NUC8i3BEHS

User Guide

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH

Before You Begin

CAUTIONS

The steps in this guide assume you’re familiar with computer terminology and with the safety

practices and regulatory compliance required for using and modifying computer equipment.

Disconnect the computer from its power source and from any network before performing any of the steps

described in this guide.

Failure to disconnect power, telecommunications links, or networks before you open the computer or

perform any procedures can result in personal injury or equipment damage. Some circuitry on the board

can continue to operate even though the front panel power button is off.

Follow these guidelines before you begin:

•Always follow the steps in each procedure in the correct order.

•Create a log to record information about your computer, such as model, serial numbers,

installed options, and configuration information.

•Electrostatic discharge (ESD) can damage components. Perform the procedures described in

this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam

pad. If such a station isn’t available, you can provide some ESD protection by wearing an

antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation

instructions.

To avoid injury, be careful of:

•Sharp pins on connectors

•Sharp pins on circuit boards

•Rough edges and sharp corners on the chassis

•Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

•Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified

technical personnel.

Observe Safety and Regulatory Requirements

If you don’t follow these instructions, you increase your safety risk and the possibility of noncompliance

with regional laws and regulations.

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH

This guide tells you how to:

•

Install and remove memory

•

Install an M.2 SSD

•

Install a 2.5” drive

•

Install a VESA mount bracket

•

Connect power

•

Install an operating system

•

Install the latest device drivers and software

Open the Chassis

To open the Intel NUC chassis, follow these steps:

1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH

Installing and Removing Memory

Intel NUC Kits NUC8i7BEH, NUC8i5BEH, and NUC8i3BEH have two 260-pin DDR4 SO-DIMM sockets. Be

sure to select memory modules that meet these requirements:

•1.2V low voltage memory

•2400 MHz SO-DIMMs

•Non-ECC

Find compatible memory modules in the Intel Product Compatibility Tool

•NUC8i7BEH

•NUC8i5BEH

•NUC8i3BEH

NOTE

If you plan to install only one memory module, install it in the lower memory

socket.

To install memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and

disconnect the power cord.

3. Remove the computer’s bottom chassis cover.

4. Align the small space at the bottom edge of the memory module with the key in the socket.

5. Insert the bottom edge of the module at a 45 degree angle into the socket (A).

6. When the module is inserted, push down on the outer edge of module until the retaining

clips snap into place (B). Make sure the clips are firmly in place (C).

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH

To remove a SO-DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect

the power cord.

3. Remove the computer’s bottom chassis cover.

4. Gently spread the retaining clips at each end of the memory socket, which causes the module to

pop out of the socket (C).

5. Holding the module by the edges, lift it away from the socket, and store it in an anti-static package.

6. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.

7. Replace the computer’s cover and reconnect the power cord.

Install an M.2 SSD or Intel® Optane™ Memory Module

The Intel NUC Kits NUC8i7BEH, NUC8i5BEH, and NUC8i3BEH support an 80mm or 42mm SSD.

Find compatible M.2 SSDs in the Intel Product Compatibility Tool

•NUC8i7BEH

•NUC8i5BEH

•NUC8i3BEH

NOTE

Before changing the Intel Optane memory module, it needs to be disabled. Follow Removing

Intel Optane Memory on this page first, before taking the module out.

To Change an M.2 SSD:

1. Remove the small silver screw from the 80mm or 42mm metal standoff on the board (A).

2. Remove the pre-installed SSD/Intel Optane Memory from the connector.

3. Align the space at the bottom of the new M.2 SSD to the key on the connector.

4. Insert the bottom edge of the M.2 SSD into the connector (B).

5. Secure the card to the standoff with the small silver screw (C).

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH

Install a 2.5” SSD or Hard Drive

The Intel NUC Kits NUC8i7BEH, NUC8i5BEH, and NUC8i3BEH support an additional 2.5” Solid State Drive

(SSD) or Hard Disk Drive (HDD).

Find compatible 2.5” drives in the Intel Product Compatibility Tool:

•NUC8i7BEH

•NUC8i5BEH

•NUC8i3BEH

1. Slide the new 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the

connectors of the SATA daughter card (A).

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH

2. Secure the drive into the drive bay with the two small silver screws that were included in the box (B).

Set the drive bay bracket down inside the chassis (C).

Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by

hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

1. Using the four small black screws that were included in the box, attach the VESA bracket to the

back of the monitor or TV.

2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

3. Slide the Intel NUC onto the VESA mount bracket.

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH

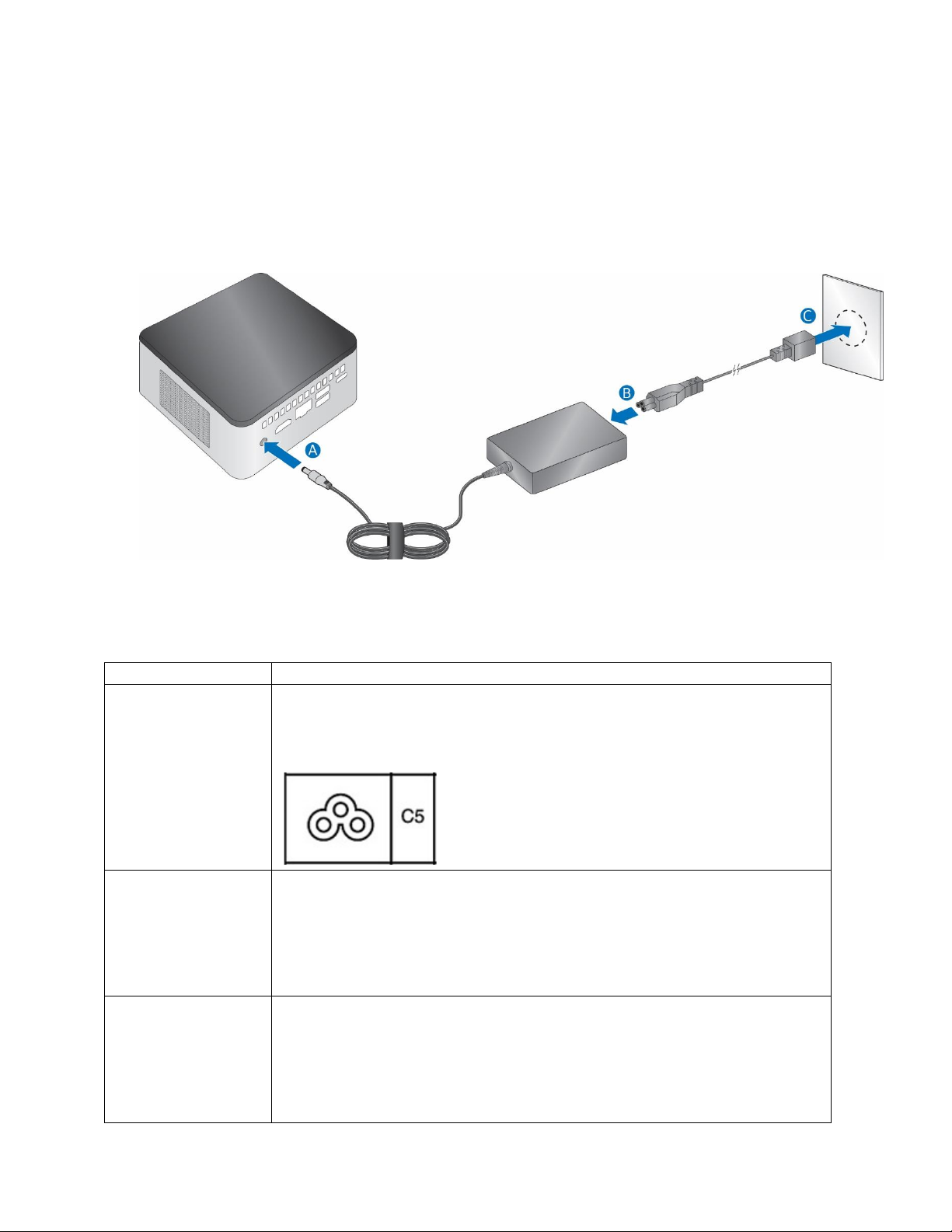

Connect Power

Country-specific power cords are included in the Intel NUC Kit box.

Connect AC power

Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power

adapter).

Product codes

Power cord type

BOXNUC8i7BEH

BOXNUC8i5BEH

BOXNUC8i5BEHS

BOXNUC8i3BEH

BOXNUC8i3BEHS

No power cord included. An AC power cord needs to be purchased

separately. Power cords are available at many Internet sites for use in

multiple countries. The connector on the power adapter is a C5 type

connector.

BOXNUC8i7BEH1

BOXNUC8i5BEH1

BOXNUC8i5BEHS1

BOXNUC8i3BEH1

BOXNUC8i3BEHS1

US power cord included.

BOXNUC8i7BEH2

BOXNUC8i5BEH2

BOXNUC8i5BEHS2

BOXNUC8i3BEH2

BOXNUC8i3BEHS2

EU power cord included.

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH

BOXNUC8i7BEH3

BOXNUC8i5BEH3

BOXNUC8i5BEHS3

BOXNUC8i3BEH3

BOXNUC8i3BEHS3

UK power cord included.

BOXNUC8i7BEH4

BOXNUC8i5BEH4

BOXNUC8i5BEHS4

BOXNUC8i3BEH4

BOXNUC8i3BEHS4

Australia/New Zealand power cord included.

Install an Operating System

Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems and

versions of Linux that have been reported as compatible by Intel NUC owners.

Refer to Operating System Installation for system requirements and installation steps.

Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

•Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers

•Manually download drivers, BIOS, and software from Download Center:

oNUC8i7BEH

oNUC8i5BEH

oNUC8i3BEH

The following device drivers and software are available.

•Intel® Chipset Device Software

•Intel® HD Graphics

•Intel® Management Engine

•Intel® Gigabit Ethernet

•Intel® Wireless

•Intel® Bluetooth

•Intel Serial I/O

•Thunderbolt™ Bus

•Realtek* High Definition Audio

•Realtek* Card Reader

•ITE Tech* Consumer Infrared

•Intel® Rapid Storage Technology

•Intel® Software Guard Extensions
