Intel NUC6i7KYK Manuel utilisateur

Intel NUC Kit NUC6i7KYK User Guide

Intel®

NUC Kit

NUC6i7KYK

User

Guide

Intel NUC Kit NUC6i7KYK User Guide

Before You Begin

CAUTIONS

The procedures in this user guide assume familiarity with the general terminology associated with

personal computers and with the safety practices and regulatory compliance required for using

and modifying electronic equipment.

Disconnect the computer from its power source and from any telecommunications link or network before

performing any of the procedures described in this guide. Failure to disconnect power,

telecommunications links, or networks before you open the computer or perform any procedures can

result in personal injury or equipment damage. Some circuitry on the board can continue to operate

even though the front panel power button is off.

Follow these guidelines before you begin:

Always follow the steps in each procedure in the correct order.

Set up a log to record information about your computer, such as model, serial numbers,

installed options, and configuration information.

Electrostatic discharge (ESD) can damage components. Perform the procedures described in

this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam

pad. If such a station is not available, you can provide some ESD protection by wearing an

antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation

instructions.

To avoid injury, be careful of:

Sharp pins on connectors

Sharp pins on circuit boards

Rough edges and sharp corners on the chassis

Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified

technical personnel.

Observe Safety and Regulatory Requirements

If you do not follow these instructions, you increase your safety risk and the possibility of

noncompliance with regional laws and regulations.

Intel NUC Kit NUC6i7KYK User Guide

This guide tells you how to:

•

Install and remove memory

•

Install an M.2 SSD

•

Install a VESA mount bracket

•

Connect power

•

Install an operating system

•

Install the latest drivers

Open the Intel NUC Chassis

To open the Intel NUC chassis, follow these steps:

1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.

Installing and Removing Memory

Intel NUC Kit NUC6i7KYK has two 260-pin DDR4 SO-DIMM sockets. Memory requirements:

1.2V/1.35V low voltage memory

2133 MHz SO-DIMMs

Non-ECC

For a list of tested memory, go to the System Memory page on the Support site:

Intel NUC Kit NUC6i7KYK User Guide

Install SO-DIMMs

If you plan to install just one SO-DIMM, install it in the lower memory socket.

To install the SO-DIMMs, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and

disconnect the AC power cord.

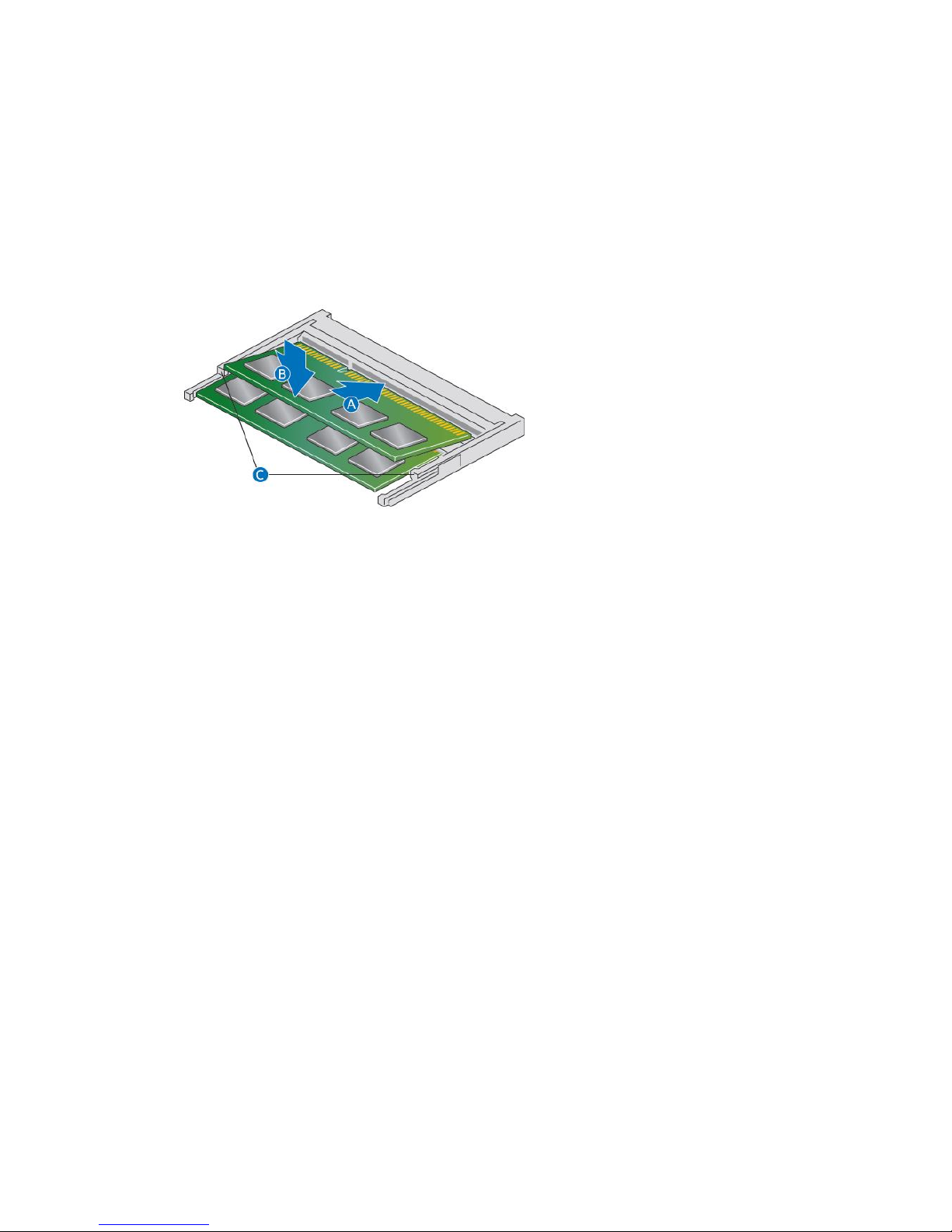

3. Align the small notch at the bottom edge of the SO-DIMM with the key in the socket.

4. Insert the bottom edge of the SO-DIMM into the socket.

5. When the SO-DIMM is inserted, push down on the outer edge of the SO-DIMM until the

retaining clips snap into place. Make sure the clips are firmly in place.

Removing SO-DIMMs

To remove a SO-DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer.

3. Remove the AC power cord from the computer.

4. Remove the computer’s cover.

5. Gently spread the retaining clips at each end of the SO-DIMM socket. The SO-DIMM pops out of

the socket.

6. Hold the SO-DIMM by the edges, lift it away from the socket, and store it in an anti-static

package.

7. Reinstall and reconnect any parts you removed or disconnected to reach the SO-DIMM sockets.

8. Replace the computer’s cover and reconnect the AC power cord.

Intel NUC Kit NUC6i7KYK User Guide

Install an M.2 SSD

Intel NUC Kit NUC6i7KYK has two M.2 slots, supporting 80mm and 42mm SSDs. For a list of tested M.2

SSDs, go to the Tested Peripherals page on the Support site.

Supported M.2 configurations are shown here.

If you are installing an 80mm M.2 SSD:

1. Remove the small silver screw from the 80mm metal standoff for one of the M.2 connectors on the

motherboard (A).

2. Align the small notch at the bottom edge of the M.2 card with the key in the connector.

3. Insert the bottom edge of the M.2 card into the connector (B).

4. Secure the card to the standoff with the small silver screw (C).

Intel NUC Kit NUC6i7KYK User Guide

If you are installing a 42mm M.2 SSD:

1. Remove the small silver screw from the metal standoff on the motherboard (A).

2. Move the standoff (B) from the 80mm position to the 42mm position (B).

3. Align the small notch at the bottom edge of the M.2 card with the key in the connector.

4. Insert the bottom edge of the M.2 card into the connector (C).

5. Secure the card to the standoff with the small silver screw (D).

Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by

hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

Intel NUC Kit NUC6i7KYK User Guide

Change the Intel NUC Lid (Optional)

Follow these instructions to replace the factory-installed skull lid with the one included in the box.

Remove the six screws on the top cover of the chassis using the 2mm hex key (Allen wrench) included in

the box and lift the cover.

Secure the alternate lid to the chassis with the six screws, using the hex key (Allen wrench).

Intel NUC Kit NUC6i7KYK User Guide

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

1. Using the four small black screws that were included in the box, attach the VESA bracket to the

back of the monitor or TV.

2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

Intel NUC Kit NUC6i7KYK User Guide

3. Slide the Intel NUC onto the VESA mount bracket.

Connect Power

Region-specific power cords are included in the Intel NUC Kit box.

1. Choose the power cord with plug type for your region.

Plug Type

Region

US –United States

EU –European

Union

UK –United

Kingdom

AUS –Australia

Product Code

BOXNUC6i7KYK1

BOXNUC6i7KYK2

BOXNUC6i7KYK3

BOXNUC6i7KYK4

Product code BOXNUC6i7KYK does not include a power cord. Compatible power cords are available at

many Internet sites for use in multiple countries. The connector on the cord is a C6 type that plugs into

the power adapter, which has a C5 type connector. The C6 plug type is also known as a cloverleaf

connector.

2. Connect the power cord to the power adapter.

Intel NUC Kit NUC6i7KYK User Guide

3. Connect the adapter to the 19V power jack on the back of the Intel NUC.

4. Connect to AC power.

Install an Operating System

Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well

as versions of Linux that have been reported as compatible by Intel NUC owners.

Refer to Operating System Installation for system requirements and installation steps.

Install Intel NUC Drivers

To download the latest Microsoft* Windows* drivers and BIOS updates, go to Download Center.

Drivers are available for the following features:

Audio

Bluetooth

Card Reader

Chipset

Consumer Infrared

Graphics

Intel® ME

Intel® Rapid Storage Technology

Intel® Ready Mode Technology

Intel® Software Guard Extensions

LAN (wired and wireless)

Thunderbolt

USB 3.0
