Document Number: 328076-001

Intel® Core™ i5-3610ME

Processor (PGA) and

Mobile Intel® QM77 Express

Chipset Development Kit

User Guide

November 2012

Introduction

Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express Chipset Development Kit

User Guide November 2012

2 Document Number: 328076-001

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED,

BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS

PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER

AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS

INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR

INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

A "Mission Critical Application" is any application in which failure of the Intel Product could result, directly or indirectly, in

personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION CRITICAL

APPLICATION, YOU SHALL INDEMNIFY AND HOLD INTEL AND ITS SUBSIDIARIES, SUBCONTRACTORS AND AFFILIATES, AND THE

DIRECTORS, OFFICERS, AND EMPLOYEES OF EACH, HARMLESS AGAINST ALL CLAIMS COSTS, DAMAGES, AND EXPENSES AND

REASONABLE ATTORNEYS' FEES ARISING OUT OF, DIRECTLY OR INDIRECTLY, ANY CLAIM OF PRODUCT LIABILITY, PERSONAL

INJURY, OR DEATH ARISING IN ANY WAY OUT OF SUCH MISSION CRITICAL APPLICATION, WHETHER OR NOT INTEL OR ITS

SUBCONTRACTOR WAS NEGLIGENT IN THE DESIGN, MANUFACTURE, OR WARNING OF THE INTEL PRODUCT OR ANY OF ITS

PARTS.

Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the

absence or characteristics of any features or instructions marked "reserved" or "undefined". Intel reserves these for future

definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The

information here is subject to change without notice. Do not finalize a design with this information.

The products described in this document may contain design defects or errors known as errata which may cause the product to

deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

Copies of documents which have an order number and are referenced in this document, or other Intel literature, may be obtained

by calling 1-800-548-4725, or go to: http://www.intel.com/design/literature.htm

Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and

other countries.

*Other names and brands may be claimed as the property of others.

Introduction

Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express Chipset Development Kit

November 2012 User Guide

Document Number: 328076-001 3

Contents

1Introduction ...................................................................................................... 6

1.1 Terminology ........................................................................................... 6

1.2 Reference Documents.............................................................................. 8

1.3 Development Kit Items ............................................................................ 8

2Features ........................................................................................................... 9

3Power management ..........................................................................................12

3.1 Power Management States ......................................................................12

4Reference Board Summary ................................................................................14

4.1 Connectors............................................................................................17

4.1.1 Back Panel Connectors ..............................................................17

4.1.2 Configuration Settings...............................................................17

4.1.3 Header Pinout Configuration.......................................................19

4.1.3.1 J3C2/J3C1- Dual Channel LVDS Data Connector ............20

4.1.3.2 Embedded Display Port (eDP) connector .......................21

4.1.3.3 Front Panel Status Indicating and Control Connector ......22

4.2 Power On and Reset Buttons ...................................................................23

Figures

Figure 1. Block Diagram................................................................................................... 9

Figure 2. Board Layout - Top view....................................................................................14

Figure 3. Board Layout –Bottom view ..............................................................................15

Figure 4. Back Panel Connectors ......................................................................................17

Tables

Table 1. Terminology...................................................................................................... 6

Table 2. Reference Documents ........................................................................................ 8

Table 3. Feature set summary ......................................................................................... 9

Table 4. Power Management States Description ................................................................12

Table 5. Development Kit states .....................................................................................12

Table 6. Components list ...............................................................................................16

Table 7. J1D3-Clear/Keep CMOS Setting ..........................................................................17

Table 8. J1D2-Clear/Keep ME Register Setting ..................................................................18

Table 9. J1B1-Flash descriptor security override ...............................................................18

Table 10. J1D1-Enable the Operating Voltage of LVDS and eDP ............................................18

Table 11. J4C1-Select LVDS panel Operating Voltage ..........................................................18

Table 12. J3F2-Select eDP panel Operating Voltage.............................................................18

Table 13. J2G1/J2G2/J2G3 USB Port .................................................................................19

Introduction

Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express Chipset Development Kit

User Guide November 2012

4 Document Number: 328076-001

Table 14. J2C1/J1C1Serial Port.........................................................................................19

Table 15. J2B1 GPIO Header ............................................................................................19

Table 16. J3B1- TPM Pin Header .......................................................................................20

Table 17. J4C2-LVDS Backlight Control Connector ..............................................................20

Table 18. J3C2 LVDS1 Connector ......................................................................................21

Table 19. J3C1 LVDS2 Connector ......................................................................................21

Table 20. J3F1 Embedded Display Port (eDP) Connector ......................................................22

Table 21. J1G3 Power Switch and HDD Indicator header......................................................22

Table 22. J1G1 Power Indicator Header .............................................................................23

Table 23. J1G2 Speaker Output Header .............................................................................23

Introduction

Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express Chipset Development Kit

November 2012 User Guide

Document Number: 328076-001 5

Revision History

Date

Revision

Description

November 2012

1.0

Initial release.

Introduction

Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express Chipset Development Kit

User Guide November 2012

6 Document Number: 328076-001

1Introduction

This User Guide describes the typical hardware set-up procedures, features, and use

of the Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express

Chipset Development Kit. Read this document in its entirety prior to powering ON. The

Quick Start document provides quick start procedures for reference. It is

recommended to have the schematics present as you proceed through this document.

The Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express

Chipset Development Kit is a dual channel DDR3 mobility platform. It is designed to

support the Ivy Bridge and Sandy Bridge processors and the Panther Point-M Chipset.

1.1 Terminology

Table 1. Terminology

Term

Description

ACPI

Advanced Configuration + Power Interface

AHCI

Advanced Host Controller Interface for Serial ATA

BCLK

FSB Clock used for CPU Clock domain (Eg: 167/200/266/333)

BIOS

Basic Input Output System

CMOS

Refers to the non-volatile configuration memory in the PCH

DDR3

Double Data Rate Synchronous Dynamic Random Access Memory third

generation

Display Port

DVI

Digital Visual Interface

eDP

Embedded Display Port

GND

Signal Ground

HDD

Hard disk drive

HDMI

High Definition Multimedia Interface

HSD

High Speed Database

IMVP-6

Intel Mobile Voltage Positioning 6

ITP-XDP

In-target-probe –eXtended debug port

Introduction

Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express Chipset Development Kit

November 2012 User Guide

Document Number: 328076-001 7

Term

Description

JTAG

Joint Test Action Group, IEEE 1149.1 standard for test access port and

boundary scan.

LVDS

Low-voltage Differential Signaling

Operating System

PCH

Platform Controller Hub

PCI

Peripheral Component Interface

PCIe

Peripheral Component Interface Express

POST

Power-On Self Test

PPT

Panther Point

PS2

Programming System 2 (IBM) defines keyboard and mouse interface

“Save to RAM” Sleep State

“Soft Off” Sleep State

SATA

Serial - Advanced Technology Attachment

SIO

Super Input Output device

SLP

Sleep

SMBUS

System Management Bus, a two wire serial bus used for low-

bandwidth communication

SO-DIMM

Memory Module

USB

Universal Serial Bus

VAC

Volt AC

VCC

Used to signify circuit logic voltage

VDC

Volt DC

VDD

Used to signify DIMM logic supply voltage

VGA

Video Graphics Array

VID

Voltage Identification

VREF

Voltage reference

VSS

Used to signify ground connection

VTT

Used to signify signal termination voltage

Introduction

Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express Chipset Development Kit

User Guide November 2012

8 Document Number: 328076-001

Term

Description

VTT

Voltage Transient Test tool

XDP

eXtended Debug Port (See ITP-XDP)

1.2 Reference Documents

Table 2. Reference Documents

Document

No./Location

Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express

Chipset Development Kit Quick Start Guide

328077

1.3 Development Kit Items

The development kits include these items.

Note: All kit items need to be specifically ordered

•Board

•Fanless Chassis

•2G DDR3 non ECC SO-DIMM memory

•150W power adaptor

•SATA + power cable (custom made)

•60G SSD Hard Disk

•Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express

Chipset Development Kit Quick Start

•DVD installer driver

Features

Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express Chipset Development Kit

November 2012 User Guide

Document Number: 328076-001 9

2Features

Figure 1. Block Diagram

Table 3. Feature set summary

Feature

Description

Implementation

Comments

Processor

Ivy Bridge-Mobile processor

supported in 989pin rPGA

package

Ci5 Ivy Bridge 2C CR i5-3610ME 2.7G 3M

Refdes on board: U5E1

Chipset

Panther Point- M

989-pin FCBGA Foot-Print;

Refdes on board: U3D1

Memory

2x DDR3 SODIMM non ECC

slots

Maximum capacity of 8GB using 4Gb

technology;

Minimum capacity of 256 MB using 512 Mb

technology;

Supports DDR3 frequency of up to 1600

MT/s with Ivy Bridge;

Refdes on Board: DIMM1, DIMM 2

Features

Intel® Core™ i5-3610ME Processor (PGA) and Mobile Intel® QM77 Express Chipset Development Kit

User Guide November 2012

10 Document Number: 328076-001

Feature

Description

Implementation

Comments

SIO

NCT6776F

Nuvoton LPC I/O;

Refdes on Board:U2D1

Video

1x 24-bit dual channel

LVDS Interface

There are 3 connectors on board:

2 LVDS 20pins data connector

Redfes on Board:J3C2, J3C1

1 LVDS backlight connector

Redfes on Board:J4C2

Embedded Display Port

(eDP)

x4 eDP (18bit, single channel) from CPU

connected to onboard eDP connector

Redfes on Board:J3F1

Display Port

Connect from chipset Port B to DP

connector

Redfes on Board:J3A2

HDMI

Connect from chipset Port C to HDMI

connector

Redfes on Board:J4A1

DVI-D

Connect from chipset Port D to DVI-D

connector

Refdes on board: J6A1

SDVO

N/A in this Development Kit

CRT

On Board right-angled CRT Connector

Refdes on board: J6A1

PCI Express

8x PCIe lanes from Panther

Point

PCI Express 2.0 Compliance, 2.5GT/s

PCIe1-4 to PCIe x4 slot

Refdes on board: J1B2

PCIe5, PCIe 6 to 2 PCIe x1 slot (optional)

Refdes on board: J1F2, J1A1

PCIe7 to WLAN mini PCIe

Refdes on board: J6R1

PCIe8 to 82579 (Lewisville) LAN

On-Board LAN

82579 (Lewisville) PHY

supported

Refdes on board: U2C1

BIOS (SPI)

SPI flash devices

Support for multi-vendor SPI;

2x 4MB SOIC-8 parts provided on board.

Refdes on board: U2E4, U2E3

Support multi package (SOIC-8 & SOIC-16)

(optional)

Refdes on board: U2E2, U2E1

SATA

2x SATA III Ports

SATA connector with 4 pin power header on

board

SATA III connector

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Intel Matériel informatique

Intel

Intel SBFCM Manuel utilisateur

Intel

Intel I5 3570K Manuel utilisateur

Intel

Intel Motherboard Raptor AT Manuel utilisateur

Intel

Intel PXA270 Manuel utilisateur

Intel

Intel Pentium 4 mPGA478 Manuel utilisateur

Intel

Intel ETHEREXPRESS PRO/100 Manuel utilisateur

Intel

Intel RMFBU4 Manuel utilisateur

Intel

Intel SC5300AF2 - Server Platform - 0 MB RAM Manuel utilisateur

Intel

Intel BX80571E5300 - Pentium 2.6 GHz Processor Manuel utilisateur

Intel

Intel AXXRMS2LL040 Manuel d'installation

Intel

Intel NUC6i7KYK Manuel utilisateur

Intel

Intel Atom E3900 SoC Series Manuel utilisateur

Intel

Intel 925 - Pentium D 925 3.0GHz 800MHz 4MB-Cache Socket 775... Manuel utilisateur

Intel

Intel 12Gb/s Manuel utilisateur

Intel

Intel Embedded Intel486 Guide rapide de l'utilisateur

Intel

Intel VROC Manuel utilisateur

Intel

Intel 80C186EC Manuel utilisateur

Intel

Intel 80960KB Manuel utilisateur

Intel

Intel 80960HA Manuel utilisateur

Intel

Intel AXXRMS2AF080 Manuel d'installation

Intel

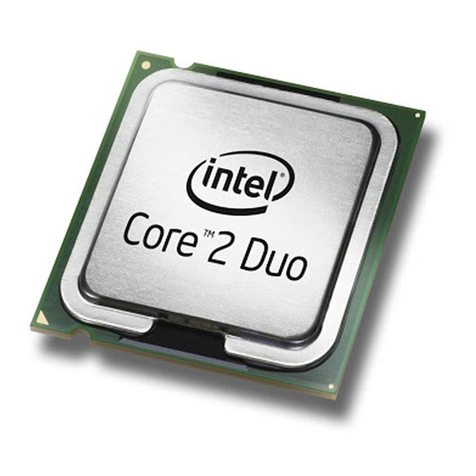

Intel Intel CoreTM 2 Duo Processor Manuel utilisateur

Intel

Intel BX80570E8200 - Core 2 Duo 2.66 GHz Processor Mode d’emploi

Intel

Intel SRCS28X - RAID Controller Manuel utilisateur

Intel

Intel MFS5000SI - Multi-Flex Server Compute Module Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur

Jupiter

Jupiter RAM PACK Manuel utilisateur
